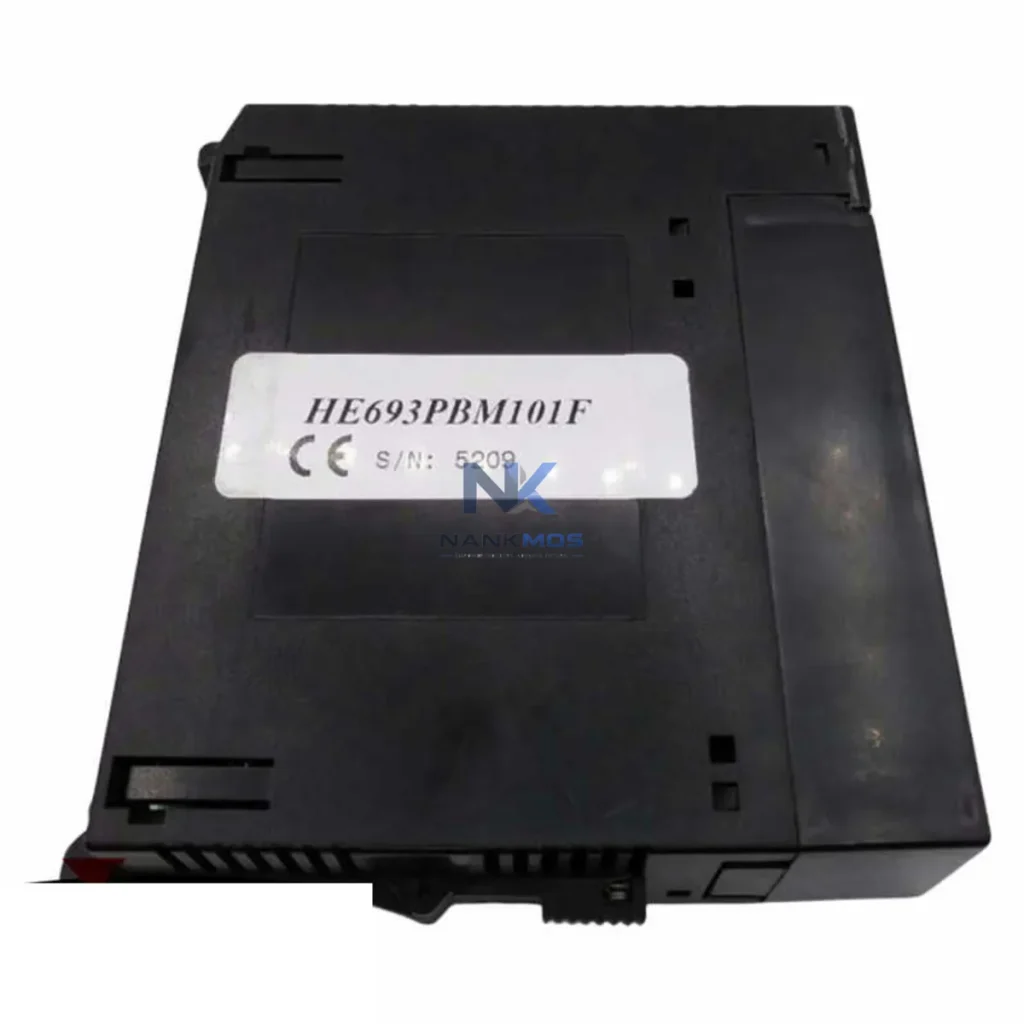

GE GE HE693PBM101F Module Communication Gateway

Product Details

GE HE693PBM101F Module Product Description

The GE HE693PBM101F is a PROFIBUS-DP Master Communication Gateway engineered for GE Series 90-30 PLC platforms, delivering seamless industrial network integration across field devices, distributed I/O nodes, HMI systems, SCADA platforms, and upper-level MES/ERP architectures. Designed for demanding manufacturing environments, this module bridges the gap between legacy control infrastructure and modern smart factory data pipelines — enabling real-time signal acquisition, protocol-transparent communication, and continuous remote diagnostics without disrupting existing automation topologies.

In smart factory deployments, data integrity and network determinism are non-negotiable. The HE693PBM101F addresses both by acting as the PROFIBUS-DP master node within the Series 90-30 rack, orchestrating cyclic data exchange with up to 125 slave devices — including variable frequency drives, remote I/O modules, intelligent sensors, servo controllers, and distributed field terminals. Every scan cycle, the gateway collects process values, device status flags, and diagnostic telegrams, forwarding structured data to the CPU module for ladder logic processing and upstream SCADA visualization.

In a fully connected smart factory, the HE693PBM101F serves as the network backbone between the GE Series 90-30 CPU — such as the IC693CPU374 or IC693CPU364 — and the distributed field layer. At the field level, PROFIBUS-DP slaves such as Siemens ET 200S remote I/O modules, ABB ACS800 variable frequency drives, and Phoenix Contact inline I/O terminals transmit real-time process data — motor speed, valve position, temperature readings, and pressure values — directly to the HE693PBM101F master node in each bus cycle.

The gateway aggregates this field data and maps it into the Series 90-30 CPU's register table, where ladder logic programs execute control decisions and generate setpoint commands. Simultaneously, the CPU communicates upstream via an Ethernet module such as the IC693CMM321 or IC693CPU374's embedded Ethernet port, forwarding structured process data to SCADA platforms like GE iFIX, Wonderware InTouch, or Ignition SCADA for real-time visualization and alarm management.

At the HMI layer, operator panels connected via Ethernet or serial links — including GE QuickPanel+ terminals or third-party Weintek HMI units — display live process values sourced from the PROFIBUS network through the HE693PBM101F. Alarm conditions detected at the field device level propagate through the PROFIBUS diagnostic telegram, are captured by the gateway, and are surfaced in the SCADA alarm console within milliseconds — enabling operators to respond before process deviations escalate.

For edge connectivity and IIoT integration, an edge gateway such as the Moxa MGate MB3480 or Red Lion DA50 can be deployed alongside the Series 90-30 rack to extract PROFIBUS data via OPC-DA/UA bridging, forwarding time-stamped datasets to cloud analytics platforms or on-premise data historians. This architecture supports predictive maintenance workflows, energy monitoring dashboards, and OEE (Overall Equipment Effectiveness) reporting without modifying the existing PROFIBUS network topology.

Power infrastructure for the Series 90-30 rack — typically supplied by the IC693PWR321 or IC693PWR330 power supply modules — ensures stable 5 VDC and 3.3 VDC bus voltages for the HE693PBM101F and co-resident I/O modules, maintaining network determinism even under high-density slave configurations. Redundant power architectures can be implemented using dual power supply slots to eliminate single points of failure in critical production lines.

Protocol Fragmentation: Many brownfield automation sites operate mixed-protocol environments where PROFIBUS-DP field devices coexist with Modbus RTU sensors, DeviceNet actuators, and Ethernet/IP controllers. The HE693PBM101F resolves the PROFIBUS segment by acting as the authoritative DP master, while protocol gateways at the rack level handle cross-protocol translation — eliminating data silos between field buses and enabling unified data visibility in SCADA.

Data Island Elimination: Without a dedicated PROFIBUS master, field device data remains trapped at the sensor or drive level, invisible to the control system and SCADA. The HE693PBM101F systematically maps all slave I/O data into the Series 90-30 CPU's global data table, making every field value accessible for logic processing, historian logging, and dashboard visualization — breaking down data islands across the production floor.

Remote Monitoring and Diagnostics: The HE693PBM101F supports PROFIBUS-DP slave diagnostic services, allowing the CPU to poll individual slave devices for fault codes, communication errors, and hardware status without physical site visits. Combined with remote access solutions such as Ewon Flexy industrial routers or Secomea SiteManager gateways, maintenance engineers can diagnose PROFIBUS network faults, review slave diagnostic registers, and initiate corrective actions from any location — reducing mean time to repair (MTTR) and minimizing unplanned downtime.

Production Line Transparency: By centralizing PROFIBUS data through the HE693PBM101F into the Series 90-30 CPU and onward to SCADA, production managers gain real-time visibility into line throughput, device health, and process KPIs. Alarm tracking becomes systematic — every PROFIBUS diagnostic event is timestamped, logged, and correlated with production records, enabling root cause analysis and continuous improvement initiatives.

System Scalability: The HE693PBM101F supports up to 125 PROFIBUS-DP slaves, providing substantial headroom for future device additions as production lines expand. New field devices — additional remote I/O racks, smart sensors, or servo drives — can be integrated into the existing PROFIBUS segment without hardware changes to the master module, protecting the capital investment in the Series 90-30 platform.

Q1: What is the maximum PROFIBUS-DP baud rate supported by the HE693PBM101F, and does it affect communication latency?The HE693PBM101F supports PROFIBUS-DP baud rates from 9.6 kbps up to 12 Mbps with automatic baud rate detection. At 12 Mbps, cyclic data exchange with 32 slave devices completes in under 2 ms, ensuring deterministic real-time control response. Baud rate selection should be matched to cable length — at 12 Mbps, maximum segment length is 100 m; at 1.5 Mbps, up to 200 m is supported per IEC 61158 specifications.

Q2: Is the HE693PBM101F compatible with third-party PROFIBUS-DP slave devices from Siemens, ABB, or Schneider Electric?Yes. The HE693PBM101F implements the PROFIBUS-DP standard (EN 50170 / IEC 61158) and is compatible with any certified PROFIBUS-DP slave device, regardless of manufacturer. GSD (General Station Description) files for third-party slaves are loaded into the Series 90-30 configuration tool to define I/O mapping and diagnostic parameters, enabling seamless multi-vendor network integration.

Q3: How does the HE693PBM101F support remote diagnostics and network fault isolation?The module provides PROFIBUS-DP Class 1 master diagnostics, including slave status monitoring, bus fault detection, and watchdog timeout reporting. Diagnostic data is mapped into the Series 90-30 CPU's status registers and can be forwarded to SCADA alarm systems for real-time fault notification. Combined with remote access infrastructure, maintenance teams can isolate faulty slave devices, review diagnostic telegrams, and execute corrective procedures without on-site intervention.

Q4: What warranty and pre-shipment testing does the HE693PBM101F include?Every HE693PBM101F unit supplied by NANKMOS undergoes functional pre-shipment testing to verify PROFIBUS-DP master communication, module initialization, and rack interface integrity. The module is covered by a 12-month warranty from the date of shipment, providing assurance of operational reliability for integration into production-critical automation systems. In-stock units are available for immediate dispatch to support urgent project timelines.
