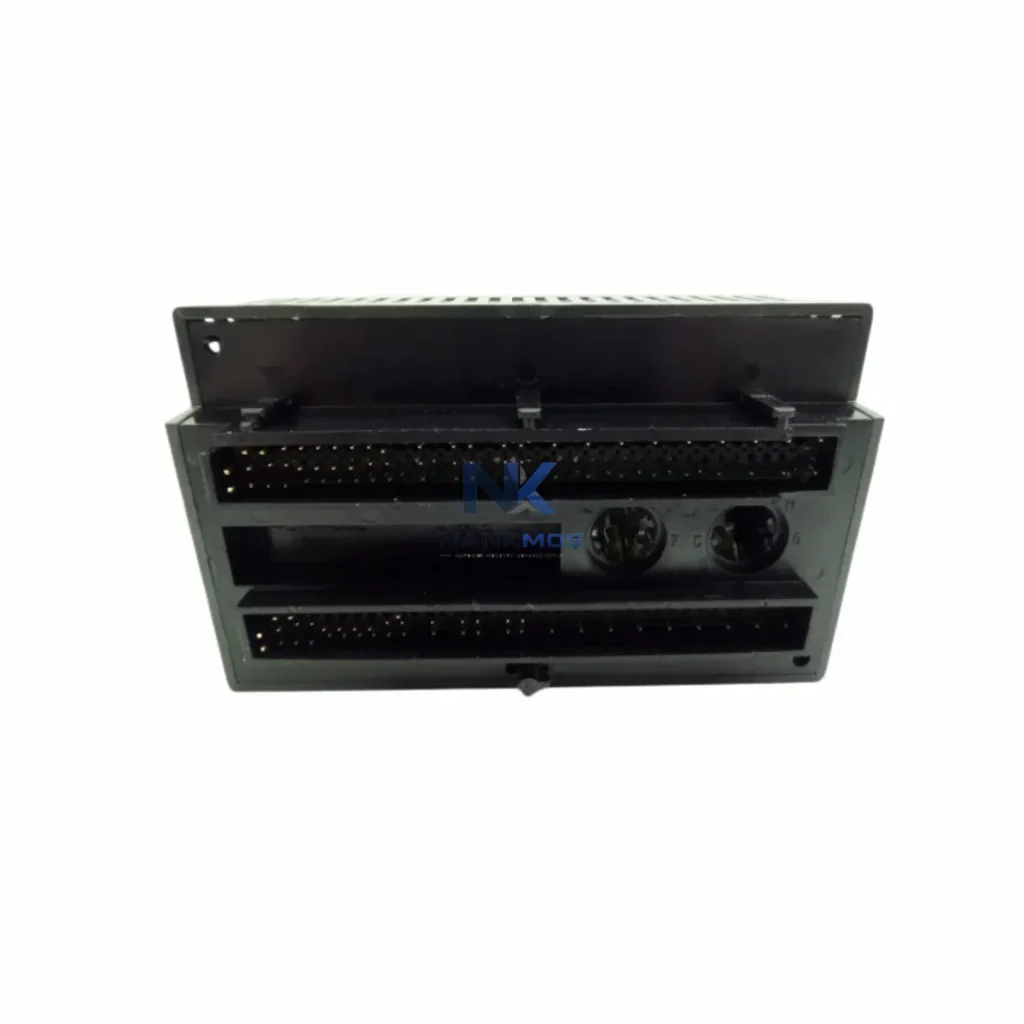

GE IC200MDL640 PLC Discrete Input Module

Product Details

IC200MDL640 Product Description

The GE IC200MDL640 is a high-density discrete input module engineered for the GE VersaMax distributed I/O platform, delivering deterministic signal acquisition and energy-aware load management across demanding industrial environments. Designed to interface directly with field-level sensors, limit switches, proximity detectors, and push-button stations, the IC200MDL640 provides 32 channels of 24 VDC discrete input capacity — enabling production line controllers to monitor equipment state, process interlocks, and energy-relevant feedback signals with minimal scan-cycle overhead and low self-consumption.

In energy-optimized automation architectures, every watt of parasitic draw and every millisecond of unnecessary cycle time contributes to cumulative inefficiency. The IC200MDL640 addresses this by maintaining a low module power budget while sustaining high-speed input scanning, allowing the host GE VersaMax CPU IC200CPUE05 or compatible rack controller to execute tight control loops without inflating the system's thermal load. This makes it a preferred discrete I/O choice for facilities targeting ISO 50001 energy management compliance or lean manufacturing energy reduction programs.

The IC200MDL640 operates as a foundational sensing layer within a broader power-aware automation strategy. In a typical VersaMax-based control architecture, the module connects to the GE IC200CHS022 carrier or compatible backplane, feeding real-time discrete state data to the system CPU. This data stream is consumed by the PLC logic to govern actuator sequencing, motor start/stop commands, and drive enable signals — directly influencing the energy draw profile of the production cell.

When paired with a GE VersaMax Network Interface Unit (NIU) IC200BEM003 or Ethernet adapter, the IC200MDL640's input states can be published to a SCADA system or energy management platform via PROFIBUS or Ethernet/IP, enabling supervisory-level load analysis and demand-response scheduling. This integration allows energy managers to correlate discrete equipment states — conveyor running, press engaged, robot in motion — with real-time power consumption data captured by dedicated power monitoring modules such as the GE EPM 6000 series power quality meter.

In variable-speed drive applications, the IC200MDL640 provides the interlock and permissive signals that govern GE AF-600 FP or compatible VFD enable sequences. By ensuring drives receive clean, debounced start/stop commands from the discrete input layer, the module helps eliminate nuisance trips and unnecessary drive restarts — each of which carries an energy penalty from inrush current and thermal cycling. Similarly, in servo-driven axes using GE Multilin SR750 or third-party servo amplifiers, the IC200MDL640 delivers the hardware enable and fault-reset signals that keep motion profiles smooth and energy-efficient.

For HMI integration, the module's input states are typically surfaced through a GE QuickPanel+ IC755CSS10CDB or equivalent operator interface, giving line operators real-time visibility into equipment status without requiring additional field wiring. Analog sensor data from energy-relevant transducers — current transformers, pressure transmitters, flow meters — is handled by companion modules such as the GE IC200ALG260 analog input module, while the IC200MDL640 manages the discrete interlock layer that gates energy-consuming loads on and off in response to process conditions.

Communication modules such as the GE IC200BEM104 DeviceNet master or Ethernet NIU extend the VersaMax system's reach into plant-wide energy management networks, allowing the IC200MDL640's input data to contribute to MES-level production efficiency dashboards and ISO 50001 energy baseline reporting.

In discrete manufacturing environments — automotive assembly, food and beverage packaging, pharmaceutical batch processing — the IC200MDL640 plays a direct role in reducing energy waste through precise equipment state monitoring. By providing the PLC with accurate, low-latency feedback on conveyor positions, guard door states, part-present signals, and machine cycle completion, the module enables the control system to implement aggressive energy-saving strategies such as automatic standby sequencing, zone-based power-down, and demand-limited motor scheduling.

Consider a multi-zone conveyor system where each zone is driven by an independently controlled motor. The IC200MDL640 monitors part-present sensors at each zone transition. When the PLC detects an empty zone — no part detected for a configurable dwell time — it commands the zone's VFD to ramp down to a low-speed energy-saving mode or full stop, eliminating the continuous no-load motor losses that accumulate over a production shift. This single strategy, enabled by reliable discrete input data from the IC200MDL640, can reduce conveyor system energy consumption by 15–30% in lightly loaded production periods.

The module also supports predictive maintenance workflows by providing the input signals that trigger cycle counters, runtime accumulators, and fault-state logging in the PLC program. When a limit switch begins exhibiting intermittent contact — a common precursor to mechanical failure — the PLC can detect the anomaly through input state analysis and generate a maintenance alert before the fault causes an unplanned stoppage. Unplanned stoppages are among the highest-cost energy events in manufacturing: restart sequences, scrap generation, and recovery heating all carry significant energy penalties that predictive maintenance directly avoids.

For facilities managing peak demand charges, the IC200MDL640's role in load sequencing is particularly valuable. By providing accurate machine-ready and cycle-complete signals, the module allows the PLC to stagger motor starts across production zones, flattening the demand curve and reducing peak kW draw — a direct reduction in energy cost without any sacrifice in throughput.

All IC200MDL640 units supplied by NANKMOS are sourced from verified inventory channels, subjected to functional input verification testing prior to shipment, and covered by a 12-month warranty. Ready-to-ship stock supports rapid project timelines and minimizes production downtime during system upgrades or emergency replacements.

Q1: How does the IC200MDL640 contribute to energy savings in a VersaMax-based system?The IC200MDL640 provides the discrete input data that enables the PLC to implement load-shedding, standby sequencing, and demand-limited motor control strategies. By delivering accurate, low-latency equipment state feedback, it allows the control system to eliminate unnecessary energy consumption during idle or lightly loaded production periods — directly reducing kWh consumption and peak demand charges.

Q2: Is the IC200MDL640 compatible with GE VersaMax CPUs and third-party SCADA systems?Yes. The IC200MDL640 is designed for the GE VersaMax distributed I/O platform and is compatible with VersaMax CPUs including the IC200CPUE05 and IC200CPU001 series. Via VersaMax NIU or Ethernet adapter modules, its input data can be integrated into SCADA platforms, energy management systems, and MES environments supporting PROFIBUS, DeviceNet, or Ethernet/IP protocols.

Q3: What is the recommended replacement or upgrade path if the IC200MDL640 is discontinued or unavailable?For direct replacement, NANKMOS maintains in-stock inventory of IC200MDL640 units sourced from verified channels. For system upgrades, compatible high-density discrete input modules within the VersaMax product family — such as the IC200MDL650 (120 VAC input variant) or IC200MDL730 (discrete output) for mixed I/O expansion — may be evaluated depending on application voltage and channel requirements. Our technical team can advise on form-fit-function alternatives.

Q4: What testing and warranty coverage does NANKMOS provide for the IC200MDL640?Every IC200MDL640 unit shipped by NANKMOS undergoes functional input verification testing to confirm channel integrity and communication with the VersaMax backplane before dispatch. All units are covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Expedited replacement support is available for critical production applications.
