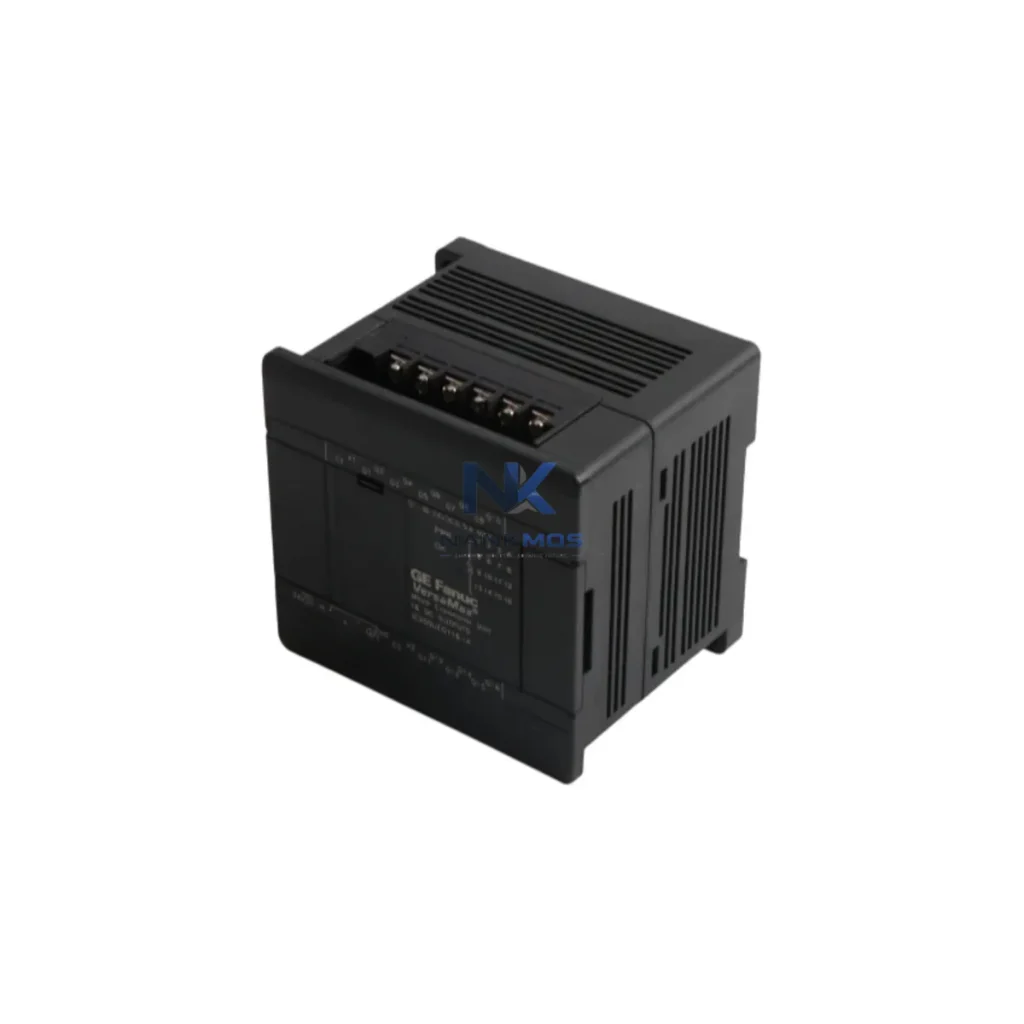

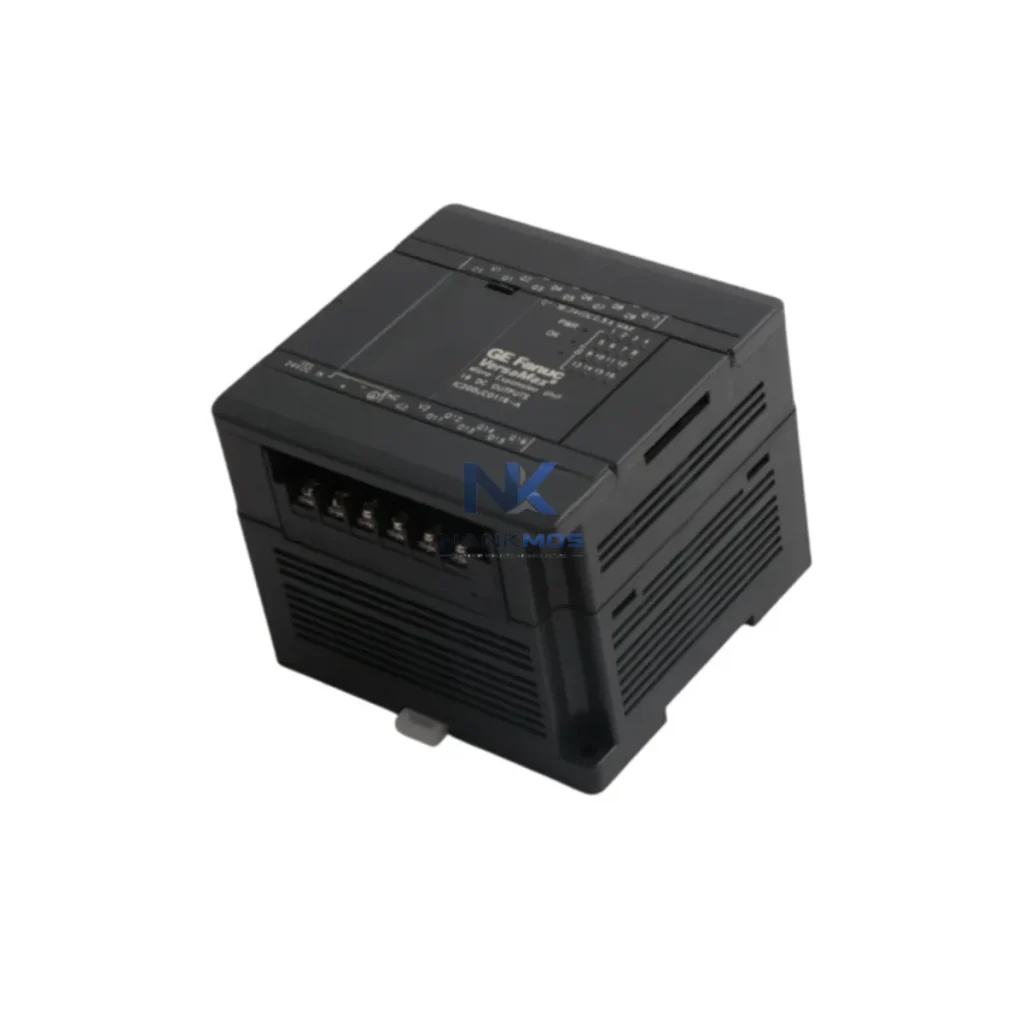

GE IC200UEO116-A IC200UEO116 PLC Output Module

Product Details

IC200UEO116-A IC200UEO116 Product Description

The GE IC200UEO116 is a high-density discrete output module from the GE VersaMax series, engineered to deliver precise load switching and energy-aware control across demanding industrial environments. Designed for integration into smart production lines, this module enables plant engineers to reduce unnecessary output activation cycles, minimize reactive load spikes, and maintain stable equipment throughput — all critical factors in modern energy optimization strategies.

As factories transition toward leaner, data-driven operations, the IC200UEO116 serves as a foundational output control node. Its compatibility with GE VersaMax CPUs — including the IC200CPUE05 and IC200CPUE05-AB — allows seamless deployment within existing GE automation architectures. When paired with a GE PACSystems RX3i controller or a VersaMax Network Interface Unit such as the IC200ENET, the module participates in real-time I/O scanning that supports energy-conscious ladder logic and function block programming.

Effective energy management on a production line is never the result of a single component — it is the outcome of a well-coordinated control architecture. The GE IC200UEO116 output module plays a central role in this architecture by providing the discrete switching layer that connects PLC logic to physical loads such as contactors, solenoids, indicator lamps, and relay coils.

In a typical smart factory deployment, the IC200UEO116 operates alongside a GE IC200CPUE05 CPU module, which executes the energy management program and determines which outputs should be energized based on real-time production state. When the line enters a low-demand period — such as a scheduled micro-stop or a shift changeover — the CPU can issue targeted output deactivation commands through the IC200UEO116, cutting power to non-essential actuators and reducing standby consumption.

For drive-intensive applications, the IC200UEO116 interfaces with ABB ACS880 variable frequency drives or Siemens SINAMICS G120 drives via digital output signals that trigger run/stop, speed-preset selection, or fault-reset sequences. This tight coupling between the PLC output module and the VFD layer is essential for motor energy control — ensuring that motors ramp down during idle periods rather than running at full speed unnecessarily.

Power quality and consumption visibility are provided by integrating Schneider Electric PowerLogic PM5000 series power monitoring modules into the same control network. These meters feed energy data back to the SCADA layer — typically a GE iFIX or Ignition-based SCADA system — where engineers can correlate output activation patterns from the IC200UEO116 with real-time kWh consumption. This closed-loop visibility is the foundation of any credible energy reduction program.

On the HMI side, operators interact with the system through a GE QuickPanel+ HMI or a Weintek cMT series panel, where output status from the IC200UEO116 is displayed in real time. Alarm conditions — such as output overcurrent or unexpected deactivation — are surfaced immediately, allowing operators to intervene before a fault cascades into a line stoppage.

For sensor-driven load control, the IC200UEO116 works in tandem with Omron E3Z photoelectric sensors and Balluff BES inductive proximity sensors connected to the input side of the VersaMax rack. When a sensor detects a part-present or position-confirmed condition, the CPU processes the input and commands the IC200UEO116 to activate the corresponding output — enabling precise, event-driven actuation that eliminates unnecessary dwell time and reduces thermal load on output-side devices.

Industrial facilities that operate continuous or semi-continuous production lines face a persistent challenge: energy is consumed even when no productive work is being performed. Idle conveyors, energized solenoids, and continuously running motors all contribute to a baseline energy draw that, over a three-shift operation, can represent a significant fraction of total facility consumption.

The GE IC200UEO116 addresses this challenge at the output control layer. By enabling the PLC program to selectively deactivate outputs during non-productive intervals — such as buffer accumulation, upstream starvation, or scheduled maintenance windows — the module directly reduces the duration for which loads remain energized. Over a full production week, this output discipline translates into measurable reductions in kWh consumption, lower peak demand charges, and reduced thermal stress on downstream electrical components.

Thermal load management is a particularly important benefit. Every output point that remains unnecessarily energized generates heat — in the module itself, in the wiring, and in the connected load device. By implementing output deactivation logic through the IC200UEO116, plant engineers reduce the aggregate thermal burden on the control panel, extending the service life of contactors, relays, and terminal blocks. This directly supports predictive maintenance goals by reducing the rate of thermally induced component degradation.

Production line throughput stability — often called line takt — is another area where the IC200UEO116 contributes. Because the module provides deterministic, scan-cycle-synchronized output switching, actuators respond to PLC commands with consistent timing. This eliminates the output jitter that can occur with lower-quality modules and ensures that downstream equipment — conveyors, pick-and-place units, clamping cylinders — operates on a predictable cycle. Stable takt reduces the need for buffer inventory between stations and allows the line to run at its designed throughput without artificial slowdowns.

From an inventory and supply continuity perspective, NANKMOS maintains verified stock of the IC200UEO116 with full pre-shipment functional testing. Each unit undergoes output continuity verification, isolation resistance checks, and backplane communication validation before dispatch. This ensures that replacement modules arrive ready to install, minimizing the mean time to repair (MTTR) when a field unit requires replacement.

Q1: How does the IC200UEO116 contribute to energy savings on a production line? The IC200UEO116 enables the PLC to implement output deactivation logic during non-productive intervals — idle periods, micro-stops, and shift transitions. By cutting power to non-essential loads during these windows, the module reduces total output-side energy consumption and lowers peak demand. When combined with VFD run/stop control and SCADA-based energy monitoring, the savings are measurable and reportable.

Q2: Is the IC200UEO116 compatible with existing GE VersaMax and PACSystems installations? Yes. The IC200UEO116 is a native VersaMax series module and is fully compatible with VersaMax local and remote I/O racks, VersaMax CPUs, and PACSystems RX3i systems using VersaMax I/O carriers. No firmware modification is required for standard installations. Verify rack slot compatibility and I/O configuration in your CPU's hardware configuration tool before installation.

Q3: What is the recommended replacement and testing process for a field-failed IC200UEO116? Upon receiving a replacement unit from NANKMOS, verify the module's output LED indicators during a bench power-up test before installing it in the live rack. Confirm output point mapping in the PLC hardware configuration matches the physical slot assignment. After installation, perform a controlled output force test on each point to validate switching integrity before returning the line to automatic mode. All NANKMOS-supplied units are pre-shipment QA tested and include a 12-month warranty from the date of dispatch.

Q4: What is the lead time and warranty coverage for the IC200UEO116? NANKMOS maintains ready stock of the IC200UEO116. Standard orders ship within 1–3 business days following order confirmation. Each unit is covered by a 12-month warranty against manufacturing defects and functional failure under normal operating conditions. For urgent production line recovery requirements, expedited dispatch is available — contact [email protected] or call +86 18359268345 to confirm availability and shipping options.
