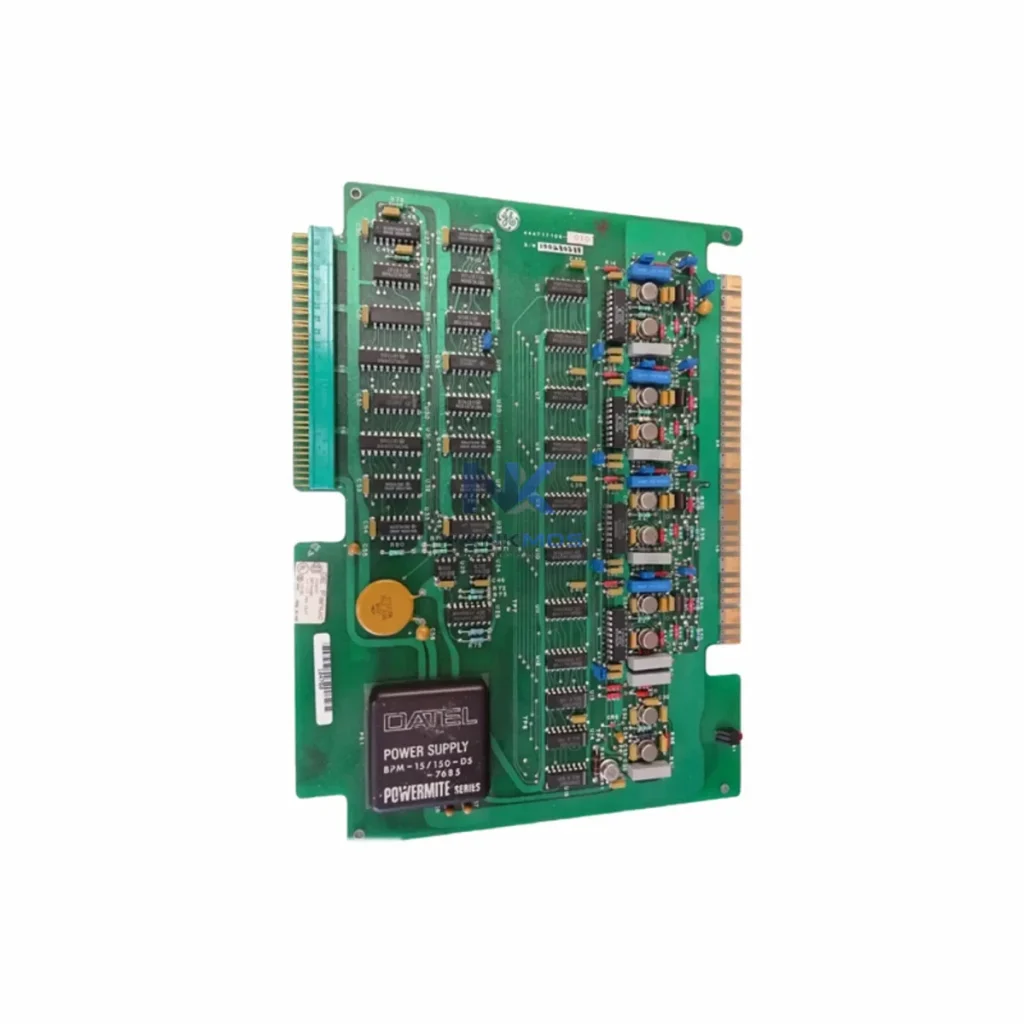

GE IC600-FP941K Analog Input Module

Product Details

IC600-FP941K Product Description

The GE IC600FP941K is a high-reliability analog input module engineered for the GE Series Six PLC platform — one of the most enduring control architectures in process automation and discrete manufacturing. Designed to acquire multi-channel analog signals from field instruments and transmit structured data across the Series Six backplane, the IC600FP941K serves as a critical node in the plant-floor data chain, bridging physical process variables with supervisory control and monitoring systems.

In modern smart factory deployments, analog signal integrity is the foundation of every data-driven decision. The IC600FP941K captures 4–20 mA and voltage-range inputs from pressure transmitters, flow meters, temperature sensors, and level transducers, converting raw field signals into engineering-unit values that feed directly into the Series Six CPU — and from there, into SCADA platforms, HMI displays, and historian databases. This unbroken data path from sensor to system is what defines a connected factory.

The IC600FP941K sits at the signal-acquisition layer of a multi-tier industrial data architecture. In a typical smart factory deployment, field instruments — including Rosemount pressure transmitters, Yokogawa flow meters, and thermocouple-based temperature sensors — feed 4–20 mA signals into the IC600FP941K's input channels. The module digitises these signals and places structured data on the Series Six backplane, where the GE IC600CP601 or IC600CP602 CPU processes logic and executes control outputs.

From the CPU, real-time process values are forwarded upstream via a communications processor — such as the GE IC600CM501 or a third-party SRTP-to-Modbus TCP gateway — to plant-level SCADA systems running on platforms like GE iFIX, Wonderware InTouch, or Ignition by Inductive Automation. Operators monitoring HMI panels — whether GE QuickPanel+ units or Siemens TP700 Comfort displays — receive live analog trend data, enabling immediate response to process deviations.

For facilities running hybrid control architectures, the IC600FP941K integrates seamlessly alongside GE IC600YB900 power supply modules and IC600BF900 baseplate assemblies, maintaining rack-level signal integrity across all I/O slots. Where remote I/O expansion is required, GE Genius Bus Interface Units (BIU) extend the data reach to distributed field panels without sacrificing scan-cycle performance.

At the edge layer, OPC-UA-capable gateways — such as the Moxa MGate MB3480 or Red Lion DA50 — bridge the Series Six data stream to cloud-based MES and ERP platforms, enabling production KPI dashboards, energy consumption analytics, and predictive maintenance workflows. Variable-frequency drives (VFDs) receiving analog setpoint commands from the IC600FP941K-equipped rack can report back speed, torque, and fault status through the same data chain, closing the loop between process control and asset health monitoring.

Alarm management systems connected to the SCADA layer receive threshold-breach events derived from IC600FP941K channel data — triggering automated notifications, work order generation in CMMS platforms, and remote diagnostic sessions via VPN-secured industrial routers. This end-to-end data visibility, from sensor signal to boardroom dashboard, is the operational backbone of Industry 4.0 transformation.

Protocol Fragmentation: Many legacy plants operate mixed-protocol environments where Series Six PLCs coexist with newer Modbus RTU, PROFIBUS DP, or EtherNet/IP devices. The IC600FP941K, paired with a Series Six communications processor and an appropriate protocol gateway, resolves this fragmentation — allowing analog field data to be normalised and forwarded to any upstream system regardless of protocol.

Data Islands and Blind Spots: Analog signals that remain trapped at the rack level create operational blind spots. By ensuring the IC600FP941K's data reaches the SCADA historian, plant engineers gain access to continuous trend records, enabling root-cause analysis of process upsets, quality deviations, and equipment wear patterns that would otherwise go undetected.

Remote Monitoring Gaps: In multi-site or geographically distributed operations, remote visibility into Series Six analog I/O has historically required on-site visits. With the IC600FP941K integrated into a networked architecture — via SRTP, OPC-DA, or Modbus TCP bridges — remote engineers can monitor live channel values, review alarm histories, and perform diagnostic checks from any location with network access.

Production Line Transparency: Real-time analog data from the IC600FP941K feeds production dashboards that track throughput, yield, and energy efficiency. This transparency supports lean manufacturing initiatives, shift-handover reporting, and regulatory compliance documentation — all without manual data collection from the field.

System Scalability: As production capacity grows, additional IC600FP941K modules can be added to existing Series Six racks without architectural redesign. The modular I/O structure of the IC600 platform supports incremental expansion, protecting capital investment while accommodating new process measurement points.

Q1: What communication protocols does the GE IC600FP941K support for SCADA integration? The IC600FP941K communicates natively over the GE Series Six backplane bus. SCADA integration is achieved through the Series Six CPU's communications processor, which supports SRTP (Service Request Transport Protocol) for GE iFIX and Cimplicity connectivity, or via third-party Modbus TCP / OPC-DA gateways for broader platform compatibility. All units are tested for backplane signal integrity prior to shipment.

Q2: Is the IC600FP941K compatible with modern Ethernet-based industrial networks? The IC600FP941K itself operates on the Series Six parallel backplane and does not have a native Ethernet port. However, when paired with a GE Series Six communications module (e.g., IC600CM501) or an external SRTP-to-EtherNet/IP gateway, analog data from the IC600FP941K can be made available on standard industrial Ethernet networks, enabling integration with EtherNet/IP scanners, OPC-UA servers, and cloud-based data platforms.

Q3: How is network stability and data integrity ensured during continuous operation? The IC600FP941K is designed for 24/7 industrial operation with deterministic scan-cycle performance on the Series Six backplane. Signal conditioning circuitry minimises noise interference from adjacent power and drive equipment. For mission-critical applications, redundant CPU configurations using paired IC600CP601/CP602 processors provide automatic failover, ensuring uninterrupted analog data acquisition and control continuity.

Q4: What does the 12-Month Warranty cover, and how are units tested before shipment? Every GE IC600FP941K supplied by NANKMOS is covered by a 12-Month Warranty against manufacturing defects and functional failure. Prior to shipment, each unit undergoes functional verification testing — including channel-by-channel analog input validation, backplane connector integrity checks, and power consumption measurement. Units that do not meet GE's original performance specifications are not shipped. In-stock units are available for same-week dispatch.
