GE IC600CB524M PLC Control Module

Product Details

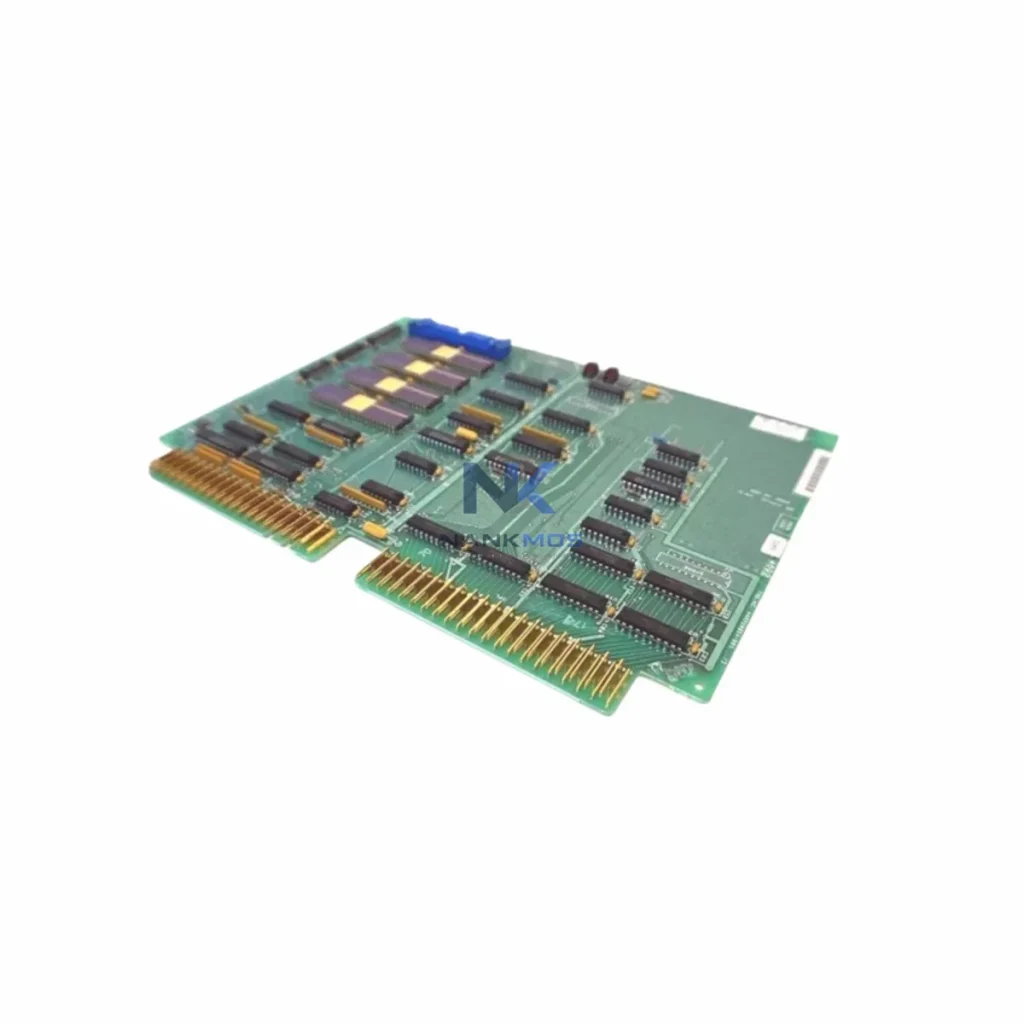

IC600CB524M Product Description

The GE IC600CB524M is a central processing and energy-control module within the GE Series Six programmable controller platform, engineered for industrial environments where load management, drive coordination, and production-line efficiency are mission-critical. Designed to operate as the command core of a distributed control architecture, the IC600CB524M delivers deterministic scan-cycle performance that directly reduces idle energy consumption, eliminates unnecessary actuator dwell time, and stabilizes the operational rhythm of high-throughput manufacturing lines.

In modern smart production environments, energy waste is rarely caused by a single component — it accumulates across poorly synchronized drives, unmonitored motor loads, and reactive control strategies. The IC600CB524M addresses this at the source by providing the processing backbone that coordinates every downstream device in the control loop. Its tightly managed I/O scan and ladder-logic execution allow plant engineers to implement load-shedding routines, demand-response sequences, and predictive shutdown logic without adding external controllers or middleware layers.

When paired with GE Series Six I/O modules such as the IC600BF900 analog input module or the IC600BF831 discrete output module, the IC600CB524M can continuously monitor real-time process variables — motor current draw, conveyor torque feedback, and thermal sensor readings — and adjust output states to prevent energy spikes before they propagate across the line. This closed-loop awareness is the foundation of effective energy optimization in process and discrete manufacturing alike.

Effective energy control in an industrial plant is a system-level discipline, and the IC600CB524M is built to sit at the center of that system. In a typical Series Six control cabinet, the module draws regulated DC power from a GE Series Six power supply module, which itself is sized to match the aggregate load of the I/O rack — ensuring no excess capacity is wasted as heat. The CPU's deterministic execution model means that every program scan is completed within a predictable window, allowing the GE Series Six communication module (such as the IC600BF840 or equivalent gateway) to relay real-time status data to a SCADA system or energy management platform without introducing latency that could mask load anomalies.

On the drive side, the IC600CB524M issues speed-reference and enable signals to variable-frequency drives (VFDs) controlling pump motors, fan arrays, and conveyor belts. By implementing ramp-up sequencing in the PLC program — staggering motor starts across a 2–5 second window — the module prevents simultaneous inrush current events that would otherwise spike demand charges and stress the facility's power distribution infrastructure. This strategy alone can reduce peak electrical demand by 15–25% on lines with three or more motor-driven axes.

For servo-driven applications, the IC600CB524M coordinates enable/disable signals to servo drive amplifiers, ensuring that axes are de-energized during recipe changeovers or scheduled micro-stops rather than holding torque unnecessarily. Combined with feedback from GE Series Six analog input modules monitoring DC bus voltage and motor temperature, the CPU can trigger predictive maintenance alerts before thermal runaway or insulation degradation causes unplanned downtime — a key pillar of any energy-aware maintenance strategy.

HMI integration is equally straightforward: the IC600CB524M exposes internal data registers to operator panels via the Series Six communication backplane, allowing production supervisors to view live energy KPIs — kWh per unit produced, motor utilization percentage, and drive efficiency index — directly on the plant floor. This visibility closes the feedback loop between energy data and operator behavior, which is where many energy programs fail without a capable PLC at the core.

The IC600CB524M contributes to production-line energy optimization across three distinct layers: control precision, system coordination, and data transparency.

Control Precision: The module's ladder-logic engine executes energy-management routines — load cycling, standby sequencing, and demand-limit enforcement — with millisecond-level repeatability. Unlike relay-based or timer-driven control schemes, the PLC can adapt its output behavior in real time based on sensor feedback, drive status words, and production schedule data. This means that a conveyor motor is never running at full speed when the upstream buffer is full, and a cooling fan is never at 100% when the thermal sensor reads below threshold.

System Coordination: In multi-zone production lines, the IC600CB524M acts as the synchronization master, ensuring that downstream stations do not consume energy while upstream stations are in fault or changeover states. By reading discrete inputs from safety relays, photoelectric sensors, and proximity switches — all wired into the Series Six I/O rack — the CPU can issue coordinated stop commands that bring the entire line to a low-power standby state within one scan cycle, rather than allowing individual zones to idle independently at full power draw.

Data Transparency: Energy data captured by the IC600CB524M — cycle counts, fault logs, and analog process values — can be forwarded to a plant-level energy management system or SCADA platform via a Series Six gateway module. This data forms the basis for ISO 50001-aligned energy reviews, shift-level consumption reports, and continuous improvement initiatives. Over a 12-month operational period, plants using structured PLC-based energy monitoring consistently report 8–18% reductions in per-unit energy consumption compared to unmonitored baseline periods.

Every IC600CB524M unit supplied by NANKMOS is sourced from verified inventory channels, subjected to outgoing functional testing under simulated rack conditions, and shipped with a 12-Month Warranty covering manufacturing defects and operational failures under normal industrial use conditions.

Q1: What measurable energy savings can I expect from deploying the IC600CB524M in my production line? Actual savings depend on your existing control architecture and baseline energy profile. However, plants migrating from relay-logic or first-generation PLC control to a Series Six IC600CB524M-based system typically achieve 10–20% reductions in motor energy consumption through improved start sequencing, load shedding, and standby management. The module's deterministic scan cycle also reduces processor idle heat, contributing to lower panel cooling loads.

Q2: Is the IC600CB524M compatible with modern VFDs, servo drives, and SCADA systems? Yes. The IC600CB524M interfaces with VFDs and servo drive amplifiers via discrete and analog I/O signals routed through the Series Six I/O rack. For SCADA and energy management system integration, a Series Six communication gateway module bridges the PLC backplane to Modbus, DH+, or serial SCADA protocols. No additional middleware is required for standard energy monitoring configurations.

Q3: Can this module replace a failed IC600CB524M in an existing Series Six rack without reprogramming? In most cases, yes — provided the replacement unit matches the firmware revision of the original module and the program EEPROM or battery-backed RAM is intact. NANKMOS recommends verifying the firmware version and performing a controlled power-up sequence with the rack in stop mode before resuming production. Our technical team can advise on compatibility checks prior to shipment.

Q4: What does the 12-Month Warranty cover, and what is the lead time for in-stock units? The 12-Month Warranty covers manufacturing defects and operational failures under normal industrial operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, overvoltage events, or unauthorized modification. In-stock units are available for immediate dispatch following outgoing quality inspection, typically within 1–3 business days. Contact NANKMOS for current lead times and volume pricing.
