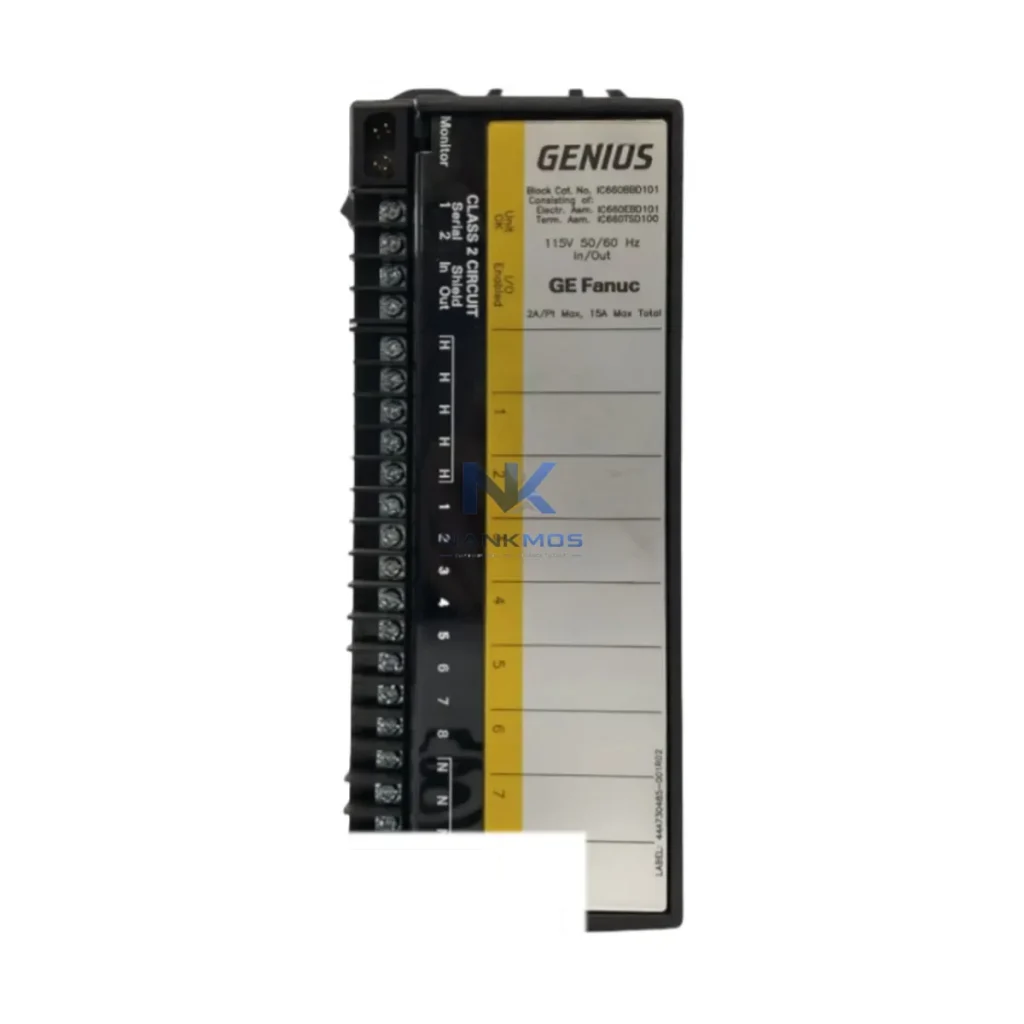

GE IC660BBD101 Genius I/O Discrete Input Module

Product Details

IC660BBD101 Product Description

The GE IC660BBD101 is a Genius I/O Discrete Input Module engineered for high-reliability data acquisition and network-linked control within GE Series Six PLC architectures. Designed to serve as a critical node in the industrial data chain, the IC660BBD101 bridges field-level discrete signals — from limit switches, proximity sensors, push buttons, and digital actuators — directly into the Genius Bus communication network, enabling real-time data flow from the plant floor to supervisory control systems.

In modern smart factory environments, the ability to move discrete I/O data seamlessly across control layers is fundamental to operational transparency. The IC660BBD101 fulfills this role by capturing 24 VDC discrete input signals and transmitting structured data packets over the Genius Bus serial network at speeds that support deterministic, low-latency control loops. This makes it an ideal front-end acquisition node for GE Series Six PLC controllers, which serve as the backbone of process automation in power generation, petrochemical refining, water treatment, and heavy manufacturing facilities.

The module's Genius Bus interface ensures native compatibility with GE's distributed I/O architecture, allowing plant engineers to extend I/O capacity across long cable runs without signal degradation. When paired with a GE IC660SBA020 Genius Bus Controller or a GE IC697CMM742 communications module, the IC660BBD101 participates in a fully networked I/O subsystem where each node is individually addressable, diagnostics-capable, and remotely configurable from the Series Six CPU or an upstream SCADA platform.

The IC660BBD101 operates as the first link in a layered industrial data chain. At the field level, discrete signals from inductive proximity sensors, mechanical limit switches, and emergency stop buttons are wired directly into the module's 16-channel input block. These signals are digitized and encapsulated into Genius Bus data frames, which travel along the serial bus to the GE Series Six CPU — typically a GE IC600CPU772 or IC600CPU522 — where ladder logic processes the input states in real time.

For facilities requiring integration with modern Ethernet-based control networks, the Genius Bus data can be bridged through a GE IC697CMM742 Ethernet Communications Module or a third-party Genius-to-Modbus TCP gateway, enabling the IC660BBD101's field data to appear as Modbus registers accessible by SCADA platforms such as GE iFIX, Wonderware InTouch, or Ignition by Inductive Automation. This gateway layer is essential for plants transitioning from legacy serial architectures to IIoT-ready Ethernet backbones without replacing existing field wiring.

On the output side of the same Genius Bus segment, GE IC660BBD020 Discrete Output Modules and IC660BBA020 Analog Output Modules respond to CPU commands, driving motor starters, solenoid valves, and variable frequency drives (VFDs). The IC660BBD101 thus participates in a closed-loop control architecture where input data from the field directly influences output commands — all within the deterministic timing of the Genius Bus token-passing protocol.

For remote monitoring and diagnostics, the Genius Bus network supports block-level fault reporting. Each IC660BBD101 module can report communication faults, input wiring errors, and power supply anomalies back to the Series Six CPU, which in turn forwards alarm data to connected HMI panels — such as GE QuickPanel+ operator interfaces — or to SCADA historian servers for trend analysis and alarm management. This end-to-end visibility, from field sensor to control room dashboard, is the foundation of smart factory transparency.

In distributed plant layouts, multiple IC660BBD101 modules can be deployed across a single Genius Bus segment alongside GE IC660BBA100 Analog Input Modules for temperature and pressure monitoring, creating a mixed discrete-analog I/O network that feeds a unified data model. Edge computing devices or industrial PCs running OPC-UA servers can then aggregate this data for MES integration, energy monitoring dashboards, and predictive maintenance analytics.

Many industrial facilities operating GE Series Six systems face a common challenge: discrete field data exists in abundance, but it remains trapped in isolated PLC programs with no pathway to enterprise-level visibility. The IC660BBD101 addresses this by providing a structured, network-addressable input node that makes field states visible to any system connected to the Genius Bus or its upstream gateway.

Protocol fragmentation is resolved by using the IC660BBD101 within its native Genius Bus ecosystem, while Modbus TCP or OPC-UA gateways handle the translation layer for modern SCADA and MES platforms. This eliminates the need for custom middleware or proprietary data connectors.

Data islands — where individual PLCs hold process data without sharing it — are broken down by connecting multiple Genius I/O segments to a common Series Six CPU, which acts as the data aggregation point. From there, a single Ethernet communications module exposes all I/O states to the plant network simultaneously.

Remote diagnostics are enabled through the Genius Bus's built-in fault reporting, allowing maintenance engineers to identify a failed input channel, a broken field wire, or a power supply fault from the SCADA workstation without walking the plant floor. This reduces mean time to repair (MTTR) and supports predictive maintenance workflows.

Production line transparency is achieved when IC660BBD101 input states — machine running, part present, door open, conveyor fault — are mapped to SCADA tags and displayed on real-time dashboards. Operators gain instant visibility into line status, and supervisors can track OEE metrics without manual data collection.

System expansion is straightforward: additional IC660BBD101 modules can be added to an existing Genius Bus segment up to the bus capacity limit, with no changes required to the CPU program structure. This makes the IC660BBD101 a scalable solution for phased plant expansions and capacity upgrades.

Q1: What is the communication latency of the IC660BBD101 on the Genius Bus network?The Genius Bus uses a deterministic token-passing protocol, which means scan cycle times are predictable and consistent. Typical bus scan times for a fully loaded Genius Bus segment are in the range of 1–10 milliseconds, depending on the number of nodes and the configured scan rate. This makes the IC660BBD101 suitable for time-sensitive discrete control applications where input response time is critical.

Q2: Can the IC660BBD101 be integrated with modern Modbus TCP or OPC-UA SCADA systems?Yes, through a Genius Bus-to-Ethernet gateway or a GE IC697CMM742 communications module, the IC660BBD101's input data can be mapped to Modbus TCP registers or OPC-UA nodes. This allows legacy Genius I/O field data to be consumed by modern SCADA platforms, historian servers, and IIoT analytics engines without replacing existing field wiring or I/O hardware.

Q3: How is network stability maintained in multi-node Genius Bus deployments?The Genius Bus token-passing architecture inherently prevents data collisions and ensures orderly bus access for all connected nodes. Each IC660BBD101 module is assigned a unique bus address, and the bus controller monitors node health continuously. Faulty nodes are isolated automatically, and the remaining nodes continue to communicate without interruption, ensuring high network availability in critical process environments.

Q4: Does the IC660BBD101 come with a warranty and pre-shipment testing?Yes. Every IC660BBD101 unit supplied by NANKMOS is function-tested prior to shipment to verify input channel operation, bus communication, and power supply integrity. All units are covered by a 12-month warranty from the date of delivery. In-stock units are available for immediate dispatch, supporting urgent maintenance and unplanned replacement requirements.
