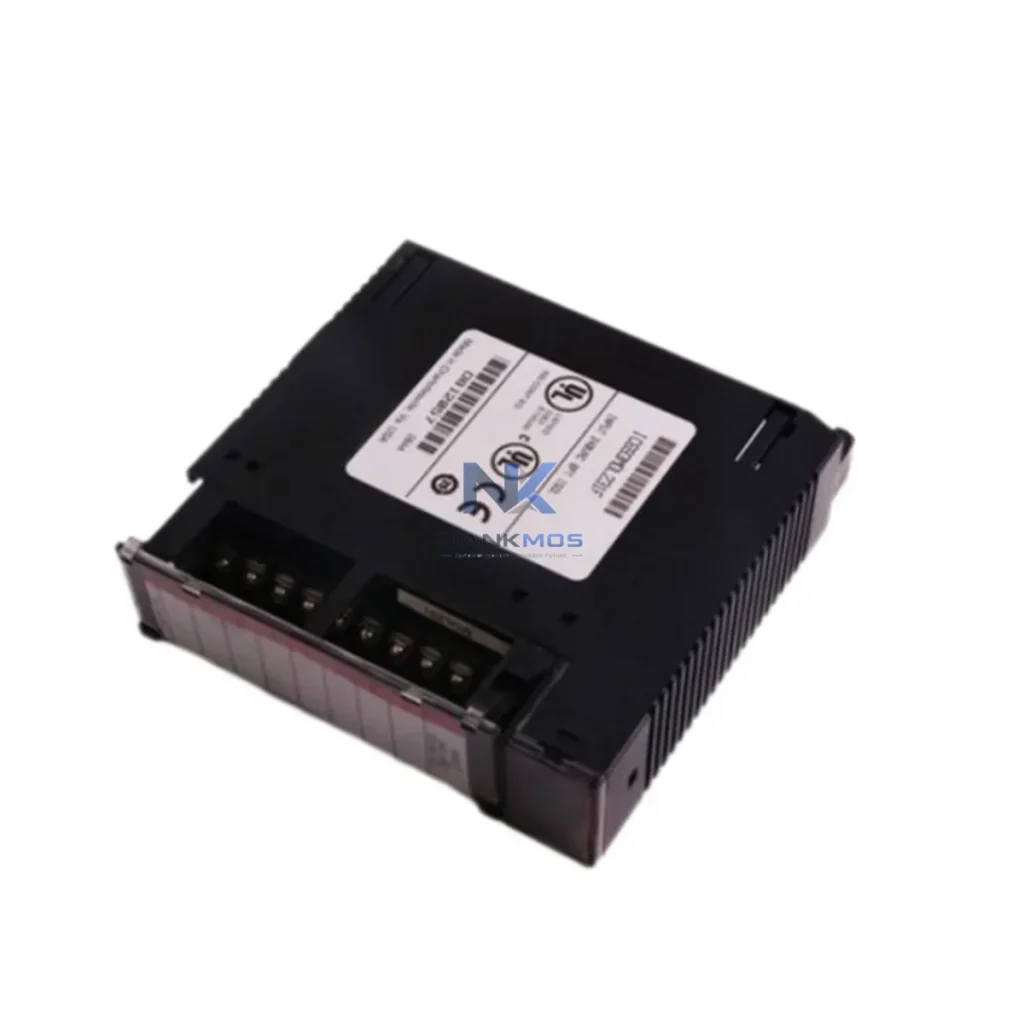

GE IC693MDL231 Discrete Input Module

Product Details

IC693MDL231 Product Description

The GE IC693MDL231 is a 240VAC isolated discrete input module engineered for the GE Series 90-30 PLC platform, delivering reliable field-level signal acquisition across demanding industrial environments. Designed to serve as a foundational node in smart factory data architectures, the IC693MDL231 captures discrete on/off states from field devices — including limit switches, proximity sensors, push buttons, and relay contacts — and transmits structured digital data upstream through the Series 90-30 backplane bus. This seamless signal path enables real-time process visibility from the plant floor to SCADA, MES, and cloud-based analytics platforms, making the IC693MDL231 a critical component in any connected automation strategy.

In modern industrial connectivity frameworks, the IC693MDL231 operates as the first link in a multi-layer data chain. Field signals enter the module's 16 isolated input channels, are conditioned and digitized, then passed to the Series 90-30 CPU — such as the IC693CPU374 or IC693CPU364 — via the high-speed backplane. From the CPU, data flows outward through communication modules like the IC693CMM321 Ethernet Interface or the IC693CMM311 Serial Communications Module, enabling SNP and SRTP protocol transmission to supervisory systems. This architecture supports low-latency data delivery to Wonderware, iFIX, or Ignition SCADA platforms, where operators gain real-time dashboards, alarm management, and historical trending for every discrete signal the IC693MDL231 monitors.

The module's 240VAC input rating makes it particularly well-suited for heavy industrial applications — motor control centers, conveyor systems, packaging lines, and utility substations — where field wiring operates at line voltage. Its optical isolation barrier protects the PLC backplane from voltage transients and ground loops, ensuring signal integrity even in electrically noisy environments. When deployed alongside the IC693MDL240 (120VAC discrete input) or IC693MDL241 modules within the same rack, the IC693MDL231 extends the I/O density of the Series 90-30 system without compromising network stability or scan-cycle performance.

The IC693MDL231 anchors the field-level layer of a connected factory data flow. In a typical smart manufacturing deployment, discrete signals from inductive proximity sensors, photoelectric sensors, and mechanical limit switches are wired directly to the module's 16 input channels. The IC693MDL231 digitizes these signals and delivers them to the Series 90-30 CPU — commonly an IC693CPU374 running ladder logic or function block programs — within a single backplane scan cycle. This deterministic data path is essential for time-sensitive control loops where millisecond-level response is required.

Upstream from the CPU, an IC693CMM321 Ethernet Interface module bridges the Series 90-30 rack to the plant Ethernet network using SRTP over TCP/IP. This connection feeds real-time discrete state data to SCADA servers running Cimplicity or Ignition, where process engineers configure alarm thresholds, trend displays, and event logs tied directly to the signals captured by the IC693MDL231. Simultaneously, an IC693CMM311 Serial Communications Module can provide a secondary RS-232/RS-485 path to legacy HMI panels or remote terminal units (RTUs), ensuring backward compatibility with existing plant infrastructure.

For facilities implementing IIoT edge architectures, the Series 90-30 network can be extended through an industrial edge gateway — such as a Moxa MGate or Advantech ADAM series device — that translates SRTP data into MQTT or OPC-UA streams for cloud analytics platforms. This edge layer sits between the Series 90-30 Ethernet segment and the enterprise network, enabling the IC693MDL231's field signals to appear as structured data points in Azure IoT Hub, AWS IoT Core, or on-premise historian databases. Remote diagnostic dashboards can then display real-time input states, cycle counts, and fault flags for every channel on the IC693MDL231 without requiring direct PLC access.

Within the same Series 90-30 rack, the IC693MDL231 frequently operates alongside IC693MDL390 discrete output modules, IC693ALG221 analog input modules, and IC693PCM300 communications coprocessors. This mixed I/O configuration supports complex automation sequences — such as motor start/stop interlocking, conveyor sequencing, and valve position monitoring — where discrete inputs from the IC693MDL231 trigger analog setpoint adjustments or network-based command outputs. The result is a tightly integrated, data-rich automation node that feeds every layer of the smart factory stack, from field device to enterprise dashboard.

Many industrial facilities operating legacy Series 90-30 systems face a common set of data challenges: protocol fragmentation between field devices and supervisory systems, isolated data silos that prevent cross-system visibility, and limited remote diagnostic capability for distributed I/O racks. The IC693MDL231 addresses these gaps by providing a standardized, backplane-native discrete input path that integrates cleanly with GE's SNP and SRTP communication stack — eliminating the need for protocol converters between the field layer and the PLC CPU.

For sites struggling with production line transparency, the IC693MDL231 enables granular signal-level monitoring: every limit switch, sensor, and relay contact wired to the module becomes a named data point in the SCADA historian. Operators can trace alarm events back to specific input channels, correlate discrete state changes with process upsets, and generate shift reports that reflect actual machine behavior rather than estimated cycle counts. This level of visibility is foundational to OEE (Overall Equipment Effectiveness) improvement programs and predictive maintenance initiatives.

Remote diagnostic capability is further enhanced when the IC693MDL231 is paired with an IC693CMM321 Ethernet module and a remote access solution such as a cellular router or VPN gateway. Maintenance engineers can interrogate individual input channel states, review fault history, and verify wiring continuity from off-site locations — reducing truck rolls and accelerating mean-time-to-repair (MTTR) for distributed plant assets. System expansion is equally straightforward: additional IC693MDL231 modules can be added to existing Series 90-30 racks or remote I/O drops without modifying the network topology, supporting phased capacity growth aligned with production demand.

Q1: What communication protocols does the GE IC693MDL231 support for SCADA integration? The IC693MDL231 itself is a discrete input module that communicates via the Series 90-30 backplane bus. SCADA integration is achieved through companion communication modules: the IC693CMM321 provides Ethernet connectivity using GE's SRTP (Service Request Transport Protocol) and SNP (Serial Network Protocol), while the IC693CMM311 supports RS-232/RS-485 serial links. These protocols are natively supported by major SCADA platforms including Cimplicity, Ignition, Wonderware, and iFIX, enabling seamless data flow from IC693MDL231 input channels to supervisory dashboards.

Q2: How does the IC693MDL231 maintain network stability in electrically noisy industrial environments? The IC693MDL231 incorporates optical isolation between its 240VAC field input circuits and the Series 90-30 backplane, preventing voltage transients, ground loops, and EMI from propagating into the PLC network. This isolation barrier maintains signal integrity across the backplane bus, ensuring that communication modules like the IC693CMM321 continue to deliver stable Ethernet data streams even when field wiring is subject to switching transients from motor starters, solenoid valves, or variable frequency drives operating in the same panel.

Q3: Can the IC693MDL231 be integrated into an IIoT or edge computing architecture for remote diagnostics? Yes. When the Series 90-30 system is equipped with an IC693CMM321 Ethernet Interface, the discrete input data from the IC693MDL231 is accessible via SRTP over TCP/IP. An industrial edge gateway — such as a Moxa MGate or Advantech ADAM unit — can poll this data and republish it as MQTT or OPC-UA messages to cloud platforms or on-premise historians. This enables remote diagnostic dashboards that display real-time channel states, input cycle counts, and fault flags for the IC693MDL231 without requiring direct PLC access, supporting predictive maintenance and remote troubleshooting workflows.

Q4: What is the warranty coverage and pre-shipment testing process for the IC693MDL231? Every IC693MDL231 unit supplied by NANKMOS is covered by a 12-Month Warranty against manufacturing defects and functional failures. Prior to shipment, each module undergoes functional verification testing to confirm input channel response, isolation integrity, and backplane communication compatibility. Units are shipped in anti-static packaging with inspection documentation. In-stock units are available for same-day or next-day dispatch, with express international shipping options available for urgent automation maintenance requirements.
