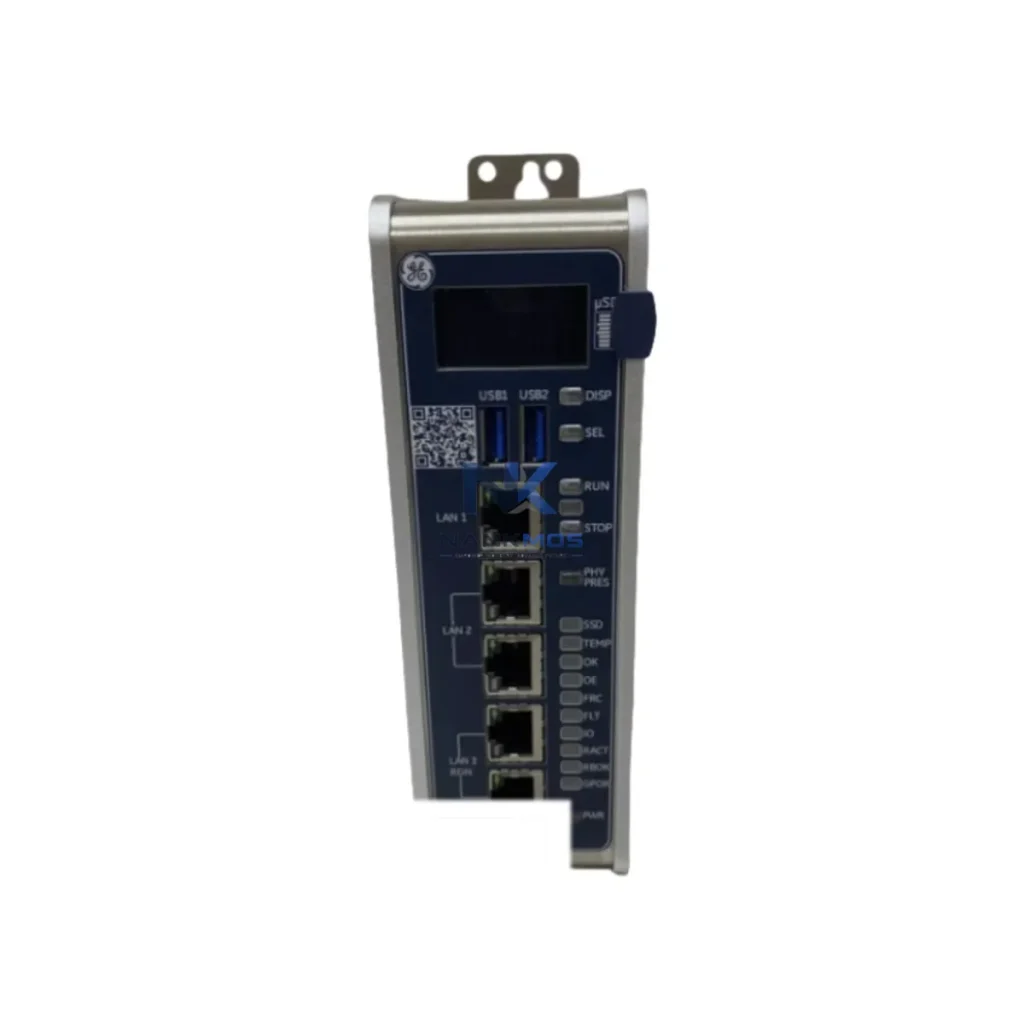

GE IC695CPL410-AAAC Industrial Network CPU Module

Product Details

IC695CPL410-AAAC Product Description

The GE IC695CPL410-AAAC is a high-performance CPU module designed for the GE PACSystems RX3i platform, engineered to serve as the central intelligence node in modern smart factory architectures. With native support for Modbus TCP/IP, OPC UA, EGD (Ethernet Global Data), and SRTP (Service Request Transfer Protocol), this CPU module eliminates the communication barriers that fragment industrial data flows across heterogeneous automation environments.

In today's connected manufacturing landscape, the IC695CPL410-AAAC functions as the backbone of a seamless data chain — from field-level sensors and actuators, through PLC logic and remote I/O, up to HMI visualization layers, SCADA supervisory systems, and enterprise MES/ERP platforms. Its dual embedded Ethernet ports enable simultaneous communication across multiple network segments, supporting both real-time control traffic and high-level data reporting without network contention.

Signal acquisition begins at the field device layer, where proximity sensors, vibration transducers, pressure transmitters, and temperature sensors feed analog and digital signals into the RX3i backplane via distributed I/O modules such as the IC694MDL660 digital input module or the IC695ALG600 analog input module. The IC695CPL410-AAAC processes these inputs at scan-cycle speeds, executing ladder logic, function block diagrams, or structured text programs stored in its 10 MB user memory.

For protocol conversion and network bridging, the IC695CPL410-AAAC integrates natively with GE IC695ETM001 Ethernet interface modules and IC695PBM300 PROFIBUS master modules, enabling legacy field devices using PROFIBUS DP or serial RS-485 to participate in the broader Ethernet-based data network. This protocol translation capability is critical for brownfield automation sites where older instrumentation must coexist with modern IIoT infrastructure.

Remote I/O expansion is handled through the RX3i Remote I/O Scanner architecture, where the IC695CPL410-AAAC acts as the network master, polling distributed I/O racks installed across the plant floor. This distributed topology reduces wiring costs, improves fault isolation, and enables modular system expansion without disrupting existing control logic.

At the HMI and SCADA integration layer, the OPC UA server embedded in the IC695CPL410-AAAC exposes real-time process variables, alarm states, and diagnostic data to SCADA platforms such as iFIX, CIMPLICITY, Ignition, or WinCC. Operators gain live visibility into production KPIs, equipment health metrics, and process trends through dashboards that pull data directly from the CPU's tag database — no intermediate data concentrator required.

For edge computing and IIoT gateway applications, the IC695CPL410-AAAC pairs effectively with industrial edge gateways running MQTT or REST API connectors, forwarding selected process data to cloud analytics platforms or on-premise data historians. This architecture supports predictive maintenance workflows, energy consumption monitoring, and OEE (Overall Equipment Effectiveness) calculation at the plant level.

Variable frequency drives (VFDs) and servo drives connected via Modbus TCP receive speed references, torque limits, and enable commands directly from the IC695CPL410-AAAC, closing the control loop between the PLC and motor drive systems without requiring dedicated fieldbus hardware. Similarly, industrial managed Ethernet switches — such as those supporting IEEE 802.1Q VLAN segmentation and IGMP snooping — ensure that EGD multicast traffic from the CPU reaches only the intended subscriber nodes, preserving network bandwidth for critical control communications.

Remote diagnostics and firmware management are supported through the CPU's built-in web server and the GE Proficy Machine Edition programming environment, which allows engineers to monitor program execution, force I/O points, capture data logs, and perform online edits from any networked workstation — including remote access over VPN-secured WAN connections. This capability dramatically reduces mean time to repair (MTTR) for automation faults at geographically distributed facilities.

Every IC695CPL410-AAAC unit supplied by NANKMOS undergoes pre-shipment functional testing, verifying Ethernet port connectivity, program execution integrity, and communication protocol handshaking before dispatch. In-stock availability ensures short lead times for MRO replacement and new project commissioning. All units are covered by a 12-month warranty, backed by NANKMOS technical support for integration, configuration, and troubleshooting assistance.

A typical smart factory deployment built around the IC695CPL410-AAAC follows a layered data flow architecture. At the field level, IC695ALG600 analog input modules collect 4–20 mA signals from pressure, flow, and temperature transmitters, while IC694MDL660 digital input modules capture discrete states from limit switches, proximity sensors, and safety interlocks. These signals are processed by the IC695CPL410-AAAC's CPU logic and made available to upstream systems via OPC UA tags.

At the network layer, an industrial managed Ethernet switch with IGMP snooping enabled distributes EGD multicast packets from the IC695CPL410-AAAC to peer PLCs and HMI stations on the same subnet, while VLAN segmentation isolates control traffic from office IT networks. A GE IC695ETM001 Ethernet module provides additional network ports for high-availability dual-ring topologies in critical process applications.

Variable frequency drives controlling pump motors and conveyor systems receive Modbus TCP commands from the IC695CPL410-AAAC, reporting back actual speed, current draw, and fault codes in real time. An industrial edge gateway running an MQTT broker subscribes to selected OPC UA nodes from the CPU and forwards production data to a cloud-based analytics platform, enabling remote KPI dashboards and predictive maintenance alerts without exposing the control network to the internet.

At the supervisory layer, SCADA software connects to the IC695CPL410-AAAC's OPC UA server to display real-time process graphics, trend charts, and alarm annunciator panels. Operators at remote control rooms can acknowledge alarms, adjust setpoints, and review historical data logs — all sourced from the CPU's live tag database. The GE Proficy CIMPLICITY or third-party Ignition SCADA platform serves as the visualization front-end, while the IC695CPL410-AAAC remains the authoritative data source for all field measurements and control states.

Many industrial facilities operate with fragmented automation islands — legacy PLCs using proprietary serial protocols, standalone HMI panels with no network connectivity, and SCADA systems that cannot access real-time field data without manual data entry. The IC695CPL410-AAAC directly addresses these data gaps through its multi-protocol communication architecture.

Protocol unification: By supporting Modbus TCP, OPC UA, EGD, and SRTP simultaneously, the IC695CPL410-AAAC acts as a protocol hub, allowing devices from different vendors and generations to exchange data through a common Ethernet backbone. Legacy serial devices can be integrated via IC695PBM300 PROFIBUS master modules or third-party serial-to-Ethernet converters, eliminating data silos without requiring full system replacement.

Remote monitoring and diagnostics: The CPU's built-in web server and OPC UA interface enable remote engineers to monitor program execution, review I/O status, and diagnose faults from any location with network access. Alarm states are propagated to SCADA in real time, with timestamped event logs that support root cause analysis and regulatory compliance reporting.

Production line transparency: By connecting the IC695CPL410-AAAC to MES systems via OPC UA or Modbus TCP, manufacturers gain real-time visibility into production counts, cycle times, reject rates, and equipment utilization — the foundational metrics for OEE improvement programs and lean manufacturing initiatives.

Scalable system expansion: The RX3i platform's modular backplane architecture allows additional I/O modules, communication modules, and motion control modules to be added without replacing the CPU. As production requirements grow, the IC695CPL410-AAAC scales to accommodate new devices, new network segments, and new data consumers — protecting the initial automation investment over the long term.

Q1: Does the IC695CPL410-AAAC support simultaneous Modbus TCP and OPC UA communication?Yes. The IC695CPL410-AAAC supports concurrent multi-protocol operation across its dual Ethernet ports. Modbus TCP client/server and OPC UA server functions run simultaneously, allowing SCADA systems, HMI panels, and third-party data consumers to access process data independently without protocol conflicts or performance degradation.

Q2: What is the network latency for EGD (Ethernet Global Data) exchanges?EGD exchanges on the IC695CPL410-AAAC are configurable with exchange periods as low as 1 ms, supporting deterministic, low-latency peer-to-peer data sharing between RX3i CPUs and other EGD-capable devices on the same Ethernet segment. Network latency is primarily determined by switch infrastructure; using industrial managed switches with QoS prioritization ensures consistent EGD performance.

Q3: Can the IC695CPL410-AAAC integrate with third-party SCADA platforms such as Ignition or WinCC?Yes. The OPC UA server embedded in the IC695CPL410-AAAC is compatible with any OPC UA-compliant SCADA or HMI platform, including Inductive Automation Ignition, Siemens WinCC, Wonderware System Platform, and iFIX. No proprietary driver or middleware is required — standard OPC UA client configuration in the SCADA software is sufficient for full tag browsing and data subscription.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the IC695CPL410-AAAC?Every IC695CPL410-AAAC unit shipped by NANKMOS is covered by a 12-month warranty from the date of delivery. Prior to dispatch, each unit undergoes functional pre-shipment testing including Ethernet port verification, program load and execution testing, and communication protocol handshaking. In-stock units are available for immediate shipment to minimize project downtime and procurement lead times.
