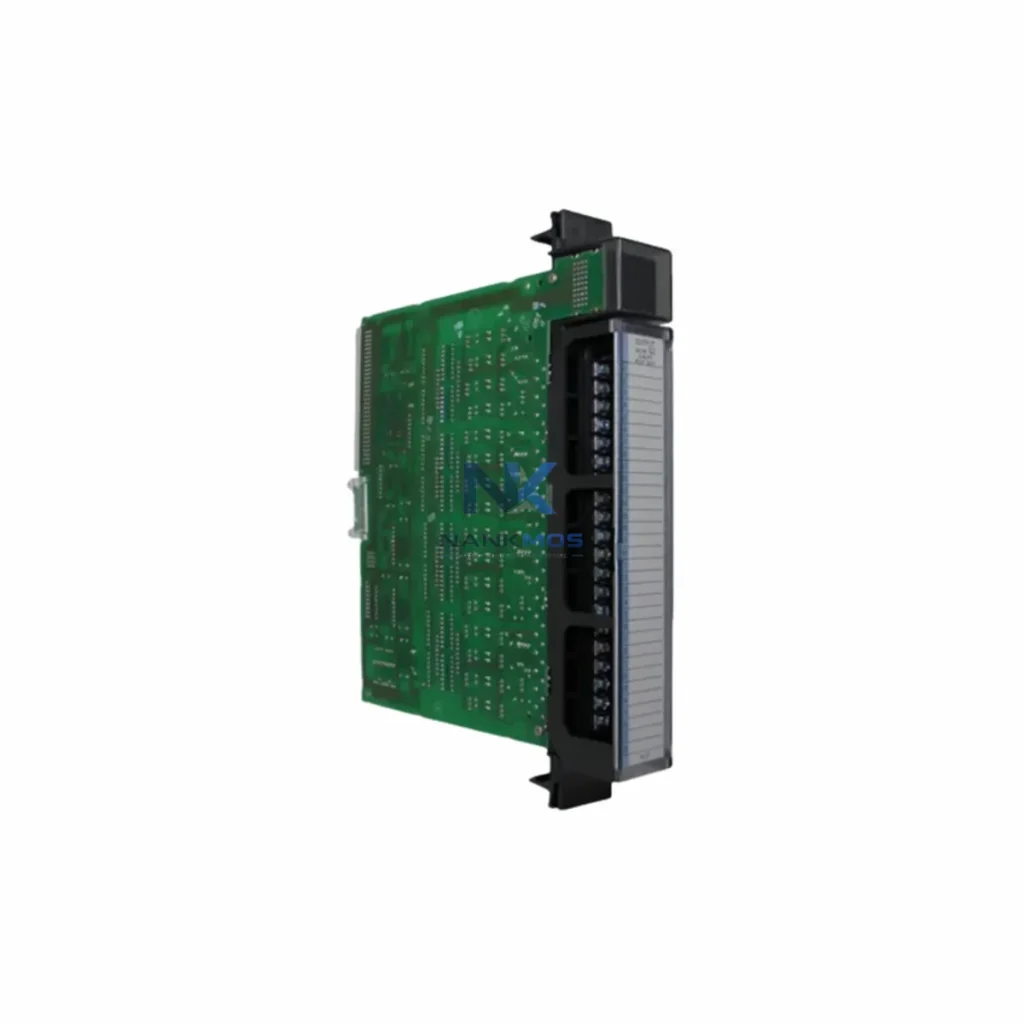

GE IC697MDL341 Discrete Output Module

Product Details

IC697MDL341 Product Description

The GE IC697MDL341 is a 16-point, 120VAC discrete output module engineered for the GE Series 90-70 PLC platform — one of the most widely deployed rack-based control architectures in heavy industrial, power generation, and process automation environments. Designed to slot directly into the IC697 backplane, the IC697MDL341 delivers deterministic, high-current output switching that forms the backbone of field-level actuation in smart factory data chains. From motor starters and solenoid valves to relay-driven safety interlocks, this module translates PLC logic into real-world action with the reliability that mission-critical automation demands.

In today's connected factory, discrete output modules are no longer isolated switching devices — they are integral nodes in a layered industrial data architecture. The IC697MDL341 operates within the Series 90-70 rack alongside communication co-processors such as the IC697CMM742 (Ethernet TCP/IP module) and the IC697BEM731 (Genius Bus Controller), enabling the CPU to coordinate field-level outputs with real-time network data. This tight integration between I/O execution and network communication is what makes the Series 90-70 platform a durable choice for SCADA-connected automation sites.

Understanding the IC697MDL341's role requires mapping it within the full smart factory data chain — from field device actuation through to enterprise-level visibility.

At the field level, the IC697MDL341 drives actuators, contactors, and solenoids based on logic resolved by the GE IC697CPU772 or IC697CPU782 central processing unit. The CPU scans the I/O table at each PLC cycle, writing output states to the module via the Series 90-70 backplane at deterministic scan rates. This ensures that actuation commands derived from upstream sensor data — collected through companion discrete input modules such as the IC697MDL240 (16-point 120VAC input) or analog input modules like the IC697ALG320 — are executed with minimal latency.

Network communication is layered above this field-level execution. The IC697CMM742 Ethernet TCP/IP Communications Module connects the Series 90-70 rack to plant-floor Ethernet infrastructure, enabling SRTP-based data exchange with SCADA servers, historian platforms, and OPC-UA gateways. Through this pathway, output states from the IC697MDL341 — whether a motor starter is energised or a valve is open — are reflected in real time on GE CIMPLICITY or third-party HMI platforms such as Wonderware InTouch or Ignition by Inductive Automation.

For distributed control architectures, the IC697BEM731 Genius Bus Controller extends the Series 90-70 network to remote I/O drops across the plant floor. Remote I/O expansion racks equipped with additional IC697MDL341 modules or Genius Block I/O devices can be placed close to field equipment, reducing wiring runs and improving signal integrity. The Genius Bus protocol provides deterministic, peer-to-peer communication between the master CPU rack and remote drops, with built-in fault detection that surfaces alarms directly to the SCADA layer.

Edge connectivity is increasingly important in modernisation projects. Industrial edge gateways — such as those running Kepware KEPServerEX or similar OPC-UA aggregation platforms — can bridge the Series 90-70's SRTP protocol to cloud-based MES and ERP systems, enabling production data from IC697MDL341 output states to feed digital twin models, OEE dashboards, and predictive maintenance analytics. Variable frequency drives (VFDs) controlled through IC697MDL341 discrete outputs can have their run/stop and fault status mirrored back through analog feedback modules, creating a closed-loop data picture visible at every level of the automation hierarchy.

Power distribution integrity is maintained through industrial DIN-rail power supplies rated for 24VDC logic supply to the rack, while the 120VAC field-side outputs of the IC697MDL341 are sourced from dedicated field power buses — a design that preserves optical isolation and protects the backplane from field-side transients. This architecture supports the IEC 61131-3 programming model used across the Series 90-70 platform, ensuring that ladder logic, function block, and structured text programs interact with IC697MDL341 outputs through standardised I/O addressing.

Protocol Fragmentation: Many legacy Series 90-70 installations operate in mixed-protocol environments where Genius Bus, SRTP, Modbus RTU, and Ethernet TCP/IP coexist. The IC697MDL341, as a native backplane module, is protocol-agnostic at the field level — its output states are managed entirely by the CPU, which can simultaneously communicate over multiple network interfaces. Protocol translation gateways placed at the rack level normalise data for SCADA and MES consumption without requiring changes to the I/O module itself.

Data Silos and Production Transparency: In plants where Series 90-70 controllers operate in isolation from higher-level systems, output module states — including IC697MDL341 actuation events — are invisible to production managers. Connecting the rack via IC697CMM742 to an OPC-UA server breaks down these silos, making every discrete output event — valve open/close, motor start/stop, alarm acknowledgement — available as a timestamped data point in the historian and SCADA dashboard.

Remote Monitoring and Diagnostics: The IC697MDL341's per-point LED indicators provide local fault visibility, but remote diagnostic capability requires SCADA integration. By mapping output module fault bits from the CPU's diagnostic tables to SCADA alarm objects, maintenance teams can receive real-time alerts for output overcurrent, blown fuses, or field wiring faults — without dispatching technicians to the panel. This remote diagnostic loop is especially valuable in unmanned substations, water treatment facilities, and offshore installations.

System Scalability: As production lines expand, additional IC697MDL341 modules can be added to existing Series 90-70 racks (up to the rack's slot capacity) or deployed in remote I/O drops via the Genius Bus network. This modular scalability means that new actuation points can be commissioned without redesigning the control architecture, protecting the existing investment in Series 90-70 infrastructure while accommodating smart factory expansion requirements.

Q1: What communication protocols does the GE IC697MDL341 support for SCADA integration? The IC697MDL341 itself is a field-side output module that communicates via the Series 90-70 backplane. SCADA integration is achieved through co-processor modules in the same rack: the IC697CMM742 provides Ethernet TCP/IP (SRTP protocol) connectivity, while the IC697BEM731 supports Genius Bus for distributed I/O. OPC-UA and Modbus TCP access is typically provided by an edge gateway or KEPServerEX driver connecting to the CPU's Ethernet port.

Q2: How is network stability and determinism maintained for discrete output control? The Series 90-70 backplane provides a deterministic, synchronous I/O scan that is independent of network traffic. Output states written to the IC697MDL341 are updated every CPU scan cycle (typically 5–50ms depending on program size), ensuring that network congestion on the Ethernet or Genius Bus layer does not affect field-level output timing. Watchdog timers in the CPU enforce safe-state outputs if network communication is lost.

Q3: Can the IC697MDL341 be used in remote I/O configurations away from the main CPU rack? Yes. By deploying the IC697MDL341 in a remote expansion rack connected to the main CPU via the Genius Bus Controller (IC697BEM731) and Remote I/O Scanner (IC697BEM711), the module can be located up to 7,500 feet from the CPU rack. This is ideal for distributed plant layouts where actuation points are spread across large facilities. Each remote drop maintains its own backplane scan, with I/O data transmitted to the CPU over the Genius Bus network.

Q4: What does the 12-month warranty cover, and is pre-shipment testing performed? Every IC697MDL341 unit supplied by NANKMOS is covered by a 12-month warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. Prior to dispatch, each module undergoes functional verification testing to confirm output switching, backplane communication, and LED diagnostic operation. In-stock units are available for immediate shipment, with lead time confirmation provided at the time of order.
