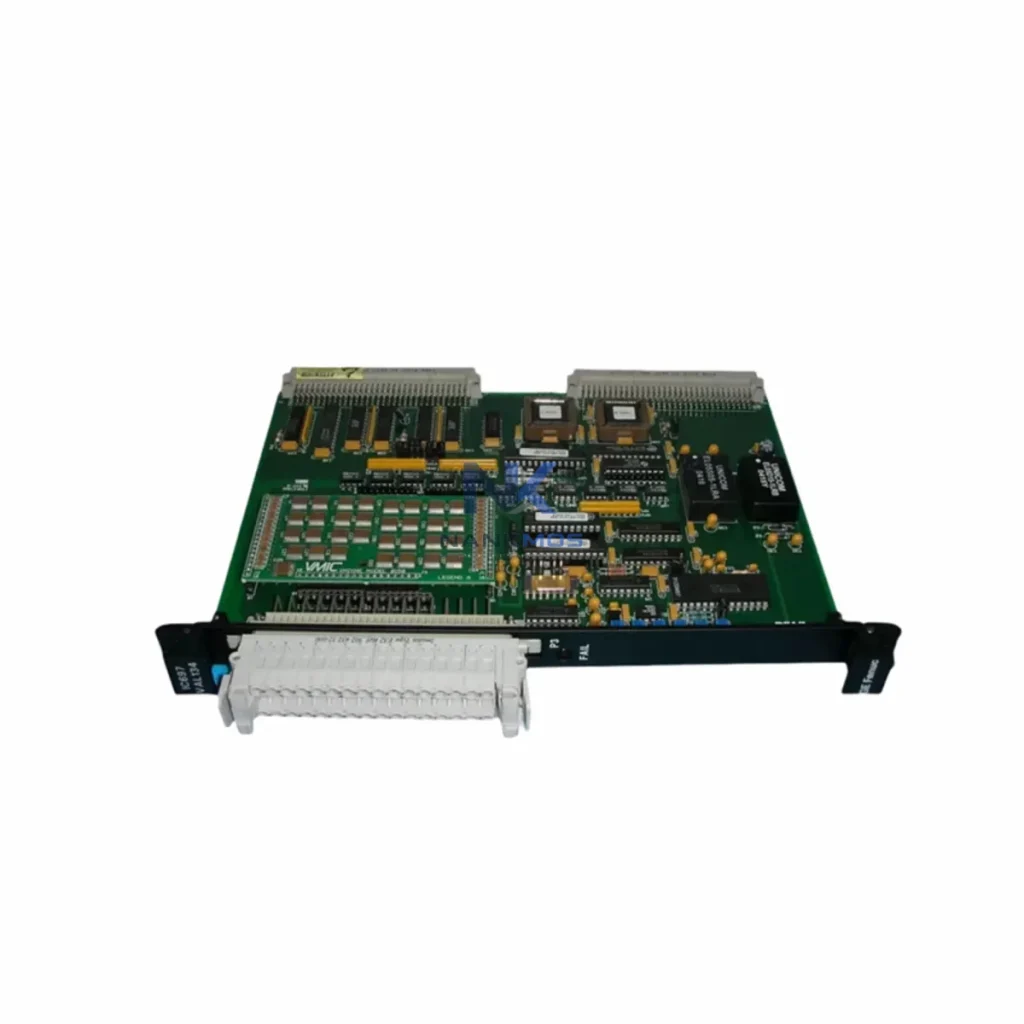

GE IC697VAL134/3801 Analog Output Module

Product Details

IC697VAL134/3801 Product Description

The GE IC697VAL134 is a high-performance analog output module engineered for the GE Series 90-70 PLC platform, delivering precision signal conversion and seamless integration across industrial data networks. In smart factory environments where real-time process control and transparent data flow are non-negotiable, the IC697VAL134 serves as a critical bridge between the digital control layer and physical field devices — translating PLC command signals into accurate analog outputs that drive actuators, variable frequency drives (VFDs), control valves, and process instrumentation.

Deployed within GE's Series 90-70 rack architecture, the IC697VAL134 operates alongside the IC697CPU772 and IC697CPU781 central processing units, receiving setpoint data from the PLC scan cycle and converting it to 4–20 mA or 0–10 V analog signals with high resolution and low latency. This output fidelity is essential in closed-loop control applications — from temperature regulation in thermal processing lines to flow control in chemical dosing systems — where signal drift or conversion delay can compromise product quality and process safety.

In a connected factory data flow design, the IC697VAL134 sits at the output end of a multi-layer communication chain. Upstream, field sensor data is collected by analog input modules such as the IC697ALG320 and transmitted to the CPU via the Series 90-70 VME backplane. The CPU processes this data against programmed logic and issues analog output commands to the IC697VAL134, which then drives downstream field devices in real time. Simultaneously, the IC697CMM741 communications coprocessor or IC697CMM742 Ethernet module relays process values to SCADA systems and HMI panels — enabling operators to monitor analog output states, trend historical data, and issue remote setpoint adjustments without interrupting the control loop.

For facilities integrating GE PACSystems or legacy Series 90-70 networks with modern IIoT infrastructure, the IC697VAL134 pairs effectively with edge gateway devices that aggregate analog output feedback, convert it to MQTT or OPC-UA data streams, and forward it to cloud-based MES or ERP platforms. This architecture eliminates data silos between the field control layer and enterprise systems, enabling production transparency, predictive maintenance scheduling, and energy consumption analytics — all driven by the real-time analog signals managed by the IC697VAL134.

Remote diagnostics capability is another key advantage of deploying the IC697VAL134 within a networked Series 90-70 system. Through the IC697CMM741 or a connected industrial Ethernet switch, maintenance engineers can remotely query module status, verify output channel calibration, and detect fault conditions — such as open-circuit loads or out-of-range output values — without dispatching field technicians. Alarm events are automatically propagated to SCADA dashboards and HMI alarm logs, enabling rapid fault isolation and minimizing unplanned downtime.

The IC697VAL134 also supports system scalability. As production lines expand, additional analog output capacity can be added by installing further IC697VAL134 modules in available rack slots, with the Series 90-70 backplane supporting mixed I/O configurations alongside digital output modules such as the IC697MDL340 and specialty function modules. This modular expansion approach protects capital investment and allows phased automation upgrades aligned with production growth.

Every IC697VAL134 unit supplied by NANKMOS undergoes pre-shipment functional testing, verifying output channel accuracy, module communication integrity, and backplane interface performance. Units are shipped with full documentation and are backed by a 12-month warranty, with in-stock inventory available for immediate dispatch to support urgent maintenance and production continuity requirements.

In a typical smart factory deployment, the IC697VAL134 operates as the analog output terminus of a fully networked control architecture. Field sensors — including pressure transmitters, flow meters, and temperature probes — feed raw process data into analog input modules such as the IC697ALG320 or IC697ALG321, which digitize the signals and pass them across the Series 90-70 VME backplane to the IC697CPU772 or IC697CPU781 processor. The CPU executes the control program, calculates required output setpoints, and writes analog output values to the IC697VAL134 — which then converts these digital commands back into precise 4–20 mA or 0–10 V signals to drive downstream actuators and variable frequency drives.

Simultaneously, the IC697CMM742 Ethernet communications module transmits real-time process data — including IC697VAL134 output channel states — to SCADA platforms such as GE CIMPLICITY or Ignition, where operators monitor trends, configure alarm thresholds, and issue remote setpoint changes. Industrial Ethernet switches connect the Series 90-70 rack to the plant network backbone, while edge gateway devices aggregate analog output feedback data and publish it via MQTT or OPC-UA to cloud-based MES and ERP systems. This end-to-end data chain — from field sensor through PLC, analog output module, network switch, SCADA, and edge gateway — forms the backbone of a transparent, data-driven smart factory.

Many industrial facilities operating GE Series 90-70 systems face persistent challenges: protocol fragmentation between legacy PLC networks and modern SCADA platforms, analog output data that never reaches enterprise systems, and limited visibility into field device performance. The IC697VAL134 addresses these gaps directly. By pairing with the IC697CMM741 or IC697CMM742 communications modules, analog output states become accessible to SCADA and HMI systems in real time — eliminating the data silos that prevent production transparency.

For sites requiring remote monitoring, the IC697VAL134's integration with networked Series 90-70 architectures enables remote diagnostics: engineers can verify output channel status, detect open-circuit faults, and confirm setpoint delivery from any network-connected workstation. Alarm events triggered by out-of-range analog outputs are automatically logged and forwarded to HMI alarm systems, enabling rapid response without physical site visits. As production lines scale, additional IC697VAL134 modules can be added to existing racks alongside digital I/O and specialty modules — providing a clear, cost-effective path to expanded analog output capacity without system redesign.

Q1: What communication protocols does the IC697VAL134 support for SCADA integration?The IC697VAL134 interfaces with SCADA systems via the GE Series 90-70 backplane and paired communications modules. The IC697CMM742 Ethernet module supports GE SRTP and Modbus TCP, enabling direct integration with SCADA platforms including GE CIMPLICITY, iFIX, Ignition, and Wonderware. OPC-UA connectivity is achievable via edge gateway devices connected to the plant Ethernet network.

Q2: How does the IC697VAL134 perform in high-speed control loops requiring low-latency analog output?The IC697VAL134 delivers analog output updates synchronized with the Series 90-70 PLC scan cycle, typically achieving output update rates in the low-millisecond range. This performance is suitable for closed-loop process control applications including VFD speed setpoint, valve positioning, and temperature regulation, where output latency directly impacts control stability.

Q3: Can the IC697VAL134 be monitored and diagnosed remotely without interrupting production?Yes. Through the IC697CMM742 Ethernet module and connected SCADA or HMI systems, maintenance engineers can remotely query IC697VAL134 module status, verify output channel values, and receive fault alarms — including open-circuit load detection and out-of-range output alerts — without interrupting the PLC control program or halting production.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the IC697VAL134?Every IC697VAL134 unit supplied by NANKMOS is covered by a 12-month warranty and undergoes pre-shipment functional testing to verify output channel accuracy, backplane communication integrity, and module health. In-stock units are available for immediate dispatch, with full documentation included to support rapid installation and commissioning.
