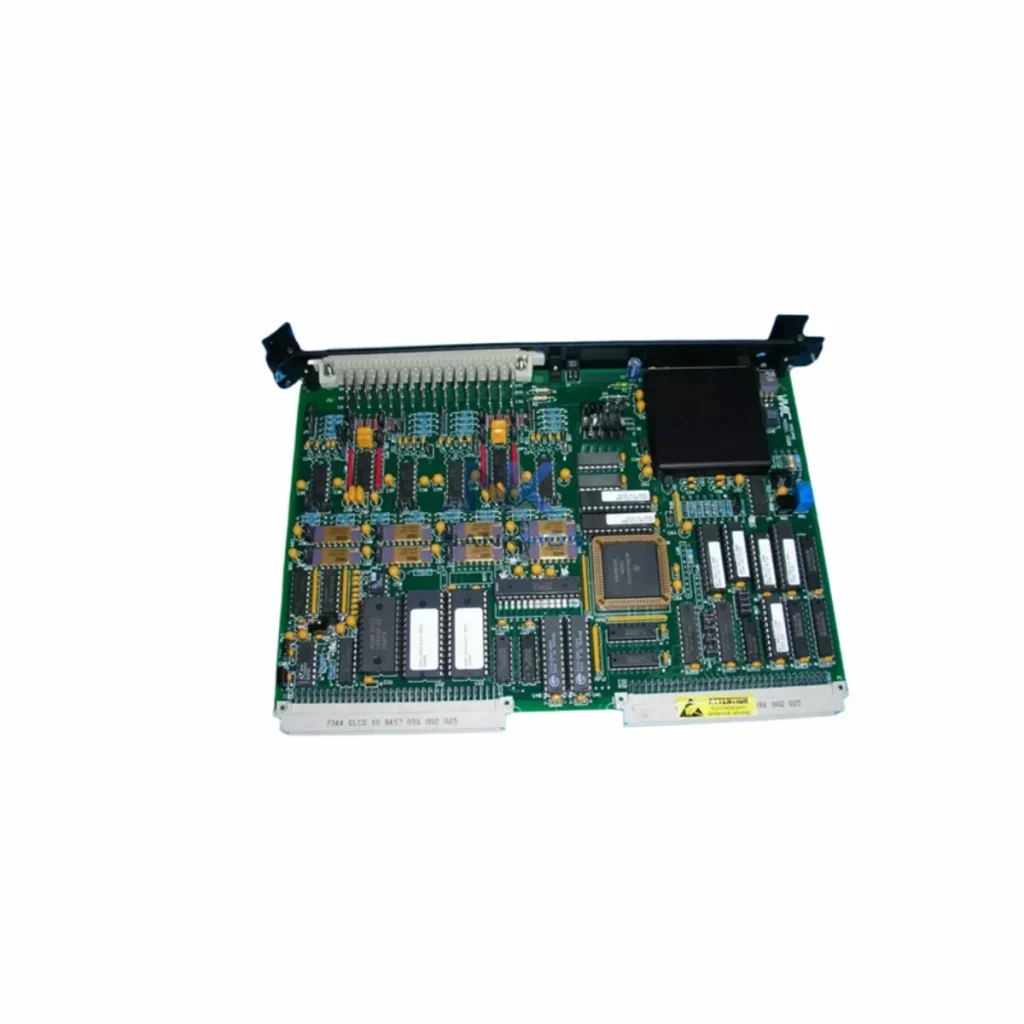

GE IC697VRD008 Strain Bridge Input Module

Product Details

IC697VRD008 Product Description

The GE IC697VRD008 is a high-precision strain bridge input module engineered for the GE Series 90-70 PLC platform, delivering reliable analog signal acquisition from load cells, pressure transducers, and force sensors directly into the automation control layer. Designed for demanding industrial environments, the IC697VRD008 bridges the gap between physical measurement points and the digital data infrastructure of modern smart factories — enabling real-time signal conditioning, protocol-transparent data forwarding, and seamless integration with SCADA, HMI, and edge computing systems.

In today's connected manufacturing landscape, the ability to capture accurate strain and force data at the field level and transmit it without latency to supervisory systems is a critical competitive advantage. The IC697VRD008 fulfills this role within the GE Series 90-70 rack architecture, providing up to eight differential strain bridge input channels with high common-mode rejection, programmable excitation voltage, and direct compatibility with the Series 90-70 backplane communication bus. This makes it an ideal front-end acquisition node in multi-tier automation networks where data integrity and signal fidelity are non-negotiable.

The IC697VRD008 operates as the analog front-end in a layered smart factory data architecture. At the field level, strain gauges, load cells, and Wheatstone bridge sensors connect directly to the module's differential input terminals. The IC697VRD008 conditions these signals — applying programmable excitation, performing A/D conversion, and scaling the results — before placing the engineering-unit values onto the Series 90-70 backplane for consumption by the GE IC697CPX935 or IC697CPM925 CPU modules.

From the CPU, process data flows upward through the network stack. A GE IC697CMM742 communications coprocessor or an IC697BEM731 Bus Expansion Module can extend the data reach across multi-rack configurations, ensuring that strain readings from remote press stations or weighing platforms are consolidated at the central controller without signal degradation. For facilities running mixed-protocol environments, an industrial protocol gateway — such as those supporting PROFIBUS DP or PROFINET IO — can bridge the Series 90-70 data into modern Ethernet-based control networks, making IC697VRD008 measurements available to Siemens S7 or Rockwell ControlLogix supervisory layers.

At the SCADA and HMI tier, real-time strain data from the IC697VRD008 feeds into GE iFIX or Wonderware InTouch historian and visualization platforms via OPC-UA or SRTP data servers. Operators at HMI terminals — whether GE QuickPanel+ or third-party touch panels — can monitor live force trends, configure alarm thresholds, and trigger automated responses when strain values exceed safe operating limits. This closed-loop feedback between the IC697VRD008 input layer and the SCADA alarm engine is fundamental to predictive maintenance and process quality assurance in stamping, injection molding, and structural testing applications.

Edge computing nodes deployed alongside the Series 90-70 rack can subscribe to IC697VRD008 data streams for local analytics — calculating rolling averages, detecting micro-fatigue signatures, and pre-processing data before forwarding compressed datasets to cloud MES or ERP platforms. Industrial Ethernet switches with managed VLAN support segment the strain data traffic from general plant network traffic, ensuring deterministic delivery and cybersecurity compliance. Remote I/O expansion modules connected via the Series 90-70 Genius Bus or RX3i backplane can further extend the measurement network to distributed press stations, conveyor weigh-in-motion systems, and multi-axis force test rigs — all feeding back into the same SCADA data lake for unified visualization and reporting.

Many industrial facilities operating GE Series 90-70 infrastructure face a common set of data integration challenges: strain and force measurements remain siloed within the PLC layer, inaccessible to plant-wide SCADA dashboards or MES reporting tools. The IC697VRD008 directly addresses this by providing a standards-compliant analog input interface that integrates natively with the Series 90-70 CPU's data table, making all eight strain channels immediately available for ladder logic processing, data logging, and network publication via SRTP or OPC-UA.

Protocol fragmentation is another persistent barrier. Legacy Modbus RTU devices, PROFIBUS field instruments, and modern Ethernet/IP controllers often coexist in the same facility without a unified data path. By positioning the IC697VRD008 within a Series 90-70 rack that includes a communications gateway module, engineers can aggregate strain data alongside discrete I/O, temperature inputs, and drive feedback signals into a single controller data model — eliminating the data islands that prevent holistic process visibility.

Remote diagnostics capability is built into the Series 90-70 architecture: the IC697VRD008 reports module health, channel fault status, and excitation errors back to the CPU, which can then forward these diagnostics to remote SCADA clients or maintenance management systems. This enables condition-based maintenance scheduling without requiring on-site technician visits for routine status checks — a significant operational cost reduction for facilities with geographically distributed press lines or structural monitoring installations.

For production lines requiring rapid scale-out, the IC697VRD008's rack-based architecture supports hot-configuration changes within the Series 90-70 system, and additional strain input capacity can be added by installing parallel modules in the same or expansion racks. This modularity ensures that the measurement infrastructure grows with production capacity without requiring controller replacement or network redesign.

Q1: What communication protocols does the GE IC697VRD008 support for SCADA integration?The IC697VRD008 itself communicates via the Series 90-70 backplane bus. SCADA integration is achieved through the Series 90-70 CPU's native SRTP (Service Request Transfer Protocol) Ethernet port or via an OPC-UA server running on the programming workstation. For Modbus TCP or PROFIBUS DP connectivity, a protocol gateway module installed in the same rack provides transparent protocol conversion without additional engineering overhead.

Q2: How does the IC697VRD008 ensure network stability and data integrity in high-vibration environments?The module is designed to GE's Series 90-70 industrial hardening standards, including conformal coating options and wide operating temperature tolerance. Its differential input architecture provides high common-mode noise rejection, and the backplane communication bus uses deterministic timing to ensure strain data is delivered to the CPU scan cycle without jitter or packet loss — critical for press force monitoring and structural health applications.

Q3: Can the IC697VRD008 be integrated into a remote diagnostics or predictive maintenance system?Yes. The module reports channel-level fault codes and excitation status to the Series 90-70 CPU, which can be polled by remote SCADA clients or forwarded to cloud-based maintenance platforms via edge gateway nodes. Combined with historian software such as GE Historian or OSIsoft PI, long-term strain trend data enables fatigue life prediction and proactive maintenance scheduling.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the IC697VRD008?Every IC697VRD008 unit supplied by NANKMOS undergoes full functional testing prior to shipment, including channel-by-channel signal verification and backplane communication validation. All units are covered by a 12-Month Warranty from the date of delivery. In-stock units are available for same-week dispatch, and our technical team provides pre-sales application support to confirm module compatibility with your existing Series 90-70 rack configuration.
