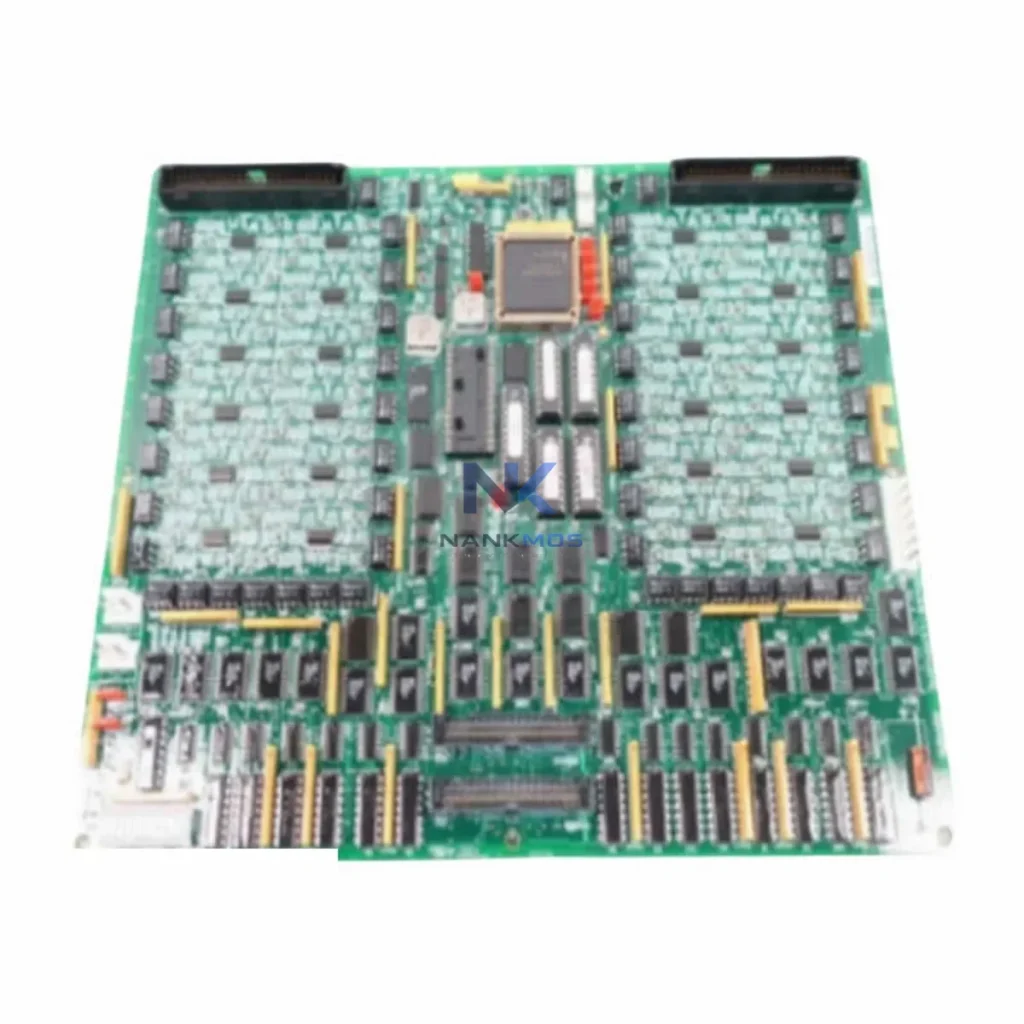

GE IS200VIB-HCAB Vibration Interface Board

Product Details

IS200VIB-HCAB Product Description

The GE IS200VIB-HCAB is a precision vibration interface board engineered for the GE Mark V LM gas turbine control platform. Designed to acquire, condition, and transmit vibration and proximity sensor signals from rotating machinery, this board forms a critical node in the industrial data chain — bridging raw mechanical signal inputs with the digital control and monitoring infrastructure of modern smart factories. From signal acquisition at the sensor level through protocol conversion, network transmission, real-time SCADA visualization, and remote diagnostics, the IS200VIB-HCAB delivers uninterrupted data flow across the full automation stack.

In turbine-driven power generation, oil and gas compression, and industrial process plants, vibration data is mission-critical. The IS200VIB-HCAB interfaces directly with proximity probes and accelerometers mounted on turbine shafts and bearing housings, converting analog vibration signals into digitized process values that the Mark V LM controller — via companion boards such as the IS200VSVOH1B servo output board and the IS200TREGH1B terminal board — can act upon in real time. This tight integration within the IS200 series ensures that vibration exceedances trigger immediate protective responses, alarm escalation, and event logging without latency.

Beyond the local control loop, the IS200VIB-HCAB participates in the broader plant data architecture. The Mark V LM system communicates upstream to DCS platforms and SCADA servers — such as GE's own ToolboxST configuration environment and third-party SCADA systems via the IS200ECTBG1A Ethernet communication board — enabling operators to monitor shaft vibration trends, bearing temperatures, and proximity gap values from centralized control rooms or remote engineering workstations. This connectivity transforms isolated turbine data into actionable intelligence across the enterprise network.

The IS200VIB-HCAB sits at the signal acquisition layer of the smart factory data hierarchy. Proximity probes and accelerometers mounted on turbine shafts feed raw analog signals into the board, where signal conditioning circuits filter noise, scale amplitudes, and digitize waveform data. This conditioned data enters the Mark V LM controller backplane, where the IS200VPROH1B protection board cross-references vibration levels against configured trip thresholds, and the IS200TREGH1B terminal board aggregates I/O from multiple field instruments including thermocouples, RTDs, and 4–20 mA process transmitters.

At the control layer, the Mark V LM CPU — supported by boards such as the IS200CPCH1B core processor — executes protection logic and issues control commands to actuators via servo output boards. Simultaneously, process values including shaft vibration amplitude, phase angle, and bearing proximity gap are time-stamped and forwarded to the plant historian and SCADA server. The IS200ECTBG1A Ethernet communication board provides the TCP/IP gateway function, encapsulating Mark V LM internal data into standard Ethernet frames for transmission across the plant LAN to DCS workstations, HMI panels, and remote monitoring platforms.

At the network layer, industrial-grade managed switches — such as those from the Hirschmann MACH or Cisco IE series — segment turbine control traffic from general plant IT traffic, ensuring deterministic latency for protection-critical data. Edge gateway devices running OPC-UA or Modbus TCP translation allow the vibration data stream from the IS200VIB-HCAB to be consumed by third-party SCADA platforms, MES systems, and cloud-based asset performance management (APM) tools. Variable frequency drives (VFDs) controlling auxiliary turbine systems — such as lube oil pumps and cooling fans — also report their operational status into the same SCADA data bus, creating a unified view of turbine health across all subsystems.

For remote diagnostics, engineers can access real-time vibration trend data, alarm histories, and event logs from off-site locations through secure VPN connections to the plant SCADA server. The IS200VIB-HCAB's data, once integrated into the SCADA historian, supports predictive maintenance workflows: vibration spectrum analysis tools can identify bearing wear, rotor imbalance, and misalignment signatures weeks before a failure event, enabling planned maintenance interventions that minimize unplanned downtime and protect turbine asset value.

Protocol Fragmentation: Many turbine sites operate legacy Mark V LM systems alongside newer DCS platforms using Modbus TCP, PROFIBUS, or OPC-UA. The IS200VIB-HCAB, combined with the Mark V LM's Ethernet gateway module, bridges this protocol gap — ensuring vibration data generated at the sensor level reaches modern SCADA and MES platforms without manual data entry or proprietary middleware dependencies.

Data Silos and Production Transparency: Without a properly functioning vibration interface board, turbine protection data remains isolated within the local control system, invisible to plant-wide monitoring dashboards. The IS200VIB-HCAB restores this data link, enabling operators to correlate turbine vibration events with process upsets, load changes, and maintenance records in a unified SCADA view — eliminating the data silos that obscure root cause analysis.

Remote Monitoring and Alarm Management: Turbine sites in remote or unmanned locations depend on reliable remote monitoring to avoid costly site visits. The IS200VIB-HCAB ensures that vibration alarm signals are transmitted in real time to remote SCADA consoles and mobile notification systems, enabling on-call engineers to assess alarm severity, acknowledge events, and initiate remote diagnostic procedures without dispatching field personnel for every alert.

System Expansion and Scalability: As plant operators expand turbine fleets or upgrade control infrastructure, the IS200 series architecture supports modular expansion. Additional IS200VIB-HCAB boards can be added to monitor additional vibration measurement points — such as compressor stages or generator bearings — without redesigning the control system architecture, protecting the existing investment in Mark V LM infrastructure while scaling monitoring coverage.

Q1: What communication protocols does the GE IS200VIB-HCAB support for SCADA integration? The IS200VIB-HCAB operates on the Mark V LM internal VME backplane and communicates upstream via the system's Ethernet gateway module (such as the IS200ECTBG1A), which supports Modbus TCP and OPC-UA translation for integration with third-party SCADA, DCS, and historian platforms. This ensures vibration data is accessible to plant-wide monitoring systems without proprietary protocol lock-in.

Q2: How does the IS200VIB-HCAB handle network latency in protection-critical applications? Vibration protection logic executes locally within the Mark V LM controller at scan rates optimized for turbine protection response times — network latency to SCADA does not affect the speed of protective trip actions. The board's signal conditioning and digitization occur at the hardware level, ensuring that trip thresholds are evaluated in real time independent of upstream network conditions.

Q3: Can the IS200VIB-HCAB be integrated with modern edge gateway and cloud APM platforms? Yes. When paired with the Mark V LM Ethernet communication module and an OPC-UA-capable edge gateway, vibration data from the IS200VIB-HCAB can be published to cloud-based asset performance management platforms for long-term trend analysis, predictive maintenance modeling, and fleet-wide benchmarking. This integration path supports digital transformation initiatives without requiring replacement of the existing Mark V LM control system.

Q4: What quality assurance and warranty coverage applies to the IS200VIB-HCAB? Every IS200VIB-HCAB unit supplied by NANKMOS undergoes functional testing and inspection prior to shipment. All units are covered by a 12-month warranty against manufacturing defects and operational failures. In-stock units are available for immediate dispatch to support urgent maintenance and unplanned outage scenarios, minimizing turbine downtime and project schedule risk.
