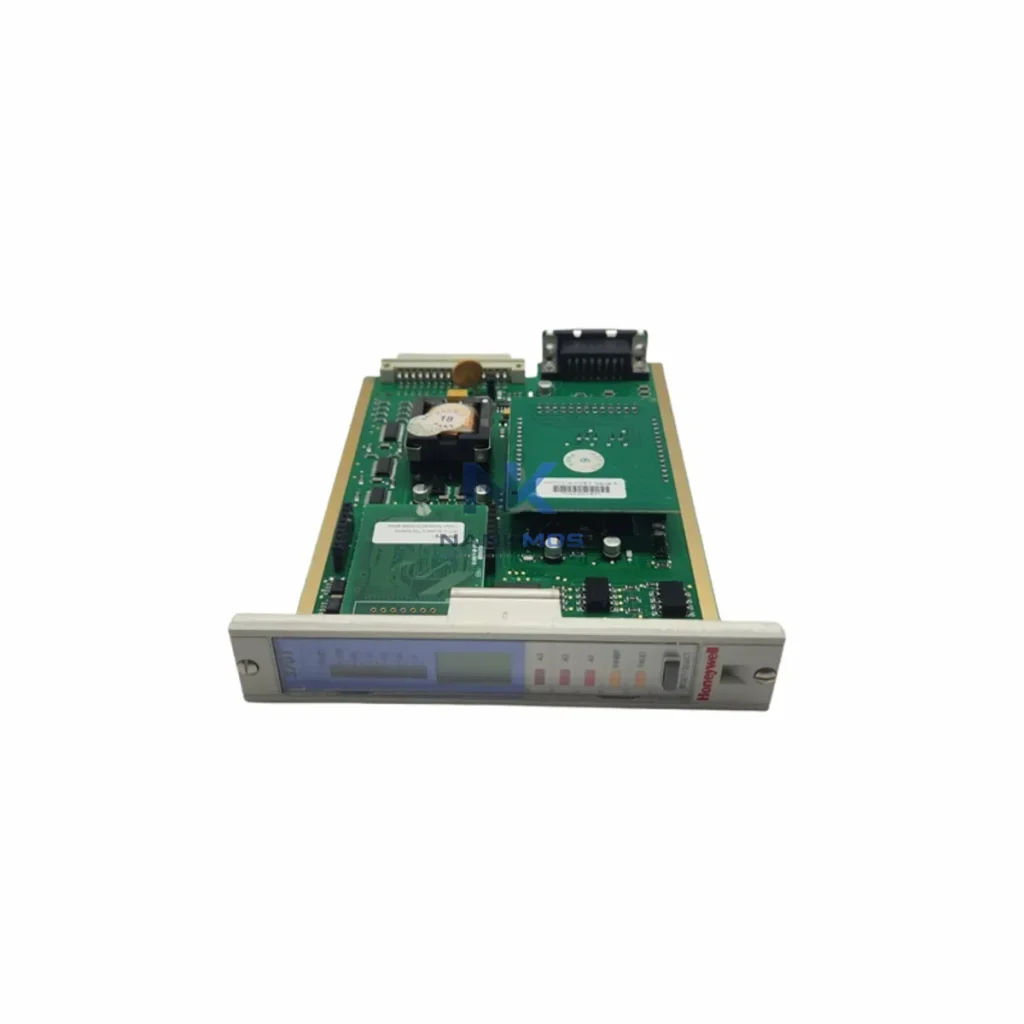

Honeywell 05701-A-0301 DCS Control Module

Product Details

05701-A-0301 Product Description

The Honeywell 05701-A-0301 is engineered as a channel-level control card within the Experion PKS distributed control architecture. Its value is best understood not in isolation, but as a precision component within a layered automation platform where every module contributes to system-wide signal integrity, redundancy, and operational continuity.

At the control layer, the 05701-A-0301 operates in coordination with the Honeywell C300 Controller — the primary processing node in Experion PKS — and the C200 Controller for legacy-compatible deployments. These controllers manage execution cycles, loop control, and sequence logic, while the 05701-A-0301 ensures that channel-level I/O signals are accurately conditioned and routed to the controller for processing.

Within the I/O layer, this card interfaces directly with Honeywell IOTA (I/O Termination Assembly) modules and Series 8 I/O modules, including analog input, analog output, digital input, and digital output variants. The modular backplane architecture allows engineers to expand I/O capacity without disrupting existing wiring or control logic, supporting phased plant expansions and brownfield integration projects.

Communication stability is maintained through the Fault Tolerant Ethernet (FTE) network, Honeywell's dual-ring Ethernet backbone that provides redundant data paths between controllers, I/O nodes, and the Experion PKS server. The 05701-A-0301 is fully compatible with FTE-connected I/O cabinets, ensuring that signal data reaches the control layer without single-point-of-failure risk. For plants requiring fieldbus integration, the architecture supports FOUNDATION Fieldbus H1 linking devices and HART multiplexers that aggregate field instrument data into the Experion PKS environment.

Power distribution within the control cabinet is managed by Honeywell 24 VDC power supply modules and redundant power conditioners that protect I/O backplanes from voltage transients. The 05701-A-0301 draws power from the backplane bus, eliminating the need for external wiring and simplifying cabinet layout. This design reduces installation time and supports the compact, high-density I/O configurations common in process industry control rooms.

At the HMI and supervisory layer, the Experion PKS platform integrates with Honeywell Experion PKS Operator Stations running Station software, providing real-time visualization of channel-level diagnostics, alarm states, and process trends. Engineers can monitor the health of individual I/O channels — including those managed by the 05701-A-0301 — directly from the operator console, enabling rapid fault isolation without physical cabinet access.

For plants deploying redundant control architectures, the 05701-A-0301 supports pairing with a redundant I/O module on a mirrored backplane slot. In the event of a primary module failure, the redundant module assumes control within milliseconds, maintaining process continuity in critical applications such as reactor control, compressor surge protection, and boiler management. This redundancy model aligns with the Honeywell Safety Manager and FSC (Fail Safe Controller) platforms used in SIL-rated safety instrumented systems.

Maintenance and diagnostics are further supported by Honeywell Control Builder engineering software, which provides module-level configuration, firmware management, and online diagnostics for all Experion PKS I/O components. Engineers can perform loop checks, channel calibration, and module replacement procedures without taking the controller offline, reducing planned maintenance windows and improving overall plant availability.

The Honeywell 05701-A-0301 is deployed across a broad range of process industries where signal accuracy, system redundancy, and long-term maintainability are non-negotiable requirements.

In oil and gas processing and petrochemical plants, the card supports continuous process control for distillation columns, heat exchangers, and compressor trains. Its compatibility with HART-enabled field instruments allows engineers to perform remote diagnostics on transmitters and control valves without interrupting production. Redundant I/O pairing ensures that critical control loops — such as pressure relief and flow control — remain active even during module maintenance.

In power generation facilities, including thermal, combined-cycle, and renewable energy plants, the 05701-A-0301 integrates into turbine control and boiler management systems. Its stable signal conditioning supports the high-speed analog inputs required for turbine speed and temperature monitoring, while its compatibility with the Experion PKS FTE network ensures that control data reaches the operator station with minimal latency.

In water and wastewater treatment plants, the card manages I/O channels for pump control, chemical dosing, and effluent monitoring. Its modular design allows treatment plant operators to expand I/O capacity as plant throughput increases, without replacing existing controller hardware. The 12-Month Warranty and pre-shipment testing protocol ensure that replacement modules arrive ready for immediate installation, minimizing unplanned downtime.

In mining and metallurgical operations, the 05701-A-0301 supports conveyor control, crusher management, and flotation cell automation. The card's robust industrial design and compatibility with Experion PKS redundant architectures make it suitable for the harsh electrical environments common in mining control rooms, where voltage transients and electromagnetic interference can compromise signal integrity.

In pharmaceutical and food processing facilities, the card supports batch control and continuous process applications where regulatory compliance requires accurate, auditable process data. Its integration with Experion PKS historian and alarm management systems ensures that all channel-level events are logged and retrievable for compliance reporting.

Q1: Is the Honeywell 05701-A-0301 compatible with both C200 and C300 controller nodes in an Experion PKS system? Yes. The 05701-A-0301 is designed for use within the Experion PKS I/O subsystem and is compatible with both C200 and C300 controller nodes. It operates within the standard Experion PKS backplane and FTE network architecture, making it suitable for both legacy C200-based systems and current C300 deployments. Engineers migrating from C200 to C300 controllers can retain existing I/O wiring and channel cards, reducing migration costs and project risk.

Q2: Can the 05701-A-0301 be installed in a redundant I/O configuration, and what is the failover behavior? Yes. The 05701-A-0301 supports redundant I/O module pairing within the Experion PKS architecture. When configured in a redundant pair, the primary and secondary modules continuously synchronize channel data. In the event of a primary module fault, the secondary module assumes control within milliseconds, with no interruption to the control loop. This behavior is managed automatically by the Experion PKS controller and does not require operator intervention, making it suitable for SIL-rated and high-availability process control applications.

Q3: What is the warranty coverage and pre-shipment testing process for the 05701-A-0301? All 05701-A-0301 units supplied by NANKMOS are covered by a 12-Month Warranty from the date of shipment. Each unit undergoes functional testing prior to dispatch, including power-on verification, channel signal integrity checks, and communication interface validation. Units are shipped with appropriate anti-static packaging and documentation. For urgent replacement requirements, expedited shipping options are available. Contact [email protected] or +86 18359268345 for availability confirmation and lead time.
