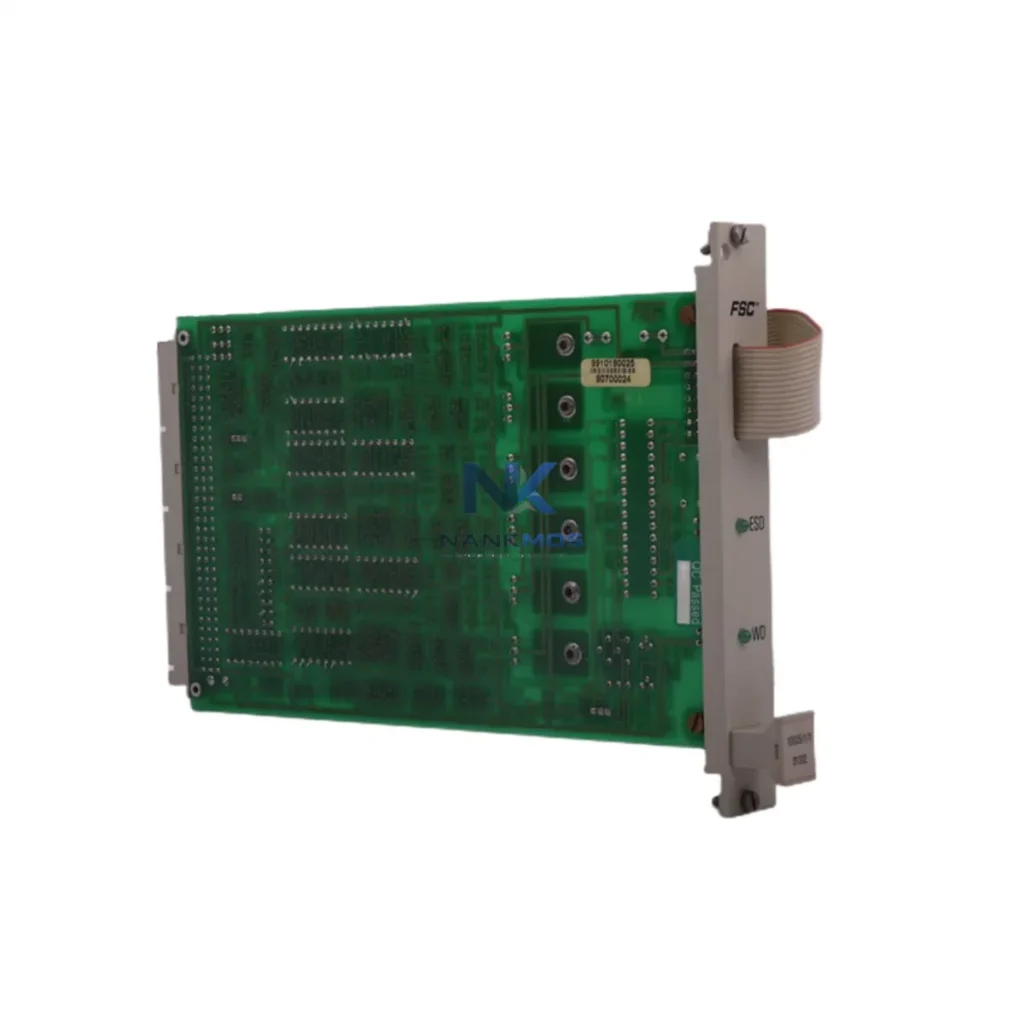

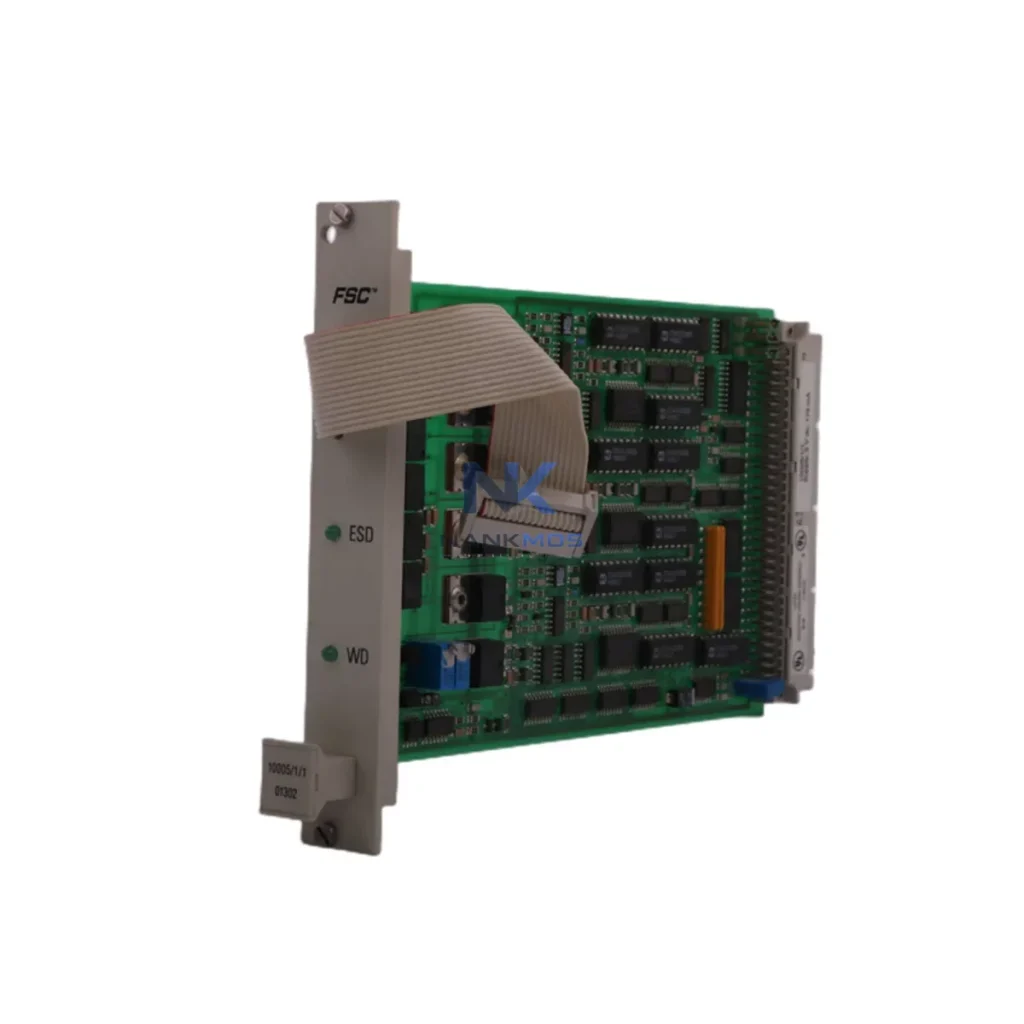

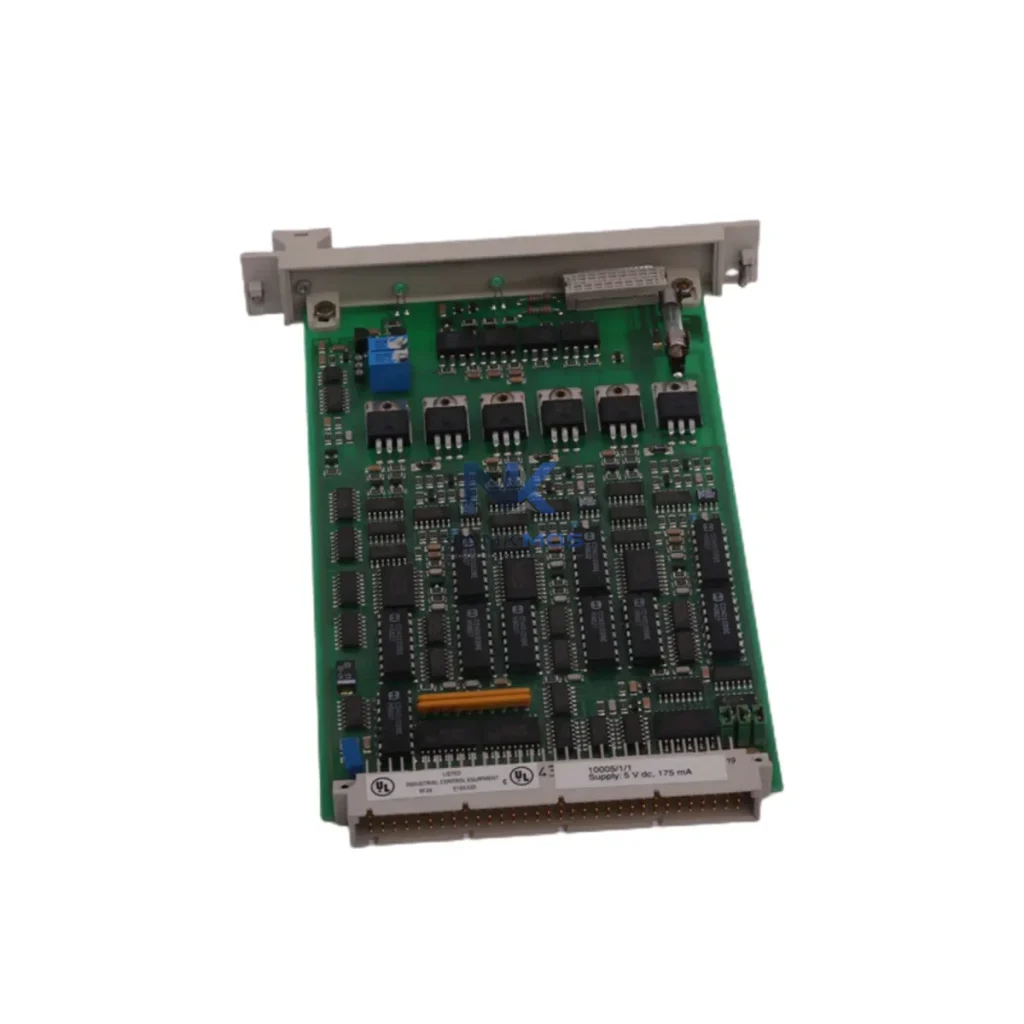

Honeywell 10001/R/1 Protocol Gateway

Product Details

10001/R/1 Product Description

The Honeywell 10001/R/1 is a high-performance communication bus driver and protocol gateway engineered for the Series 10000 Distributed Control System (DCS). Designed to serve as the critical data bridge between field-level devices and supervisory control platforms, this module enables seamless, real-time data exchange across complex industrial network architectures. In smart factory environments where uptime, data integrity, and system transparency are non-negotiable, the 10001/R/1 delivers the communication backbone that keeps every layer of the automation stack synchronized and responsive.

At its core, the 10001/R/1 functions as a network interface module that connects the Series 10000 DCS controller infrastructure to field buses, remote I/O nodes, and upper-level SCADA or HMI systems. Whether bridging legacy serial protocols to modern Ethernet-based architectures or enabling high-speed cyclic data exchange between PLCs and distributed I/O racks, this module ensures that signal acquisition, protocol conversion, and data transmission occur with minimal latency and maximum reliability. Its role in the data chain spans from raw sensor signal ingestion all the way through to real-time visualization dashboards and alarm management consoles.

Sourced directly from verified inventory, each Honeywell 10001/R/1 unit undergoes pre-shipment functional testing to confirm communication integrity, bus arbitration performance, and interface compatibility before dispatch. NANKMOS maintains consistent stock availability to support both planned system expansions and urgent replacement scenarios, backed by a 12-Month Warranty covering hardware defects and communication failures.

In a fully integrated smart factory deployment, the Honeywell 10001/R/1 occupies a pivotal position in the data flow chain. The process begins at the field level, where sensors, transmitters, and actuators generate continuous streams of process data — temperature, pressure, flow rate, valve position, and motor status. These signals are collected by field I/O modules and remote I/O racks connected to the Series 10000 DCS backplane. The 10001/R/1 bus driver manages the arbitration and scheduling of this data across the controller bus, ensuring that each node receives and transmits its data within the required scan cycle.

From the DCS controller layer, process data is forwarded upstream to SCADA servers and HMI workstations via the Honeywell Data Hiway or Universal Control Network (UCN). The 10001/R/1 acts as the communication interface that maintains the integrity of this upward data path, translating bus-level signals into formats consumable by supervisory platforms. Operators monitoring the plant from a central control room receive live process values, trend data, and alarm states sourced directly from the field — with the 10001/R/1 ensuring that no data packet is lost or delayed in transit.

For facilities running mixed automation environments, the 10001/R/1 integrates alongside complementary Honeywell Series 10000 components such as the 10001/E/1 Ethernet Communication Module, 10003/1/1 Process Controller, and 10006/1/1 Analog Input Module, forming a cohesive data acquisition and control backbone. In extended architectures, edge gateways and industrial Ethernet switches — including managed switches supporting PROFINET or Modbus TCP — connect the DCS network to MES and ERP layers, enabling plant-wide data visibility. Variable frequency drives (VFDs) reporting motor load and speed data, along with smart sensors transmitting via HART or Foundation Fieldbus, feed into this network through I/O modules that the 10001/R/1 coordinates at the bus level.

Remote diagnostic capability is another key value delivered by this module. Maintenance engineers can interrogate bus health, node communication status, and error counters from the SCADA interface without requiring physical access to the control cabinet. This remote visibility reduces mean time to repair (MTTR), supports predictive maintenance workflows, and enables alarm root-cause analysis to be performed from any networked workstation. When integrated with historian software and data visualization platforms, the 10001/R/1's communication data contributes to long-term trend analysis, OEE calculations, and production reporting dashboards.

System expansion is straightforward: additional I/O modules, controller nodes, or communication gateways can be added to the Series 10000 backplane without disrupting existing bus traffic, provided the 10001/R/1 is configured to accommodate the updated node map. This scalability makes it a preferred choice for phased smart factory upgrades where production continuity must be maintained throughout the migration process.

Many industrial facilities operating legacy DCS platforms face persistent challenges around data fragmentation, protocol incompatibility, and limited remote visibility. The Honeywell 10001/R/1 directly addresses these pain points within Series 10000 environments:

Protocol Fragmentation: Sites running a mix of Honeywell proprietary bus protocols alongside open standards such as Modbus RTU or PROFIBUS often struggle to consolidate data into a unified SCADA view. The 10001/R/1 serves as the protocol anchor within the DCS layer, providing a stable, deterministic communication interface that upstream gateways can reliably poll and aggregate.

Data Silos: Without a functioning bus driver, controller nodes and I/O modules operate in isolation, preventing cross-system data correlation. The 10001/R/1 eliminates these silos by maintaining continuous, synchronized communication across all nodes on the Series 10000 bus, ensuring that every data point — from analog process values to discrete alarm states — is available to the supervisory layer in real time.

Remote Monitoring Gaps: Plants lacking reliable bus communication infrastructure cannot support effective remote monitoring or predictive maintenance programs. By restoring or maintaining bus integrity, the 10001/R/1 enables SCADA systems to continuously poll field devices, log historical data, and trigger alarm notifications without operator intervention.

Production Line Transparency: Modern manufacturing intelligence platforms require granular, timestamped process data to calculate OEE, identify bottlenecks, and support continuous improvement initiatives. The 10001/R/1 ensures that the data pipeline from field sensors to analytics platforms remains uninterrupted, providing the data quality and consistency that production transparency demands.

System Scalability: As production capacity grows, the ability to add new I/O nodes and controller modules without re-engineering the communication architecture is essential. The 10001/R/1's bus driver design supports incremental expansion within the Series 10000 framework, protecting the existing automation investment while accommodating future growth.

Q1: What communication protocols does the Honeywell 10001/R/1 support? The 10001/R/1 is designed for the Honeywell Series 10000 DCS proprietary bus architecture, supporting the Data Hiway and UCN communication networks native to that platform. It provides deterministic, real-time data exchange between controller modules, I/O nodes, and supervisory systems within the Series 10000 environment. For integration with external protocols such as Modbus TCP or PROFINET, an upstream gateway module is typically deployed alongside the 10001/R/1.

Q2: How does the 10001/R/1 support remote diagnostics and network stability monitoring? The module exposes bus health parameters — including node communication status, error counters, and scan cycle performance — to the SCADA layer via the Series 10000 controller. Maintenance teams can monitor these parameters remotely from any networked HMI or engineering workstation, enabling proactive fault detection and reducing unplanned downtime without requiring physical cabinet access.

Q3: Is the Honeywell 10001/R/1 compatible with SCADA and HMI integration platforms? Yes. The 10001/R/1 operates as the bus-level communication interface within the Series 10000 DCS, feeding real-time process data to Honeywell's supervisory platforms including Experion PKS and legacy TDC 3000 environments. Third-party SCADA systems can access this data through OPC servers or gateway modules that interface with the Series 10000 controller network.

Q4: What does the 12-Month Warranty cover, and how is pre-shipment testing conducted? Every Honeywell 10001/R/1 unit supplied by NANKMOS is covered by a 12-Month Warranty against hardware defects and communication failures. Prior to dispatch, each unit undergoes functional verification including bus communication integrity checks, interface continuity testing, and firmware version confirmation. This pre-shipment testing protocol ensures that the module arrives ready for installation and commissioning, minimizing site-level troubleshooting time.
