Honeywell 10302/2/1 Industrial Safety Network Gateway

Product Details

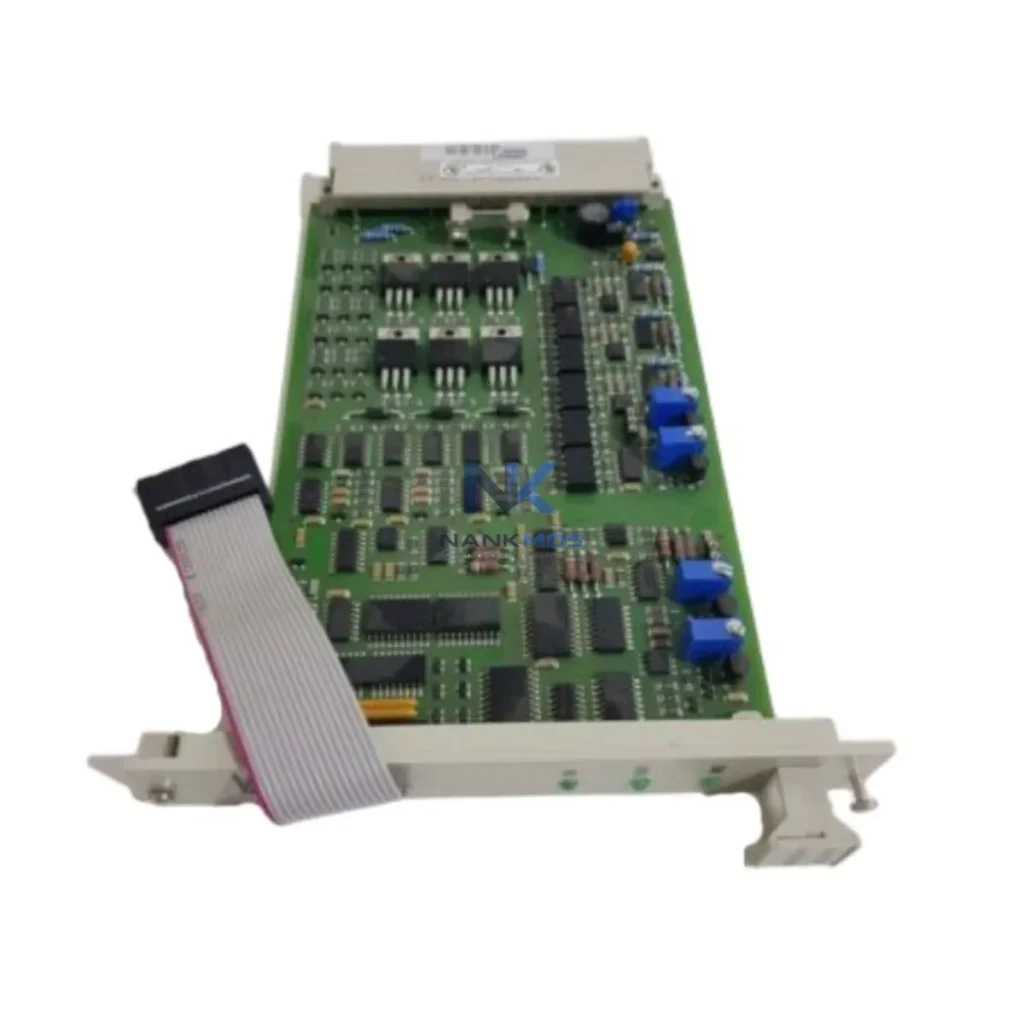

10302/2/1 Product Description

The Honeywell 10302/2/1 is a precision-engineered industrial safety network gateway designed to bridge field-level safety instrumented systems with upper-layer control architectures including DCS, SCADA, and PLC platforms. In modern smart factory environments, where data continuity across every node of the automation hierarchy is non-negotiable, the 10302/2/1 serves as a critical link in the industrial data chain — enabling real-time signal acquisition, protocol conversion, and network-level diagnostics across safety-critical process loops.

Deployed across oil and gas, chemical processing, power generation, and water treatment facilities, this Honeywell watchdog repeater and network interface module ensures that safety system data is not siloed at the field level but is continuously available to supervisory systems for alarm management, remote diagnostics, and compliance reporting. Its robust communication architecture supports integration with Honeywell's Safety Manager and Experion PKS platforms, making it a natural fit for facilities already operating within the Honeywell ecosystem.

In a fully connected smart factory, the Honeywell 10302/2/1 operates at the intersection of safety instrumentation and plant-wide data infrastructure. The data flow begins at the field device layer, where pressure transmitters, temperature sensors, and gas detectors feed real-time process values into the safety instrumented system. The 10302/2/1 acts as the network repeater and interface node within the Honeywell FSC safety bus, ensuring signal integrity is maintained across extended cable runs and multi-drop network segments.

From the safety bus, process data is forwarded to the Honeywell Safety Manager controller, which executes safety logic and generates trip signals or alarm outputs. These outputs are simultaneously communicated upward to the Honeywell Experion PKS DCS platform via the FTE (Fault Tolerant Ethernet) backbone, where operators monitor live process states through the Experion HMI console. The 10302/2/1 ensures that this upward data path remains stable and latency-free, even under fault conditions.

For facilities integrating third-party systems, the 10302/2/1 can be paired with Honeywell's HC900 Hybrid Controller or interfaced through an OPC-UA gateway module to feed data into SCADA platforms such as Wonderware System Platform or Ignition SCADA. Remote I/O modules — including Honeywell's Series 2 I/O cards — extend the reach of the safety network to distributed field cabinets, while edge gateway devices aggregate data for cloud-based analytics and predictive maintenance dashboards.

Variable frequency drives (VFDs) connected to motor control centers can also be monitored through the safety network layer, with the 10302/2/1 providing the communication backbone that links drive status signals back to the DCS alarm management system. Industrial Ethernet switches with managed VLAN configurations segment the safety network from the process control network, maintaining SIL-rated isolation while still enabling data visibility at the supervisory level. Power for the network interface module is typically supplied through Honeywell-compatible 24VDC industrial power supplies, ensuring stable operation in harsh plant environments.

Data visualization tools connected downstream — including historian servers and MES platforms — receive continuous streams of safety event data, enabling trend analysis, SIL verification reporting, and regulatory compliance documentation. The complete data chain, from field sensor through the 10302/2/1 gateway to the enterprise reporting layer, forms the backbone of a transparent, auditable, and remotely diagnosable safety automation architecture.

Many industrial facilities face persistent challenges with protocol fragmentation, where legacy safety systems operate on proprietary bus architectures that cannot natively communicate with modern DCS or SCADA platforms. The Honeywell 10302/2/1 addresses this directly by serving as the network interface layer within the Honeywell FSC safety bus, providing a standardized communication path that eliminates data silos between the safety layer and the process control layer.

Remote monitoring of safety instrumented systems has historically required physical access to field cabinets for diagnostics and fault isolation. With the 10302/2/1 integrated into the network architecture, safety system status — including watchdog timer states, communication health, and fault codes — is continuously available at the DCS operator station and can be forwarded to remote engineering workstations via the plant's OPC server infrastructure. This capability dramatically reduces mean time to repair (MTTR) for safety system faults and supports proactive maintenance scheduling.

Production line transparency is further enhanced by the 10302/2/1's role in alarm propagation. Safety events generated at the field level are immediately visible in the SCADA alarm management console, with full timestamp and event sequence data available for post-incident analysis. For facilities pursuing IEC 61511 compliance or SIL verification, this complete audit trail is essential. System expansion is also simplified — additional safety I/O nodes can be added to the FSC bus without disrupting existing network segments, and the 10302/2/1 supports the extended bus topology required for large-scale safety system deployments.

Q1: What communication protocols does the Honeywell 10302/2/1 support? The 10302/2/1 operates natively on the Honeywell FSC safety network bus protocol, which is the proprietary communication architecture used within the Honeywell Safety Manager and legacy FSC safety systems. For integration with third-party SCADA or DCS platforms, the module interfaces through OPC-DA/UA gateway solutions or Modbus RTU bridges, enabling broad protocol compatibility without compromising the integrity of the safety network layer.

Q2: How does the 10302/2/1 support remote diagnostics and fault isolation? The module continuously monitors network bus health, watchdog timer status, and communication link integrity. Fault conditions are reported upstream to the Honeywell Safety Manager controller and forwarded to the Experion PKS DCS, where they appear as diagnostic alarms in the operator HMI. Remote engineering access via OPC server allows off-site personnel to review fault logs and communication status without requiring physical presence at the field cabinet.

Q3: Is the Honeywell 10302/2/1 compatible with modern SCADA and MES platforms? Yes. While the 10302/2/1 operates on the Honeywell FSC bus natively, its integration with the Honeywell Safety Manager and Experion PKS platform provides a gateway path to OPC-UA data servers, which are compatible with all major SCADA platforms including Wonderware, Ignition, and iFIX. MES and historian platforms that support OPC connectivity can receive real-time safety event data for production reporting and compliance documentation.

Q4: What warranty and pre-shipment testing does the Honeywell 10302/2/1 include? Every Honeywell 10302/2/1 unit supplied by NANKMOS is covered by a 12-Month Warranty and undergoes pre-shipment functional testing to verify communication interface integrity, bus signal quality, and module identification. Units are shipped from in-stock inventory with full traceability documentation. For urgent project requirements, expedited shipping options are available — contact [email protected] or call +86 18359268345 for lead time confirmation.
