Honeywell 51199947-175 115V Cabinet Fan Assembly

Product Details

51199947-175 115V Product Description

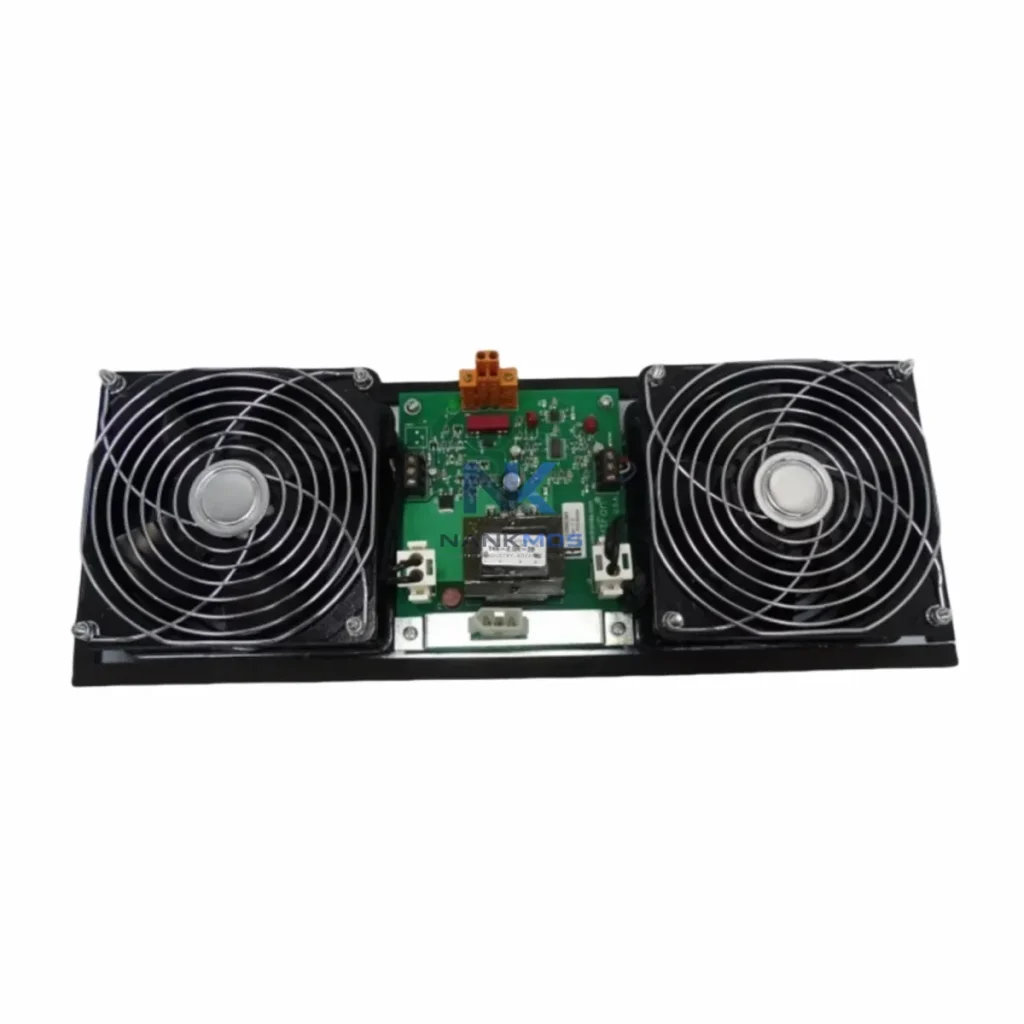

The Honeywell 51199947-175 is a 115V AC cabinet fan assembly engineered for sustained thermal management within Honeywell Experion PKS and TDC 3000 distributed control system enclosures. In high-density control cabinet environments — where CPU modules, I/O termination assemblies, power supply units, and communication interface cards operate in close proximity — consistent airflow is not a peripheral concern but a foundational requirement for system reliability. This fan module is designed to integrate directly into the Honeywell cabinet architecture, maintaining the thermal envelope required for uninterrupted process control across manufacturing, refining, power generation, and chemical processing facilities.

Unlike generic industrial fans, the 51199947-175 is matched to the mechanical and electrical specifications of Honeywell's control enclosure platform. Its mounting geometry, airflow direction, voltage rating, and connector interface are aligned with the cabinet's internal layout, ensuring that replacement or expansion does not introduce airflow imbalance, vibration interference, or electrical incompatibility. This system-matched design reduces commissioning time and eliminates the risk of thermal hotspots that can degrade signal integrity across analog input modules, digital output cards, and fieldbus communication gateways.

Every unit supplied by NANKMOS undergoes pre-shipment functional testing and ships with a 12-Month Warranty, supporting long-term maintenance planning and minimizing unplanned downtime risk in critical process environments.

The 51199947-175 cabinet fan operates as a thermal infrastructure component within a layered Honeywell DCS architecture. Its role becomes most critical when the control enclosure houses a dense combination of active modules. In a typical Experion PKS deployment, the cabinet may contain a C300 Controller as the primary process execution engine, supported by IOTA termination assemblies for field signal routing and FIM (Fieldbus Interface Module) cards managing FOUNDATION Fieldbus H1 segment communications. The thermal load generated by these modules — particularly during high-scan-rate process execution or during simultaneous multi-loop PID computation — requires active forced-air cooling to remain within the operating temperature range specified by Honeywell.

Adjacent to the controller layer, Series C I/O modules (including AI, AO, DI, and DO cards) generate localized heat during continuous signal conditioning. The fan assembly ensures that heat stratification does not develop within the cabinet, which would otherwise cause upper-shelf modules to operate at elevated junction temperatures, increasing the probability of signal drift on analog channels or communication timeouts on ControlNet or Ethernet/IP network interface cards.

In redundant controller architectures — where a primary and secondary C300 Controller pair operates in lockstep with automatic failover — thermal stability is doubly critical. A fan failure in a redundant cabinet can cause the standby controller to enter a degraded thermal state, compromising its ability to assume control during a primary fault. The 51199947-175 supports redundancy integrity by maintaining the thermal conditions under which both controllers can sustain full operational readiness.

For TDC 3000 legacy environments, the fan integrates into enclosures housing HPM (High-Performance Manager) modules, NIM (Network Interface Module) cards, and UCN (Universal Control Network) communication hardware. These older-generation components often operate in facilities where cabinet replacement is not economically viable, making reliable fan availability a key factor in sustaining long-term system uptime. NANKMOS maintains inventory of the 51199947-175 specifically to support these extended-lifecycle deployments.

Power supply modules — such as the Honeywell 51195156-100 or equivalent 24VDC rail-mount PSUs — also contribute to the cabinet's thermal load. The fan assembly works in conjunction with the power supply's internal thermal management to prevent cumulative heat buildup, particularly in high-ambient-temperature environments such as tropical process plants or outdoor-rated enclosures with limited natural convection.

Refining and Petrochemical: Experion PKS cabinets in crude distillation, hydrocracking, and catalytic reforming units operate continuously in high-ambient environments. The 51199947-175 sustains the thermal envelope required for uninterrupted C300 controller execution and FOUNDATION Fieldbus segment stability across hundreds of field devices.

Power Generation: In combined-cycle gas turbine and coal-fired boiler control rooms, TDC 3000 and Experion systems manage turbine sequencing, burner management, and steam drum level control. Cabinet fan reliability directly affects the availability of HPM and NIM modules that execute these safety-critical loops.

Chemical and Specialty Manufacturing: Batch process control systems using Experion PKS with Series C I/O require stable thermal conditions to maintain analog signal accuracy on temperature, pressure, and flow measurement channels. Fan failure in these environments can trigger nuisance alarms or force manual intervention during critical batch phases.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities using Honeywell DCS for pump sequencing, chemical dosing, and filtration control benefit from the extended service life of system-matched fan components, reducing maintenance burden in facilities with limited instrumentation staff.

Mining and Metals: Smelting, flotation, and materials handling control systems in harsh environments place elevated demands on cabinet thermal management. The 51199947-175 supports continuous operation in high-dust, high-vibration environments when installed within properly sealed enclosures.

Q1: Is the 51199947-175 compatible with both Experion PKS and TDC 3000 cabinet enclosures?Yes. The 51199947-175 is a system-matched cabinet fan designed for Honeywell's control enclosure platform, which spans both the Experion PKS and TDC 3000 product families. The mechanical mounting interface, voltage rating (115V AC), and connector configuration are consistent across these cabinet generations. If you are replacing a failed fan in an existing enclosure, verify the voltage marking on the original unit before installation. NANKMOS can assist with cross-reference confirmation prior to shipment.

Q2: How does cabinet fan condition affect controller redundancy and system availability?In redundant C300 controller deployments, both the primary and secondary controllers must maintain thermal operating conditions within Honeywell's specified range to sustain failover readiness. A degraded or failed fan can cause the standby controller to enter a high-temperature condition, which may trigger a protective shutdown or reduce its ability to assume control during a primary fault. Proactive fan replacement — supported by NANKMOS's in-stock availability and 12-Month Warranty — is a recommended element of any DCS preventive maintenance program.

Q3: What does the 12-Month Warranty cover, and what pre-shipment testing is performed?Every 51199947-175 unit supplied by NANKMOS is functionally tested prior to dispatch to verify motor operation, airflow output, and electrical continuity. The 12-Month Warranty covers defects in materials and workmanship under normal operating conditions. Units are packaged to prevent transit damage and ship with documentation supporting traceability. For critical spares programs or bulk procurement, NANKMOS offers lead-time commitments and inventory reservation to support planned maintenance outages.
