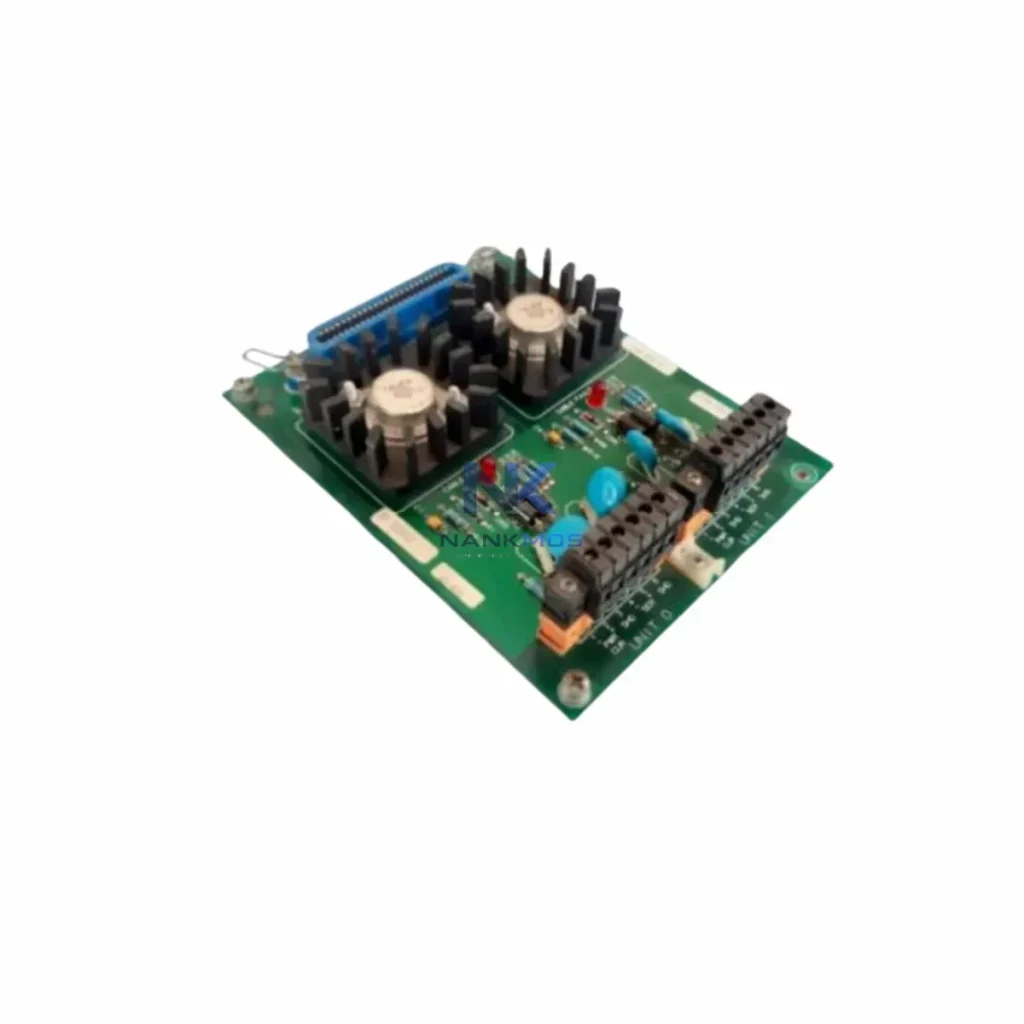

Honeywell 51309204-125 MU-TLPA02 Power Adapter Board

Product Details

51309204-125 MU-TLPA02 Product Description

The Honeywell MU-TLPA02 is a precision-engineered power adapter board designed for seamless integration within the Experion PKS (Process Knowledge System) distributed control architecture. As a critical component in the power distribution layer, the MU-TLPA02 ensures stable, conditioned power delivery to field I/O modules, controller nodes, and communication interfaces across multi-rack DCS deployments. Its role extends beyond simple power conversion — it serves as a structural enabler of system-wide reliability, redundancy, and long-term maintainability in demanding industrial environments.

Engineered to Honeywell's stringent quality standards, the MU-TLPA02 is fully compatible with the Experion PKS Series C platform, supporting both greenfield installations and brownfield upgrades. Whether deployed in a primary control cabinet or a remote I/O enclosure, this board maintains consistent power integrity across the entire automation hierarchy — from the control layer down to the field device layer.

The MU-TLPA02 does not operate in isolation — its true value is realised within the broader context of a fully integrated Experion PKS automation platform. In a typical large-scale DCS deployment, the power adapter board interfaces directly with the Honeywell C300 Process Controller, which serves as the primary execution engine for regulatory and advanced process control loops. The C300's deterministic scan cycle depends on stable, uninterrupted power delivery — a requirement the MU-TLPA02 is specifically designed to fulfil.

At the I/O layer, the MU-TLPA02 works in conjunction with IOLIM (I/O Link Interface Modules) and the broader MU-TLPA series of termination and adapter boards. These modules collectively manage the signal conditioning, marshalling, and field wiring interface for analog and digital I/O channels. The power adapter board ensures that each I/O module receives clean, regulated power — preventing ground loops, voltage sags, and noise-induced signal errors that can compromise measurement accuracy in process-critical applications.

For communication integrity, the MU-TLPA02 supports deployments built on Honeywell's Fault Tolerant Ethernet (FTE) backbone — a dual-redundant network architecture that ensures continuous data exchange between controllers, servers, and HMI workstations. In conjunction with Honeywell ESVT (Experion Server) and Honeywell FTE switches, the power adapter board contributes to a communication layer that maintains sub-second failover capability without process interruption.

At the HMI layer, operators interact with the system through Honeywell Experion Stations or compatible third-party SCADA platforms via OPC-DA/OPC-UA interfaces. The stability of the power distribution layer — anchored by components like the MU-TLPA02 — directly influences the quality and latency of real-time data presented on operator displays. Any power instability at the rack level can cascade into false alarms, missed events, or delayed control responses at the HMI layer.

For redundancy design, the MU-TLPA02 is compatible with Honeywell redundant power supply modules (such as the MU-PSRX series), enabling N+1 or fully redundant power configurations. This is particularly critical in SIL-rated safety applications, where power supply failure must not result in a loss of control or safety function. The board's architecture supports hot-swap capability, allowing maintenance teams to replace power components without shutting down the process.

In the field device and execution layer, the MU-TLPA02 supports architectures that include Honeywell Smart Field Devices communicating via HART protocol, as well as Foundation Fieldbus (FF) segments managed through dedicated FF interface modules. The power adapter board's stable output is essential for maintaining the 9–32 VDC power requirements of HART-enabled transmitters and FF field devices connected through the I/O subsystem.

For cabinet-level integration, the MU-TLPA02 is typically installed alongside Honeywell MU-TLPA01 and MU-TLPA03 boards within the same rack assembly, forming a modular power distribution backbone. This modular approach simplifies spare parts management, reduces mean time to repair (MTTR), and enables phased capacity expansion without redesigning the entire cabinet layout.

Signal isolation and protection are further enhanced when the MU-TLPA02 is deployed alongside Honeywell signal isolators and surge protection modules at the marshalling panel. These components collectively protect the I/O subsystem from transient overvoltages, common-mode interference, and ground potential differences — all of which are common in industrial environments with long field cable runs.

Refining & Petrochemical: In crude distillation units, catalytic crackers, and hydroprocessing plants, the MU-TLPA02 supports continuous process control across hundreds of I/O points. Its compatibility with redundant power architectures ensures that critical control loops — such as reactor temperature, pressure, and flow — remain active even during partial power supply failures. The board's robust design meets the demanding thermal and vibration requirements of refinery control rooms.

Power Generation & Utilities: In combined-cycle power plants and cogeneration facilities, the MU-TLPA02 is deployed within turbine control cabinets and balance-of-plant DCS racks. Its support for FTE-based communication ensures that turbine speed, exhaust temperature, and fuel flow control loops maintain deterministic response times — critical for grid stability and emissions compliance.

Water & Wastewater Treatment: Municipal water treatment facilities and industrial effluent plants rely on Experion PKS for SCADA-integrated process control. The MU-TLPA02's stable power output supports the reliable operation of pH, turbidity, dissolved oxygen, and flow measurement I/O channels — ensuring regulatory compliance and consistent treatment quality across multi-stage processes.

Mining & Minerals Processing: In ore processing plants, flotation circuits, and tailings management systems, the MU-TLPA02 supports DCS architectures that must operate reliably in high-dust, high-vibration environments. Its compatibility with extended-temperature I/O modules and redundant power supplies makes it suitable for remote processing facilities with limited maintenance access.

Pharmaceutical & Life Sciences: In GMP-regulated manufacturing environments, the MU-TLPA02 supports validated Experion PKS installations where power supply integrity is a critical element of the system qualification (IQ/OQ/PQ) process. Its consistent electrical performance simplifies validation documentation and reduces the risk of out-of-specification events caused by power-related anomalies.

Marine & Offshore: On FPSOs, drilling platforms, and LNG carriers, the MU-TLPA02 is deployed in vibration-isolated DCS cabinets that must withstand marine environmental conditions. Its compatibility with Honeywell's marine-certified Experion PKS configurations ensures compliance with classification society requirements (DNV, ABS, Lloyd's Register) for automation systems on vessels and offshore installations.

Q1: Is the MU-TLPA02 compatible with both C200E and C300 controller platforms within the same Experion PKS rack? Yes. The MU-TLPA02 is designed to support mixed-controller rack configurations within the Experion PKS Series C architecture. It provides a common power distribution interface that is electrically compatible with both C200E and C300 controller modules, as well as their associated I/O link interface modules (IOLIM). When deploying in a mixed environment, ensure that the rack backplane firmware is updated to the minimum revision specified in Honeywell's system compatibility matrix for your target Experion PKS release. Our technical team can assist with compatibility verification prior to shipment.

Q2: Can the MU-TLPA02 be installed in a redundant power supply configuration, and what is the recommended maintenance procedure for hot-swap replacement? Yes. The MU-TLPA02 supports redundant power supply configurations when paired with compatible Honeywell redundant power modules (MU-PSRX series). In a redundant configuration, the board monitors both primary and secondary power inputs and automatically switches to the backup supply upon primary failure — without interrupting I/O module operation or controller scan cycles. For hot-swap replacement, Honeywell's standard procedure requires isolating the specific rack segment from the field wiring marshalling panel before removing the board, then re-inserting the replacement unit and verifying power-good status via the Experion Station diagnostic display. All MU-TLPA02 units supplied by NANKMOS are pre-tested and shipped with a 12-Month Warranty covering component and workmanship defects.

Q3: What is the lead time and stock availability for the MU-TLPA02, and does NANKMOS provide outgoing functional testing? The MU-TLPA02 (51309204-125) is maintained in stock at NANKMOS for immediate dispatch. Standard lead time for in-stock units is 3–7 business days for international shipments, depending on destination and customs clearance. Every unit undergoes a full functional test prior to shipment, including power output verification, connector integrity check, and visual inspection against Honeywell's quality standards. Each unit is supplied with a 12-Month Warranty from the date of shipment, covering manufacturing defects and component failures under normal operating conditions. For bulk orders or project-specific requirements, please contact our sales team for priority allocation and project pricing.
