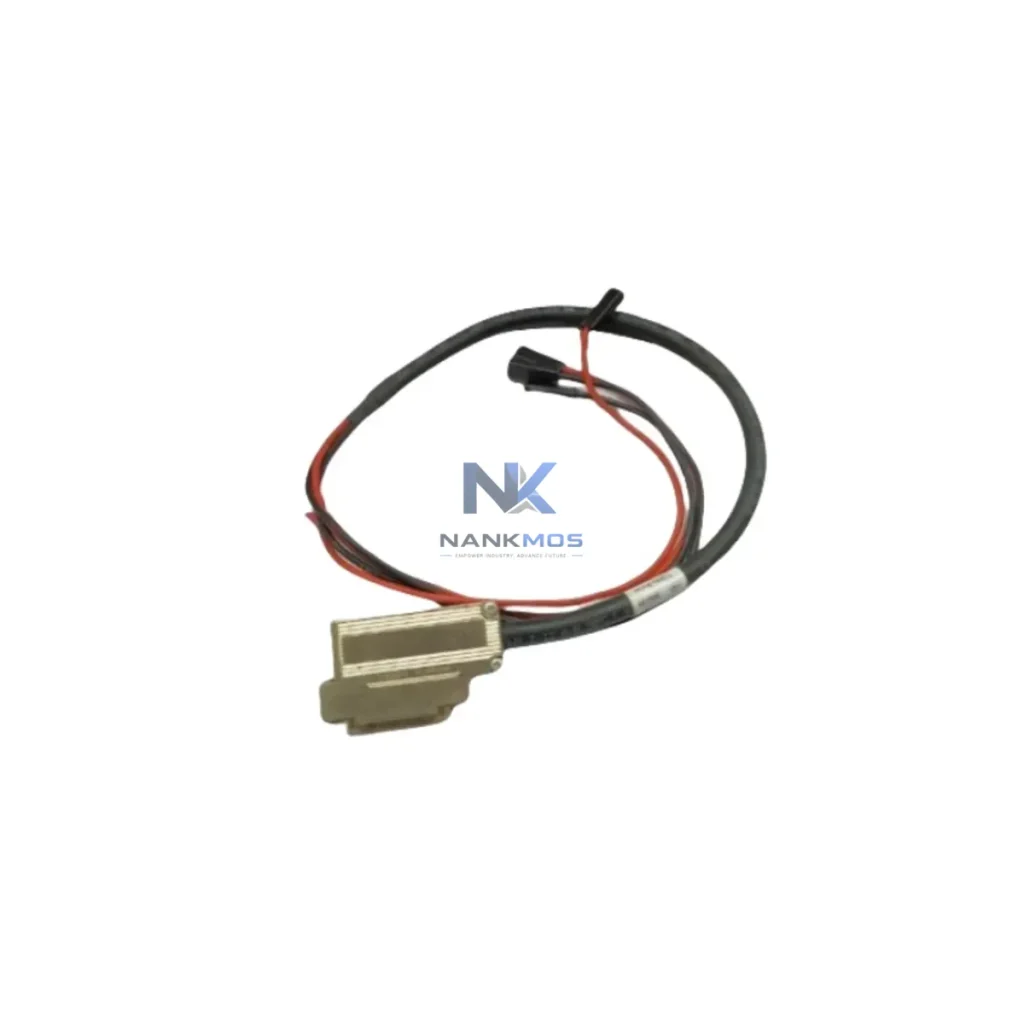

Honeywell FS-PDC-CPSET Power Distribution Cable Set

Product Details

FS-PDC-CPSET Product Description

The Honeywell FS-PDC-CPSET is a dedicated power distribution cable set engineered for the Honeywell FSC (Fail-Safe Controller) Safety Manager platform — one of the most widely deployed safety instrumented systems (SIS) in process industries, oil & gas, chemical plants, and power generation facilities. Far beyond a passive wiring accessory, the FS-PDC-CPSET forms a critical segment of the industrial data and power backbone that keeps safety-critical controllers energized, communicating, and continuously available within a smart factory or process automation environment.

In modern industrial facilities, the integrity of the power distribution layer directly determines the reliability of the entire control and communication architecture. The FS-PDC-CPSET is designed to deliver stable, interference-resistant power to FSC processor modules and I/O racks, ensuring that the Safety Manager controller maintains uninterrupted operation even under demanding electrical environments. When paired with Honeywell FSC modules such as the FS-SDO-0808 digital output module or the FS-SDI-1616 digital input module, the FS-PDC-CPSET ensures that field signal acquisition and actuator command execution remain synchronized with the safety logic solver — a prerequisite for SIL 2 and SIL 3 certified loop integrity.

Understanding the FS-PDC-CPSET's role requires viewing it within the complete industrial data flow architecture of a smart factory. In a typical process plant deploying the Honeywell Safety Manager FSC platform, the data chain begins at the field device level — pressure transmitters, temperature sensors, flame detectors, and gas analyzers — all wired into the FSC I/O racks. The FS-SDI-1616 digital input module receives discrete signals from field instruments, while analog process values are captured through FS-SAI-1616 analog input modules. These signals are processed by the FSC safety logic solver, which executes the safety instrumented functions (SIFs) defined in the safety requirements specification.

The FS-PDC-CPSET ensures that every module in this chain — from the I/O cards to the main processor — receives clean, stable power. Without reliable power distribution, even the most sophisticated safety logic cannot execute correctly. In redundant FSC configurations, the FS-PDC-CPSET supports dual-power-feed architectures, allowing the system to maintain full operation during a single power supply failure — a critical requirement for high-availability SIS installations.

At the communication layer, the FSC Safety Manager interfaces with plant-wide SCADA systems through dedicated gateway modules. The Honeywell FSC Modbus Gateway translates FSC internal data into Modbus RTU or Modbus TCP frames, enabling real-time safety status data — including trip signals, bypass states, and diagnostic alarms — to be transmitted to the plant DCS (Distributed Control System) or SCADA historian. Operators monitoring the Honeywell Experion PKS HMI workstation can view live FSC data, acknowledge alarms, and track safety loop performance without direct access to the safety controller, maintaining the required independence between the SIS and BPCS (Basic Process Control System).

For facilities integrating Profibus DP networks, the FSC platform supports Profibus DP communication modules that connect the safety controller to remote I/O stations, variable frequency drives (VFDs), and intelligent field devices. In these architectures, the FS-PDC-CPSET's role in maintaining stable power to the FSC processor becomes even more critical — any power interruption to the logic solver would immediately disrupt the Profibus DP master function, causing loss of communication with all connected slave devices.

Edge computing and remote diagnostics are increasingly integrated into FSC-based safety systems. Industrial edge gateways — such as those running on Honeywell Uniformance Asset Sentinel or third-party IIoT platforms — collect FSC diagnostic data, module health status, and safety loop performance metrics. This data is transmitted over Ethernet to cloud-based or on-premise analytics platforms, enabling predictive maintenance, safety performance monitoring, and regulatory compliance reporting. The FS-PDC-CPSET, by ensuring uninterrupted power to the FSC system, is the silent enabler of this entire remote diagnostics chain.

In multi-rack FSC installations — common in large ESD or F&G systems — the FS-PDC-CPSET is used across multiple expansion racks, each housing additional I/O modules such as the FS-SDO-0808 digital output module for actuator control (solenoid valves, shutdown valves, motor starters) and the FS-SAO-0808 analog output module for positioner control. The consistent power distribution provided by the FS-PDC-CPSET across all racks ensures synchronized I/O scanning and deterministic safety response times — a non-negotiable requirement for SIL 3 safety loops.

Protocol Fragmentation: Many process plants operate mixed-protocol environments where legacy Modbus RTU devices coexist with modern Profibus DP, HART, or Ethernet-based instruments. The FSC Safety Manager, powered reliably by the FS-PDC-CPSET, supports multi-protocol gateway modules that bridge these communication gaps — allowing safety data from diverse field devices to be consolidated into a single safety logic solver without protocol conversion errors or data loss.

Data Silos and Visibility Gaps: In facilities where the SIS operates in isolation from the BPCS, operators often lack real-time visibility into safety system status. By maintaining stable FSC operation through reliable power distribution, the FS-PDC-CPSET enables continuous Modbus TCP or OPC-UA data export from the FSC to SCADA historians, eliminating safety data silos and providing operators with a unified view of both process control and safety system states.

Remote Monitoring and Diagnostics: Unplanned FSC downtime due to power distribution failures is one of the most disruptive events in a process plant. The FS-PDC-CPSET's robust construction minimizes this risk, while the FSC's built-in diagnostic capabilities — accessible via the Honeywell Safety Manager Configuration Studio — allow maintenance engineers to remotely monitor module health, power supply status, and communication link quality without requiring physical access to the control room or marshalling cabinet.

Production Line Transparency and Alarm Tracking: The FSC Safety Manager generates detailed alarm and event logs for every safety function activation, bypass, and diagnostic fault. These logs, transmitted via the FSC communication gateway to the plant SCADA system, provide a complete audit trail for regulatory compliance (IEC 61511, OSHA PSM) and incident investigation. The FS-PDC-CPSET ensures that the FSC remains powered and logging continuously — even during partial power supply failures — so no safety event goes unrecorded.

System Expansion: As production capacity grows, FSC-based safety systems can be expanded by adding I/O racks and communication modules. The FS-PDC-CPSET is designed to support these expansion configurations, providing standardized power distribution connections that simplify rack additions without requiring custom wiring or system reconfiguration.

Q1: Does the FS-PDC-CPSET support redundant power configurations in FSC Safety Manager systems?Yes. The FS-PDC-CPSET is compatible with Honeywell FSC redundant power supply architectures. In dual-power-feed configurations, the cable set distributes power from both primary and secondary power supply modules to the FSC processor and I/O racks, ensuring continuous operation during a single power supply failure — a critical requirement for SIL 2 and SIL 3 safety loops.

Q2: What communication protocols does the FSC Safety Manager support when the FS-PDC-CPSET is installed?The FSC Safety Manager platform supports Modbus RTU, Modbus TCP, Profibus DP, HART (via multiplexer), and OPC-UA (via gateway) communication protocols. The FS-PDC-CPSET provides the stable power foundation that enables these communication modules to operate reliably, ensuring low-latency, deterministic data exchange between the safety controller and connected SCADA, DCS, or HMI systems.

Q3: How does NANKMOS verify the FS-PDC-CPSET before shipment?Every FS-PDC-CPSET unit undergoes pre-shipment functional testing to verify connector integrity, insulation resistance, and continuity across all power distribution paths. Units are inspected against Honeywell FSC compatibility specifications before dispatch. All units are covered by a 12-month warranty from the date of shipment, with in-stock availability for immediate delivery.

Q4: Can the FS-PDC-CPSET be used in hazardous area or offshore installations?The FS-PDC-CPSET is designed for use within FSC Safety Manager control cabinets, which are typically installed in classified electrical rooms or control buildings. For hazardous area field installations, the FSC platform supports intrinsically safe (IS) and explosion-proof (Ex d) I/O modules and field barriers. Consult your Honeywell system integrator or NANKMOS technical team for site-specific installation guidance.
