Honeywell TMG 740-3 Burner Control

Product Details

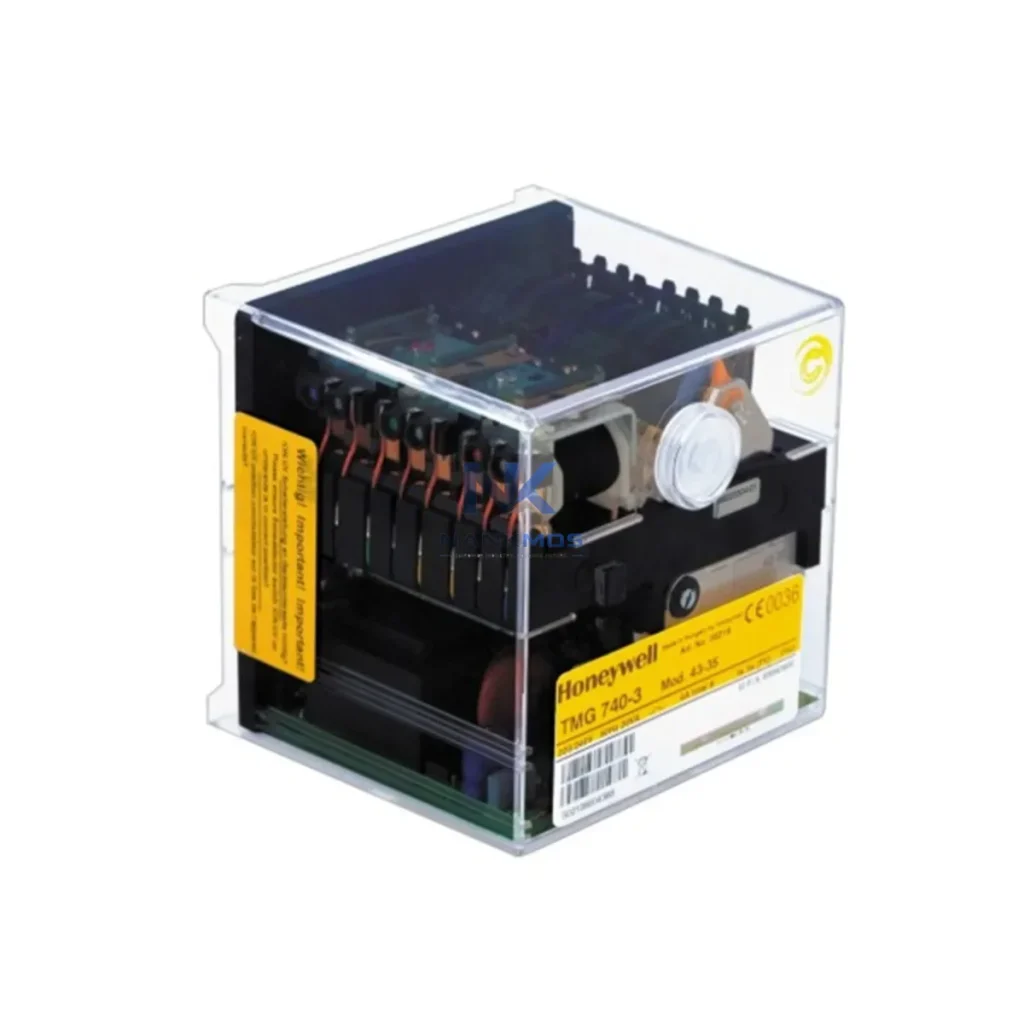

TMG 740-3 Product Description

The Honeywell TMG 740-3 is a system-ready automatic burner control unit engineered for seamless integration within the Honeywell SM Series combustion management architecture. Designed to meet the stringent requirements of EN 298 and EN 230 standards, the TMG 740-3 delivers reliable ignition sequencing, continuous flame supervision, and fault-safe lockout logic across a wide range of industrial combustion applications. Its modular design philosophy ensures compatibility with the broader Honeywell burner management ecosystem, enabling engineers to deploy consistent, scalable, and maintainable control solutions across single-burner and multi-burner plant configurations.

Within a complete combustion control architecture, the TMG 740-3 occupies the core burner sequencing layer, interfacing directly with gas valves, ignition transformers, flame detectors, and safety interlocks. Its deterministic startup and shutdown sequences reduce commissioning time and eliminate ambiguity in fault diagnosis. The unit supports both ionisation and UV flame detection inputs, providing flexibility across fuel types including natural gas, LPG, and light oil. Integrated self-check routines verify the integrity of internal relay contacts and external wiring before each burner start, ensuring that the control architecture maintains its safety integrity level throughout the operational lifecycle.

System architects integrating the TMG 740-3 into a Honeywell SM Series platform benefit from a coherent signal flow from the process controller down through the burner management layer to the actuator and valve level. The TMG 740-3 communicates lockout status and operational state via discrete output signals, which can be wired to Honeywell's DCS or PLC supervisory layer for centralised alarm management and remote reset capability. This layered architecture supports redundant safety channel design, where the TMG 740-3 acts as the primary safety executor while the supervisory controller handles process optimisation and load scheduling.

From an I/O and wiring perspective, the TMG 740-3 is designed for direct panel mounting with a compact footprint, reducing control cabinet space requirements. Its terminal block layout is compatible with standard DIN rail wiring practices, and the unit's input voltage range accommodates both 230 VAC and 120 VAC supply configurations depending on regional installation requirements. The robust housing and wide operating temperature range make the TMG 740-3 suitable for installation in boiler rooms, process heater skids, and industrial furnace control panels where ambient conditions can be demanding.

In multi-burner plant configurations, the TMG 740-3 can be deployed in parallel with additional SM Series burner controllers, each managing an individual burner while sharing a common supervisory network. This architecture supports staged combustion strategies, where individual burners are sequenced on and off by the plant DCS based on thermal load demand. The TMG 740-3's fast lockout response and clear fault indication simplify maintenance workflows, allowing technicians to identify and resolve faults without specialist diagnostic equipment.

Long-term maintenance efficiency is a core design consideration of the TMG 740-3. The unit's internal diagnostics log the last lockout cause, enabling maintenance teams to perform root cause analysis without requiring continuous monitoring infrastructure. Replacement procedures are straightforward due to the plug-in base socket design, minimising plant downtime during scheduled maintenance or emergency replacement. NANKMOS maintains verified stock of the TMG 740-3 and related SM Series components, supporting rapid dispatch to minimise unplanned production interruptions.

The TMG 740-3 achieves its full operational potential when deployed as part of a coherent Honeywell SM Series automation platform. At the supervisory control layer, Honeywell's HC900 Process Controller or a compatible Siemens S7-300 PLC provides the setpoint management and load scheduling logic that drives burner sequencing commands to the TMG 740-3. The Honeywell DPT 200 differential pressure transmitter monitors combustion air supply pressure, providing a critical interlock signal that the TMG 740-3 evaluates during its pre-purge sequence to confirm adequate airflow before ignition is permitted.

Gas supply integrity is maintained through the Honeywell VE 4000 series gas valve train, which includes double-block solenoid valves and a valve proving system that the TMG 740-3 supervises during each startup cycle. The Honeywell C7027 UV flame detector provides the primary flame signal to the TMG 740-3's ionisation/UV input, delivering fast flame failure response times that meet EN 298 safety requirements. For installations requiring redundant flame supervision, the Honeywell QRA55 UV flame detector can be deployed as a secondary detection channel, with the TMG 740-3 configured for dual-channel monitoring.

At the power distribution layer, a Honeywell or Phoenix Contact 24 VDC SMPS supplies auxiliary power to the control circuit, while the TMG 740-3's main supply is drawn from the panel's 230 VAC distribution bus protected by a dedicated MCB. The Weidmüller WDU 2.5 terminal block series provides the wiring interface between the TMG 740-3 and field devices, ensuring reliable signal continuity in vibration-prone industrial environments. For HMI integration, the Siemens KTP700 Basic Panel or Honeywell's Experion PKS operator station can display TMG 740-3 lockout status and burner run hours via discrete I/O or Modbus RTU communication from the supervisory PLC.

In process heating applications, the TMG 740-3 works alongside the Honeywell T775 electronic temperature controller, which provides the enable signal to the burner control circuit based on process temperature demand. The Honeywell ML7420 actuator drives the combustion air damper in modulating burner configurations, with the modulation signal generated by the supervisory controller rather than the TMG 740-3 itself, maintaining a clear functional separation between safety sequencing and process control within the architecture.

The Honeywell TMG 740-3 is deployed across a broad spectrum of industrial combustion applications where reliable burner sequencing and flame supervision are non-negotiable operational requirements. In industrial boiler plants serving manufacturing facilities, the TMG 740-3 manages the startup and shutdown sequences of gas-fired steam boilers, ensuring that each ignition cycle complies with EN 298 safety protocols and that any flame failure results in immediate fuel valve closure and lockout annunciation.

In the petrochemical and refining sector, the TMG 740-3 is applied in process heater and fired reboiler control panels, where it supervises pilot and main burner ignition sequences in hazardous area adjacent installations. Its robust lockout logic and clear fault indication support the stringent safety management requirements of ATEX-classified plant environments. In district heating and combined heat and power (CHP) installations, the TMG 740-3 controls the burner management function of gas-fired hot water generators, with its remote reset capability enabling centralised plant management from a SCADA system.

In the food and beverage industry, the TMG 740-3 is used in direct-fired ovens, dryers, and sterilisation tunnels where precise ignition sequencing and fast flame failure response are essential for both product quality and operator safety. In the ceramics and glass manufacturing sector, the unit manages burner sequencing in kiln and furnace applications, where its wide operating temperature tolerance ensures reliable performance in high-ambient-temperature control panel environments. Across all these applications, the TMG 740-3's compatibility with the Honeywell SM Series platform ensures that plant engineers can standardise on a single burner control architecture across multiple process lines, reducing spare parts inventory complexity and training requirements.

Q1: Is the Honeywell TMG 740-3 compatible with both ionisation and UV flame detection, and can it be used with existing SM Series installations?The TMG 740-3 supports both ionisation rod and UV detector inputs, making it compatible with the full range of Honeywell SM Series flame detection accessories including the C7027 and QRA55 series. It is designed as a direct replacement and system-matched component within the SM Series burner control platform, ensuring backward compatibility with existing panel wiring and base socket configurations. No additional adapters or wiring modifications are required for standard SM Series installations.

Q2: What commissioning and diagnostic capabilities does the TMG 740-3 provide for system integration and long-term maintenance?The TMG 740-3 stores the last lockout cause in its internal memory, enabling maintenance technicians to perform rapid fault diagnosis without specialist tools. Its self-check routines verify relay contact integrity and external circuit continuity before each burner start, reducing the risk of undetected wiring faults. For commissioning, the unit's LED indicators provide real-time status of each sequence step, simplifying the verification of interlock wiring and flame signal quality during initial plant startup and periodic maintenance inspections.

Q3: What are the stock availability and warranty terms for the TMG 740-3 supplied by NANKMOS?NANKMOS maintains verified inventory of the Honeywell TMG 740-3 and associated SM Series components, with units available for immediate dispatch to minimise plant downtime. All TMG 740-3 units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects, with technical support available throughout the warranty period. Pre-shipment functional testing is performed on each unit to confirm operational integrity before dispatch, and full traceability documentation is provided with every order.
