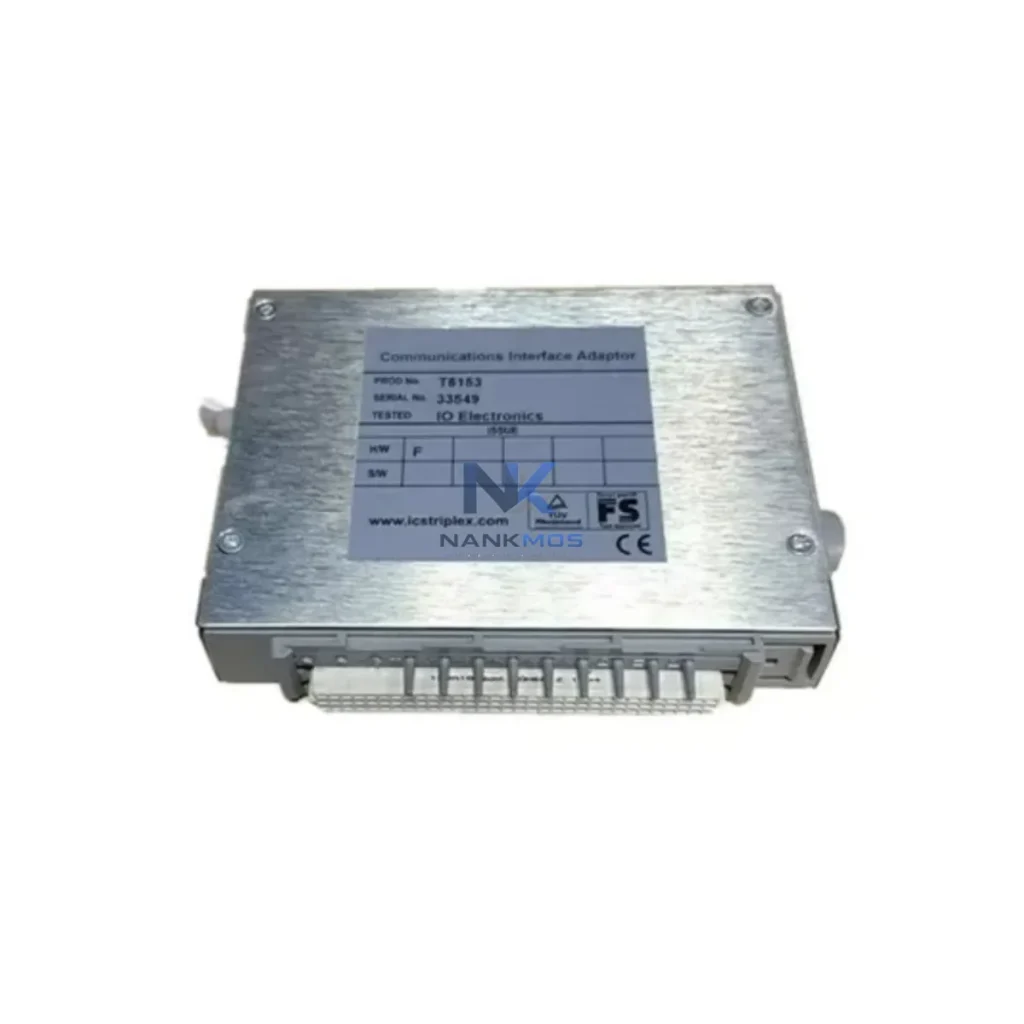

ICS Triplex T8153 Communications Interface Adapter

Product Details

T8153 Product Description

The ICS Triplex T8153 is a dedicated communications interface module engineered for deployment within the T8000 Triple Modular Redundancy (TMR) safety and control platform. Designed to serve as the backbone of inter-system data exchange, the T8153 enables deterministic, fault-tolerant communication between the T8000 controller chassis and upstream supervisory systems, DCS networks, historian servers, and remote I/O nodes. Its role within the control architecture is not peripheral — it is a structural enabler of system-wide coherence, signal integrity, and operational continuity across all control layers.

In modern industrial automation, the communications layer is as critical as the processing layer. The T8153 addresses this by providing a stable, protocol-consistent interface that supports the T8000 platform's inherent redundancy model. Whether deployed in a simplex, dual, or full TMR configuration, the T8153 maintains communication continuity without introducing single points of failure. Its architecture-aware design ensures that communication faults are isolated, logged, and reported without cascading into control disruptions — a fundamental requirement in safety-instrumented systems (SIS) operating under IEC 61511 and IEC 61508 frameworks.

From a system integration perspective, the T8153 interfaces directly with the T8000 backplane, sharing the same rack infrastructure as the T8110 TMR processor module, T8120 power supply modules, and T8431/T8432 digital I/O modules. This co-location within the same chassis eliminates inter-rack latency and simplifies cable management, reducing both installation complexity and long-term maintenance overhead. The module's communication ports support standard industrial protocols, enabling seamless Contextual Integration with SCADA platforms, OPC-DA/UA servers, and asset management systems without requiring protocol conversion gateways.

Signal flow within a T8000 architecture typically originates at the field instrument level — transmitters, actuators, and smart sensors — passes through T8431 or T8432 I/O modules, is processed by the T8110 TMR CPU, and then exits the controller via the T8153 communications interface toward the supervisory layer. This layered signal path ensures that every data point traversing the T8153 has already been voted, validated, and fault-checked by the TMR logic solver. The result is a communications output that reflects true system state, not raw or unvalidated field data.

For engineers designing redundant control architectures, the T8153 supports hot-standby communication configurations. In dual or TMR deployments, multiple T8153 modules can be configured to provide communication path redundancy, ensuring that a single module failure does not interrupt data flow to the supervisory layer. This is particularly critical in continuous process industries — oil and gas, petrochemical, power generation, and water treatment — where communication loss between the safety controller and the DCS can trigger unnecessary process shutdowns or mask developing fault conditions.

The T8153 also plays a key role in diagnostic transparency. By maintaining a live communication channel between the T8000 controller and the plant historian or asset management system, it enables real-time transmission of module health data, fault logs, and diagnostic counters. This supports predictive maintenance workflows and reduces mean time to repair (MTTR) by allowing maintenance engineers to identify degraded modules before they reach a fail-safe state. When paired with the T8800 series engineering workstation software, the T8153 provides full visibility into communication traffic, error rates, and protocol-level diagnostics.

Installation of the T8153 follows standard T8000 rack procedures. The module slots into the designated communications bay of the T8000 chassis, with no additional mounting hardware required. Configuration is performed via the T8800 engineering environment, where communication parameters — baud rate, protocol selection, node addressing, and redundancy mode — are defined and downloaded to the module. Pre-shipment testing at NANKMOS includes functional verification of all communication ports, protocol handshake validation, and redundancy switchover testing to confirm module readiness prior to dispatch.

Long-term availability is a core consideration for T8000 platform users. The T8153 is stocked as part of NANKMOS's dedicated ICS Triplex inventory, alongside complementary modules including the T8110 processor, T8120 power supply, T8310 analog input module, T8320 analog output module, T8431 digital input module, T8432 digital output module, and T8800 engineering software licenses. This integrated stock posture ensures that customers can source complete system spares or expansion components from a single supplier, reducing procurement lead times and simplifying vendor management.

The T8153 achieves its full value when considered as part of a complete T8000 automation platform rather than as a standalone component. A typical T8000 control node integrates the following modules within a shared rack infrastructure:

The T8110 TMR Processor Module serves as the central logic solver, executing the safety and control application while the T8153 handles all external communications. The T8120 Power Supply Module provides regulated backplane power to all installed modules, including the T8153, ensuring stable electrical conditions for communication hardware. On the I/O side, the T8310 Analog Input Module and T8320 Analog Output Module handle process variable acquisition and control signal output, while the T8431 Digital Input Module and T8432 Digital Output Module manage discrete field signals from valves, switches, and actuators.

At the supervisory layer, the T8153 connects the T8000 controller to T8800 Engineering Workstation Software, enabling online monitoring, diagnostic access, and configuration management without interrupting live process control. For plants requiring integration with third-party DCS platforms — such as Honeywell Experion, Emerson DeltaV, or Yokogawa CENTUM — the T8153 provides the protocol-level interface that enables data exchange between the ICS Triplex safety layer and the process control layer. In architectures requiring physical network segmentation, an industrial Ethernet switch (such as those from the Hirschmann or Moxa product families) is typically installed between the T8153 output and the plant network, providing managed traffic isolation and VLAN-based security zoning.

For applications requiring signal conditioning between field instruments and the T8000 I/O modules, signal isolators and loop-powered barriers (such as those from the MTL or P+F series) are commonly installed in the same control cabinet, ensuring galvanic isolation and intrinsic safety compliance. The T8153 sits at the top of this signal chain, aggregating validated process data and transmitting it upstream with full diagnostic context.

Oil, Gas & Petrochemical: The T8153 is widely deployed in emergency shutdown (ESD) and fire & gas (F&G) systems within upstream and downstream hydrocarbon processing facilities. Its TMR-compatible communication architecture ensures that safety system status is continuously visible to the plant DCS and safety management system, supporting SIL 2/3 loop integrity verification and regulatory compliance reporting.

Power Generation & Utilities: In thermal, nuclear, and combined-cycle power plants, the T8153 enables real-time communication between turbine protection controllers and plant-wide SCADA systems. Its redundant communication capability ensures that protection system status remains visible to operators even during partial module degradation, supporting continuous availability requirements.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use the T8153 to integrate T8000-based pump and valve controllers with centralized SCADA platforms. The module's diagnostic transparency supports remote monitoring of distributed pump stations, reducing the need for on-site inspection and enabling predictive maintenance scheduling.

Mining & Metals: In conveyor control, crusher protection, and ventilation safety systems, the T8153 provides the communication link between safety PLCs and mine-wide control networks. Its robust industrial design supports operation in high-vibration, high-dust environments typical of underground and surface mining operations.

Marine & Offshore: Offshore platform control systems and vessel automation systems use the T8153 to maintain communication between safety controllers and vessel management systems (VMS), supporting DNV and ABS classification requirements for safety system transparency and auditability.

Q1: Can the T8153 be used in a fully redundant TMR communication configuration, and what is required? Yes. The T8153 supports dual-module hot-standby communication redundancy within the T8000 platform. Two T8153 modules are installed in designated communication slots within the T8000 chassis, and redundancy parameters are configured via the T8800 engineering software. In the event of a primary module failure, the standby T8153 assumes communication responsibility without interrupting data flow to the supervisory layer. NANKMOS stocks both primary and standby T8153 units and can supply matched pairs for redundant deployments.

Q2: Is the T8153 compatible with OPC UA servers and modern SCADA platforms for Contextual Integration? The T8153 provides the physical and protocol-level communication interface from the T8000 controller. Direct OPC UA connectivity depends on the T8000 firmware version and the communication gateway configuration. For plants requiring native OPC UA integration, a protocol gateway (such as the Kepware KEPServerEX or Matrikon OPC platform) is typically deployed between the T8153 output and the SCADA server. NANKMOS can advise on compatible gateway configurations based on your specific SCADA platform and T8000 firmware revision.

Q3: What does the 12-Month Warranty cover, and what pre-shipment testing is performed on the T8153? Every T8153 supplied by NANKMOS is subject to pre-shipment functional testing, including communication port verification, protocol handshake validation, backplane interface continuity check, and redundancy switchover simulation. The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. Warranty claims are processed directly through NANKMOS, with replacement units dispatched from stock to minimize system downtime. Extended warranty and spare-on-site programs are available upon request.
