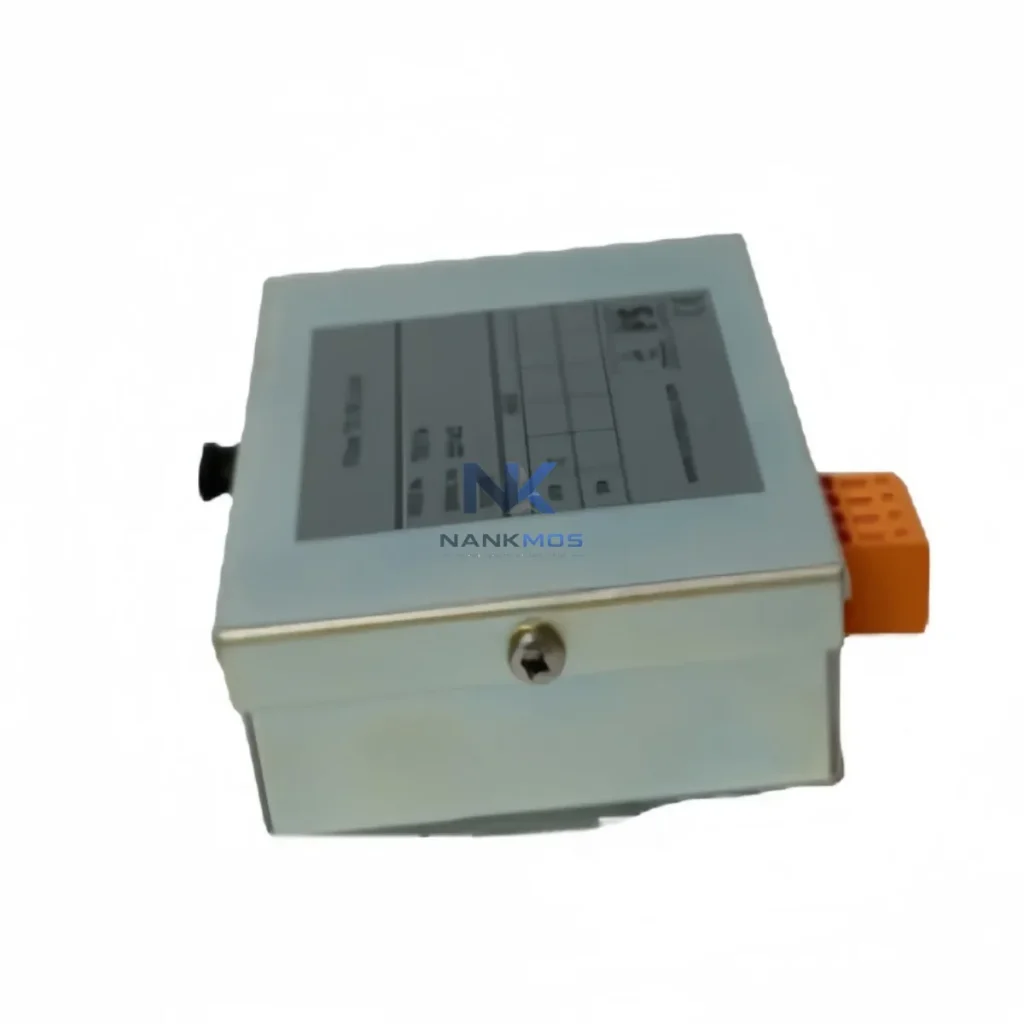

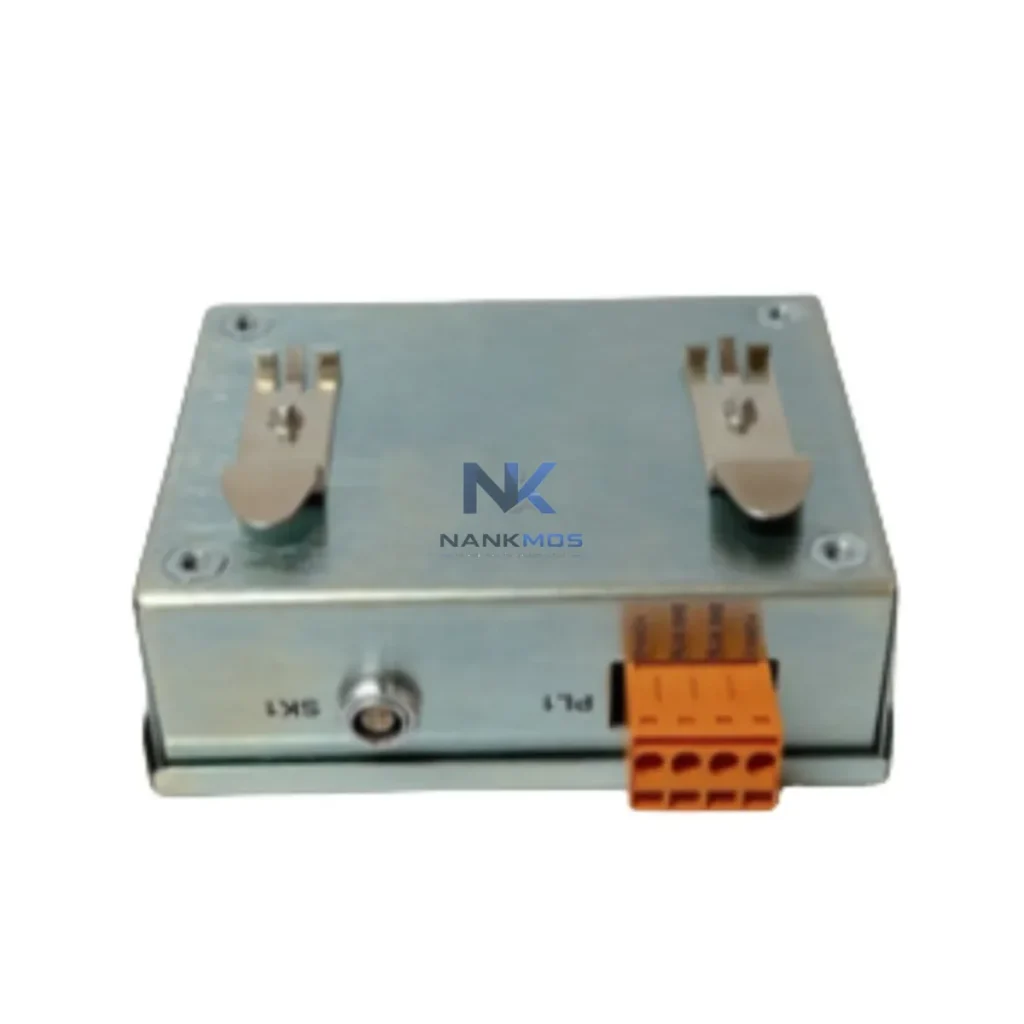

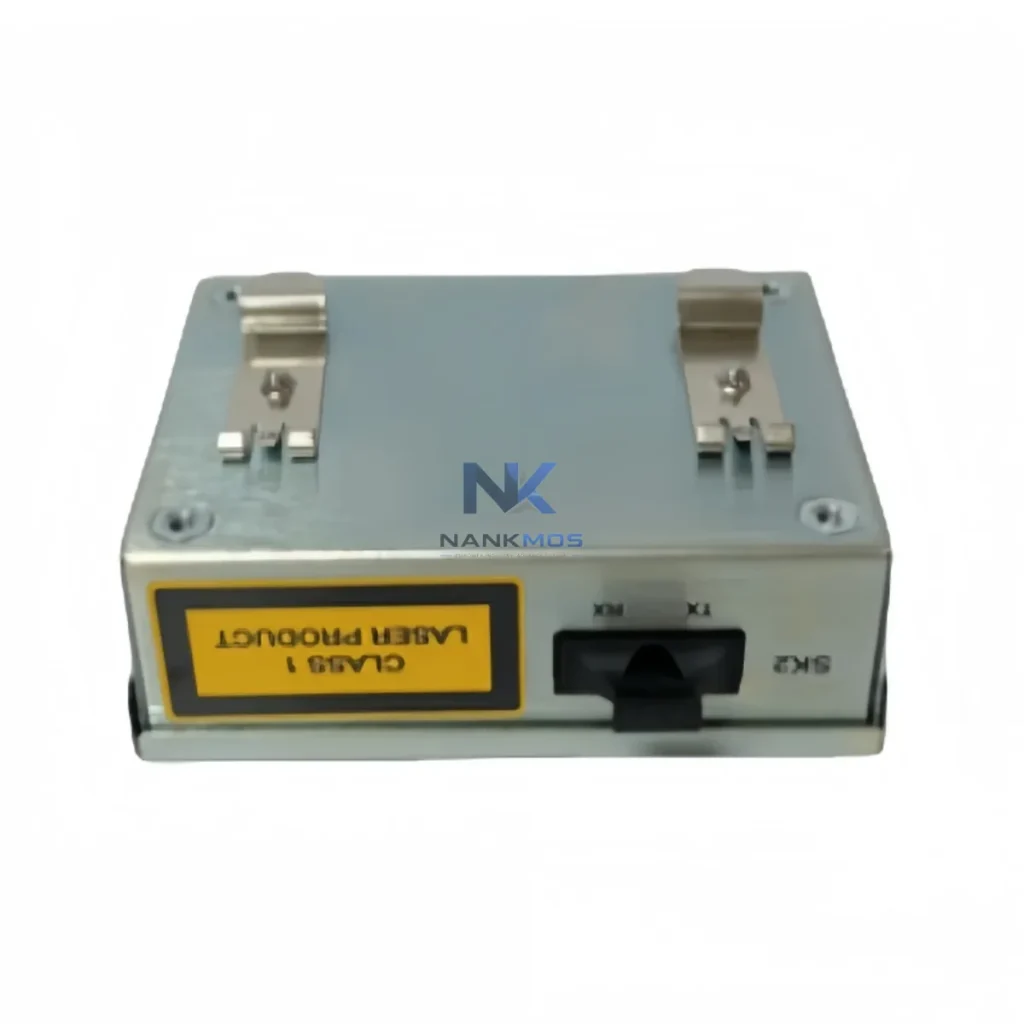

ICS Triplex T8314 Fiber Optic Communication Module

Product Details

T8314 Product Description

The ICS Triplex T8314 is a dedicated fiber optic transmitter/receiver module engineered for deployment within Triple Modular Redundant (TMR) safety instrumented systems. Designed to operate within the ICS Triplex Trusted Series platform, the T8314 provides high-integrity optical signal transmission across control system layers, ensuring deterministic communication between safety controllers, I/O subsystems, and supervisory networks. Its role within the control architecture extends beyond simple signal routing — the T8314 actively supports system coherence, redundancy validation, and long-term diagnostic transparency across the full automation stack.

In modern industrial control environments, fiber optic communication modules are not peripheral accessories — they are structural elements of the control architecture. The T8314 fulfills this role by delivering electrically isolated, EMI-immune signal paths between the TMR controller chassis and remote I/O racks, communication gateways, and HMI infrastructure. This isolation is critical in high-noise environments such as petrochemical processing units, power generation switchyards, offshore platforms, and heavy industrial facilities where electromagnetic interference can compromise signal integrity across copper-based networks.

The T8314 integrates directly into the ICS Triplex Trusted TMR backplane architecture, supporting the system's three-channel voting logic by maintaining synchronized, low-latency fiber links between each redundant processing lane. This ensures that the TMR controller's 2-out-of-3 voting mechanism operates on consistent, uncorrupted data — a fundamental requirement for SIL 3-rated safety instrumented functions. When paired with the T8110 Trusted TMR Processor module and T8431 Digital Input modules, the T8314 forms a coherent, validated signal chain from field device to safety logic solver.

The T8314 is most effective when understood as a system-level component rather than a standalone module. Within a complete ICS Triplex Trusted TMR architecture, it operates in coordination with a layered set of platform components that together define the system's control, safety, and communication capabilities.

At the controller layer, the T8110 Trusted TMR Processor serves as the central logic solver, executing the safety application and managing the three-channel voting process. The T8314 provides the optical backbone that connects this processor to remote I/O chassis, ensuring that field signals reach the logic solver with full integrity across physically separated enclosures. In larger installations, multiple T8314 modules may be deployed to support extended fiber runs between main and remote I/O racks.

At the I/O layer, modules such as the T8431 Digital Input Module and T8451 Digital Output Module interface directly with field devices — pressure switches, solenoid valves, motor starters, and emergency shutdown actuators. The T8314 ensures that the data paths between these I/O modules and the TMR processor remain stable, synchronized, and free from electrical noise. For analog signal acquisition, the T8411 Analog Input Module handles 4–20 mA process variables, with the T8314 maintaining the optical link integrity required for accurate signal representation at the controller.

At the communication layer, the Trusted platform supports integration with DCS and SCADA systems via standard industrial protocols. The T8830 Communication Interface Module enables Modbus TCP, PROFIBUS, or OPC-DA connectivity, allowing the TMR safety system to exchange status data with distributed control systems such as Honeywell Experion, Emerson DeltaV, or Yokogawa CENTUM. The T8314's fiber optic links support the low-latency, high-reliability data paths required for this cross-system integration.

At the power layer, the T8800 Power Supply Module provides regulated DC power to the Trusted chassis, with redundant supply configurations available to eliminate single points of failure. The T8314 operates within the chassis power envelope and benefits directly from this redundant power architecture, ensuring continuous optical link availability even during partial power supply failures.

At the HMI and supervisory layer, operator workstations running System 1 Evolution condition monitoring software or third-party SCADA platforms receive real-time system health data via the communication interfaces supported by the Trusted platform. The T8314's role in maintaining stable inter-chassis links directly supports the data quality and update rates required for effective operator visualization and alarm management.

For installations requiring additional signal conditioning, Trusted Series signal isolators and terminal modules provide the field-side interface between raw sensor outputs and the I/O modules. These components, combined with the T8314's optical isolation capability, create a fully galvanically isolated signal chain from field instrument to safety logic — a design requirement in many SIL 3 applications.

Oil & Gas and Petrochemical Processing: In upstream and downstream hydrocarbon facilities, the T8314 supports Emergency Shutdown (ESD) and Fire & Gas (F&G) system architectures where TMR redundancy and SIL 3 integrity are mandatory. Fiber optic links between the safety controller and remote I/O panels in hazardous areas eliminate the risk of ground loops and electrical interference from high-voltage equipment, ensuring reliable shutdown signal transmission during process upsets.

Power Generation: Turbine protection and boiler management systems in thermal, combined-cycle, and nuclear power plants rely on deterministic, high-integrity communication between safety controllers and field I/O. The T8314 supports these applications by providing the optical interconnect required for geographically distributed control architectures, where controller cabinets and I/O marshalling panels may be separated by significant distances within the plant.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities deploy TMR safety systems for critical pump protection, chemical dosing control, and overflow prevention. The T8314's EMI immunity is particularly valuable in these environments, where variable frequency drives and large motor starters generate significant electrical noise that can disrupt copper-based communication links.

Mining and Minerals Processing: Conveyor systems, crusher protection, and hoisting equipment in mining operations require robust, fault-tolerant control architectures. The T8314 supports these applications by enabling reliable fiber optic communication between surface control rooms and underground or remote I/O installations, where cable runs may extend hundreds of meters and environmental conditions are demanding.

Marine and Offshore Platforms: Offshore oil production platforms and LNG carriers deploy ICS Triplex Trusted systems for wellhead control, process shutdown, and fire suppression. The T8314's compact form factor and fiber optic medium make it well-suited to the space-constrained, high-vibration, and corrosive environments typical of marine installations.

Q1: Is the T8314 compatible with both new Trusted TMR installations and legacy ICS Triplex system upgrades? The T8314 is designed for use within the ICS Triplex Trusted Series platform and is compatible with both new system builds and retrofit or expansion projects on existing Trusted TMR installations. When upgrading legacy systems, it is important to verify chassis backplane revision compatibility and fiber connector type (ST, SC, or LC) to ensure seamless integration. Our technical team can assist with compatibility verification prior to order placement, and all T8314 units are supplied with a 12-Month Warranty covering both new and refurbished stock.

Q2: What fiber optic cable specifications are required for optimal T8314 performance in extended-reach installations? For standard inter-chassis links within a single control room, multi-mode fiber (62.5/125 µm or 50/125 µm) is typically sufficient for runs up to 2 km. For extended-reach applications — such as connections between a main control room and a remote I/O panel in a field substation — single-mode fiber (9/125 µm) is recommended to maintain signal integrity over distances exceeding 2 km. Cable routing should avoid sharp bends and high-vibration pathways, and fiber terminations should be inspected and cleaned during commissioning and periodic maintenance intervals.

Q3: How does NANKMOS ensure T8314 units are ready for immediate deployment, and what does the 12-Month Warranty cover? All T8314 modules supplied by NANKMOS undergo pre-shipment functional testing to verify optical transmitter output power, receiver sensitivity, and module communication handshake with the Trusted TMR platform. Units are shipped with test documentation confirming operational status. The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions, and our in-stock inventory ensures rapid dispatch to minimize project delays. For urgent requirements, expedited shipping options are available upon request.
