ICS Triplex T8293C Power Distribution Unit

Product Details

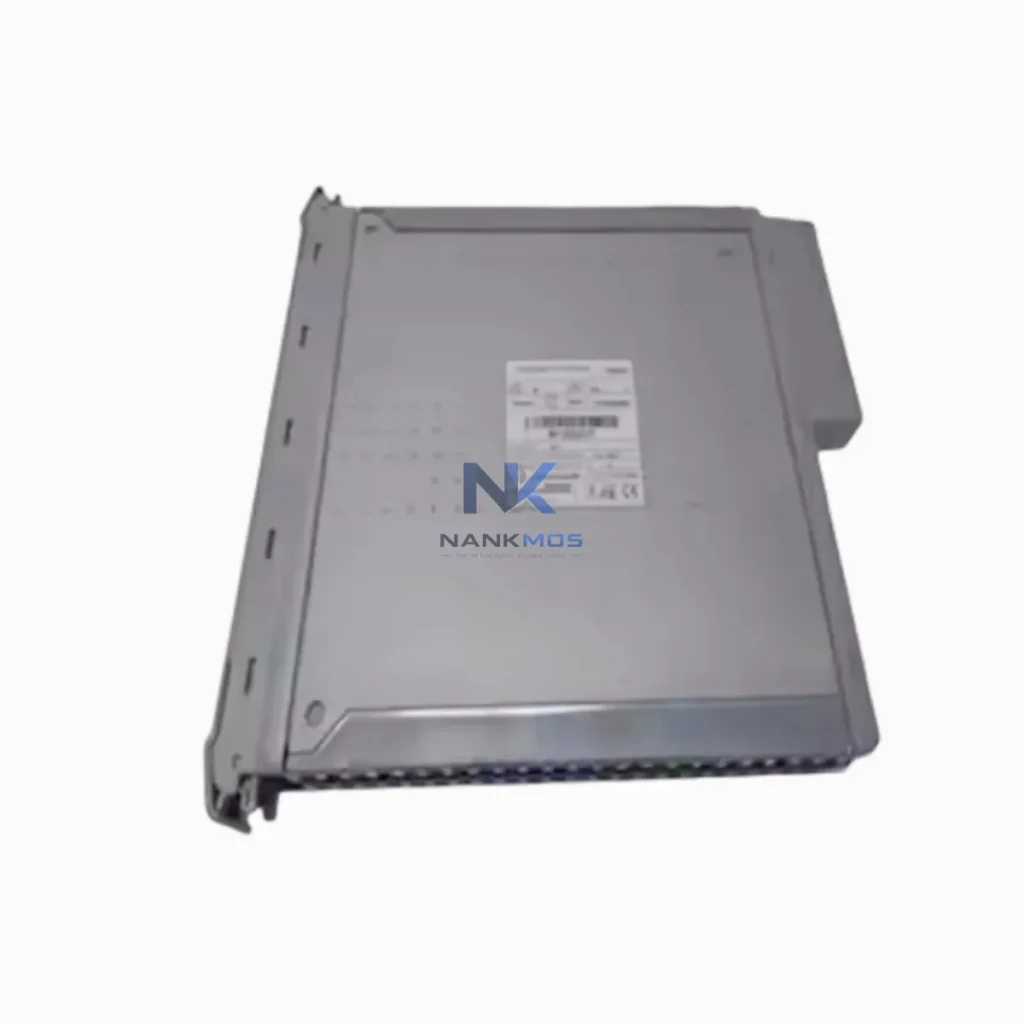

T8293C Product Description

The ICS Triplex T8293C is a dedicated Power Distribution Unit engineered for deployment within the Trusted TMR (Triple Modular Redundant) T8000 safety system platform. Designed to deliver conditioned, regulated power across all critical control layers, the T8293C ensures that every module within the TMR rack receives stable, uninterrupted electrical supply — a foundational requirement for SIL-rated safety instrumented systems operating in high-demand process environments. From power generation and petrochemical refining to offshore platforms and water treatment facilities, the T8293C serves as the electrical backbone of a fault-tolerant control architecture.

In a fully integrated Trusted TMR system, power integrity is not a secondary concern — it is a primary architectural constraint. The T8293C addresses this by providing isolated, redundant power rails that feed the T8110 Trusted TMR Processor, T8431 Digital Input modules, T8451 Digital Output modules, T8461 Analog Input modules, and T8481 Analog Output modules housed within the T8000 system rack. Each of these I/O and processing modules depends on the PDU to maintain signal fidelity, prevent ground loops, and eliminate voltage transients that could trigger spurious trips or mask genuine fault conditions. The T8293C is therefore not merely a power component — it is an active participant in system reliability.

Within the layered control architecture, the T8293C operates at the power layer, interfacing directly with the control layer (T8110 processor), the I/O layer (T8431/T8451/T8461/T8481 modules), and the communication layer (T8830 Modbus/TCP Gateway and T8840 PROFIBUS DP Interface). By maintaining consistent voltage regulation across these layers, the T8293C enables the TMR voting logic to function without electrical noise interference — a critical requirement when the system is performing 2-out-of-3 (2oo3) voting on safety-critical process variables such as pressure, temperature, and flow in SIL 2 or SIL 3 applications.

The T8293C also supports the redundancy architecture of the T8000 platform. In a fully redundant TMR deployment, dual PDUs are typically installed to ensure that a single power supply failure does not compromise system availability. This hot-standby power configuration, combined with the T8293C's internal fault detection circuitry, allows maintenance teams to replace a failed PDU without initiating a controlled shutdown — a significant operational advantage in continuous-process industries where unplanned downtime carries substantial financial and safety consequences.

From a commissioning and engineering integration perspective, the T8293C is designed for straightforward installation within the T8000 rack backplane. Its form factor conforms to the standard Trusted TMR chassis dimensions, and its connector interface is fully compatible with the T8000 system bus. Engineers integrating the T8293C into a new or expanded TMR architecture will find that the module requires no additional configuration — it is recognized automatically by the T8110 processor during system initialization, and its health status is reported through the Trusted system diagnostics interface, which can be monitored via the System 1 condition monitoring platform or a connected SCADA/DCS host using OPC-DA or OPC-UA protocols.

For facilities managing aging TMR infrastructure, the T8293C represents a direct replacement path for legacy PDU modules without requiring rack redesign or firmware updates. Its backward compatibility with earlier T8000 chassis generations ensures that upgrade projects can be executed on a module-by-module basis, reducing capital expenditure and minimizing the scope of each maintenance window. All units supplied by NANKMOS are pre-shipment tested against ICS Triplex factory specifications, with full functional verification of output voltage regulation, current limiting, and fault relay behavior prior to dispatch.

Every T8293C unit is covered by a 12-Month Warranty and is available from in-stock inventory, supporting urgent procurement requirements for both planned maintenance outages and emergency replacement scenarios. NANKMOS maintains a dedicated inventory of Trusted TMR components to ensure rapid fulfillment across global industrial markets.

The T8293C operates as the power foundation for a complete Trusted TMR automation platform. In a typical T8000 system deployment, the PDU feeds power to the T8110 Trusted TMR Processor, which executes the safety application logic and manages the 2oo3 voting architecture. Digital field signals are acquired through T8431 Digital Input and conditioned output commands are issued via T8451 Digital Output modules, while process variables such as pressure, temperature, and flow are handled by T8461 Analog Input and T8481 Analog Output modules — all of which depend on the T8293C for stable, isolated power.

At the communication layer, the T8830 Modbus/TCP Gateway and T8840 PROFIBUS DP Interface module connect the TMR safety system to the plant DCS or SCADA network, enabling real-time data exchange with historian platforms and operator workstations. The T8800 Communication Processor manages inter-chassis communication in multi-rack TMR configurations, ensuring that the voting logic remains synchronized across all three redundant channels. Power stability provided by the T8293C is essential to maintaining the timing integrity of these communication cycles.

At the HMI and supervisory layer, the TMR system interfaces with System 1 Evolution condition monitoring software, which aggregates diagnostic data from the T8110 processor — including PDU health status — and presents it to operations and maintenance teams via configurable dashboards. In facilities where the TMR system is integrated with a broader plant asset management strategy, the T8293C's fault relay output can be wired to the plant alarm management system, providing early warning of power anomalies before they escalate to system-level faults.

Power Generation: In gas turbine and steam turbine control systems, the T8293C supports TMR safety architectures governing overspeed protection, flame detection, and emergency shutdown. The dual-PDU redundancy configuration ensures that turbine protection systems remain operational during planned maintenance of the power distribution layer.

Petrochemical and Refining: Reactor safety instrumented systems (SIS) in ethylene crackers, hydrocracker units, and distillation columns rely on TMR architectures to achieve SIL 3 performance. The T8293C provides the power stability required for high-frequency I/O scanning and deterministic safety response times in these demanding process environments.

Oil and Gas — Offshore Platforms: Subsea and topside safety systems on FPSO vessels and fixed platforms use Trusted TMR architectures for wellhead control, emergency shutdown (ESD), and fire and gas (F&G) detection. The T8293C's compact form factor and compatibility with marine-grade enclosures make it suitable for offshore control room installations.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities deploy TMR safety systems for pump protection, chemical dosing control, and overflow prevention. The T8293C supports continuous operation in these 24/7 environments, where power interruptions to the control system can result in regulatory non-compliance and environmental incidents.

Mining and Minerals Processing: Conveyor systems, crusher controls, and flotation cell management in mining operations benefit from the fault-tolerant power distribution provided by the T8293C, ensuring that safety shutdowns are executed reliably even under harsh electrical conditions typical of mining environments.

Q1: Is the T8293C compatible with all T8000 chassis generations, and can it be installed without a full system shutdown? The T8293C is designed for compatibility with the T8000 rack backplane across multiple chassis generations of the Trusted TMR platform. In a dual-PDU redundant configuration, a failed PDU can be replaced while the system remains operational, as the redundant PDU maintains power to all rack modules during the swap. Single-PDU configurations require a controlled shutdown for PDU replacement. NANKMOS recommends verifying chassis revision compatibility with the system documentation prior to procurement; our technical team can assist with compatibility confirmation based on your rack serial number and firmware version.

Q2: How does the T8293C integrate with plant-level monitoring systems, and what diagnostic data is available? The T8293C reports its operational status — including output voltage levels, current draw, and fault relay state — through the T8110 processor's integrated diagnostics interface. This data is accessible via the System 1 Evolution platform, OPC-DA/OPC-UA server connections, and Modbus/TCP polling through the T8830 gateway. Plant historians and SCADA systems can log PDU health data alongside process variables, enabling maintenance teams to trend power supply performance over time and schedule proactive replacements before failures occur. Contextual Integration with existing plant data infrastructure requires no additional hardware beyond the standard T8000 communication modules.

Q3: What warranty and supply assurance does NANKMOS provide for the T8293C, and how quickly can units be dispatched for emergency replacement? All T8293C units supplied by NANKMOS are covered by a 12-Month Warranty covering manufacturing defects and functional performance against ICS Triplex factory specifications. Units are held in in-stock inventory and undergo pre-shipment functional testing — including output voltage verification, current limiting validation, and fault relay actuation — prior to dispatch. For emergency replacement requirements, NANKMOS supports expedited shipping to global destinations. Contact [email protected] or +86 18359268345 to confirm current stock levels and arrange priority fulfillment.
