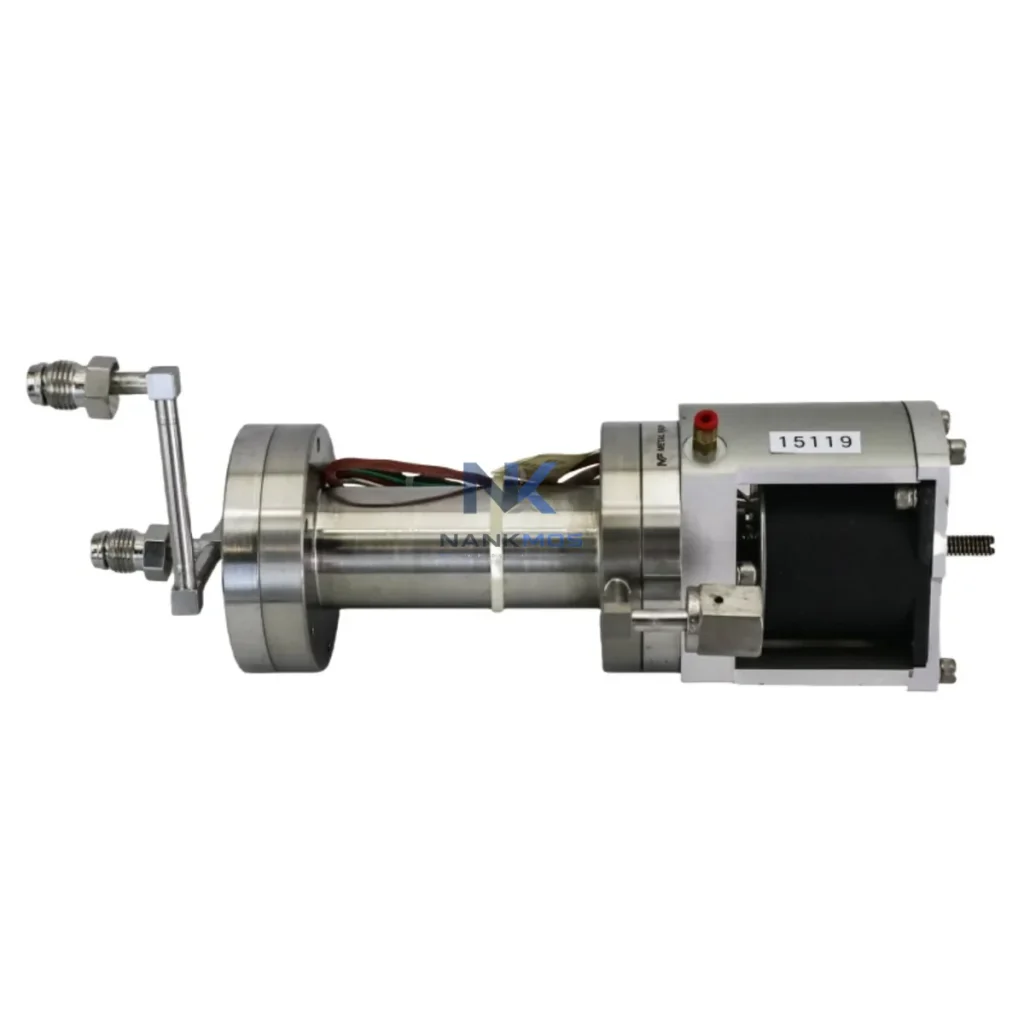

02-454637-00 1201006408 EXPPTS03001 PM P03 629 D W/CTLR TC 400 SPLITFLOW 310 3P Product Description

The Novellus 02-454637-00 pedestal cylinder assembly — also referenced under part numbers 1201006408, EXPPTS03001, and configured for PM P03 with TC 400 SPLITFLOW 310 3P controller integration — is a precision-engineered energy-control component designed for the Speed Sequel CVD (Chemical Vapor Deposition) platform. In modern semiconductor fabs and advanced manufacturing environments, pedestal assemblies are not passive mechanical parts; they are active participants in energy management, thermal load regulation, and process throughput optimization. This unit is built to reduce unnecessary energy consumption, stabilize wafer-stage thermal cycles, and support predictive maintenance strategies across high-utilization production lines.

In a fully integrated smart production line, the Novellus 02-454637-00 pedestal assembly operates as a thermally active node within a broader energy-aware automation architecture. The pedestal's embedded heater and lift mechanism are governed by the TC 400 SPLITFLOW 310 3P temperature controller, which interfaces directly with the chamber's process control PLC — typically a Siemens S7-300 or equivalent industrial controller — to regulate chuck temperature setpoints with minimal overshoot and reduced idle-state power draw.

The assembly's position feedback and lift actuator status are routed through digital I/O modules connected to the main process controller, enabling real-time equipment state monitoring without additional sensor overhead. When integrated with a Profibus DP or DeviceNet communication module, the pedestal's operational data — including heater current draw, lift cycle count, and temperature deviation — can be streamed to a SCADA system for centralized energy dashboarding and anomaly detection.

On the power supply side, the pedestal heater circuit is fed through a dedicated industrial power distribution unit with soft-start capability, reducing inrush current spikes that would otherwise stress the facility's power infrastructure. This is particularly important in multi-chamber CVD clusters where simultaneous pedestal heating cycles can create demand peaks. By staggering heater activation sequences — a strategy coordinated through the chamber's HMI touchpanel and recipe management system — energy consumption per wafer run is measurably reduced.

For facilities running Novellus Concept One or Speed Sequel multi-station deposition tools, the 02-454637-00 pedestal is a direct-fit replacement that maintains compatibility with existing analog I/O signal chains and thermocouple feedback loops. Its integration with the SPLITFLOW 310 gas delivery controller further ensures that pedestal temperature stability is synchronized with process gas flow rates, preventing energy-wasteful temperature compensation cycles caused by gas-induced thermal perturbations.

Unplanned pedestal failures are among the most energy-disruptive events in a CVD production line. A degraded pedestal assembly forces extended pump-down cycles, repeated thermal conditioning runs, and increased idle-state power consumption as the chamber attempts to re-stabilize. By replacing worn or out-of-spec pedestals with a verified Novellus 02-454637-00 unit, facilities eliminate these hidden energy penalties and restore predictable process throughput.

The pedestal's role in production line takt time optimization is direct: a stable, well-calibrated chuck temperature means shorter stabilization windows between wafer runs, faster recipe transitions, and higher equipment utilization rates. In high-volume fabs operating 24/7, even a 3–5% reduction in inter-run stabilization time translates to significant energy savings and increased wafer output per kilowatt-hour consumed.

From a predictive maintenance perspective, the 02-454637-00 assembly's lift actuator cycle count and heater resistance drift are key indicators tracked by the facility's equipment health monitoring system. When these parameters are logged via the chamber's SCADA interface and analyzed against baseline values, maintenance teams can schedule pedestal replacements during planned downtime windows — avoiding the far greater energy and productivity cost of unscheduled chamber shutdowns.

All units supplied by NANKMOS undergo pre-shipment functional testing, including heater continuity verification, lift mechanism stroke testing, and thermocouple calibration checks. This ensures that every 02-454637-00 pedestal assembly arrives ready for installation without requiring additional bench testing, reducing the energy and labor overhead of incoming inspection. Each unit is covered by a 12-month warranty against manufacturing defects and functional failures, supporting your facility's spare parts management and budget planning cycles.

For facilities managing multi-tool CVD fleets, NANKMOS maintains ready inventory of the 02-454637-00 and associated Speed Sequel consumables, enabling rapid fulfillment to minimize equipment downtime and keep production lines running at peak energy efficiency.

Q1: How does the 02-454637-00 pedestal assembly contribute to energy savings in a CVD process? The pedestal directly controls wafer chuck temperature, which is one of the highest energy-consuming parameters in a CVD process. A properly functioning 02-454637-00 unit minimizes thermal overshoot, reduces heater dwell time, and shortens inter-run stabilization cycles — all of which lower the total energy consumed per wafer processed. Degraded pedestals force the system to compensate with extended heating cycles, increasing both energy use and process variability.

Q2: Is the 02-454637-00 compatible with my existing TC 400 SPLITFLOW 310 controller and PLC infrastructure? Yes. The 02-454637-00 is designed for direct integration with the TC 400 SPLITFLOW 310 3P temperature controller and is compatible with standard Novellus Speed Sequel CVD chamber configurations. It maintains the same thermocouple signal interface and I/O pinout as the original OEM assembly, ensuring seamless integration with your existing PLC and SCADA infrastructure without requiring signal conditioning modifications.

Q3: What is the recommended replacement interval, and how do I assess if my current pedestal needs replacement? Replacement intervals vary by process chemistry and utilization rate, but common indicators include heater resistance drift beyond ±5% of nominal, lift actuator positioning errors logged by the chamber controller, or recurring chuck temperature deviation alarms. NANKMOS recommends tracking these parameters via your SCADA system and scheduling replacement during planned PM windows. Contact our technical team for application-specific guidance.

Q4: What does the 12-month warranty cover, and how quickly can replacement units be shipped? The 12-month warranty covers all manufacturing defects and functional failures under normal operating conditions, including heater element integrity, lift mechanism operation, and thermocouple calibration. NANKMOS maintains in-stock inventory of the 02-454637-00 to support urgent fulfillment requirements. Standard orders ship within 1–3 business days; expedited shipping is available for critical downtime situations. Contact [email protected] or +86 18359268345 for availability confirmation and lead time.
