Novellus TT2301R2-1-NES-NOVELLUS2 27-326390-00 112831 TT2301

Product Details

TT2301R2-1-NES-NOVELLUS2 27-326390-00 112831 TT2301R2-1-NES-NOVELLUS2 9050019-03 9820052-05 Product Description

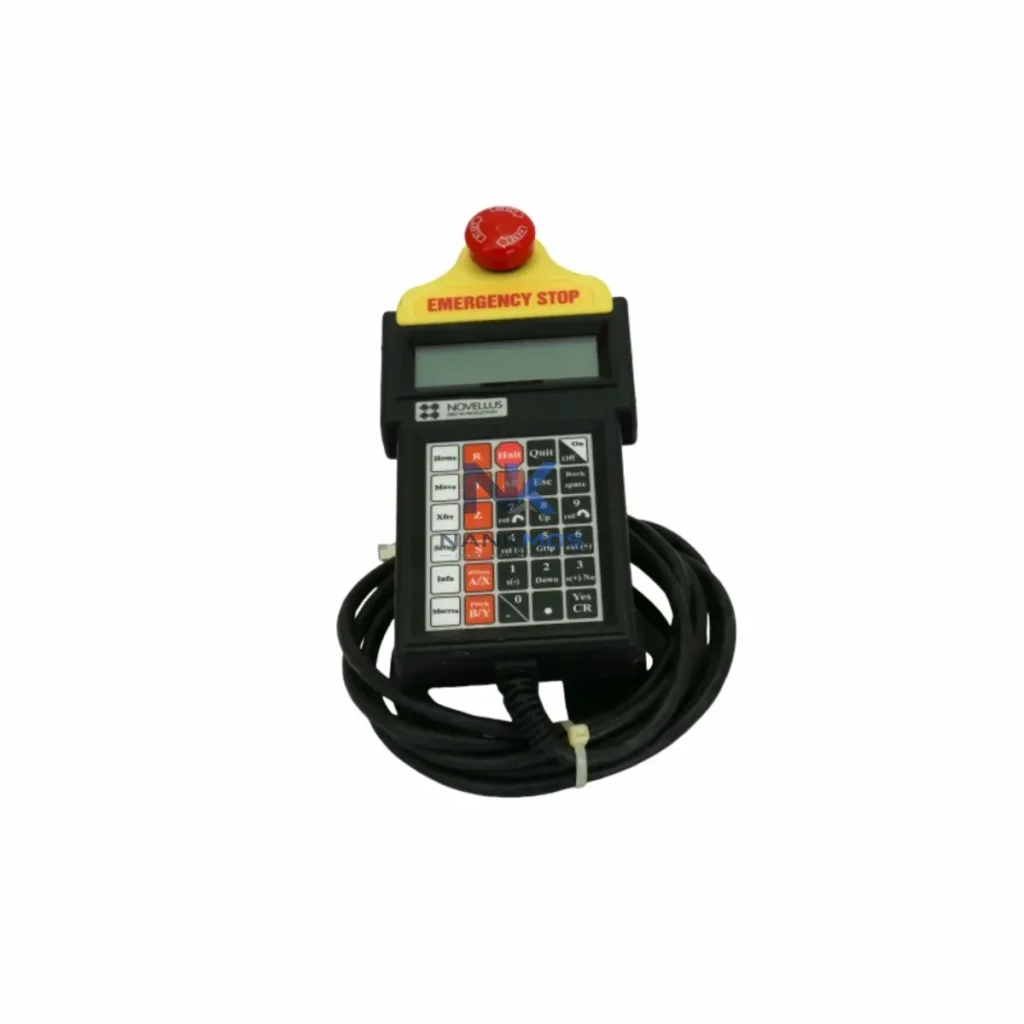

The Novellus TT2301R2-1 Teach Pendant (also referenced as 27-326390-00, 112831, 9050019-03, 9820052-05) is a precision human-machine interface engineered for the Novellus2 NES semiconductor robot platform. Far beyond a simple handheld controller, this teach pendant functions as a critical node in the smart factory data chain — bridging operator commands, robot motion logic, and upstream control systems into a unified, real-time automation network. In high-throughput semiconductor fabs and advanced manufacturing environments, the TT2301R2-1 enables engineers to program, monitor, and diagnose robot behavior directly at the process level, while feeding structured data back to SCADA supervisory layers and MES platforms for full production transparency.

In a modern semiconductor fab or advanced process automation site, the TT2301R2-1 sits at the intersection of human intent and machine execution. The data flow begins at the operator level: an engineer uses the teach pendant to define robot waypoints, set motion parameters, and configure end-effector behavior for wafer pick-and-place sequences. These commands are transmitted in real time through the NES controller interface to the Novellus2 robot controller, which interprets and executes motion profiles with micron-level precision.

At the controller layer, the robot's position feedback, fault codes, and cycle status are continuously logged. This structured data is then passed upstream to the facility's SCADA system — often running on platforms such as Ignition or FactoryTalk — where production engineers monitor throughput, cycle times, and equipment health across multiple process chambers. Alongside the robot controller, the Novellus CVD chamber I/O module and NES process controller exchange real-time signals covering gas flow, RF power, and wafer temperature, all of which are correlated with robot motion data to ensure synchronized process execution.

For facilities integrating legacy Novellus equipment into modernized networks, an industrial protocol gateway — such as a Moxa MGate or ProSoft MVI series — may be deployed to bridge the NES serial communication layer with Ethernet-based plant networks running EtherNet/IP or PROFINET. This allows the teach pendant's operational data to be aggregated alongside signals from Novellus Concept One or Sequel platform controllers, enabling cross-platform diagnostics from a single HMI dashboard.

At the edge, industrial managed switches (such as Hirschmann MICE or Cisco IE series) provide the network backbone that carries data from the robot cell to the fab's central data infrastructure. Redundant ring topologies ensure zero packet loss during critical wafer transfer sequences. Remote I/O modules connected to the process chamber's safety interlocks and sensor arrays feed alarm states directly into the SCADA alarm management system, where the TT2301R2-1's last-known robot position is cross-referenced for root-cause analysis.

For remote diagnostics, edge computing gateways — such as Advantech WISE-5000 or Siemens SINEMA Remote Connect — capture teach pendant session logs and robot fault histories, compressing and transmitting them to cloud-based MES platforms. This enables off-site process engineers to review robot programming errors, motion deviations, or communication timeouts without requiring physical access to the fab floor. The result is a fully connected automation data chain: from the TT2301R2-1 teach pendant at the operator's hand, through the NES robot controller, across the industrial network, and into the plant's digital twin and analytics layer.

Protocol Fragmentation: Semiconductor fabs often run mixed-generation equipment where Novellus NES serial protocols coexist with modern EtherNet/IP or PROFINET networks. The TT2301R2-1, when paired with an appropriate protocol gateway, allows legacy robot programming data to be normalized and forwarded to unified SCADA historians — eliminating data silos between old and new equipment generations.

Remote Monitoring Blind Spots: Without a properly functioning teach pendant, robot fault states and position errors cannot be accurately captured at the source. The TT2301R2-1 restores full local diagnostic capability, ensuring that every motion event, alarm trigger, and program change is logged with timestamp and operator ID — data that is essential for remote monitoring dashboards and predictive maintenance models.

Production Line Transparency: In high-mix semiconductor environments, robot downtime directly impacts wafer throughput and yield. By maintaining a reliable teach pendant interface, process engineers gain real-time visibility into robot program versions, motion profiles, and error histories — data that feeds directly into OEE (Overall Equipment Effectiveness) calculations on the plant's MES platform.

Alarm Tracking and System Expansion: As fabs scale capacity, new process chambers and robot cells are added to existing NES controller networks. The TT2301R2-1 supports rapid robot commissioning and re-teaching, reducing integration time for new equipment. Alarm data generated during commissioning is automatically captured by the SCADA alarm management layer, providing a complete audit trail for process qualification and regulatory compliance.

Q1: What communication protocol does the Novellus TT2301R2-1 use, and is it compatible with modern Ethernet-based plant networks? The TT2301R2-1 communicates via the proprietary Novellus NES serial interface (RS-232/RS-422). For integration with modern EtherNet/IP or PROFINET plant networks, a serial-to-Ethernet protocol gateway is required. NANKMOS can advise on compatible gateway solutions for your specific network architecture.

Q2: How does the TT2301R2-1 support remote diagnostics and fault analysis? The teach pendant captures real-time robot position, motion fault codes, and program status at the controller level. When the NES controller is connected to an edge gateway or SCADA historian, this data is available for remote review by process engineers — enabling off-site fault analysis, program auditing, and predictive maintenance without fab floor access.

Q3: What is the network stability guarantee for the TT2301R2-1 in high-throughput semiconductor environments? The TT2301R2-1 is designed for continuous operation in demanding fab environments. Each unit supplied by NANKMOS undergoes pre-shipment functional testing to verify communication integrity, button response, display output, and controller handshake. This ensures stable, uninterrupted robot programming and monitoring capability from day one of deployment.

Q4: Does the TT2301R2-1 come with a warranty, and what does it cover? Yes. All Novellus TT2301R2-1 units supplied by NANKMOS are covered by a 12-month warranty from the date of shipment. The warranty covers manufacturing defects, communication failures, and hardware malfunctions under normal operating conditions. Expedited replacement and technical support are available for warranty claims.
