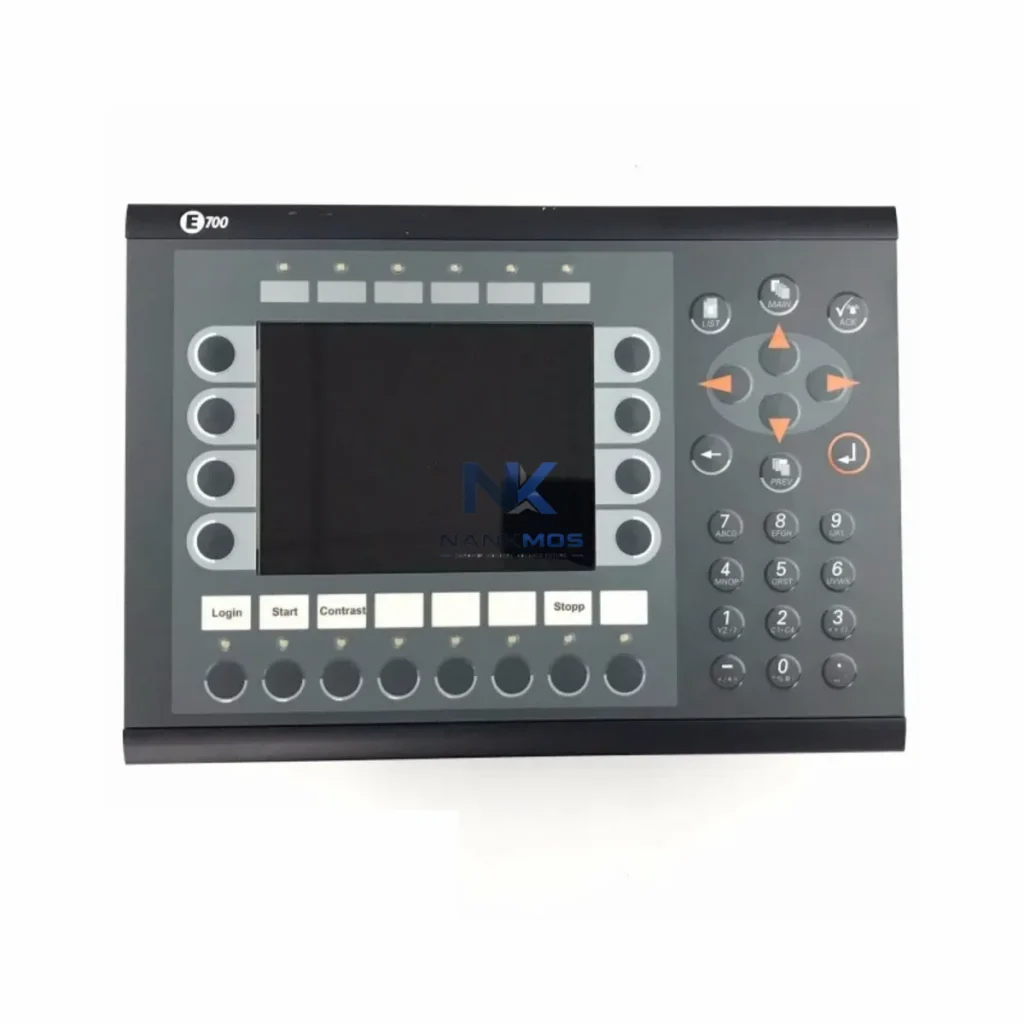

Beijer Electronics 02440G HMI Control Panel

Product Details

02440G Product Description

The Beijer Electronics 02440G is a purpose-engineered Human-Machine Interface panel designed for seamless integration within the E-Series automation platform. As a system-ready HMI component, the 02440G serves as the visualization and operator interaction layer in multi-tier industrial control architectures — bridging the gap between field-level I/O, PLC logic execution, and supervisory control. Its role extends beyond simple display functionality: it acts as a real-time diagnostic interface, process visualization node, and operator command terminal within cohesive control system designs deployed across manufacturing, energy, water treatment, and process industries.

The 02440G achieves its full operational value when deployed as part of a layered E-Series automation platform rather than as a standalone display unit. In a complete control architecture, the HMI layer represented by the 02440G interfaces directly with the E-Series CPU module — such as the Beijer E600 or E700 controller — which handles ladder logic execution, PID loop management, and real-time process sequencing. The CPU communicates process variable data upward to the 02440G via the internal E-Series bus or serial communication links, enabling operators to monitor live values, acknowledge alarms, and issue setpoint commands without interrupting the control cycle.

At the I/O layer, digital and analog input modules — including the Beijer BFI series digital input cards and analog signal conditioning modules — feed structured data into the CPU, which the 02440G then renders as trend graphs, bar charts, or numeric displays. This tight coupling between the I/O layer and the HMI layer ensures that signal latency is minimized and that operator decisions are based on real-time field data rather than delayed snapshots.

For communication-intensive architectures, the 02440G supports integration with Beijer communication gateway modules that bridge Modbus RTU, PROFIBUS DP, or EtherNet/IP networks to the E-Series platform. This allows the HMI to visualize data from third-party PLCs, variable frequency drives such as the Beijer BFI-P2 series VFD, or remote I/O nodes without requiring a dedicated SCADA server. In distributed control topologies, the 02440G can serve as a local operator station while a higher-level DCS or SCADA system — connected via OPC or Modbus TCP — maintains supervisory oversight.

Power supply integrity is critical to HMI availability. The 02440G is designed to operate from a stable 24 VDC rail, typically sourced from a Beijer or third-party DIN-rail power supply module rated at 5A or higher, with sufficient headroom for inrush current during panel startup. In redundant power architectures, dual PSU configurations with diode ORing modules ensure that a single power supply failure does not interrupt HMI operation or cause operator visibility loss during critical process phases.

Terminal block assemblies — such as Phoenix Contact or Weidmüller spring-clamp terminal modules — are commonly used alongside the 02440G installation to organize field wiring, signal grounding, and shield termination within the control cabinet. Proper terminal organization reduces EMI coupling into the HMI's serial communication lines, which is particularly important in high-noise environments such as motor control centers or variable speed drive panels.

For applications requiring system redundancy, the 02440G can be paired with a secondary HMI or a remote access module — such as a Beijer X2 series panel — to provide hot-standby visualization capability. In the event of primary HMI failure, the secondary panel assumes operator interface duties without process interruption, supporting continuous operation requirements in water treatment, power generation, and pharmaceutical manufacturing environments.

Manufacturing & Assembly Lines: In discrete manufacturing environments, the 02440G provides line operators with real-time production counts, cycle time monitoring, and fault acknowledgment interfaces. Integrated with E-Series CPU modules controlling conveyor drives, robotic pick-and-place stations, and vision inspection systems, the HMI panel reduces mean time to repair (MTTR) by presenting structured alarm hierarchies and guided troubleshooting prompts directly at the machine level.

Power & Energy Utilities: Substation automation and power distribution control panels benefit from the 02440G's ability to display switchgear status, transformer load curves, and protection relay trip logs. When integrated with Modbus RTU communication gateways, the panel can aggregate data from multiple intelligent electronic devices (IEDs) and present a unified single-line diagram to substation operators, improving situational awareness and reducing response time during fault events.

Water & Wastewater Treatment: Pump station control panels equipped with the 02440G enable operators to monitor flow rates, tank levels, chemical dosing pump status, and UV disinfection system performance from a single interface. The panel's compatibility with E-Series analog input modules allows direct visualization of 4–20 mA sensor signals from level transmitters, pressure transducers, and turbidity analyzers without intermediate signal conversion.

Oil, Gas & Petrochemical: In hazardous area control rooms and safe-area marshalling panels, the 02440G serves as the primary operator interface for wellhead control systems, pipeline SCADA outstations, and compressor station automation panels. Its robust panel-mount construction and wide operating temperature range support deployment in environments subject to vibration, humidity, and temperature cycling.

Packaging & Material Handling: High-speed packaging lines require HMI panels capable of displaying machine state transitions, reject counts, and format changeover parameters with minimal operator interaction time. The 02440G's touchscreen interface and E-Series recipe management capability allow operators to switch between product formats rapidly, reducing changeover downtime and improving overall equipment effectiveness (OEE).

Q1: Is the Beijer Electronics 02440G compatible with third-party PLCs outside the E-Series platform? Yes. The 02440G supports a broad driver library that enables communication with Siemens S7, Allen-Bradley MicroLogix, Mitsubishi FX, and Omron CP/CJ series controllers via RS-232, RS-485, or Ethernet interfaces. This makes it suitable for retrofit projects where the HMI layer is being upgraded independently of the existing PLC infrastructure, ensuring architectural flexibility without requiring full system replacement.

Q2: What are the long-term maintenance and spare parts considerations for the 02440G in a production environment? The 02440G is supported by Beijer Electronics' established E-Series spare parts ecosystem. Backlight replacement, touch panel servicing, and communication port maintenance are documented in the E-Series service manual. NANKMOS maintains verified stock of the 02440G with a 12-Month Warranty covering manufacturing defects and functional failures, with pre-shipment testing performed on every unit to confirm display integrity, communication port function, and power supply compatibility prior to dispatch.

Q3: How does the 02440G support system commissioning and diagnostic efficiency in complex control architectures? The 02440G includes built-in diagnostic screens accessible via the E-Designer or EXTER Software development environment, allowing engineers to monitor communication status, I/O tag values, and alarm buffer contents during commissioning without requiring a laptop connection. This on-panel diagnostic capability accelerates loop checking, reduces commissioning labor hours, and provides a permanent diagnostic interface for maintenance technicians during the operational lifecycle of the control system.
