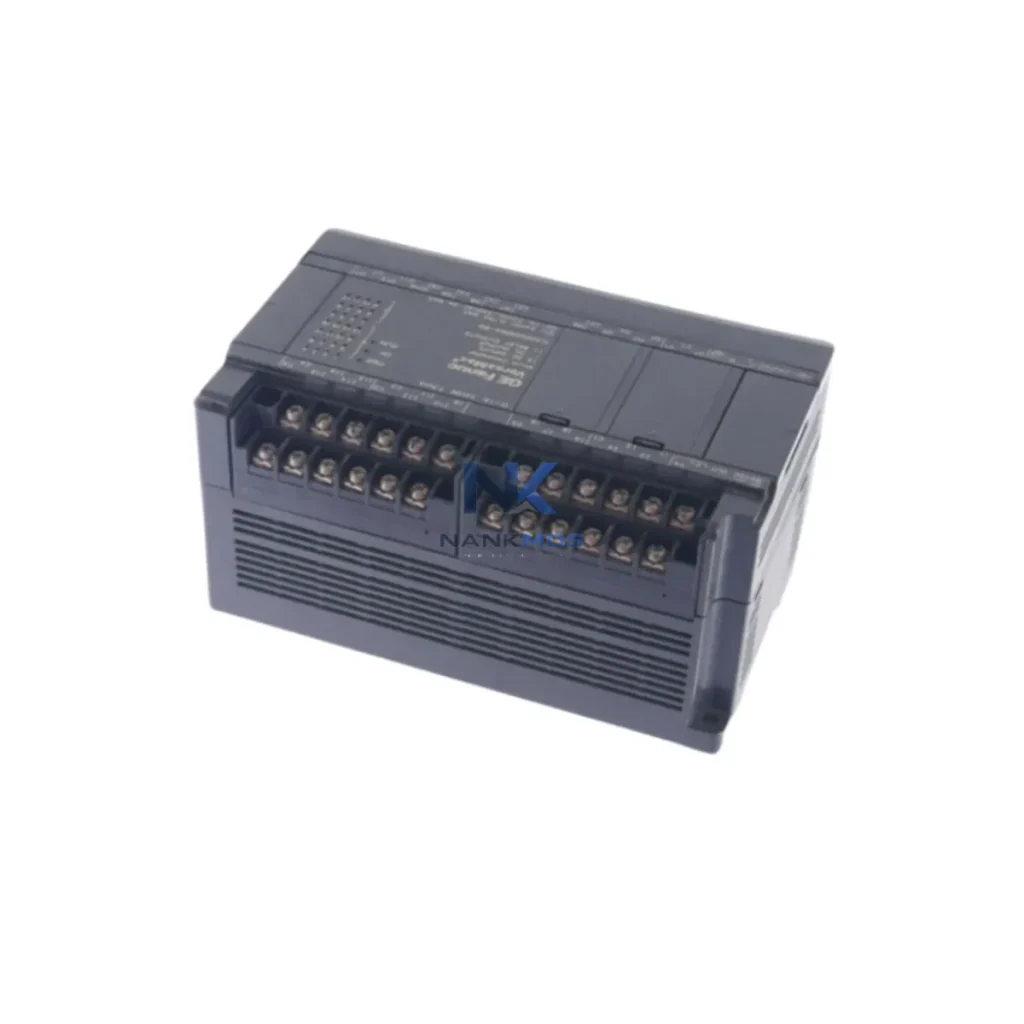

GE Automation & Controls IC200UDR005 Industrial PLC Gateway

Product Details

IC200UDR005 Product Description

The GE IC200UDR005 is a VersaMax Micro PLC unit engineered for seamless industrial network integration across smart factory environments. Designed by GE Automation & Controls, this compact controller bridges field-level devices and upper-layer control systems through robust Modbus RTU and Ethernet communication, enabling real-time data flow from sensors and actuators to SCADA platforms and HMI terminals. Whether deployed in discrete manufacturing, process control, or hybrid automation architectures, the IC200UDR005 delivers deterministic communication, relay-driven output control, and scalable connectivity that modern industrial data chains demand.

In today's connected factory, the ability to move data reliably from the production floor to supervisory systems is not optional — it is foundational. The IC200UDR005 addresses this requirement by functioning as both a local logic controller and a network-accessible data node, reducing the need for additional protocol converters or intermediate gateways in many standard automation topologies.

The IC200UDR005 sits at the intersection of field instrumentation and supervisory control, making it a critical node in the smart factory data chain. At the field level, discrete sensors — including proximity switches, photoelectric detectors, and pressure transmitters — feed digital signals directly into the IC200UDR005's onboard I/O. The PLC executes local ladder logic, processes input states, and drives relay outputs to control contactors, solenoid valves, and motor starters without latency introduced by remote processing.

For upstream communication, the IC200UDR005 connects via Modbus RTU over RS-485 to supervisory layers. In a typical VersaMax architecture, this unit operates alongside the IC200PWR002 power supply module and IC200MDL640 discrete input modules, forming a distributed I/O cluster that feeds data to a central GE PACSystems RX3i controller or a standalone SCADA server running platforms such as iFIX or Proficy. The Modbus register map exposed by the IC200UDR005 allows SCADA systems to poll real-time status, setpoints, and alarm flags at configurable scan rates.

Where Ethernet backbone connectivity is required, the IC200UDR005 can be paired with an IC200ETM001 Ethernet communications module, extending the VersaMax network onto standard TCP/IP infrastructure. This enables integration with plant-wide MES systems, historian databases, and cloud-based analytics platforms without replacing the existing PLC hardware. Industrial Ethernet switches — such as unmanaged DIN-rail switches supporting 10/100 Mbps — provide the physical layer for this connectivity, ensuring deterministic packet delivery across the factory floor.

HMI terminals connected via Modbus TCP or serial links can display live process variables sourced from the IC200UDR005, including output relay states, input signal counts, and diagnostic flags. Operators gain real-time visibility into machine status, cycle counts, and fault conditions directly on panel-mounted displays. When integrated with a SCADA gateway, the same data streams feed alarm management systems, enabling automated notifications for out-of-range conditions, communication timeouts, or relay failure events.

Remote diagnostics capability is a key value driver for the IC200UDR005 in distributed automation sites. Maintenance engineers can interrogate the PLC's register space remotely through the SCADA network, reading diagnostic coils and status words without physical access to the control panel. This reduces mean time to repair (MTTR) and supports predictive maintenance workflows by trending I/O state changes over time. When combined with edge gateway devices that aggregate data from multiple VersaMax nodes, the IC200UDR005 contributes to a unified data visualization layer accessible from any networked workstation or mobile device.

For applications requiring expanded analog signal handling, the IC200UDR005 can be extended with IC200ALG320 analog input modules, enabling temperature, pressure, and flow signals to enter the same data chain. Variable frequency drives (VFDs) controlling pump and fan motors can be monitored through Modbus-linked drive status registers, with the IC200UDR005 acting as the Modbus master polling drive speed, current, and fault codes. This creates a closed-loop visibility architecture where both discrete and analog process data converge at the PLC level before being forwarded to SCADA and historian systems.

Many industrial sites operate with fragmented automation architectures — legacy PLCs using proprietary serial protocols, islands of instrumentation with no network connectivity, and SCADA systems unable to reach field devices without manual data entry. The IC200UDR005 addresses these data gaps through its native Modbus RTU support, which is the most widely implemented open protocol in industrial automation and is natively understood by the majority of SCADA platforms, HMI terminals, and data historians in service today.

Protocol fragmentation is resolved by positioning the IC200UDR005 as a Modbus master or slave within the network hierarchy, depending on the application. As a slave, it exposes its I/O data to an upstream SCADA master. As a master, it can poll downstream Modbus-enabled devices — including smart sensors, energy meters, and remote I/O modules — and consolidate their data into a single register block accessible to the supervisory layer. This eliminates the need for separate protocol converters at each field device and reduces wiring complexity.

Data silos created by isolated machine controllers are broken down by integrating the IC200UDR005 into the plant-wide Modbus network. Production line transparency improves as machine-level data — cycle times, fault counts, output quantities — becomes available to OEE dashboards and production reporting systems in real time. Alarm tracking is enhanced because the SCADA system receives structured fault data from the PLC rather than relying on operator-reported events, enabling accurate root cause analysis and faster corrective action.

System expansion is straightforward within the VersaMax Micro platform. Additional I/O modules can be added to the IC200UDR005 base unit as process requirements grow, and the Modbus network can be extended to include additional PLCs, drives, and instruments without architectural redesign. This scalability protects the initial investment and supports phased automation upgrades common in manufacturing environments where production continuity is critical.

Every IC200UDR005 unit shipped by NANKMOS undergoes pre-shipment functional testing to verify communication integrity, I/O operation, and relay output performance. In-stock availability ensures rapid deployment for maintenance replacements and new installation projects, supported by a 12-month warranty covering manufacturing defects and operational failures under normal industrial use conditions.

Q1: What communication protocols does the GE IC200UDR005 support natively?The IC200UDR005 supports Modbus RTU over RS-232 and RS-485 serial interfaces as its primary communication protocol. Ethernet connectivity can be added via the IC200ETM001 expansion module, enabling Modbus TCP and integration with standard TCP/IP plant networks. This dual-path communication capability makes the IC200UDR005 compatible with the majority of SCADA, HMI, and data historian platforms deployed in industrial environments.

Q2: How does the IC200UDR005 perform in terms of network stability and communication latency?The VersaMax Micro platform is designed for deterministic scan-cycle execution, with PLC scan times configurable to match application requirements. Modbus RTU communication latency is a function of baud rate, network length, and the number of devices on the RS-485 bus. For most factory automation applications, scan cycles of 10–50 ms are achievable, providing sufficient responsiveness for discrete control and SCADA data acquisition without communication timeouts or data loss.

Q3: Can the IC200UDR005 be integrated into an existing SCADA or HMI system without replacing the current network infrastructure?Yes. The IC200UDR005's Modbus RTU interface is compatible with virtually all major SCADA platforms, including GE Proficy iFIX, Wonderware, Ignition, and Citect, as well as most panel-mounted HMI terminals that support Modbus serial communication. Integration requires only the configuration of the Modbus device address and register map within the SCADA or HMI project — no hardware changes to the existing network are necessary in most cases.

Q4: What warranty and quality assurance does NANKMOS provide for the IC200UDR005?All IC200UDR005 units supplied by NANKMOS carry a 12-month warranty covering manufacturing defects and operational failures under standard industrial operating conditions. Each unit undergoes pre-shipment functional testing — including communication verification, I/O check, and relay output test — before dispatch. In-stock inventory enables same-day or next-business-day shipping for urgent maintenance and project requirements.
