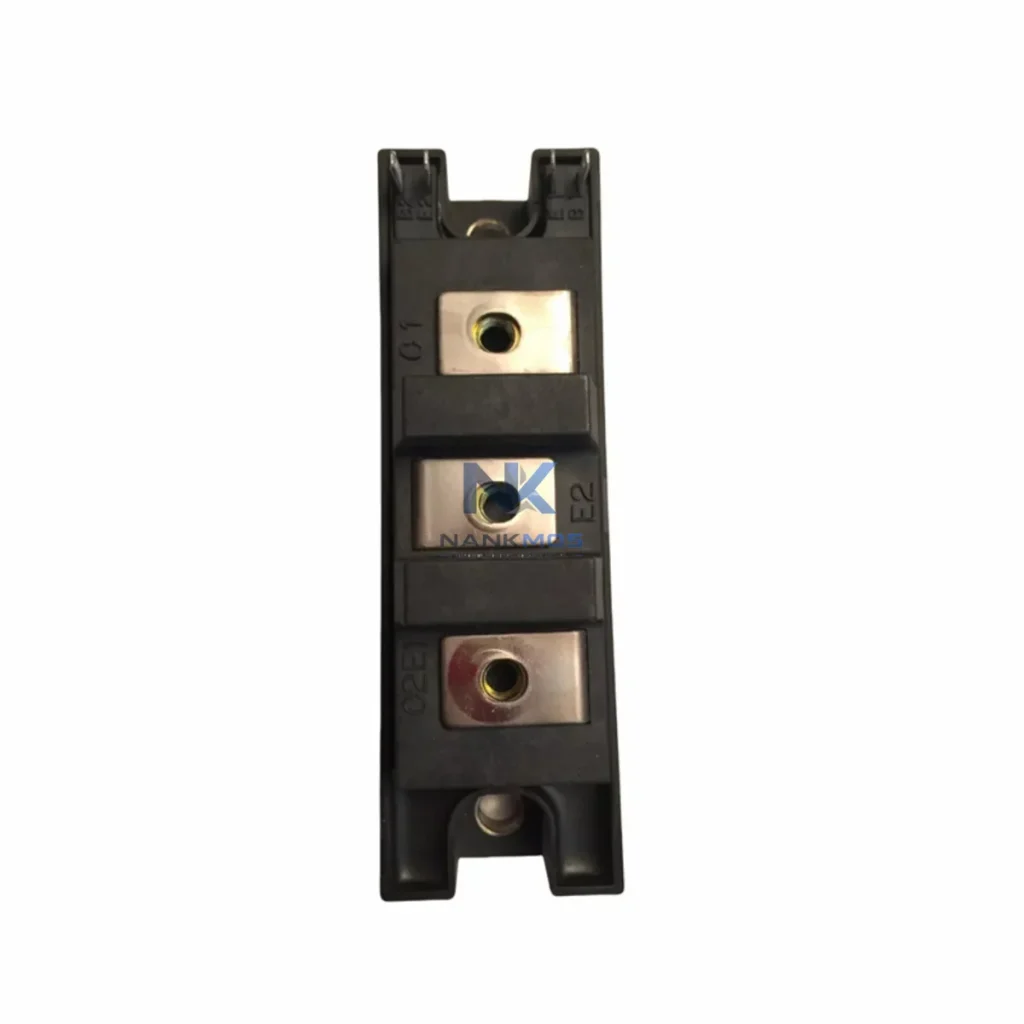

Fuji Electric 2DI75Z-120 IGBT Power Module

Product Details

2DI75Z-120 Product Description

The Fuji Electric 2DI75Z-120 is a dual IGBT power module rated at 75A / 1200V, engineered for seamless integration into industrial inverter drive systems and broader automation control architectures. Designed to meet the demanding requirements of modern manufacturing, process control, and energy conversion environments, this module delivers consistent switching performance, thermal stability, and long-term reliability across a wide range of industrial applications.

In contemporary industrial automation, the power conversion layer is not an isolated component — it is a critical node within a layered control architecture that spans from the PLC control layer down through the drive layer, I/O layer, communication layer, and into the field device layer. The 2DI75Z-120 is purpose-built to operate within this integrated ecosystem, supporting system architects and drive engineers who require predictable electrical behavior, robust thermal management, and compatibility with established inverter platforms.

The 2DI75Z-120 functions as the core switching element within a three-phase inverter bridge, typically paired with a complementary set of IGBT modules to form a full H-bridge or three-phase bridge topology. In a complete drive system, this module operates in close coordination with multiple platform components to ensure system-level performance and reliability.

At the control layer, a Fuji Electric FRENIC series inverter drive — such as the FRENIC-Ace or FRENIC-Multi — provides the PWM control signals that govern the switching behavior of the 2DI75Z-120. The gate driver board, often a dedicated Fuji Electric EG series gate driver or equivalent, interfaces directly with the IGBT module's gate terminals, ensuring precise turn-on and turn-off timing to minimize switching losses and suppress voltage overshoot.

On the DC bus side, film capacitors and DC link capacitors — commonly used in conjunction with Fuji Electric inverter platforms — buffer the intermediate DC voltage and suppress ripple, protecting the 2DI75Z-120 from transient overvoltage events. A properly rated DC bus fuse or fast-acting semiconductor fuse provides short-circuit protection at the power module level, complementing the overcurrent protection functions embedded in the drive controller.

For thermal management, the 2DI75Z-120 is mounted directly to an aluminum or copper heatsink, with thermal interface material applied to minimize junction-to-case thermal resistance. In high-power or high-ambient-temperature installations, forced-air cooling fans or liquid cooling plates are integrated into the drive enclosure to maintain Tj within safe operating limits. NTC thermistors or thermocouple sensors mounted near the module provide real-time temperature feedback to the drive controller, enabling thermal derating and fault protection logic.

At the communication and control integration layer, the host PLC — such as a Mitsubishi MELSEC iQ-R series, Siemens S7-1500, or Omron NX series controller — communicates with the inverter drive via PROFIBUS-DP, PROFINET, EtherNet/IP, or Modbus RTU, depending on the plant communication architecture. This allows the control system to issue speed references, monitor drive status, and respond to fault conditions in real time, ensuring that the power conversion layer remains synchronized with the broader automation platform.

In multi-drive installations, the 2DI75Z-120-based inverter units may be coordinated through a master drive controller or motion controller, enabling synchronized multi-axis operation for applications such as winding machines, conveyor systems, and coordinated pump stations. Signal isolation modules and surge protection devices at the I/O layer protect the control signals from electrical noise generated by the high-frequency switching of the IGBT modules.

For system redundancy, critical drive applications may incorporate bypass contactors and redundant drive units, allowing the system to switch to a backup drive in the event of a module failure. The modular design of the 2DI75Z-120 facilitates rapid field replacement, minimizing mean time to repair (MTTR) and supporting the plant's maintenance strategy.

The Fuji Electric 2DI75Z-120 is deployed across a broad spectrum of industrial sectors where reliable, high-efficiency power conversion is essential to process continuity and system performance.

In manufacturing and packaging lines, the module drives variable-speed conveyor motors, servo-driven packaging axes, and tension-controlled winding systems, where precise speed regulation and rapid dynamic response are critical to product quality and throughput. In water treatment and pumping stations, 2DI75Z-120-based inverter drives control centrifugal pump motors, enabling energy-efficient flow regulation through variable frequency operation and eliminating the mechanical wear associated with throttle valve control.

In power generation and energy conversion applications, including solar inverters, UPS systems, and active front-end rectifiers, the module's 1200V blocking voltage and low switching losses make it well-suited for grid-tied and off-grid power conversion stages. In petrochemical and process industries, the module supports compressor drives, agitator drives, and extruder drives operating in hazardous or high-ambient-temperature environments, where thermal reliability and long service life are paramount.

In metallurgy and mining, the 2DI75Z-120 is integrated into medium-voltage drive systems for mill drives, crusher drives, and hoist systems, where high torque at low speed and robust fault protection are essential. In marine and offshore applications, the module is used in variable-speed propulsion drives and auxiliary power systems, where compact form factor, vibration resistance, and wide operating temperature range are required.

Q1: Is the Fuji Electric 2DI75Z-120 compatible with third-party gate driver boards and inverter platforms?The 2DI75Z-120 follows standard dual IGBT module pinout and electrical interface conventions used across the Fuji Electric Z-series platform. It is compatible with gate driver boards designed for 1200V dual IGBT modules with equivalent current ratings, provided that the gate resistor values, desaturation detection thresholds, and isolation voltage ratings are correctly matched. For optimal performance and warranty compliance, Fuji Electric recommends using matched gate driver solutions validated for the 2DI75Z-120's switching characteristics. System integrators should verify gate charge requirements and short-circuit withstand time (tsc) specifications before substituting third-party gate drivers.

Q2: What are the recommended installation and commissioning practices for the 2DI75Z-120 in a new drive system?During installation, the module should be mounted to a flat, clean heatsink surface with appropriate thermal interface material applied uniformly to the base plate. Mounting torque should be applied per Fuji Electric's datasheet specifications to ensure consistent thermal contact without mechanical stress on the ceramic substrate. Prior to energization, the DC bus capacitors should be pre-charged through a soft-start resistor or pre-charge circuit to prevent inrush current damage. During commissioning, gate driver output waveforms should be verified with an oscilloscope to confirm correct dead-time insertion and absence of shoot-through conditions. The 12-Month Warranty covers manufacturing defects under normal operating conditions; damage resulting from incorrect installation, overvoltage, or improper gate drive configuration is excluded.

Q3: How does long-term inventory availability and the 12-Month Warranty support maintenance planning for installed drive systems?NANKMOS maintains stock of the Fuji Electric 2DI75Z-120 to support both new system builds and field replacement requirements. Each unit is subject to pre-shipment functional testing, including insulation resistance verification and visual inspection, to ensure that only conforming modules are dispatched. The 12-Month Warranty provides coverage against manufacturing defects from the date of shipment, supporting plant maintenance teams in planning scheduled replacement intervals and spare parts inventory. For facilities operating multiple drives with 2DI75Z-120 modules, NANKMOS recommends maintaining a minimum of one spare module per drive tier to minimize unplanned downtime risk. Long-term supply continuity is supported through direct sourcing relationships with Fuji Electric's authorized distribution network.
