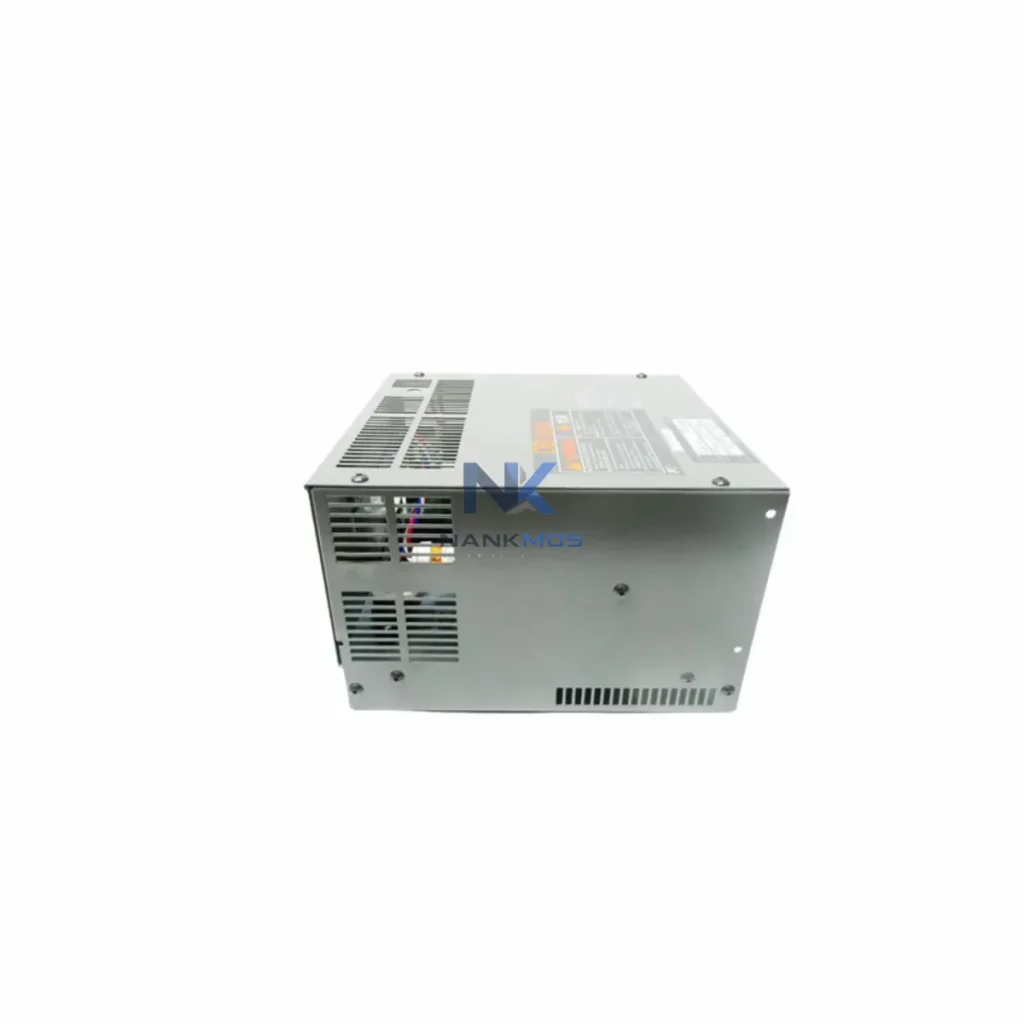

Fuji Electric BU55-4C Braking Unit

Product Details

BU55-4C Product Description

The Fuji BU55-4C is a high-performance braking unit engineered for integration with Fuji Electric FRENIC-series variable frequency drives (VFDs) in demanding industrial automation environments. Designed to dissipate regenerative energy during rapid deceleration cycles, the BU55-4C plays a critical role in maintaining drive stability, protecting motor assets, and enabling real-time energy management across connected factory systems. As smart manufacturing demands tighter data loops between field devices and supervisory platforms, the BU55-4C is built to operate within fully networked drive architectures — from signal acquisition at the motor shaft to data visualization on SCADA dashboards.

In a modern smart factory, the Fuji BU55-4C operates as a critical node within the drive-level energy management layer. The data flow begins at the motor and mechanical load — where speed feedback sensors, encoders, and current transducers continuously feed real-time signals into the paired Fuji FRENIC-Ace FRN055ACD4E-2J or FRENIC-MEGA FRN055G1S-4J VFD. The drive processes these signals and, during deceleration events, activates the BU55-4C to safely absorb regenerative energy through an external braking resistor, preventing DC bus overvoltage faults.

The FRENIC drive's onboard communication port — equipped with an optional Fuji OPC-ETH10 EtherNet/IP communication card or OPC-PDP PROFIBUS-DP module — transmits drive status, braking activation events, DC bus voltage levels, and fault codes upstream to the plant's PLC control layer. A Siemens S7-1500 PLC or Mitsubishi MELSEC iQ-R series controller receives this data via the industrial Ethernet backbone, correlating braking events with production cycle data and energy consumption metrics.

From the PLC, structured data packets travel through a managed industrial Ethernet switch — such as a Hirschmann RS20 or Moxa EDS-510A — to the plant's SCADA server. Operators monitoring a Siemens WinCC or Inductive Automation Ignition SCADA platform can view real-time braking unit status, DC bus voltage trends, and energy recovery data on HMI dashboards. Alarm thresholds configured in the SCADA system trigger automatic notifications when the BU55-4C approaches thermal limits or when braking resistor duty cycles exceed safe operating windows.

For remote sites or multi-plant deployments, an edge gateway — such as a Moxa UC-8112 or Advantech WISE-5000 series — aggregates drive and braking unit data and forwards it via MQTT or OPC-UA to cloud-based MES or ERP platforms. This enables plant managers to perform remote diagnostics, compare energy consumption across production lines, and schedule predictive maintenance for braking resistors and drive components without requiring on-site intervention. The Fuji BU55-4C thus becomes a transparent, data-generating asset within the connected factory ecosystem — not merely a passive energy dissipation device.

At the field level, integration with Fuji Electric FRENIC remote I/O modules and digital input/output expansion cards allows the braking unit's activation status to be cross-referenced with upstream conveyor speed sensors, downstream tension controllers, and safety interlock systems. This closed-loop architecture ensures that braking events are logged, timestamped, and correlated with production throughput data — enabling full traceability from motor deceleration event to SCADA alarm record.

Protocol Fragmentation: Many industrial sites operate mixed-protocol environments where legacy PROFIBUS-DP drives coexist with newer EtherNet/IP or Modbus TCP systems. The BU55-4C, paired with FRENIC drives and the appropriate Fuji communication option card, bridges this gap — allowing braking unit status data to be published on whichever network protocol the site's PLC or SCADA system requires. No proprietary gateway hardware is needed when the drive's native communication module handles protocol translation at the source.

Data Silos and Production Transparency: Without networked braking unit monitoring, regenerative energy events are invisible to plant supervisors. The BU55-4C integrated into a FRENIC drive network makes every braking cycle a logged, queryable data point — enabling production engineers to identify excessive deceleration patterns, optimize ramp-down times, and reduce mechanical stress on connected machinery. This data transparency directly supports OEE (Overall Equipment Effectiveness) improvement initiatives.

Remote Monitoring and Alarm Tracking: For unmanned substations, remote pump stations, or offshore installations, the inability to physically inspect drive and braking unit health creates significant operational risk. With SCADA-connected FRENIC drives and the BU55-4C, remote diagnostic dashboards display DC bus voltage, braking resistor temperature (via external thermal sensor input), and fault history — enabling maintenance teams to respond to alarms before equipment failure occurs.

System Scalability: As production lines expand, additional FRENIC drives and BU55-4C braking units can be added to the existing network architecture without reconfiguring the SCADA or PLC layers. The standardized Fuji communication protocol stack ensures that new drive nodes are recognized and monitored automatically, reducing commissioning time and integration costs for plant expansion projects.

Q1: What communication protocols does the Fuji BU55-4C support for SCADA integration? The BU55-4C itself is a passive braking unit that connects directly to the DC bus of a compatible FRENIC-series VFD. Network communication is handled by the paired FRENIC drive via optional communication cards — supporting Modbus RTU, PROFIBUS-DP, DeviceNet, CC-Link, and EtherNet/IP. Braking unit activation status, DC bus voltage, and fault data are all accessible through the drive's communication interface, making full SCADA integration straightforward without additional gateway hardware.

Q2: How does the BU55-4C perform in high-cycle braking applications, and can its status be monitored in real time? The BU55-4C is rated for continuous duty in high-cycle applications such as cranes, hoists, and centrifuges. When paired with an external braking resistor sized to the application's duty cycle, the unit reliably handles repetitive regenerative energy events. Real-time monitoring of DC bus voltage and braking activation frequency is available through the FRENIC drive's communication port, with configurable alarm thresholds in the connected SCADA or HMI system to alert operators before thermal limits are reached.

Q3: Is the Fuji BU55-4C compatible with third-party PLCs and SCADA platforms? Yes. Because communication is managed at the FRENIC drive level using standard industrial protocols (Modbus RTU, EtherNet/IP, PROFIBUS-DP), the BU55-4C's operational data is accessible to any PLC or SCADA platform that supports these protocols — including Siemens S7 series, Mitsubishi MELSEC, Rockwell ControlLogix, Schneider Modicon, and SCADA platforms such as Ignition, WinCC, and Wonderware. No proprietary software or drivers are required beyond the standard drive communication configuration.

Q4: What does the 12-Month Warranty cover, and has the unit been tested before shipment? Every Fuji BU55-4C supplied by NANKMOS is covered by a 12-Month Warranty against manufacturing defects and component failure under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify DC bus connection integrity, braking transistor operation, and terminal block continuity before dispatch. In-stock units are available for shipment within 3–5 business days. For warranty claims or technical support, contact [email protected] or call +86 18359268345.
