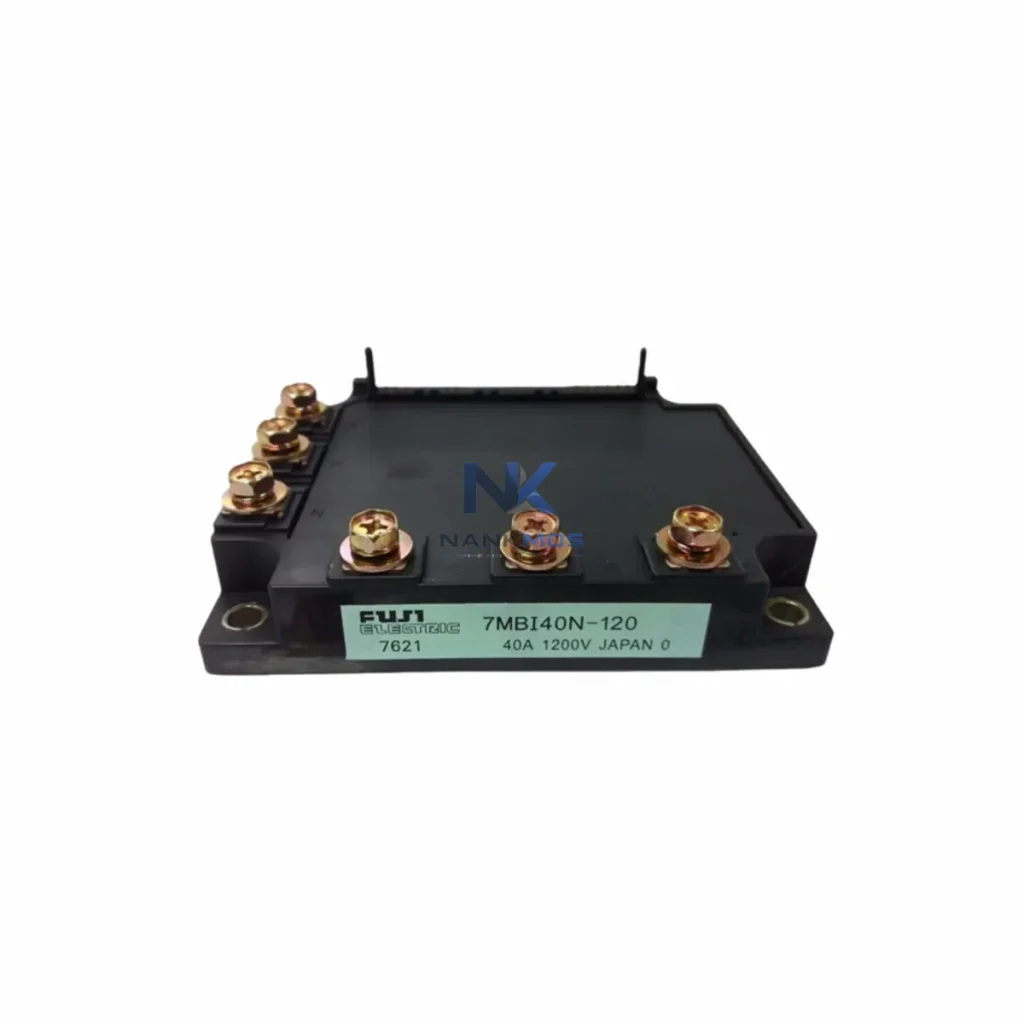

Fuji Electric 7MBI40N-120 IGBT Module

Product Details

7MBI40N-120 Product Description

The Fuji Electric 7MBI40N-120 is a 1200V / 40A N-series IGBT module engineered for seamless integration into industrial drive and control architectures. Designed to operate within multi-layer automation platforms, this module delivers consistent switching performance, thermal stability, and signal integrity across demanding industrial environments including manufacturing, energy conversion, process control, and heavy-duty drive systems. Its compact 6-in-1 package topology supports direct replacement and system-matched deployment within Fuji Electric's GD, GP, and RHC inverter drive families, as well as third-party drive platforms requiring equivalent voltage and current ratings.

In modern industrial automation, no component operates in isolation. The 7MBI40N-120 is positioned at the power conversion layer of the control architecture, interfacing directly with gate driver boards, DC bus capacitor banks, and thermal management assemblies. Its role is to translate control-layer switching commands — issued by the drive CPU or DSP controller — into precise, high-power output waveforms that drive AC induction motors, permanent magnet motors, and servo loads. This functional position makes the module a critical node in the signal flow from the control layer through the power layer to the execution layer.

When deployed within a complete automation platform, the 7MBI40N-120 operates alongside a structured set of complementary components. At the control layer, Fuji Electric FRENIC series drive control boards and DSP-based gate driver units provide the PWM switching signals that govern module operation. At the DC bus layer, film capacitor banks and pre-charge resistor assemblies condition the input voltage and suppress transient overvoltage events that could compromise module longevity. At the thermal layer, NTC thermistor sensors embedded within the module housing feed real-time temperature data back to the drive's protection logic, enabling dynamic derating and fault isolation before thermal runaway can occur.

System redundancy and fault tolerance are key considerations in high-availability drive architectures. The 7MBI40N-120 supports parallel module configurations in higher-power drive designs, where matched switching characteristics between modules are essential to prevent current imbalance and localized thermal stress. In such architectures, the module works in conjunction with current sensing shunt resistors or Hall-effect current transducers at the output phase terminals, providing the feedback signals required by the drive's overcurrent protection and vector control algorithms. Gate resistor networks and desaturation detection circuits further protect the module during short-circuit events, ensuring that fault energy is safely absorbed within the module's short-circuit withstand time rating.

At the communication and diagnostics layer, the 7MBI40N-120 integrates into drive platforms that support PROFIBUS-DP, MODBUS RTU, CANopen, and EtherCAT fieldbus protocols. While the module itself is a passive power device, its operational status — reflected through gate driver fault outputs, thermistor readings, and DC bus voltage monitoring — is continuously reported to the drive's PLC or SCADA interface. This data stream supports predictive maintenance workflows, enabling maintenance engineers to track module aging indicators such as increasing on-state voltage drop or rising thermal resistance before a failure event occurs.

For panel builders and system integrators, the 7MBI40N-120 offers a standardized mounting footprint compatible with Fuji Electric's standard heatsink profiles and thermal interface material specifications. The module's isolated baseplate construction simplifies thermal path design and allows direct mounting to extruded aluminum or liquid-cooled heatsink assemblies without additional electrical isolation hardware. This reduces assembly time, minimizes thermal interface resistance, and supports high-density drive panel layouts where space efficiency is a primary design constraint.

In layered industrial control applications, the 7MBI40N-120 has demonstrated reliable performance across a broad range of sectors. In manufacturing automation, it powers variable-frequency drives controlling conveyor systems, robotic joint actuators, and CNC spindle drives where precise speed and torque control are essential. In the power and energy sector, it supports medium-voltage drive systems used in pump and fan applications within power generation facilities, where continuous duty cycles and high ambient temperatures demand robust thermal design. In petrochemical and process industries, the module is deployed in explosion-proof drive enclosures controlling compressor and agitator motors, where long mean-time-between-failure (MTBF) and predictable replacement cycles are critical to plant uptime. In water treatment facilities, it drives submersible pump inverters operating in high-humidity environments, where the module's isolated baseplate and conformal-coated gate driver assemblies provide essential protection against condensation-induced leakage currents.

NANKMOS maintains verified stock of the Fuji Electric 7MBI40N-120 sourced through authorized distribution channels. Each unit undergoes pre-shipment functional testing including gate threshold voltage verification, collector-emitter leakage current measurement, and diode forward voltage characterization to confirm electrical integrity prior to dispatch. All units are shipped with anti-static packaging, desiccant inserts, and foam-cushioned outer cartons to prevent mechanical and electrostatic damage during transit.

The 7MBI40N-120 achieves its full performance potential when deployed as part of a coherent, multi-layer automation platform. At the control layer, Fuji Electric FRENIC-Ace and FRENIC-MEGA drive control boards provide the closed-loop vector control algorithms and PWM generation logic that govern the module's switching behavior. These control boards interface with the power stage through dedicated gate driver PCBs — such as the Fuji Electric EG2001 or equivalent isolated gate driver ICs — which translate low-voltage logic signals into the ±15V gate drive pulses required to switch the 7MBI40N-120's IGBT cells reliably across the full operating temperature range.

At the DC bus layer, Fuji Electric's matched film capacitor assemblies and pre-charge relay modules condition the rectified DC voltage supplied to the module's collector terminals. Alongside these, DC bus voltage sensors and overvoltage clamp circuits — including brake chopper IGBTs such as the 1MBI30S-120 or equivalent — protect the module from regenerative overvoltage events during motor deceleration. At the output phase layer, current transducers (e.g., LEM LA 55-P or equivalent Hall-effect sensors) monitor the phase currents delivered by the module to the motor terminals, feeding real-time current feedback to the drive's vector control loop.

For system-level diagnostics and communication, the drive platform integrates PROFIBUS-DP or EtherCAT communication modules — such as the Fuji Electric OPC-G1-PDP or OPC-G1-ECT option cards — enabling the drive's operational parameters, fault codes, and module health indicators to be monitored and logged by the plant's SCADA or DCS system. At the HMI layer, Fuji Electric's TP Series touch panels or equivalent operator panels provide local parameter configuration and real-time status visualization, reducing commissioning time and simplifying fault diagnosis during maintenance cycles.

In high-availability architectures, the 7MBI40N-120 can be deployed in N+1 redundant drive configurations where a standby drive unit — pre-loaded with matched parameters — is held in warm standby and switched into service automatically upon detection of a primary drive fault. This architecture, combined with the module's consistent switching characteristics and the drive platform's built-in fault logging, supports mean-time-to-repair (MTTR) targets of under 30 minutes in critical process applications.

Manufacturing & Assembly Automation: In automotive body shop and general manufacturing environments, the 7MBI40N-120 powers variable-frequency drives controlling conveyor indexing systems, robotic welding positioners, and CNC machining center spindle drives. Its consistent switching characteristics support the precise speed ramps and torque profiles required by servo-class motion control applications, while its 1200V rating provides adequate voltage headroom for 690V AC drive systems operating from medium-voltage distribution networks.

Power Generation & Energy Infrastructure: In power plant auxiliary systems, the module drives large pump and fan variable-speed drives used in cooling water circulation, boiler feed, and induced draft fan applications. The module's high switching frequency capability supports low-harmonic PWM strategies that reduce motor heating and comply with IEEE 519 harmonic distortion limits, an important consideration in grid-connected power generation facilities.

Petrochemical & Process Industries: In refinery and chemical plant environments, the 7MBI40N-120 is deployed in ATEX-rated drive enclosures controlling compressor, agitator, and extruder motor drives. Its robust short-circuit withstand capability and fast desaturation protection response support the stringent functional safety requirements of SIL 2-rated drive systems used in hazardous area applications.

Water & Wastewater Treatment: Municipal water treatment facilities deploy the module in submersible pump and blower drives operating in high-humidity, corrosive environments. The module's isolated baseplate construction and the drive platform's conformal-coated control boards provide essential protection against condensation and airborne contaminants, supporting continuous 24/7 operation with minimal maintenance intervention.

Mining & Metals Processing: In mineral processing and metals smelting facilities, the module supports high-torque, low-speed drive applications including ball mill drives, conveyor belt drives, and rolling mill auxiliary drives. Its ability to operate reliably at elevated ambient temperatures — supported by appropriate heatsink sizing and forced-air or liquid cooling — makes it suitable for the harsh thermal environments typical of mining and metallurgical processing plants.

Q1: Is the Fuji Electric 7MBI40N-120 compatible with third-party drive platforms, and what system parameters should be verified before installation? A: The 7MBI40N-120 is compatible with any drive platform requiring a 1200V / 40A 6-in-1 IGBT module with a standard Fuji N-series footprint. Before installation, verify that the gate driver output voltage (typically ±15V), gate resistance values, and desaturation detection threshold are matched to the module's gate charge and short-circuit withstand specifications. Confirm that the heatsink thermal resistance (Rth(c-h)) is within the module's thermal budget at the target switching frequency and ambient temperature. NANKMOS technical support can provide application-specific thermal and gate drive verification guidance upon request.

Q2: How does the 7MBI40N-120 support long-term maintenance efficiency in a multi-drive control architecture? A: The module's standardized electrical and mechanical interface allows it to be replaced without modification to the surrounding drive assembly, reducing mean-time-to-repair in multi-drive panel installations. Its NTC thermistor output enables continuous thermal monitoring through the drive's diagnostic interface, supporting condition-based maintenance strategies that replace modules based on measured degradation indicators rather than fixed time intervals. NANKMOS maintains ongoing stock availability to support rapid replacement without extended lead times, and all replacement units are pre-tested to the same functional specification as the original supply.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS handle warranty claims for the 7MBI40N-120? A: The 12-Month Warranty covers manufacturing defects and electrical parameter non-conformance identified under normal operating conditions within 12 months of the shipment date. It does not cover damage resulting from incorrect installation, gate drive parameter mismatch, overvoltage events exceeding the module's rated VCES, or operation outside the specified junction temperature range. To initiate a warranty claim, contact NANKMOS at [email protected] with the order reference, unit serial number, and a description of the observed failure mode. NANKMOS will arrange return logistics and provide a replacement unit or full refund upon confirmation of the defect.
