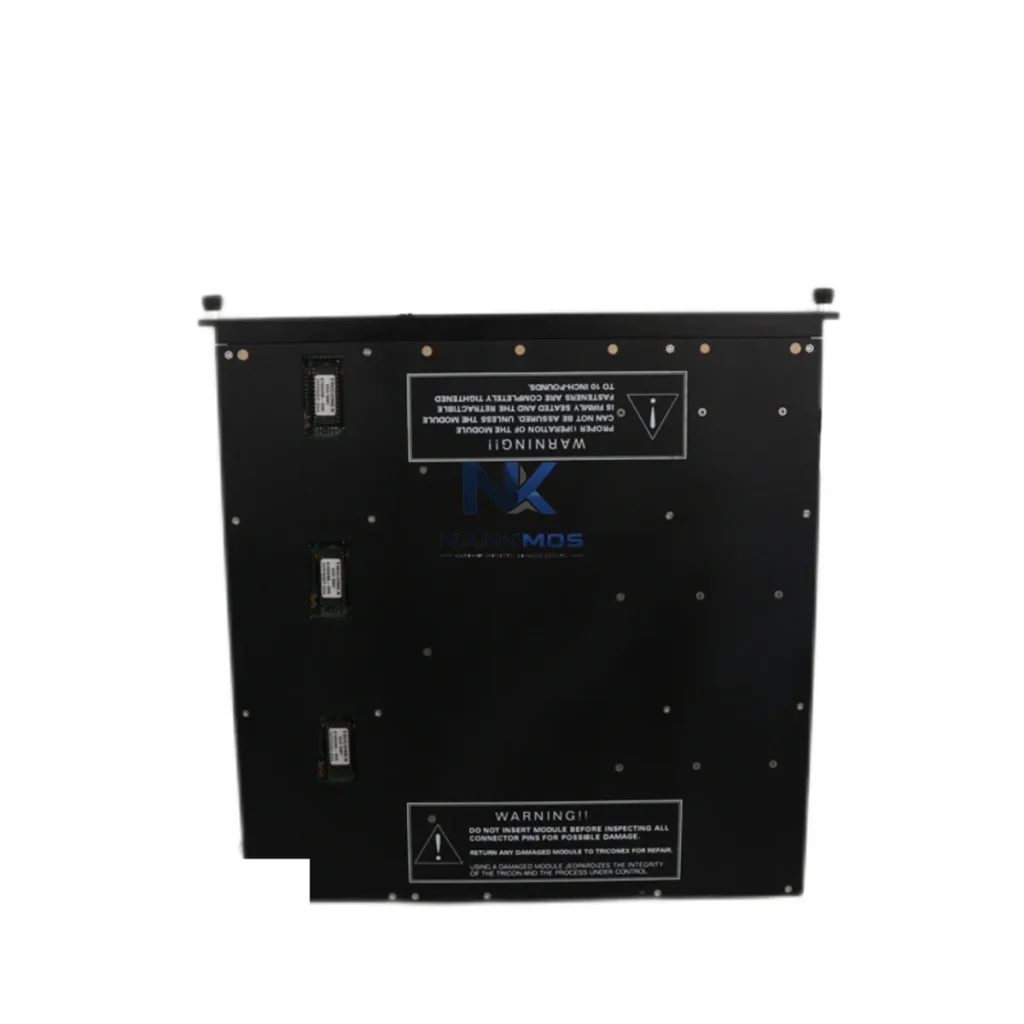

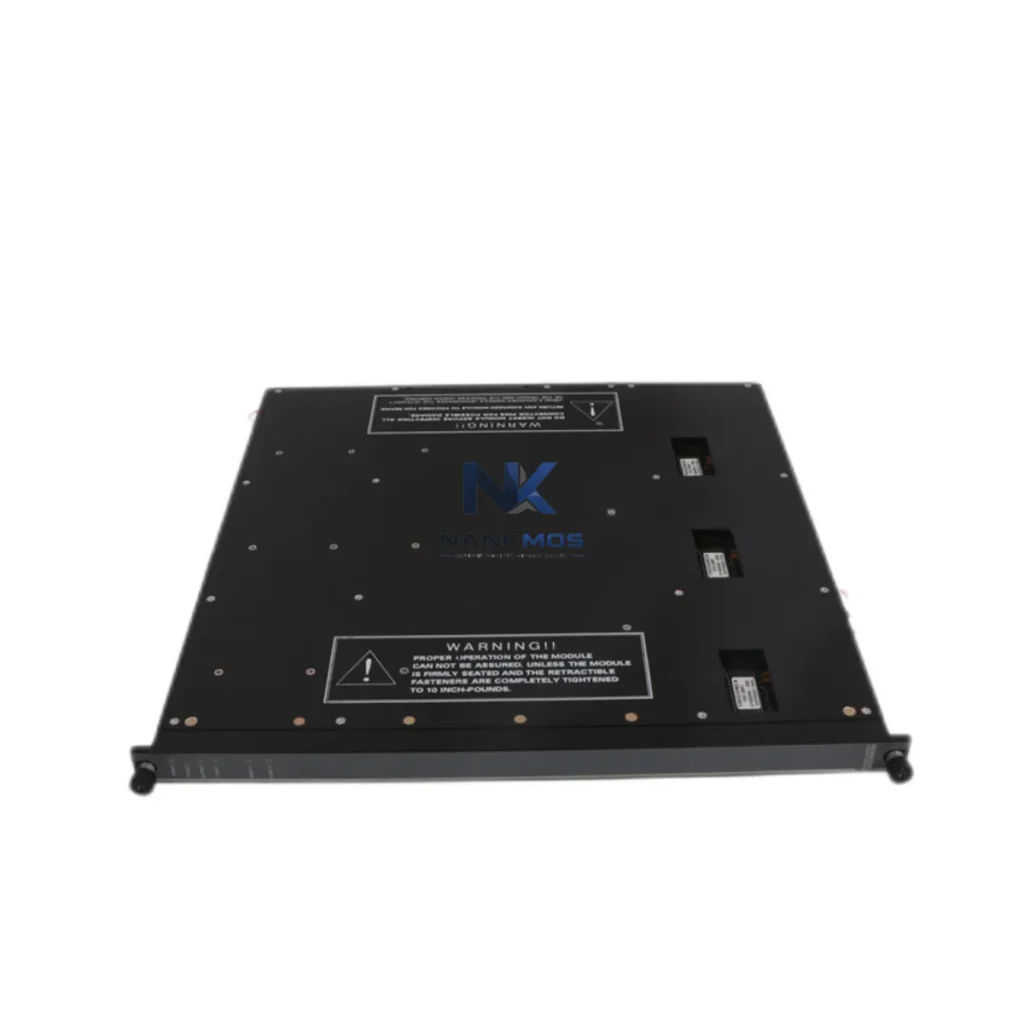

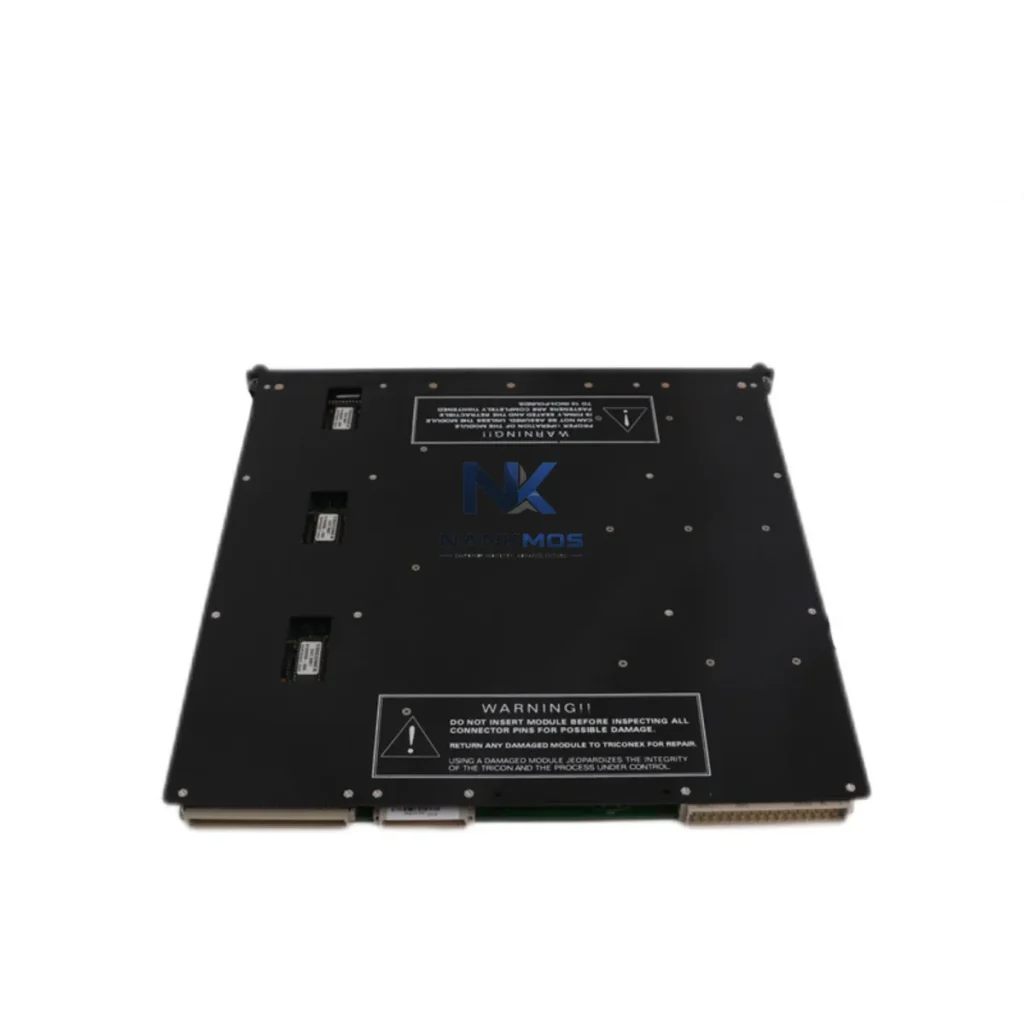

TRICONEX 3805E Analog Output Module

Product Details

3805E Product Description

The TRICONEX 3805E is an 8-point Triple Modular Redundant (TMR) analog output module engineered for deployment within the Tricon Safety Instrumented System (SIS) platform. Designed to meet the stringent demands of IEC 61511 and IEC 61508 SIL 3 applications, the 3805E delivers deterministic, fault-tolerant signal output across the full control architecture — from the safety controller layer through to field actuators. Its role within the Tricon chassis is not merely functional; it is architecturally integral, ensuring that analog command signals reach final control elements with the redundancy, diagnostics, and signal fidelity required in high-consequence process environments.

In modern safety-critical automation, no module operates in isolation. The 3805E is conceived as a system component — one node in a layered architecture that spans the control layer, I/O layer, communication layer, power layer, HMI layer, execution layer, protection layer, and maintenance layer. Understanding its value requires understanding how it interacts with each of these layers to sustain system consistency, expand capacity, stabilize signals, enable redundancy, accelerate diagnostics, support modular deployment, and reduce long-term maintenance burden.

The 3805E achieves its full engineering value when deployed as part of a coherent Tricon system architecture. At the control layer, the TRICONEX 3008 or 3009 Main Processor Module governs the TMR execution cycle, issuing analog output commands to the 3805E via the Tricon backplane bus. The processor's 2-out-of-3 voting logic extends through the I/O layer, meaning that each of the three redundant legs of the 3805E independently drives its output, with the system continuously cross-checking values to detect and isolate faults without interrupting process output.

At the power layer, the TRICONEX 8312 or 8310 Power Supply Module provides the chassis-level DC power that sustains both the processor and I/O modules. Redundant power supply configurations — common in SIL 3 installations — ensure that a single power supply failure does not propagate to the analog output layer. The 3805E's backplane-powered logic design minimizes field wiring complexity while maintaining full electrical isolation between the control domain and the field signal domain.

At the I/O layer, the 3805E operates alongside analog input modules such as the TRICONEX 3703E or 3706A, which receive process variable feedback from field transmitters. This closed-loop architecture — where analog inputs report process state and analog outputs command final control elements — is the backbone of continuous process regulation in refinery, petrochemical, and power generation applications. Digital I/O modules such as the TRICONEX 3501E (digital input) and 3601E (digital output) complement the analog layer, handling discrete safety interlock signals and valve position feedback.

At the communication layer, the TRICONEX 4351B or 4119A Communication Module bridges the Tricon safety controller to the plant DCS or SCADA network via Modbus TCP, OPC, or proprietary Triconex protocols. This integration allows the 3805E's output values to be monitored, trended, and alarmed from the HMI layer without compromising the safety integrity of the SIS. The separation of the safety bus from the process bus is a fundamental architectural principle that the 3805E's design respects — its outputs are commanded exclusively by the TMR processor, not by the DCS.

At the HMI and engineering layer, TriStation 1131 — the dedicated programming and diagnostic environment for Tricon systems — provides full visibility into the 3805E's channel-level diagnostics, output values, and fault history. Engineers can perform online module replacement, output forcing (with appropriate safety authorization), and diagnostic trending without taking the system offline. This capability is critical in continuous process industries where planned shutdowns are infrequent and unplanned downtime carries significant operational and safety consequences.

For chassis expansion, the TRICONEX 8110 or 8112 Expansion Chassis allows additional I/O modules — including additional 3805E units — to be added to the Tricon system as process scope grows. The modular architecture ensures that analog output capacity can be scaled without redesigning the control layer, preserving the existing processor and communication infrastructure investment.

Petrochemical and Refinery Process Control: In crude distillation, hydrocracker, and catalytic reformer units, the 3805E drives control valve positioners and variable-speed pump drives based on TMR-validated process calculations. Its SIL 3 rating satisfies the safety requirements of HAZOP-identified safety instrumented functions (SIFs) without requiring a separate safety relay layer.

Power Generation and Turbine Control: Gas turbine and steam turbine control systems rely on high-fidelity analog outputs to command fuel control valves, inlet guide vane actuators, and cooling system regulators. The 3805E's 12-bit resolution and low output drift ensure that turbine speed and load control remain within tight engineering tolerances across the full operating range.

LNG and Gas Processing Facilities: In liquefaction trains and gas compression stations, the 3805E manages analog outputs to compressor anti-surge valves and heat exchanger bypass valves. The TMR architecture ensures that a single module fault does not cause a spurious trip or a dangerous undetected failure in these high-consequence environments.

Water and Wastewater Treatment: Municipal and industrial water treatment plants use the 3805E to regulate chemical dosing pumps, aeration blowers, and filtration system actuators. The module's online diagnostics and hot-swap capability allow maintenance teams to replace faulty channels during normal plant operation, avoiding costly treatment interruptions.

Mining and Mineral Processing: In flotation circuits, grinding mill control, and tailings management systems, the 3805E provides the analog output precision required for reagent addition control and slurry density regulation. Its wide operating temperature range and robust isolation design suit the electrically noisy environments typical of mining infrastructure.

Marine and Offshore Platforms: Offshore oil and gas platforms and LNG carriers deploy Tricon systems for emergency shutdown (ESD) and fire and gas (F&G) applications. The 3805E's certifications — including ATEX Zone 2 compatibility in certified enclosures — make it suitable for installation in classified hazardous areas common on offshore topsides.

Q1: Is the TRICONEX 3805E compatible with both Tricon v9 and v10 controller platforms, and can it be mixed with earlier-generation analog output modules in the same chassis? A: The 3805E is designed for use with Tricon v9 and v10 main processor modules and is fully supported by TriStation 1131 v4.x and later. It can coexist in the same chassis with earlier-generation modules such as the 3805 (non-E variant), provided the chassis firmware and processor revision support mixed I/O configurations — consult the Tricon System Planning Guide for slot assignment rules and firmware compatibility matrices before finalizing the chassis layout.

Q2: What is the recommended maintenance and diagnostic strategy for the 3805E in a continuous-process SIL 3 application, and how does the 12-Month Warranty support long-term operational planning? A: TRICONEX recommends a proof-test interval aligned with the SIL 3 PFD (Probability of Failure on Demand) calculation for the specific SIF. The 3805E's online self-test and output verification diagnostics reduce the required manual proof-test burden by continuously exercising internal fault detection. All units supplied by NANKMOS carry a 12-Month Warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. This warranty period supports the initial commissioning and stabilization phase of most SIS projects, and NANKMOS maintains inventory of tested replacement units to minimize lead time in the event of a warranty claim or emergency replacement requirement.

Q3: How should the 3805E be integrated into a DCS-SIS architecture where the Tricon system must communicate analog output status to a third-party distributed control system? A: In a DCS-SIS integrated architecture, the 3805E's output values and diagnostic status are communicated to the DCS via the Tricon communication module (e.g., 4351B or 4119A) using Modbus TCP or OPC DA/UA. The SIS and DCS share read-only data over the process network — the DCS can monitor and trend the 3805E's output values but cannot write to them, preserving the independence of the safety function as required by IEC 61511 Clause 11. Engineering teams should configure the communication module's data map to include channel-level output values, fault flags, and module health status tags, enabling DCS operators to detect SIS anomalies without requiring direct access to TriStation 1131.
