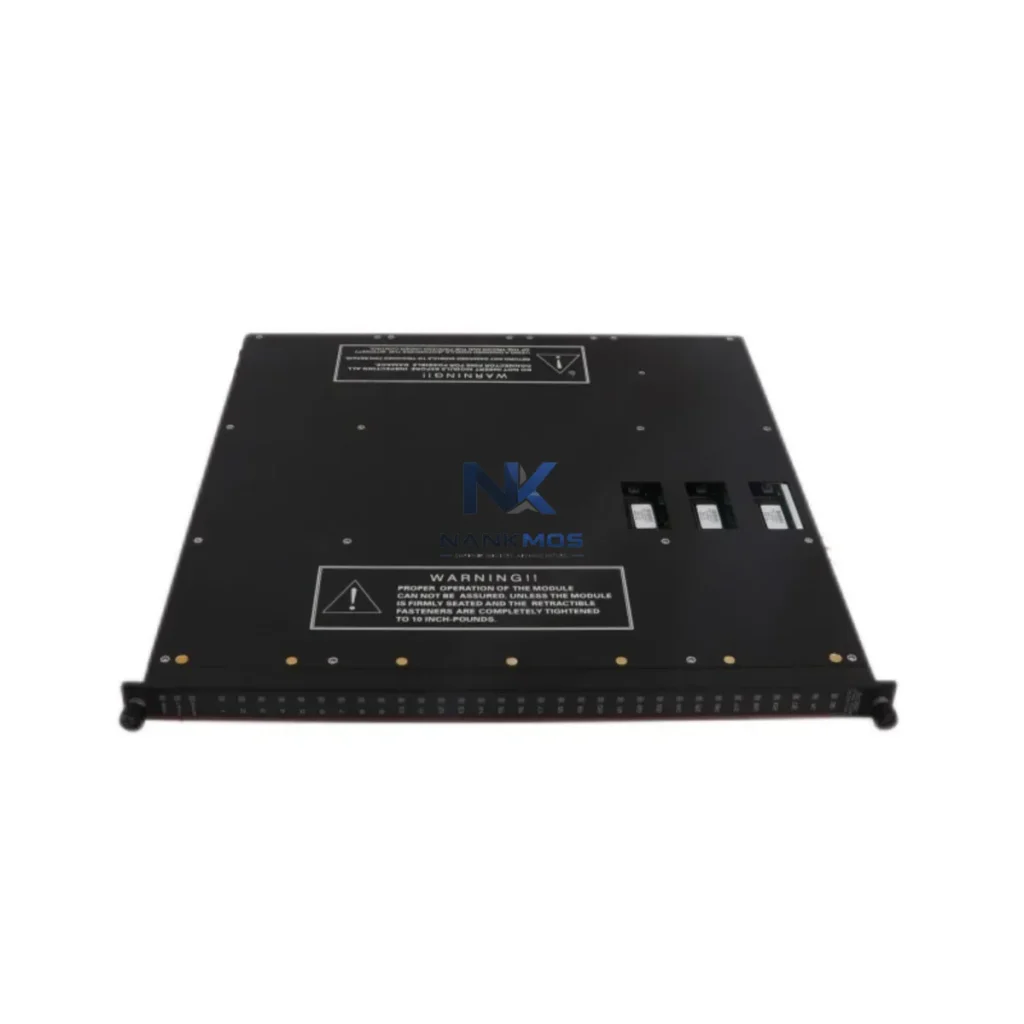

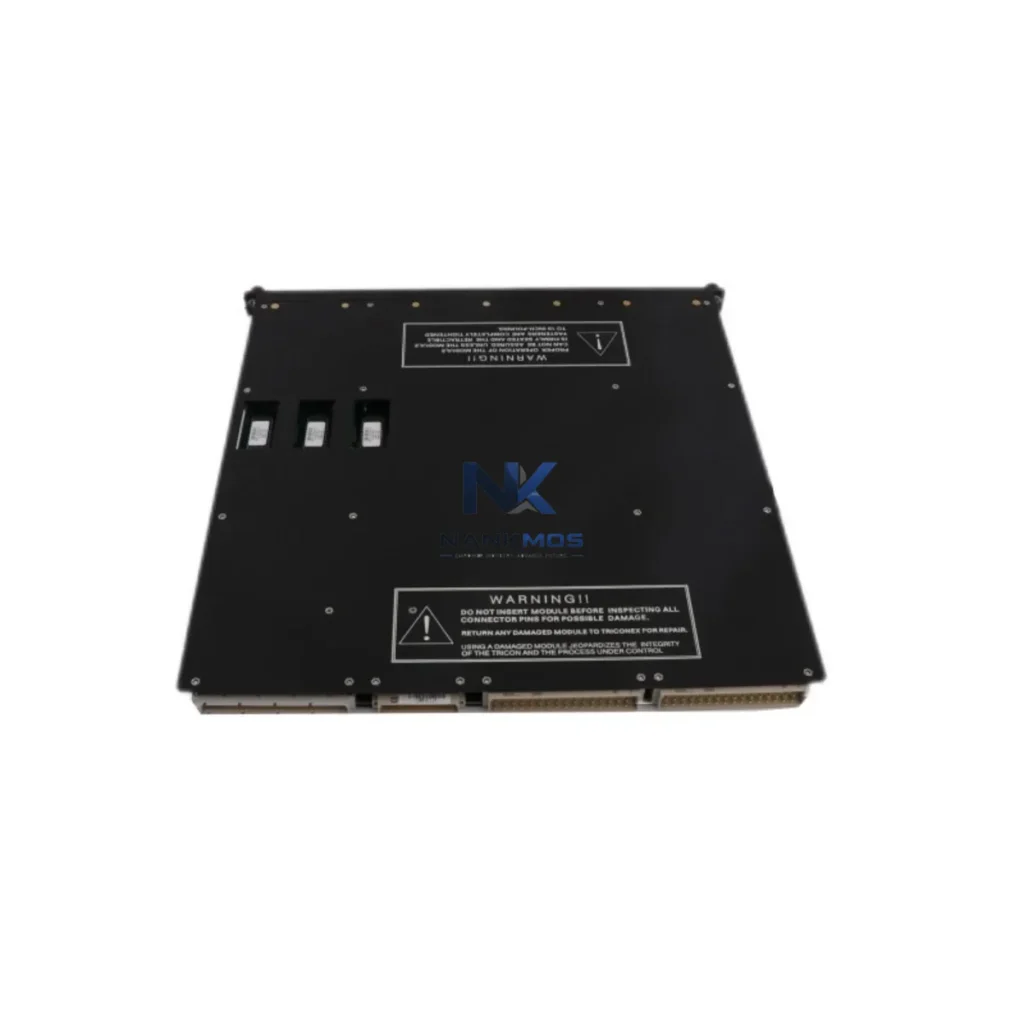

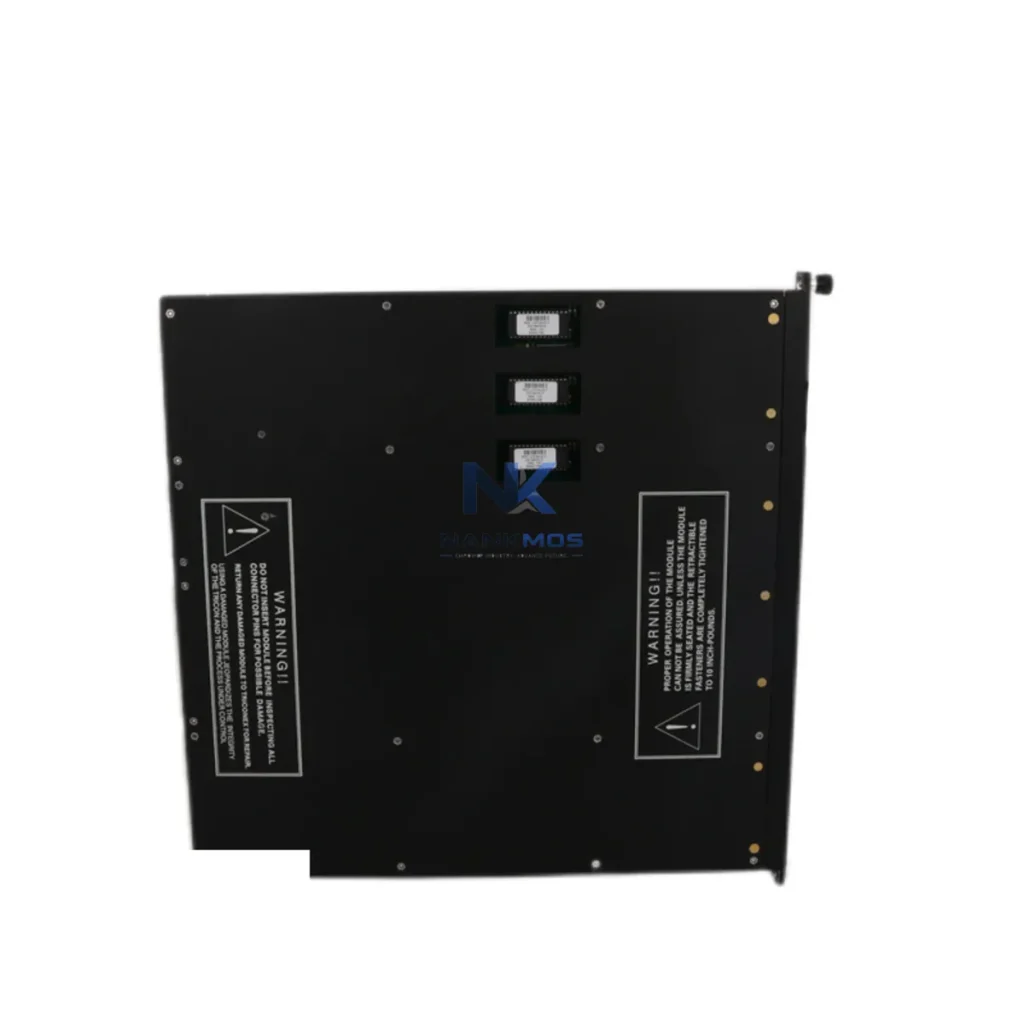

Triconex 3501E Digital Input Module

Product Details

3501E Product Description

The Triconex 3501E is a high-integrity digital input module engineered for deployment within the Triconex 3500 Triple Modular Redundant (TMR) safety system platform. Designed to meet the rigorous demands of SIL 3-rated process safety applications, the 3501E delivers deterministic signal acquisition, continuous self-diagnostics, and seamless integration across all layers of a modern industrial control architecture. Whether deployed in oil and gas, petrochemical, power generation, or water treatment facilities, this module provides the foundational input layer that safety-critical control systems depend on for reliable, uninterrupted operation.

At its core, the 3501E captures discrete field signals from sensors, switches, and transmitters and routes them through the TMR voting logic of the 3500 main chassis. The module's triple-redundant signal path ensures that no single-point failure can compromise system integrity, supporting both high-demand and continuous-mode safety functions as defined by IEC 61511 and IEC 61508. Each input channel is independently monitored, and the module continuously reports diagnostic coverage data to the Triconex TriStation 1131 programming environment, enabling engineers to maintain full visibility of field device health without interrupting process operations.

The 3501E is fully compatible with the Triconex 3500 backplane architecture, allowing hot-swap replacement without process shutdown. Its modular form factor supports scalable I/O expansion alongside complementary modules such as the Triconex 3503E Digital Output Module, the 3700A Analog Input Module, and the 3805E Relay Output Module. When combined with the Triconex 3008 Main Processor Module and the 3721 Communication Module, the 3501E forms part of a tightly integrated safety instrumented system (SIS) capable of managing complex interlock and emergency shutdown (ESD) logic across distributed plant areas.

From a system architecture perspective, the 3501E occupies the I/O layer of the control hierarchy, interfacing directly with field-level sensors and transmitters while feeding validated digital states upward to the CPU layer for logic execution. This layered approach — spanning the field layer, I/O layer, control layer, communication layer, and HMI layer — ensures that signal integrity is maintained from the physical process boundary all the way to the operator workstation. Integration with Triconex communication gateways such as the 4351B or 4119A enables seamless data exchange with DCS platforms, SCADA systems, and asset management software over Modbus, HART, or OPC-UA protocols.

For facilities operating mixed-vendor control environments, the 3501E's standardized signal conditioning and diagnostic reporting make it straightforward to incorporate into broader automation architectures that may include Emerson DeltaV SIS controllers, Honeywell Safety Manager modules, or Yokogawa ProSafe-RS safety PLCs at adjacent process units. The module's consistent diagnostic output format simplifies integration with plant-wide asset management platforms and supports unified alarm management strategies across heterogeneous safety systems.

Commissioning the 3501E follows Triconex's established validation workflow: module insertion triggers automatic self-test routines that verify channel continuity, voting logic alignment, and backplane communication integrity. Engineers using TriStation 1131 can monitor real-time diagnostic registers, configure input filtering parameters, and validate channel-to-channel voting thresholds without requiring physical access to the field wiring. This capability significantly reduces commissioning time in brownfield installations where access to junction boxes and marshalling cabinets may be restricted.

Long-term maintenance of the 3501E benefits from Triconex's proven hot-swap architecture. Modules can be replaced during live operation, with the TMR voting logic automatically compensating for the brief period during which the replacement module synchronizes with its redundant peers. Maintenance teams can schedule module replacements during planned inspection windows without coordinating process shutdowns, reducing both maintenance costs and production risk over the system's operational lifetime.

All units supplied by NANKMOS undergo pre-shipment functional testing that verifies channel integrity, diagnostic register accuracy, and backplane communication performance. Each module is shipped with full traceability documentation and is covered by a 12-Month Warranty against manufacturing defects and functional failures. NANKMOS maintains ready stock of the 3501E and related Triconex 3500 series components to support urgent replacement requirements, with expedited shipping available for critical plant situations.

The Triconex 3501E achieves its full operational potential when deployed as part of a complete Triconex 3500 TMR platform. A typical safety instrumented system built around the 3501E integrates the following components across multiple architectural layers:

At the CPU layer, the Triconex 3008 Main Processor Module executes the safety application logic, processing validated digital states received from the 3501E and issuing control outputs to actuator-side modules. The processor's TMR architecture mirrors the redundancy model of the input module, ensuring that no single processor failure can generate a spurious trip or missed shutdown command.

The power layer is served by the Triconex 3721 Power Supply Module, which provides regulated, redundant DC power to all chassis-mounted modules including the 3501E. Dual power supply configurations are standard in SIL 3 applications, with automatic load transfer ensuring uninterrupted module operation during power supply maintenance or failure events.

On the output side, the Triconex 3503E Digital Output Module and 3805E Relay Output Module translate CPU logic decisions into field-level actuator commands — closing ESD valves, de-energizing motor starters, or activating alarm annunciators. The 3501E's input data directly drives the logic conditions that determine output module behavior, making the two modules functionally interdependent within the safety loop.

For analog signal acquisition, the Triconex 3700A Analog Input Module complements the 3501E by capturing continuous process variables such as pressure, temperature, and flow rate. Together, the digital and analog input modules provide the complete field signal picture required for comprehensive process safety monitoring.

The communication layer is managed by the Triconex 4351B Communication Module and 4119A Modbus Interface Module, which bridge the Triconex safety system to plant DCS networks, SCADA platforms, and historian servers. These gateways enable the 3501E's diagnostic data and input channel states to be visible at the operator HMI level without compromising the safety system's isolation integrity.

At the HMI layer, operator workstations running TriStation 1131 provide real-time visibility of 3501E channel states, diagnostic alarms, and voting logic status. This integration supports rapid fault identification and guided maintenance workflows, reducing mean time to repair (MTTR) across the safety system.

Oil & Gas and Petrochemical: The 3501E is widely deployed in emergency shutdown (ESD) and fire and gas (F&G) systems at upstream wellhead facilities, midstream compressor stations, and downstream refinery units. Its SIL 3 rating and TMR architecture satisfy the functional safety requirements of API 670, API 14C, and IEC 61511 for hydrocarbon processing environments.

Power Generation: In gas turbine and steam turbine control applications, the 3501E monitors discrete inputs from vibration switches, temperature switches, and lube oil pressure sensors. Its deterministic response time and high diagnostic coverage support the fast-acting protection logic required by turbine OEM safety specifications.

Water and Wastewater Treatment: Municipal and industrial water treatment facilities use the 3501E to monitor pump status, valve position feedback, and level switch inputs within SIS-protected process areas. The module's hot-swap capability is particularly valued in water utility applications where continuous operation is a regulatory requirement.

Mining and Metals: In conveyor protection, crusher control, and smelter safety systems, the 3501E captures discrete inputs from pull-cord switches, speed sensors, and bearing temperature switches. Its robust operating temperature range and high diagnostic coverage support reliable operation in the harsh electrical environments typical of heavy industry facilities.

Marine and Offshore: Offshore platform safety systems and vessel automation systems deploy the 3501E within FPSO and platform ESD architectures, where its compact chassis footprint and TMR redundancy meet DNV GL and ABS safety system certification requirements.

Q1: Is the Triconex 3501E compatible with all Triconex 3500 series chassis configurations?Yes. The 3501E is designed for use with the full range of Triconex 3500 series main chassis and expansion chassis, including the 3500/05, 3500/15, and 3500/25 rack configurations. It occupies a standard I/O slot and communicates with the main processor via the proprietary Triconex backplane bus. No additional interface adapters are required for standard chassis installations.

Q2: Can the 3501E be replaced during live plant operation without triggering a safety system trip?Yes. The Triconex 3500 TMR architecture supports hot-swap module replacement. When a 3501E is removed from a live chassis, the remaining two redundant signal paths continue to provide valid input data to the processor's 2-out-of-3 voting logic. The replacement module automatically synchronizes with the active system upon insertion, restoring full TMR redundancy without interrupting the safety function. This capability is validated as part of Triconex's factory acceptance test (FAT) procedures.

Q3: What warranty and supply assurance does NANKMOS provide for the Triconex 3501E?NANKMOS provides a 12-Month Warranty on all Triconex 3501E modules, covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing with full traceability documentation. NANKMOS maintains ready inventory of the 3501E and related Triconex 3500 series components, with expedited shipping options available for critical plant replacement requirements. For urgent inquiries, contact [email protected] or call +86 18359268345.
