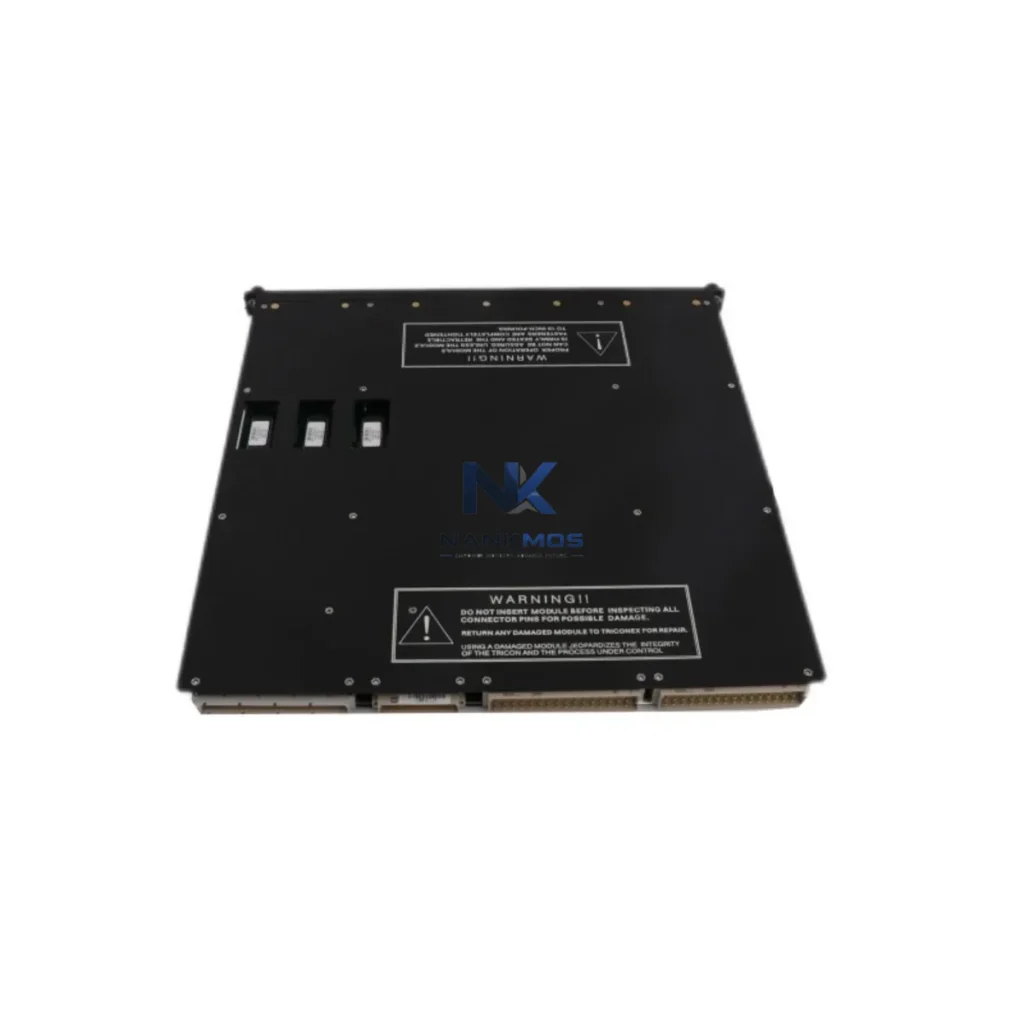

Triconex 3564 Digital Input Module

Product Details

3564 Product Description

The Triconex 3564 Digital Input Module is a field-proven, safety-rated I/O component engineered for deployment within Triconex Tricon Triple Modular Redundant (TMR) safety systems. Designed to operate at SIL 3 integrity levels, the 3564 module delivers deterministic digital signal acquisition across the full I/O layer of a safety instrumented system (SIS). Its architecture-native design ensures seamless contextual integration within the Tricon chassis, enabling engineers to maintain system consistency, expand I/O capacity, and sustain long-term diagnostic efficiency without compromising functional safety certification.

In modern industrial control architectures, the I/O layer is the critical interface between field instrumentation and the safety logic solver. The Triconex 3564 addresses this role with a high-channel-density digital input design that supports direct connection to field devices including proximity switches, pressure transmitter discrete outputs, valve position feedback, and emergency shutdown (ESD) initiation contacts. Each input channel is independently monitored, and the module's TMR voting logic ensures that single-point failures at the field wiring or sensor level do not propagate to the safety logic layer — a fundamental requirement for IEC 61511 compliance in process safety applications.

System architects integrating the 3564 into a Tricon platform benefit from its native compatibility with the Tricon chassis backplane, eliminating the need for external signal conditioning or protocol conversion. The module communicates directly with the Tricon Main Processor — such as the Triconex 3008 or 3006 MP modules — via the internal TMR bus, ensuring that all three redundant logic paths receive synchronized input data. This synchronization is essential for maintaining voting accuracy and minimizing spurious trip rates in high-demand safety loops.

The Triconex 3564 Digital Input Module achieves its full operational value when deployed as part of a cohesive Tricon safety architecture. At the control layer, the Triconex 3008 Main Processor or 3006 MP executes the safety application logic and coordinates all I/O module communication across the TMR backplane. The 3564 feeds real-time field status data directly into this logic solver, enabling sub-second response to process deviations and ESD conditions.

Power integrity is maintained by the Triconex 8312 Power Supply Module, which provides redundant 24 VDC rails to the chassis. Redundant power architecture ensures that a single power supply failure does not interrupt module operation — a critical requirement for continuous process environments such as LNG terminals, offshore platforms, and chemical reactors.

For digital output actuation, the 3564 is typically paired with the Triconex 3625 or 3603 Digital Output Module, forming a complete discrete I/O loop from field sensor to final element. Analog process variables are handled by the Triconex 3703E Analog Input Module, which integrates into the same chassis to provide 4–20 mA signal acquisition for pressure, temperature, and flow transmitters operating alongside the discrete inputs managed by the 3564.

Communication to the distributed control system (DCS) or SCADA layer is facilitated by the Triconex 4351B Enhanced Intelligent Communication Module (EICM) or the 4119A NCM, which support Modbus TCP, OPC, and proprietary Triconex protocols. This communication layer enables the safety system to exchange status, diagnostic, and alarm data with the process control network without compromising the safety logic execution cycle.

For larger installations requiring I/O expansion beyond the main chassis, the Triconex 9662 Remote Expansion Chassis and associated 9760 Expander Cable allow the 3564 and companion modules to be distributed across multiple chassis while maintaining a unified TMR architecture. This modular expansion capability is essential for geographically distributed safety loops in pipeline, tank farm, and substation applications.

At the field termination layer, Triconex Terminal Panels (such as the 3000 series field termination assemblies) provide organized, labeled wiring interfaces that simplify installation, reduce commissioning time, and support structured maintenance procedures. Combined with the 3564's per-channel diagnostics, these termination panels enable rapid fault isolation during both initial startup and ongoing preventive maintenance cycles.

Oil & Gas / Petrochemical: In upstream and downstream hydrocarbon processing, the Triconex 3564 is deployed in emergency shutdown (ESD) systems, high-integrity pressure protection systems (HIPPS), and burner management systems (BMS). Its SIL 3 rating and TMR voting architecture provide the fault tolerance required by IEC 61511 for safety instrumented functions (SIFs) protecting against overpressure, fire, and gas release scenarios.

Power Generation & Utilities: In thermal, nuclear, and combined-cycle power plants, the 3564 monitors turbine trip signals, generator protection contacts, and auxiliary system status inputs. Its deterministic scan cycle and high diagnostic coverage support the stringent availability and reliability requirements of power generation safety systems, where spurious trips carry significant economic consequences.

Chemical & Pharmaceutical Manufacturing: Batch and continuous chemical processes rely on the 3564 to acquire discrete status signals from reactor interlocks, agitator run/stop feedback, and safety valve position indicators. The module's contextual integration within the Tricon platform ensures that all safety logic operates from a consistent, validated I/O baseline — a prerequisite for FDA 21 CFR Part 11 and GAMP 5 compliance in regulated manufacturing environments.

Water & Wastewater Treatment: Municipal and industrial water treatment facilities use the 3564 in pump protection, chlorination interlock, and overflow prevention systems. Its robust operating temperature range and high-humidity tolerance make it suitable for installation in outdoor control buildings and wet process areas.

Mining & Metals: In mineral processing and smelting operations, the 3564 acquires discrete inputs from conveyor belt safety switches, crusher overload contacts, and ventilation system status indicators. The module's hot-swap capability minimizes planned maintenance downtime in continuous production environments where process interruptions carry high operational costs.

Marine & Offshore: Offshore platform safety systems and vessel automation applications benefit from the 3564's certified operating envelope and TMR redundancy. The module supports fire and gas detection system integration, ballast control interlocks, and emergency generator start/stop monitoring in environments subject to vibration, salt atmosphere, and wide temperature variation.

Q1: Is the Triconex 3564 compatible with both Tricon main chassis and expansion chassis configurations? Yes. The 3564 Digital Input Module is designed for installation in both the Tricon main chassis and remote expansion chassis (such as the 9662 series). In expansion configurations, the module communicates with the main processor via the Tricon expander bus, maintaining full TMR voting integrity across all chassis in the system. Engineers should verify chassis slot assignments and expander cable lengths against the Triconex system planning documentation to ensure signal timing compliance.

Q2: What diagnostic capabilities does the 3564 provide for long-term maintenance and fault isolation? The 3564 provides per-channel diagnostic monitoring that detects open-circuit, short-circuit, and out-of-range conditions at the field wiring level. Fault status is reported to the Tricon main processor and surfaced through the TriStation 1131 programming environment and connected SCADA/DCS systems via the communication module. This diagnostic transparency enables maintenance teams to isolate faults to the specific channel and field device without requiring system shutdown, significantly reducing mean time to repair (MTTR) in high-availability process environments.

Q3: What warranty and supply assurance does NANKMOS provide for the Triconex 3564? All Triconex 3564 modules supplied by NANKMOS are covered by a 12-Month Warranty from the date of shipment. Each unit undergoes functional testing prior to dispatch to verify channel integrity, backplane communication, and diagnostic reporting. NANKMOS maintains in-stock inventory of the 3564 and related Tricon I/O modules to support urgent project timelines and unplanned replacement requirements. For procurement inquiries, lead time confirmation, or technical pre-sales support, contact [email protected] or +86 18359268345.
