Triconex 3607E Digital Output Module

Product Details

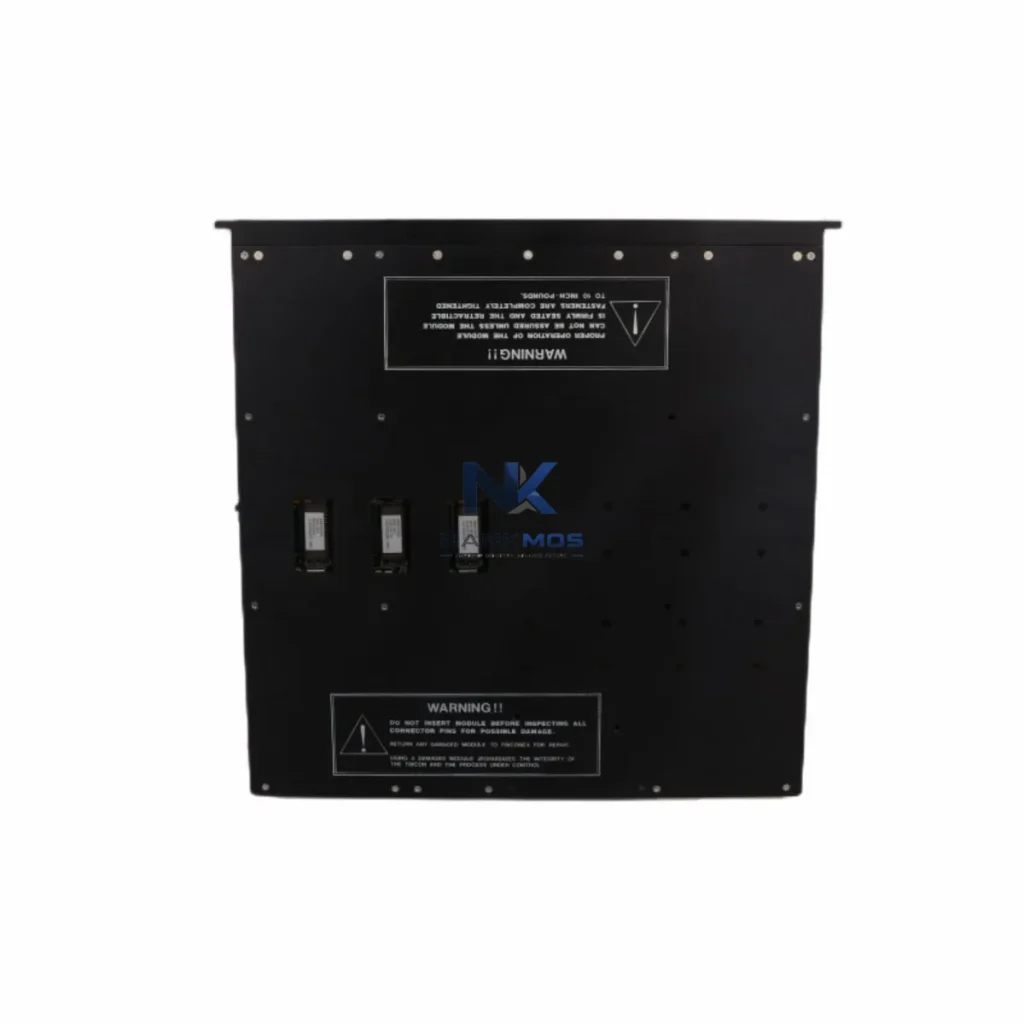

3607E Product Description

The Triconex 3607E is a high-reliability digital output module engineered for the Tricon Triple Modular Redundant (TMR) safety system platform. Designed to meet the rigorous demands of industrial energy optimization and process safety, the 3607E delivers deterministic output switching with minimal power dissipation — making it a critical component in energy-aware automation architectures across oil & gas, petrochemical, power generation, and advanced manufacturing environments.

In modern smart production lines, every output channel must be accountable. The Triconex 3607E achieves this through its TMR architecture, where three independent processing paths vote on every output state, eliminating spurious trips and ensuring that actuators, solenoids, and field devices receive only validated, energy-efficient switching commands. This reduces unnecessary actuator cycling, lowers thermal load on field wiring, and extends the operational lifespan of connected equipment.

The Triconex 3607E does not operate in isolation — its energy control value is fully realized when integrated within a coordinated automation architecture. In a typical smart production line deployment, the 3607E interfaces directly with the Triconex Tricon Main Processor (MP3008), which executes the safety logic and determines output states based on real-time process data. The MP3008's deterministic scan cycle ensures that output commands are issued only when process conditions genuinely require actuation, preventing energy waste from unnecessary switching.

On the field side, the 3607E drives solenoid valves, motor starters, and relay coils that are often managed in coordination with ABB ACS880 variable frequency drives. When the Tricon safety system commands a controlled shutdown or load reduction, the 3607E's output channels de-energize field devices in a sequenced, validated manner — allowing the VFD to ramp down motor speed gracefully rather than executing an abrupt stop, which would otherwise generate reactive power spikes and increase thermal stress on motor windings.

For energy monitoring, the 3607E works alongside Schneider Electric PowerLogic ION7650 power meters deployed at the MCC (Motor Control Center) level. These meters capture real-time kW, kVAR, and power factor data, feeding values into the plant's SCADA system — typically a Wonderware System Platform or Ignition-based architecture — where energy KPIs are trended and alarmed. The Tricon safety controller, via the Triconex EICM communication module, can exchange status data with the SCADA layer using Modbus TCP or OPC DA/UA protocols, enabling closed-loop energy management decisions.

At the I/O level, the 3607E complements Triconex 3703E digital input modules, which read field device feedback signals — confirming that actuators have responded to output commands and that no energy is being consumed by a device stuck in an unintended state. This feedback loop is essential for predictive maintenance strategies: if a solenoid valve draws current but fails to change state, the discrepancy is detected within one scan cycle, triggering an alarm before the fault escalates into an unplanned shutdown.

HMI visibility is provided through Rockwell Automation PanelView Plus 7 terminals or equivalent industrial displays connected to the control network, giving operators real-time insight into output channel states, fault conditions, and energy consumption trends. This transparency supports informed load-shedding decisions during peak demand periods, directly reducing energy costs without compromising process safety.

Industrial facilities running continuous processes — refineries, compressor stations, power plants, and batch chemical plants — face a common challenge: maintaining process safety while minimizing energy expenditure. The Triconex 3607E addresses this challenge at the output layer, where energy is either productively applied to process work or wasted through inefficient switching, leakage current, or unnecessary actuator energization.

The 3607E's TMR architecture contributes directly to energy optimization by eliminating spurious output trips. In a conventional single-channel safety output system, a single component failure can cause an unintended trip, forcing the process offline and triggering energy-intensive restart sequences — including motor re-acceleration, furnace re-ignition, and compressor re-pressurization. With the 3607E's three-channel voting logic, a single channel failure is masked by the remaining two healthy channels, maintaining process continuity and avoiding the energy penalty of an unplanned restart.

Planned shutdowns are equally optimized. When the Tricon safety system executes a controlled shutdown sequence, the 3607E de-energizes output channels in a defined order, allowing rotating equipment to coast down naturally and heat exchangers to dissipate stored thermal energy gradually. This sequenced de-energization reduces peak current draw during shutdown, lowers thermal stress on power distribution equipment, and shortens the time required to return the process to stable operating conditions.

For facilities implementing ISO 50001 energy management systems, the 3607E's per-channel diagnostics provide the granular output-state data needed to calculate actuator duty cycles and identify opportunities for load reduction. Actuators that are energized for extended periods without process justification can be flagged for review, and the safety logic can be updated to implement timed de-energization strategies that reduce standby power consumption without affecting process safety integrity.

Long-term, the 3607E's robust construction — rated for extended industrial service life — reduces the frequency of module replacements, minimizing the embodied energy cost of maintenance activities. Combined with NANKMOS's pre-shipment functional testing protocol, every 3607E module shipped is verified to meet Triconex factory specifications, ensuring that it performs at rated efficiency from the first day of installation.

Q1: How does the Triconex 3607E contribute to measurable energy savings on a production line?The 3607E reduces energy waste primarily by eliminating spurious output trips through its TMR voting architecture. Each prevented unplanned shutdown avoids the energy-intensive restart sequence associated with motors, compressors, and heating systems. Additionally, per-channel diagnostics enable facilities to identify and correct actuators operating outside their intended duty cycle, reducing standby power consumption across the output network.

Q2: Is the Triconex 3607E compatible with modern SCADA and energy management systems?Yes. The 3607E operates within the Triconex Tricon platform, which supports Modbus TCP, OPC DA, and OPC UA communication via the Triconex EICM module. This enables seamless integration with SCADA platforms including Wonderware, Ignition, and Siemens WinCC, as well as ISO 50001-compliant energy management systems that require real-time output state and fault data.

Q3: Can the 3607E replace older Triconex digital output modules, and what is the recommended substitution path?The 3607E is designed for use within the Tricon v9/v10 chassis family. Facilities migrating from earlier Triconex DO modules should verify chassis slot compatibility and backplane revision before installation. NANKMOS recommends consulting the Triconex hardware compatibility matrix and conducting a bench-level functional test prior to field installation. Our technical team can assist with substitution validation upon request.

Q4: What does NANKMOS's pre-shipment testing cover, and what warranty is provided?Every Triconex 3607E supplied by NANKMOS undergoes a pre-shipment functional test that verifies output channel switching, TMR voting logic integrity, backplane communication, and per-channel diagnostic reporting. Modules are shipped in ESD-protective packaging with test documentation. All units are covered by a 12-Month Warranty from the date of shipment, covering manufacturing defects and functional failures under normal operating conditions. In-stock units are available for immediate dispatch to minimize production line downtime.
