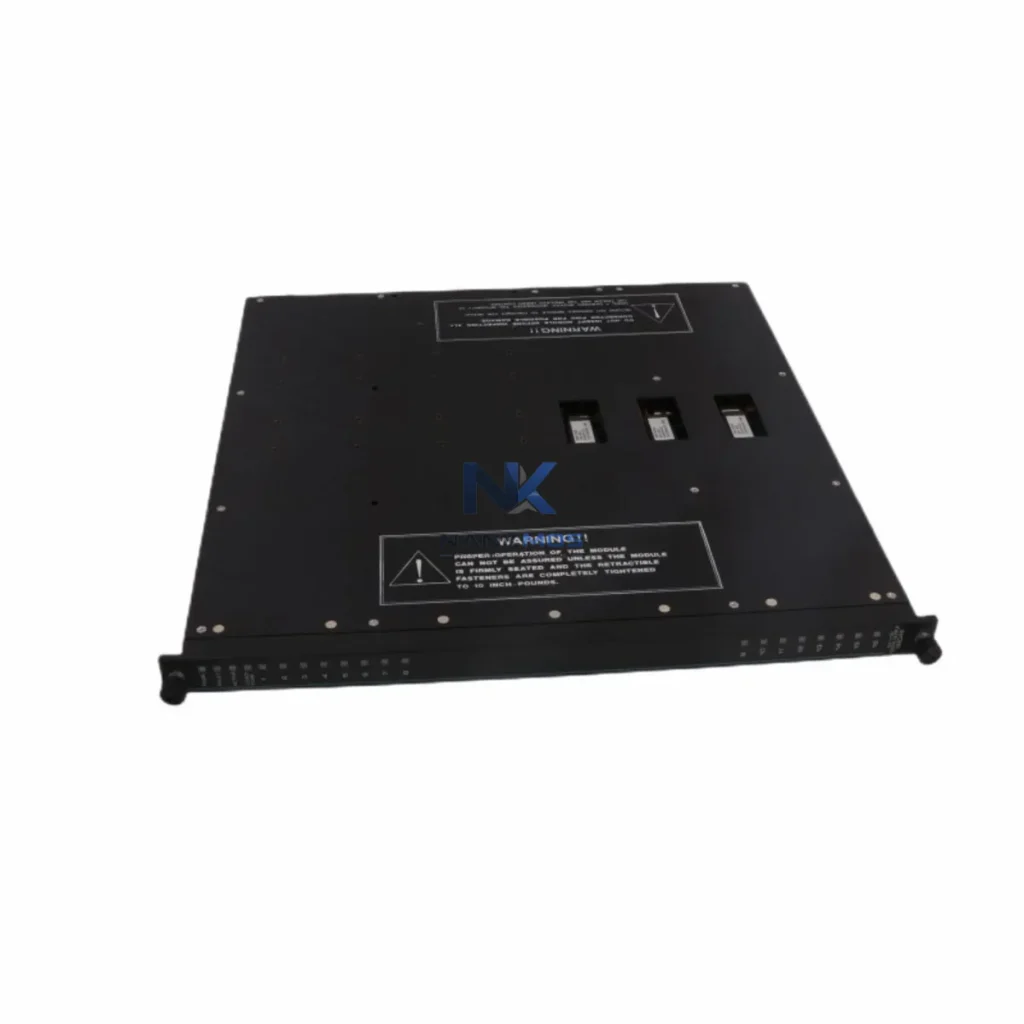

Triconex 3611E Safety System Output Module

Product Details

3611E Product Description

The Triconex 3611E is a Supervised Digital Output Module engineered for Tricon Triple Modular Redundant (TMR) safety systems. Designed to operate at the intersection of field-level actuation and plant-wide data communication, the 3611E delivers deterministic output control while feeding real-time status data into the broader smart factory network. Whether integrated into a DCS backbone, connected to a SCADA platform, or monitored through an HMI terminal, the 3611E ensures that every output channel is visible, verifiable, and remotely diagnosable — a critical requirement in modern industrial connectivity architectures.

In safety-critical environments such as oil and gas processing, chemical plants, power generation, and advanced manufacturing, the ability to trace output states across the full data chain — from field device to control room — is no longer optional. The 3611E supports this requirement by integrating seamlessly with Triconex Tricon communication modules, enabling structured data exchange over industrial protocols including Modbus RTU, Modbus TCP/IP, and OPC DA/UA. This protocol flexibility allows the 3611E to participate in heterogeneous network architectures where legacy serial devices coexist with modern Ethernet-based SCADA and MES systems.

The 3611E occupies a pivotal position in the smart factory data flow. At the field level, it receives discrete commands from the Tricon main processor — such as the Triconex 3008 Main Processor — and drives actuators, solenoid valves, motor starters, and safety shutdown devices. Each output channel is supervised, meaning the module continuously monitors line integrity and reports fault conditions back through the TMR backplane. This supervision data is aggregated by the Tricon communication infrastructure and made available to upstream systems.

When paired with a Triconex 4351B Enhanced Intelligent Communication Module (EICM) or a Triconex 4119A ACM, the 3611E's output status and diagnostic data are transmitted over Modbus TCP/IP to plant SCADA servers. Operators using platforms such as Wonderware System Platform, Ignition SCADA, or Yokogawa CENTUM VP can visualize individual channel states, acknowledge alarms, and initiate remote diagnostics without physical access to the control cabinet. This remote visibility is essential for reducing mean time to repair (MTTR) and maintaining production continuity.

In multi-node architectures, the 3611E works alongside Triconex 3703E Digital Input Modules to create closed-loop safety interlocks. Sensor signals — from pressure transmitters, flow meters, or gas detectors — are read by the input modules, processed by the Tricon TMR logic solver, and actuation commands are issued through the 3611E. The entire signal chain, from sensor to actuator, is logged with millisecond-level timestamps, enabling post-incident forensic analysis and regulatory compliance reporting.

For facilities deploying edge computing strategies, the 3611E's data can be routed through an industrial edge gateway — such as a Moxa MGate MB3480 or a Hilscher netTAP NT 100 — to translate Modbus frames into MQTT or REST API payloads for cloud-based analytics platforms. This edge-to-cloud pathway supports predictive maintenance models, where output switching frequency and fault event rates are analyzed to forecast component wear and schedule proactive maintenance windows.

Power integrity for the 3611E and its associated I/O chassis is typically provided by redundant Triconex 8312 Power Supplies, ensuring that the output module remains operational even during single-point power failures. Industrial Ethernet switches — such as the Hirschmann RS20 series — provide the network backbone that connects the Tricon communication modules to the plant LAN, with VLAN segmentation isolating safety network traffic from general IT traffic in compliance with IEC 62443 cybersecurity standards.

Protocol Fragmentation: Many brownfield plants operate a mix of legacy serial Modbus RTU devices alongside modern Ethernet-based systems. The 3611E, when integrated with Triconex communication modules supporting dual-protocol output, bridges this gap — allowing a single Tricon safety controller to serve both legacy DCS nodes and modern SCADA platforms without protocol conversion middleware.

Data Silos and Output Transparency: In traditional safety system deployments, output module states are often invisible to plant-level MES or ERP systems. By routing 3611E diagnostic data through OPC UA servers, plant managers gain real-time output transparency — knowing exactly which actuators are energized, which channels have reported faults, and how long each output has been in its current state. This data feeds directly into OEE (Overall Equipment Effectiveness) calculations and production reporting dashboards.

Remote Monitoring and Alarm Management: The 3611E's supervised output architecture generates structured alarm data for every channel fault event. When integrated with a SCADA alarm management system, these events are automatically classified, prioritized, and routed to the appropriate maintenance team via SMS, email, or plant PA system — eliminating the need for manual panel inspections and reducing alarm response times from hours to minutes.

System Scalability: As production lines expand, additional 3611E modules can be added to the Tricon chassis without reconfiguring the communication network. The Tricon TMR architecture supports hot-swap module replacement, meaning new output capacity can be brought online without a planned shutdown — a significant advantage in continuous process industries where unplanned downtime carries substantial financial penalties.

Shipment Verification and Quality Assurance: Every 3611E unit supplied by NANKMOS undergoes pre-shipment functional testing, including output channel verification, supervision circuit validation, and backplane communication checks. Units are shipped with test reports and are covered by a 12-month warranty from the date of delivery, providing procurement teams with the confidence needed for long-lead capital projects.

Q1: What communication protocols does the Triconex 3611E support for SCADA integration? The 3611E itself is a field I/O module that communicates over the Tricon TMR backplane. SCADA integration is achieved through Triconex communication modules (such as the 4351B EICM or 4119A ACM) that expose the 3611E's output status and diagnostics via Modbus RTU, Modbus TCP/IP, and OPC DA/UA. This allows seamless connection to any SCADA platform supporting these standard industrial protocols.

Q2: Can the 3611E be used in a network with mixed legacy serial and modern Ethernet devices? Yes. The Tricon system's communication architecture supports simultaneous serial and Ethernet connectivity. The 3611E's data can be accessed by legacy Modbus RTU masters over RS-485 and by modern Ethernet-based SCADA servers over TCP/IP concurrently, making it suitable for phased modernization projects where not all field devices are upgraded simultaneously.

Q3: How does the 3611E support remote diagnostics and predictive maintenance? The 3611E's supervised output channels continuously report line status — including open-circuit, short-circuit, and load current anomalies — back to the Tricon processor. This diagnostic data is available to SCADA and historian systems in real time. By trending fault event frequency and output switching cycles, maintenance engineers can identify degrading field devices before they cause unplanned shutdowns, supporting a condition-based maintenance strategy.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the 3611E? All Triconex 3611E units supplied by NANKMOS are covered by a 12-month warranty from the date of delivery. Each unit undergoes pre-shipment functional testing including output channel verification, supervision circuit validation, and backplane communication integrity checks. Test documentation is available upon request, and in-stock units are ready for immediate dispatch to support urgent project timelines.
