3704E Product Description

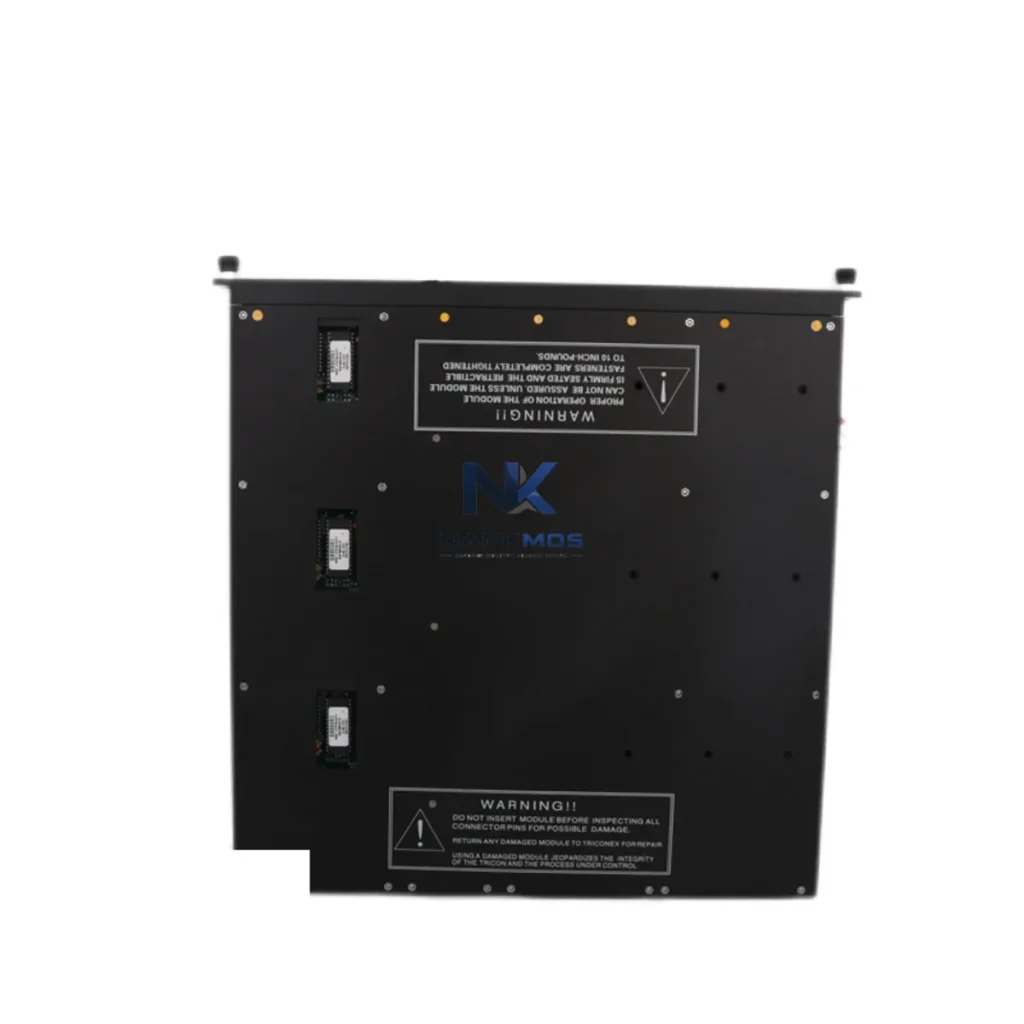

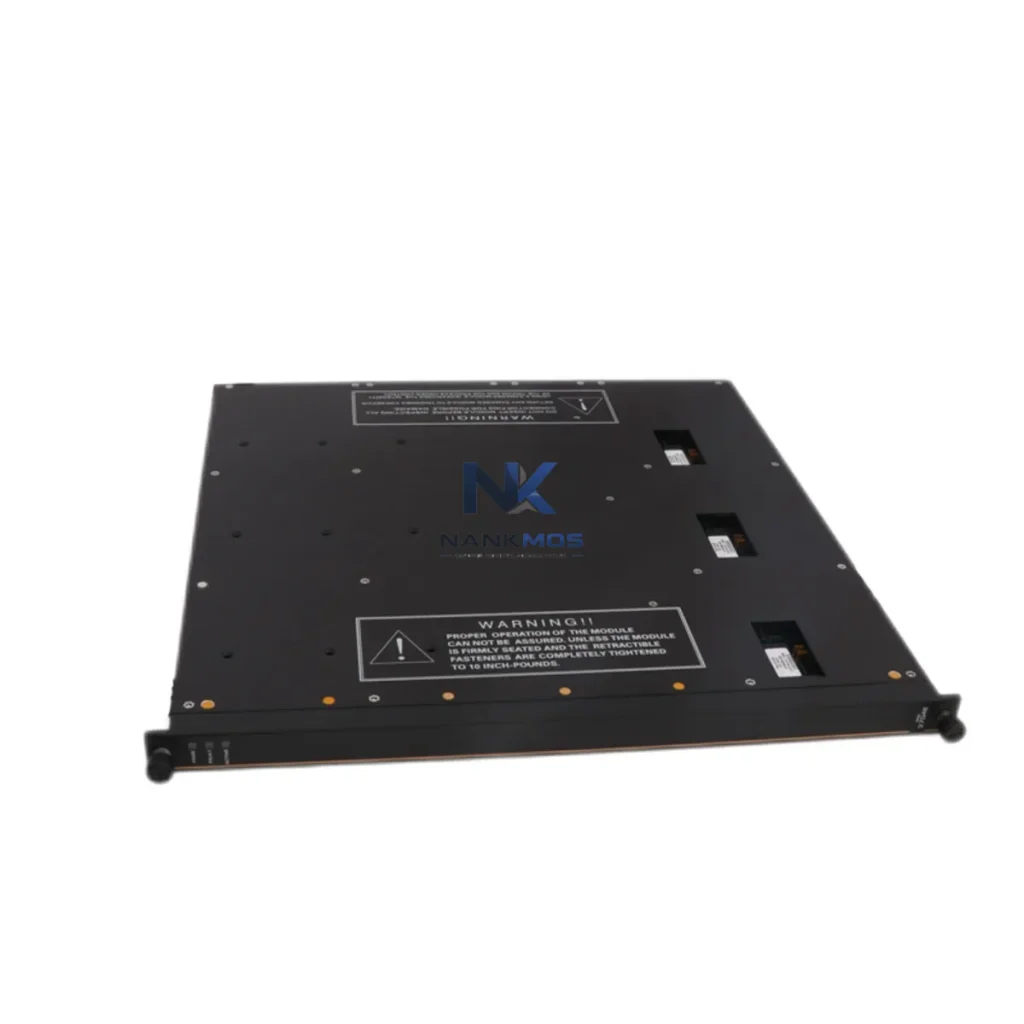

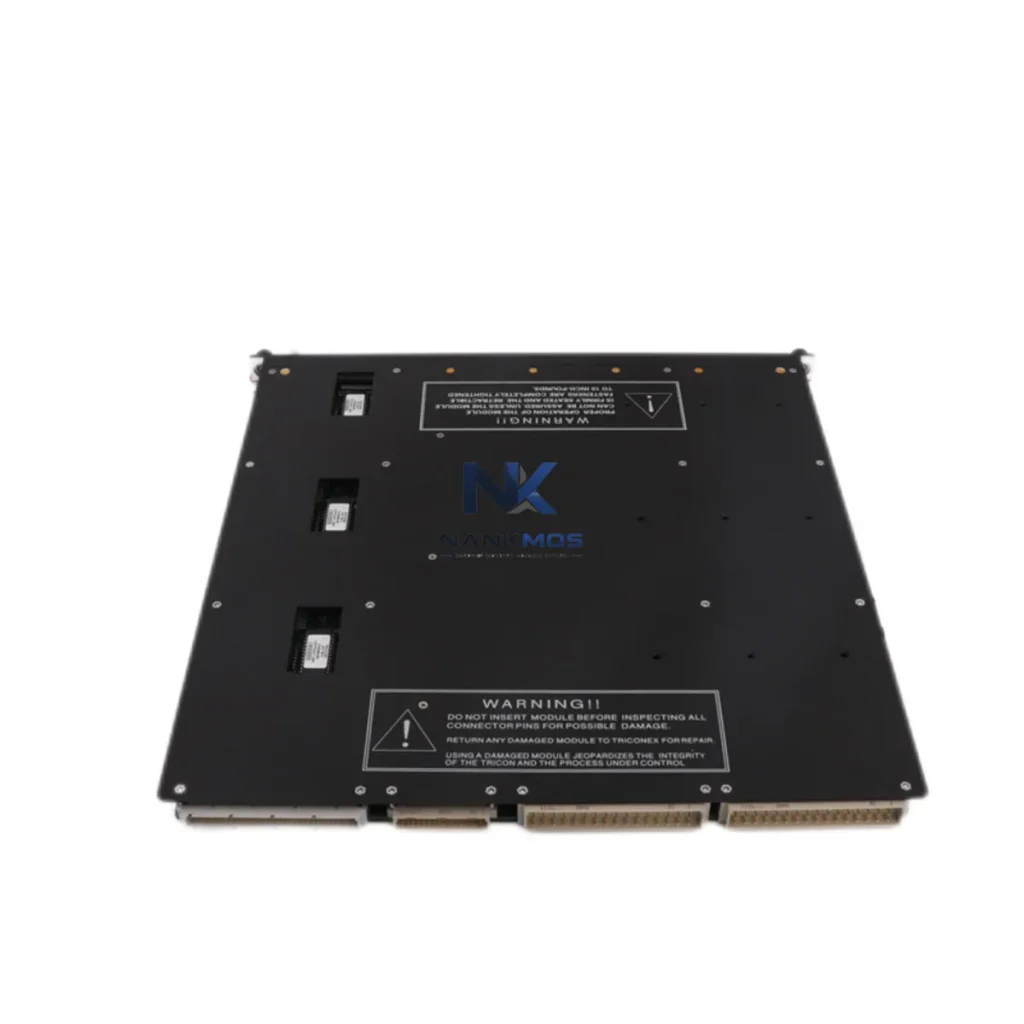

The TRICONEX 3704E is an eight-channel, HART-enabled analog input module engineered for the Tricon Triple Modular Redundant (TMR) safety system platform. Designed to operate at SIL 3 integrity levels, it serves as a critical data acquisition node within safety-instrumented systems (SIS) deployed across oil and gas, petrochemical, power generation, and advanced manufacturing environments. In the context of a smart factory data architecture, the 3704E functions as the first link in a continuous chain that moves field-level signals from sensors and transmitters through protocol conversion layers, industrial networks, and ultimately into SCADA and HMI visualization platforms — enabling real-time monitoring, remote diagnostics, and predictive maintenance at scale.

In a modern smart factory or process plant, the TRICONEX 3704E occupies the signal acquisition layer — the point where physical process variables are converted into digital data streams that feed the entire automation hierarchy. Field instruments such as pressure transmitters, flow meters, and temperature sensors output 4–20 mA signals with HART communication superimposed. The 3704E captures these signals across all eight isolated channels simultaneously, preserving signal integrity even in electrically noisy industrial environments.

Once acquired, the analog values are processed within the Tricon TMR chassis alongside modules such as the TRICONEX 3805E Digital Output Module and the TRICONEX 3625 Communication Module, which handles data routing between the Tricon controller and upstream network layers. The 3625 module bridges the proprietary Tricon backplane to standard industrial protocols, enabling the 3704E's channel data to be forwarded via Modbus RTU or Modbus TCP to distributed control systems (DCS) or SCADA servers.

At the network transport layer, industrial Ethernet switches — such as managed Layer 2 switches supporting PROFINET or EtherNet/IP — carry the process data from the safety controller to the plant-wide control network. Edge gateways, including devices compatible with the Moxa MGate MB3480 series or equivalent HART-to-Modbus protocol converters, can extract HART device diagnostics from the 3704E's input channels and forward them independently to asset management systems, enabling predictive maintenance without interrupting the primary safety loop.

The data stream continues upward to HMI stations running platforms such as Wonderware InTouch or Ignition SCADA, where operators visualize real-time analog values, trend histories, and alarm states sourced directly from the 3704E's channel outputs. Integration with TRICONEX TriStation 1131 programming software allows engineers to configure channel scaling, alarm thresholds, and diagnostic reporting parameters — all of which propagate through the data chain to the SCADA layer without manual re-entry.

For remote diagnostics, the HART secondary channel on each 3704E input supports device-level communication with smart field instruments. Maintenance teams can query transmitter health, calibration status, and loop integrity from a central engineering workstation — or from a remote location via secure VPN — without taking the process offline. This capability is particularly valuable in hazardous-area installations where physical access to field devices is restricted or time-consuming.

When the plant expands, additional Tricon chassis can be networked together using TRICONEX 4351B Tricon Communication Modules, extending the analog input capacity while maintaining the same SIL 3 data integrity across the enlarged system. The 3704E's channel data remains consistently available to the SCADA historian, supporting long-term data archiving, regulatory compliance reporting, and KPI dashboards that drive continuous improvement initiatives across the smart factory.

Protocol Fragmentation: Many legacy process plants operate with a mix of HART field devices, Modbus-based controllers, and proprietary safety systems that cannot communicate natively. The TRICONEX 3704E resolves this at the input layer by accepting standard 4–20 mA HART signals from virtually any smart transmitter, while the Tricon platform's gateway modules translate the acquired data into Modbus TCP or OPC-UA for upstream systems — eliminating protocol islands without replacing field instrumentation.

Data Silos and Process Transparency: In plants where safety systems and process control systems operate in isolation, operators lack a unified view of process conditions. By routing 3704E channel data through the Tricon communication stack to a shared SCADA historian, engineering teams gain a single source of truth for both safety and process variables — enabling cross-system correlation, faster root-cause analysis, and more accurate production reporting.

Remote Monitoring and Alarm Tracking: Unplanned shutdowns caused by undetected sensor drift or loop failures are a persistent cost driver in process industries. The 3704E's per-channel diagnostics, combined with HART device polling, provide early warning of degrading field instruments before they trigger safety actions. Alarm events are time-stamped at the controller level and forwarded to the SCADA alarm management system, creating an auditable trail that supports both incident investigation and regulatory inspection.

System Scalability: As production capacity grows, the modular Tricon TMR architecture allows additional 3704E modules to be inserted into existing chassis slots or new chassis to be networked in, scaling analog input capacity without redesigning the safety architecture. This plug-and-expand approach reduces engineering time and commissioning risk for plant extensions.

Q1: Does the TRICONEX 3704E support real-time HART diagnostics without interrupting the safety loop? Yes. The 3704E uses the HART secondary channel to communicate with smart field instruments in parallel with the primary 4–20 mA process signal. Device diagnostics, calibration data, and loop status are accessible via HART without affecting the safety-critical measurement path, ensuring SIL 3 integrity is maintained during diagnostic polling.

Q2: Which SCADA and HMI platforms are compatible with the 3704E data output? The Tricon TMR system exposes 3704E channel data via Modbus RTU/TCP and OPC-DA/UA through its communication modules. This makes the data natively accessible to major SCADA platforms including Wonderware System Platform, Ignition by Inductive Automation, Siemens WinCC, and Rockwell FactoryTalk — as well as any HMI that supports standard Modbus or OPC connectivity.

Q3: How does the TMR architecture protect data integrity across the 3704E's eight channels? The Tricon TMR platform processes each analog input through three independent processing paths simultaneously, applying a 2-out-of-3 voting algorithm to detect and isolate faults in any single path. This means a single hardware failure — whether in a channel circuit, backplane connection, or processor — does not corrupt the output data or trigger a spurious shutdown, maintaining both safety and availability.

Q4: What does the 12-month warranty cover, and how is the module tested before shipment? Every TRICONEX 3704E supplied by NANKMOS undergoes functional testing prior to shipment, verifying channel accuracy, HART communication, and backplane interface integrity. The 12-month warranty covers hardware defects and operational failures under normal industrial use conditions. Shipment is accompanied by inspection documentation, and our team provides post-sale technical support for integration and commissioning queries.
