VARIAN 406144 E11686970 810-370066 AQ8971 DV524901

Product Details

406144 E11686970 810-370066 AQ8971 DV524901 Product Description

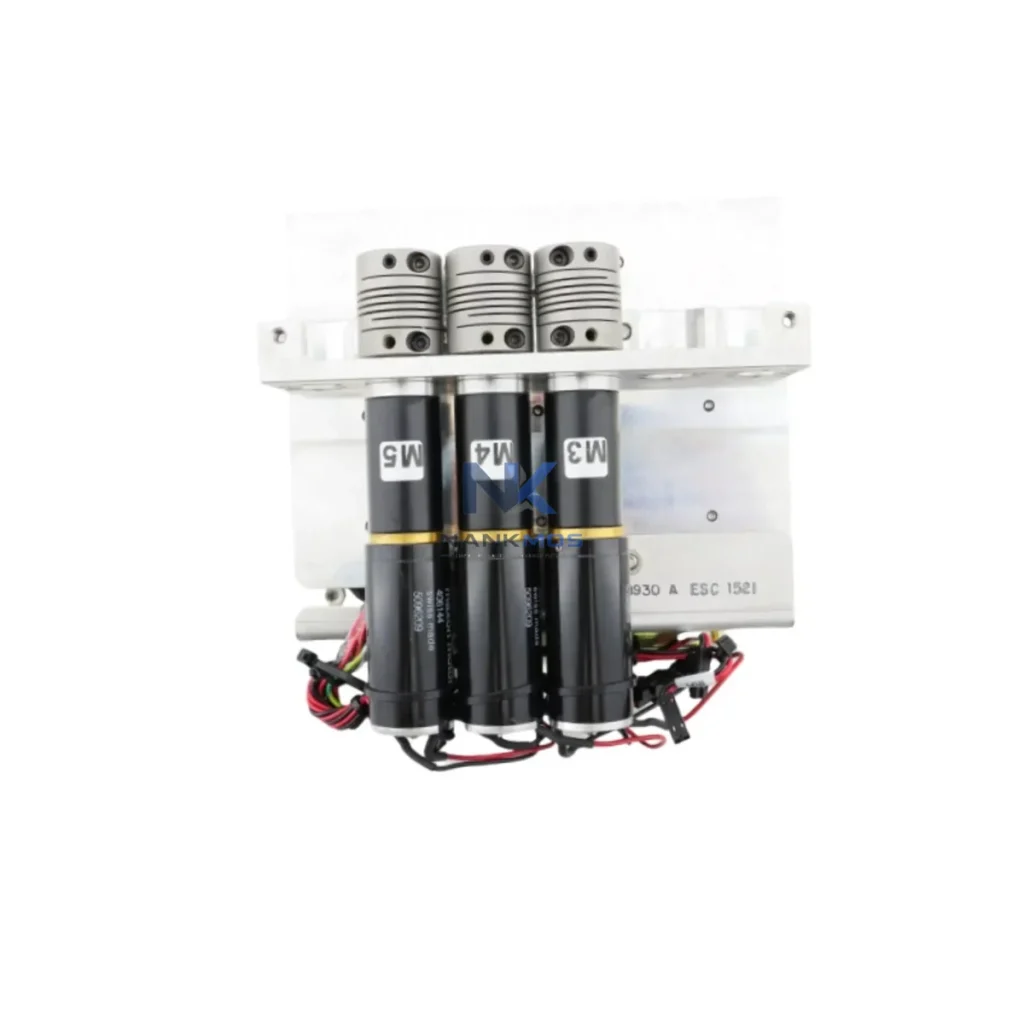

The Varian 406144 (cross-references: E11686970, 810-370066, AQ8971, DV524901) is a precision motor drive assembly engineered for deployment within Maxon-based motion control architectures in semiconductor processing, vacuum handling, and high-reliability industrial automation environments. Designed to deliver consistent torque output, low-noise signal transmission, and long-cycle mechanical endurance, the 406144 serves as a critical actuation node within multi-axis drive systems where positional accuracy and system uptime are non-negotiable.

As a system-matched component, the Varian 406144 integrates directly into the motion control layer of automated platforms, coordinating with upstream command signals from the control layer and downstream feedback from encoder and resolver modules. Its role within the broader automation architecture spans signal reception, torque conversion, and mechanical output — making it a foundational element in any Maxon-compatible drive topology.

The Varian 406144 does not operate in isolation — its value is fully realized when deployed within a coherent, layered automation architecture. In a typical semiconductor or process automation platform, the 406144 motor drive assembly interfaces with a Maxon EPOS4 motion controller at the command layer, receiving velocity and position setpoints via CANopen or EtherCAT protocol. The EPOS4 controller manages closed-loop PID regulation, ensuring that the 406144 responds with sub-millisecond precision to dynamic load changes.

At the power layer, the 406144 is supplied through a Maxon-compatible DC power supply module or a regulated 24–48 VDC bus, often shared with other drive axes in a multi-motor configuration. Proper bus decoupling and EMI filtering — typically achieved through line filter modules and shielded cable assemblies — are essential to maintaining signal integrity across the drive network.

Encoder feedback from the 406144 is routed back to the motion controller via a high-resolution incremental or absolute encoder interface, enabling real-time position verification and fault detection. In redundant architectures, a secondary resolver module or backup encoder channel provides failsafe position data, ensuring that a single sensor failure does not interrupt production cycles.

At the I/O layer, digital I/O modules — such as Varian-compatible I/O expansion cards or third-party Phoenix Contact or Weidmüller terminal blocks — distribute enable signals, limit switch inputs, and fault relay outputs to the system PLC. The PLC, often a Siemens S7-300/S7-1500 or Allen-Bradley ControlLogix platform, coordinates the 406144's motion sequences with upstream process steps, including wafer transfer, valve actuation, and chamber pressure management.

For communication stability in distributed architectures, the motion network may incorporate an industrial Ethernet switch (e.g., Hirschmann or Moxa managed switch) to segment drive traffic from supervisory SCADA communications. This ensures that high-frequency encoder polling does not interfere with HMI refresh cycles or historian data logging.

At the HMI layer, operators interact with the 406144's motion parameters through a Siemens TP700 or TP1200 Comfort Panel, or an equivalent Weintek / Proface HMI terminal, where axis status, fault codes, and velocity profiles are displayed in real time. Alarm management and maintenance scheduling are integrated directly into the HMI project, reducing mean time to repair (MTTR) during unplanned stops.

In high-availability configurations, the 406144 may be paired with a hot-standby drive module or installed in a dual-axis cabinet alongside a Maxon ESCON servo controller, enabling rapid axis substitution without full system shutdown. This modular redundancy approach is particularly valued in 24/7 semiconductor fabs and continuous-process chemical plants where unplanned downtime carries significant financial and yield penalties.

Semiconductor Manufacturing: The Varian 406144 is widely deployed in wafer handling robots, load lock actuators, and slit valve drive mechanisms within CVD, PVD, and etch tool platforms. Its compatibility with Maxon motion controllers and cleanroom-rated mechanical construction makes it a preferred replacement component for OEM-equivalent drives in Applied Materials, Lam Research, and Varian Medical Systems equipment lineages.

Vacuum and Process Automation: In turbomolecular pump gate valve actuators and roughing valve drive assemblies, the 406144 provides reliable torque output under low-pressure, thermally stable conditions. Its sealed bearing construction and low outgassing material selection support deployment in high-vacuum environments down to 10⁻⁷ Torr.

Petrochemical and Energy: In modular process skids and compressor control panels, the 406144 serves as a precision actuator for flow control valves and damper positioning systems. Paired with a Profibus DP gateway or HART-compatible I/O module, it integrates seamlessly into DCS architectures from Emerson DeltaV or Honeywell Experion platforms.

Packaging and Assembly Lines: High-speed pick-and-place systems and servo-driven conveyor indexers benefit from the 406144's dynamic response characteristics. In multi-axis gantry configurations, synchronized motion profiles are managed by a Maxon multi-axis motion controller, with the 406144 assigned to a dedicated axis for consistent cycle-time performance.

Water Treatment and Utilities: In pump station automation and chemical dosing systems, the 406144 drives metering valve actuators and agitator positioning mechanisms. Its robust construction supports continuous-duty operation in humid, chemically aggressive environments when properly enclosed in IP65-rated control cabinets.

Q1: Is the Varian 406144 compatible with existing Maxon EPOS4 and ESCON controller platforms without hardware modification? Yes. The 406144 is designed as a system-matched motor drive assembly for Maxon motion control platforms. It interfaces directly with EPOS4 and ESCON controllers via standard encoder and power connectors. No hardware modification is required for direct replacement in existing Maxon-based drive cabinets. Verify wiring pinout against your specific controller revision before installation, and confirm firmware compatibility with your EPOS Studio version.

Q2: What commissioning steps are recommended when integrating the 406144 into a multi-axis Maxon architecture? Commissioning should follow a structured sequence: (1) Verify DC bus voltage and current limits against the 406144's rated parameters; (2) Configure the EPOS4 controller with the correct motor data set (pole pairs, encoder resolution, current limits); (3) Perform a regulated current test at 10% rated load before full-speed commissioning; (4) Validate encoder feedback integrity using EPOS Studio oscilloscope function; (5) Execute a full-range motion profile test and log position error data. All units supplied by NANKMOS are pre-tested prior to shipment, reducing on-site commissioning time.

Q3: What does the 12-Month Warranty cover, and how is long-term spare parts availability managed? The 12-Month Warranty covers manufacturing defects, electrical failure under rated operating conditions, and mechanical integrity of the drive assembly from the date of shipment. Warranty claims are processed through NANKMOS with a target response time of 48 hours. For long-term maintenance planning, NANKMOS maintains buffer stock of the 406144 and its cross-reference equivalents (E11686970, 810-370066, AQ8971, DV524901) to support scheduled preventive maintenance programs and emergency replacement requirements. Customers operating critical production lines are encouraged to discuss consignment stock arrangements for guaranteed availability.
