Product Details

V 700HT GOT1000 GT1575-VTBA 101VMEJ106-9001 810-800081-012 Product Description

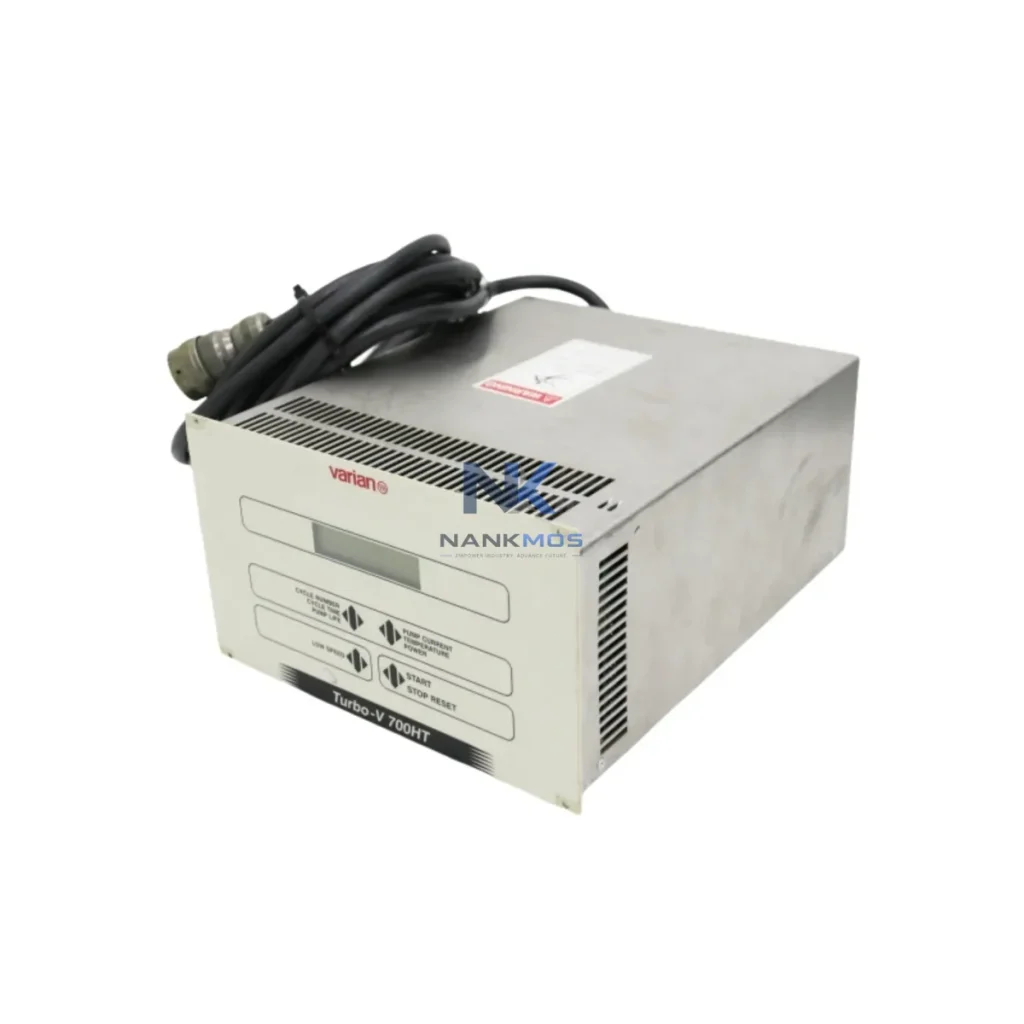

The Varian V 700HT GOT1000 GT1575-VTBA 101VMEJ106-9001 (810-800081-012) is a precision turbo molecular pump controller engineered for high-vacuum process environments where system-level consistency, signal integrity, and long-term operational reliability are non-negotiable. Designed as a core component within the Turbo-V 700HT platform, this controller does not function as an isolated unit — it operates as a tightly integrated node within a layered automation and vacuum control architecture spanning the control layer, I/O layer, communication layer, power layer, HMI layer, and protection layer.

In semiconductor fabrication, thin-film deposition, ion implantation, surface analysis, and high-energy physics research environments, the vacuum system is the backbone of process integrity. The GT1575-VTBA controller governs rotor acceleration, bearing levitation, speed regulation, and fault diagnostics for the Turbo-V 700HT pump — ensuring that the vacuum subsystem maintains stable base pressure, responds predictably to process interlocks, and integrates cleanly with upstream and downstream automation layers.

The GT1575-VTBA controller achieves its full operational value when deployed within a coherent, multi-layer automation architecture. In a typical semiconductor process tool or industrial vacuum system, this controller interfaces with several complementary components that together define system performance, redundancy, and maintainability.

At the control layer, the GT1575-VTBA receives process commands from a host PLC — such as a Siemens S7-300 CPU 315-2DP or an Allen-Bradley ControlLogix L73 — via serial or fieldbus communication. The PLC manages vacuum sequence logic: roughing pump activation, gate valve sequencing, turbo ramp-up authorization, and process interlock coordination. The controller's RS-485 interface allows it to be addressed as a remote node within a multi-drop serial network, enabling centralized vacuum status monitoring without dedicated analog wiring runs.

At the I/O layer, digital output signals from the GT1575-VTBA — including "at speed," "fault," and "warning" relay contacts — connect to remote I/O modules such as Siemens ET 200S or Beckhoff EK1100 EtherCAT couplers with digital input terminals. These signals feed directly into the PLC's vacuum interlock logic, enabling automatic process hold or pump shutdown sequences without operator intervention.

At the communication layer, integration with an industrial Ethernet switch — such as a Moxa EDS-308 or Hirschmann RS20 — allows a serial-to-Ethernet gateway such as the Moxa NPort 5150 to bridge the GT1575-VTBA's RS-232 port into a TCP/IP SCADA network. This enables real-time pump speed, power consumption, and fault status to be logged in a Wonderware InTouch or Ignition SCADA historian for process trend analysis and predictive maintenance.

At the power layer, the controller is typically supplied through a UPS-backed distribution panel or an APC Smart-UPS module to ensure that pump soft-stop sequences complete correctly during power disturbances — preventing rotor damage from abrupt deceleration. A Phoenix Contact QUINT power supply or equivalent DIN-rail unit provides clean, regulated DC auxiliary power to the controller's logic circuits.

At the HMI layer, operators interact with vacuum system status through a Siemens TP700 Comfort Panel or a Weintek MT8071iE touch panel, which displays real-time pump speed (%), bearing temperature, controller fault codes, and accumulated run hours. The HMI communicates with the host PLC, which relays GT1575-VTBA status data through the serial gateway.

At the protection layer, the controller's built-in over-temperature and rotor imbalance detection works in conjunction with external thermal overload relays and circuit breakers — such as a Schneider Electric GV2ME motor protection circuit breaker — to provide layered electrical and mechanical protection for the pump drive system.

Semiconductor Fabrication: In CVD, PVD, and etch chambers, the GT1575-VTBA maintains stable high-vacuum conditions during wafer processing. Its interlock outputs integrate with process tool controllers to enforce vacuum interlocks before gas injection or plasma ignition, protecting both the process and the equipment.

Thin-Film Coating and Optical Deposition: Coating systems require consistent base pressure across multiple deposition cycles. The controller's speed stability and fault-logging capability support repeatable process conditions and enable rapid fault diagnosis between production runs.

Analytical Instrumentation: Mass spectrometers, electron microscopes, and surface analysis systems rely on turbomolecular pumps for ultra-high vacuum. The GT1575-VTBA's soft-start and soft-stop sequences protect sensitive detector components from pressure transients during pump cycling.

Petrochemical and Energy Research: Vacuum furnaces, leak detection systems, and gas analysis equipment in petrochemical plants use turbo pump controllers as part of process safety and quality assurance systems. The controller's RS-485 network capability supports integration into plant-wide DCS architectures.

Packaging and Food Processing: Modified atmosphere packaging (MAP) lines and freeze-drying systems use turbomolecular pumps for deep vacuum generation. The GT1575-VTBA's robust protection features and 12-Month Warranty support continuous production environments with minimal unplanned downtime.

Q1: Is the GT1575-VTBA compatible with PLC-based vacuum interlock systems using DeviceNet or Profibus?The GT1575-VTBA communicates natively via RS-232/RS-485 serial protocol. For integration with DeviceNet or Profibus-based PLC systems, a serial-to-fieldbus gateway — such as a Moxa MGate MB3170 or an HMS Anybus Communicator — is recommended. This allows the controller to appear as a standard fieldbus node within the PLC's I/O tree, enabling full read/write access to pump speed setpoints, status registers, and fault codes without custom firmware modification.

Q2: What does the 12-Month Warranty cover, and how is Contextual Integration supported for multi-pump vacuum systems?The 12-Month Warranty covers all controller electronics, firmware integrity, interface connectors, and relay output modules against manufacturing defects and component failure under normal operating conditions. Contextual Integration means the GT1575-VTBA is supplied pre-tested against its compatible Turbo-V 700HT pump interface, with verified communication parameters and interlock signal levels documented. For multi-pump systems, we provide system-level configuration guidance to ensure each controller's interlock outputs are correctly mapped to the host PLC's vacuum sequence logic.

Q3: What is the typical lead time, and how is the controller tested before shipment?Stock units ship within 3–7 business days. Each GT1575-VTBA controller undergoes a pre-shipment functional test covering power-on self-test, serial communication handshake verification, relay output continuity, and protection circuit response. Test records are available upon request. For urgent semiconductor tool maintenance or unplanned downtime scenarios, expedited shipping is available. Contact our team at [email protected] or +86 18359268345 to confirm current stock availability.
