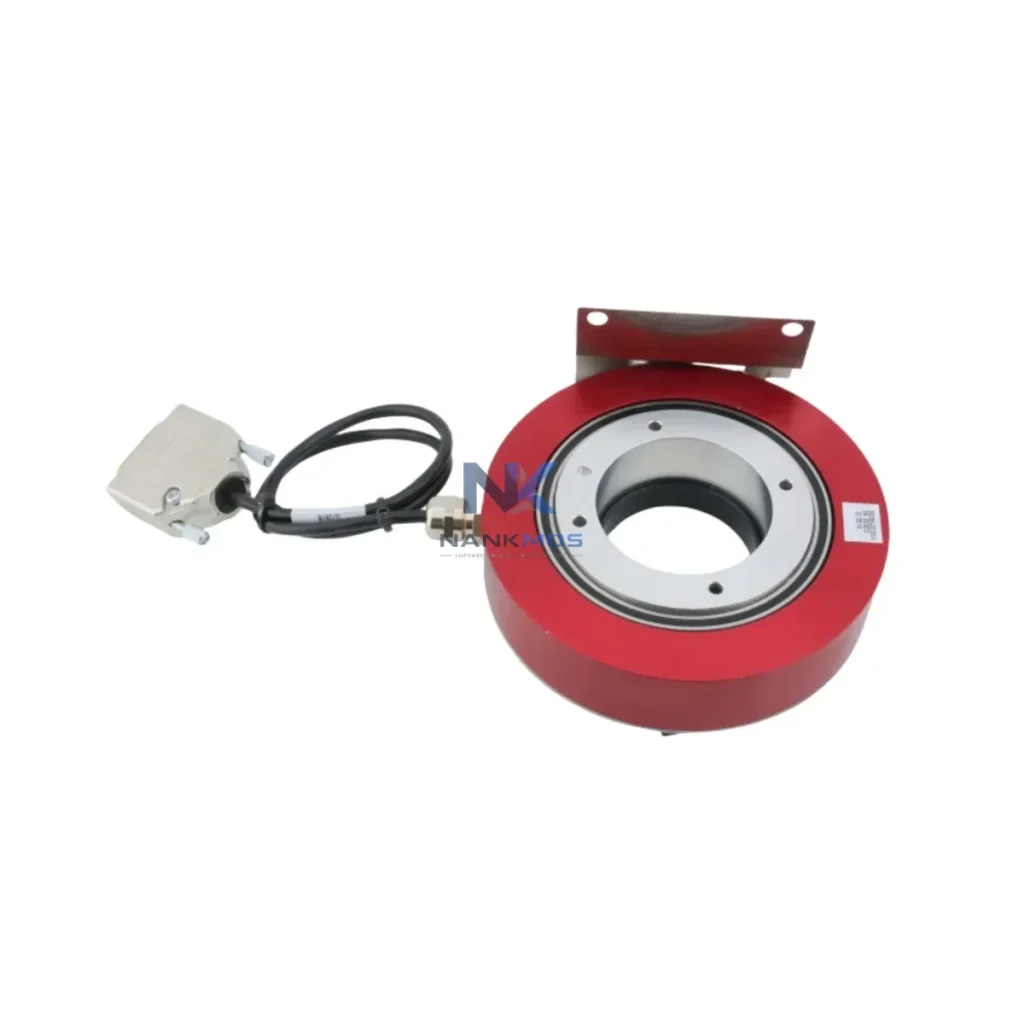

E19299450 E19299451 W/MERCURY II 6000 ME-88-Y233-1 PCA-28430 Product Description

The Varian E19299450 / E19299451 Tilt Encoder Assembly — paired with the Mercury II 6000 ME-88-Y233-1 PCA-28430 motion control platform — is a precision feedback component engineered for high-reliability industrial automation environments. In modern smart factory architectures, motion data is not an isolated signal; it is a critical node in a continuous data chain that connects field-level actuators to supervisory control systems. This encoder assembly serves as the origination point of that chain, converting mechanical angular displacement into digital feedback signals that flow upstream through PLCs, industrial networks, SCADA platforms, and HMI dashboards in real time.

Designed for demanding applications in semiconductor fabrication, medical linear accelerator (linac) positioning, and precision manufacturing, the E19299450 delivers sub-millisecond position feedback that feeds directly into motion controllers and distributed I/O modules. When integrated with a Varian Mercury II 6000 controller, the encoder's output is processed through the onboard PCA-28430 interface card, which translates raw quadrature signals into structured data packets compatible with upstream communication buses. This structured data can then be forwarded via industrial Ethernet or serial fieldbus protocols to a plant-wide SCADA system or edge gateway for aggregation and visualization.

In a fully connected smart factory, the E19299450 encoder sits at the field device layer, generating continuous angular position data that propagates upward through a structured automation hierarchy. The signal originates at the encoder's differential output and is received by the Mercury II 6000 motion controller, which processes closed-loop feedback and executes real-time position corrections. The controller's PCA-28430 interface card acts as the local protocol bridge, formatting encoder data for transmission to higher-level systems.

From the Mercury II 6000, processed motion data is forwarded to a programmable logic controller (PLC) — such as a Siemens S7-300 or Allen-Bradley ControlLogix — via a dedicated motion network segment. The PLC aggregates encoder feedback alongside signals from other field devices, including proximity sensors, servo drive feedback modules, and remote I/O racks distributed across the production floor. This aggregated dataset is then passed through an industrial managed Ethernet switch — for example, a Hirschmann MICE or Phoenix Contact FL SWITCH series — which maintains deterministic network timing and VLAN segmentation to isolate motion-critical traffic from general plant communications.

At the supervisory layer, an edge gateway — such as a Moxa MGate or Advantech ADAM-3600 — collects data from multiple PLCs and motion controllers, performing protocol normalization before forwarding structured datasets to a SCADA platform such as Wonderware InTouch, Ignition by Inductive Automation, or Siemens WinCC. Operators monitoring the SCADA HMI receive live position telemetry, axis velocity trends, and fault state indicators derived directly from the E19299450 encoder's feedback loop. Alarm thresholds configured in the SCADA system trigger automated notifications when encoder deviation exceeds defined limits, enabling rapid intervention before mechanical faults escalate.

For facilities operating variable frequency drives (VFDs) on adjacent axes, encoder feedback from the E19299450 can be cross-referenced with drive speed data to validate synchronization across multi-axis motion profiles. Industrial power supplies — such as Phoenix Contact QUINT or PULS DIMENSION series — provide stable 24 VDC to both the encoder and the Mercury II 6000 controller, ensuring signal integrity under variable load conditions. All data collected across this chain — from encoder pulse counts to drive status registers — is archived in a historian database and made available for data visualization dashboards, enabling long-term trend analysis, predictive maintenance scheduling, and OEE reporting at the plant management level.

Industrial sites operating legacy motion control equipment frequently encounter data isolation challenges: encoder signals remain trapped within proprietary controller ecosystems, invisible to plant-wide SCADA or MES platforms. The Varian E19299450 / E19299451 assembly, when deployed within the Mercury II 6000 architecture, addresses this gap by providing a well-documented, high-resolution feedback signal that can be bridged to modern industrial networks through standard gateway and protocol conversion hardware.

Protocol fragmentation is a common barrier in mixed-vendor automation environments. Sites running a combination of Varian motion controllers, third-party PLCs, and legacy serial fieldbus devices often lack a unified data view. By standardizing on the Mercury II 6000 as the motion control node and routing its output through an industrial Ethernet gateway, engineers can consolidate encoder data into a single SCADA namespace — eliminating data silos and enabling cross-system alarm correlation. Remote monitoring becomes straightforward: maintenance teams can access live encoder position data and fault logs from any HMI terminal or remote desktop client connected to the plant network, reducing the need for on-site inspection during routine diagnostics.

Production line transparency is further enhanced by integrating encoder feedback into OEE dashboards. Downtime events triggered by encoder faults are automatically timestamped and categorized, providing quality and maintenance teams with actionable data for root cause analysis. System expansion is supported by the modular architecture of the Mercury II 6000 platform — additional encoder channels and I/O modules can be added without disrupting existing network topology, protecting the long-term scalability of the automation investment.

Q1: What communication protocols does the Varian E19299450 support for SCADA integration?The E19299450 outputs standard quadrature (RS-422 / TTL differential) signals processed by the Mercury II 6000 controller and PCA-28430 interface card. Upstream SCADA integration is achieved through the controller's communication ports or via an industrial protocol gateway supporting Modbus TCP, EtherNet/IP, or OPC-UA, depending on the site's network architecture.

Q2: How is network stability maintained in high-vibration or electrically noisy industrial environments?The encoder's differential signal output provides inherent common-mode noise rejection, and the Mercury II 6000 controller includes signal filtering and debounce logic to maintain data integrity in electrically noisy environments. Pairing the system with a managed industrial Ethernet switch featuring EMI-hardened ports further ensures deterministic network performance.

Q3: Can the system be expanded to support additional axes or remote I/O without reconfiguring the network?Yes. The Mercury II 6000 platform supports modular expansion through additional interface cards and remote I/O modules. New encoder channels can be added to the existing network segment without requiring changes to the SCADA configuration, provided the network switch has available ports and the PLC program is updated to include the new data tags.

Q4: What does the 12-month warranty cover, and how is pre-shipment testing conducted?Every Varian E19299450 / E19299451 assembly supplied by NANKMOS is bench-tested prior to shipment to verify signal output integrity, connector continuity, and mechanical alignment. The 12-month warranty covers manufacturing defects and component failures under normal operating conditions. Expedited replacement support is available for critical production environments to minimize unplanned downtime.
