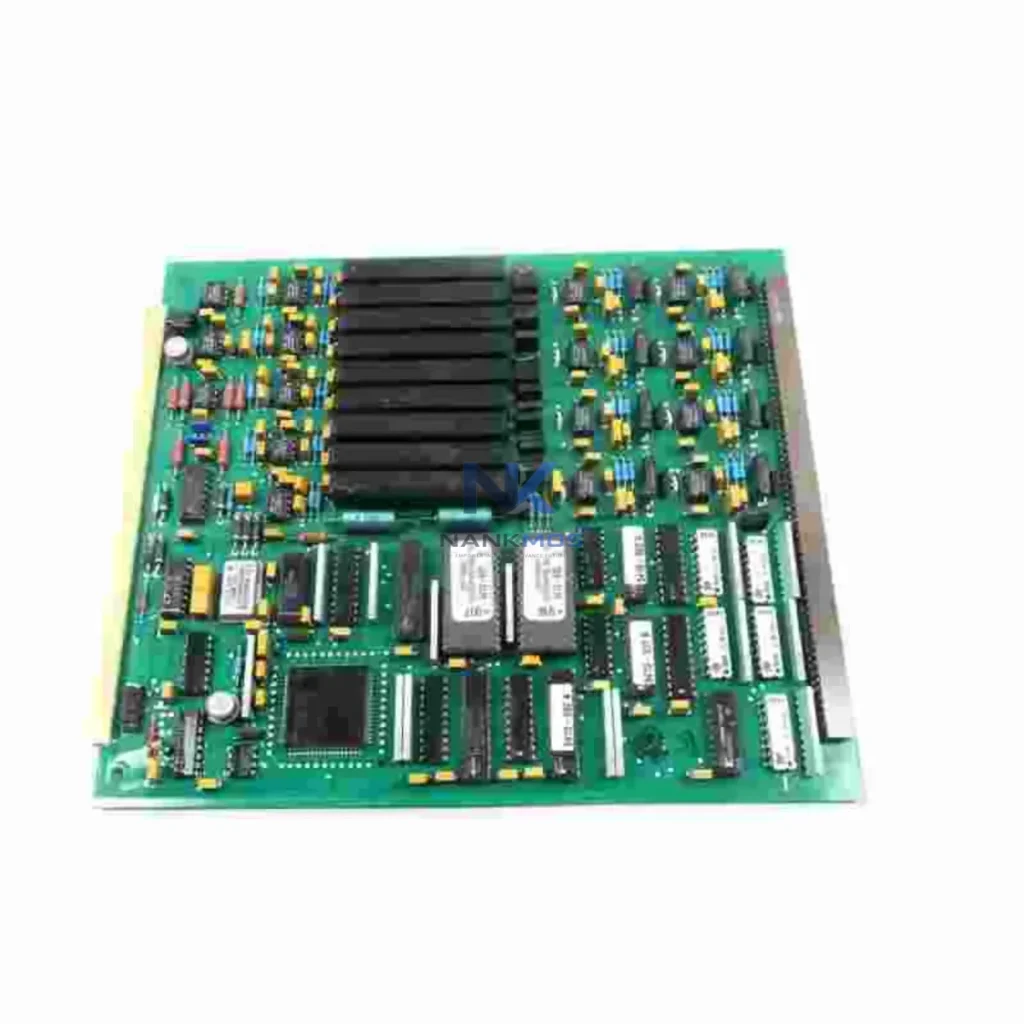

Woodward 5463-581 Industrial Network Interface Module

Product Details

5463-581 Product Description

In modern smart factory environments, the integrity of every signal path between field devices and supervisory systems determines the reliability of the entire production line. The Woodward 5463-581 Isolated Input Module is engineered to serve as a precision signal conditioning and isolation gateway within governor control architectures — ensuring that analog and digital inputs from turbines, generators, and prime movers are cleanly separated, accurately conditioned, and reliably transmitted upstream to PLCs, SCADA platforms, and HMI workstations without ground loops, noise interference, or data corruption.

As industrial facilities transition toward fully networked, data-driven operations, the role of isolated input modules has expanded far beyond simple signal buffering. The 5463-581 functions as a critical node in the data chain — receiving raw process signals from speed sensors, pressure transducers, and temperature probes, then delivering clean, isolated outputs to Woodward governor controllers such as the Woodward 505 Digital Governor and Woodward MicroNet TMR control platforms. This isolation barrier protects sensitive control electronics from high-voltage transients and common-mode noise that are endemic to heavy industrial environments including power generation, oil and gas compression, and marine propulsion.

The Woodward 5463-581 occupies a foundational position in the industrial data flow architecture. At the field level, process variables — shaft speed from magnetic pickup sensors, exhaust temperature from thermocouple arrays, inlet pressure from 4–20 mA transmitters — arrive at the 5463-581's isolated input channels. The module conditions and isolates these signals before forwarding them to the Woodward 505E Digital Governor Controller, which executes real-time fuel and load control algorithms based on the received data.

Within a fully integrated smart factory topology, the governor controller communicates upstream via a Woodward NetCon 5000 Communication Module or equivalent gateway, translating proprietary governor bus data into Modbus RTU or Modbus TCP frames that can be consumed by plant-level SCADA systems such as Wonderware InTouch or Ignition SCADA. At the network layer, managed industrial Ethernet switches — such as those from the Moxa EDS series or Hirschmann MICE family — provide the ring-redundant backbone that ensures zero packet loss during switchover events.

Remote I/O expansion is handled by modules such as the Woodward easYgen-3000 Series genset controllers or third-party remote I/O racks connected via PROFIBUS DP or DeviceNet, feeding additional analog measurements back into the control loop. HMI panels — including Siemens SIMATIC TP series or Weintek cMT touchscreens — display real-time governor status, alarm states, and trend data pulled directly from the SCADA historian, giving operators a unified view of turbine performance across multiple units.

Edge computing gateways, such as the Moxa UC-8100 series or Advantech WISE-5000 data acquisition modules, can be deployed alongside the 5463-581 to perform local data preprocessing — filtering noise, calculating derived variables, and buffering data during network interruptions — before forwarding structured datasets to cloud-based analytics platforms or MES systems. Variable frequency drives (VFDs) controlling auxiliary equipment such as lube oil pumps and cooling fans also feed status data into this network, with their Modbus RTU registers polled by the plant PLC and aggregated into the same SCADA data model.

Power quality and supply stability for the entire control network is maintained by Woodward 9907-838 or equivalent regulated DC power supply modules, ensuring that the 5463-581 and its associated governor control hardware operate within specified voltage tolerances even during grid disturbances. This end-to-end data chain — from raw field signal through isolated conditioning, governor control, protocol conversion, network transmission, and SCADA visualization — represents the complete connectivity value that the Woodward 5463-581 delivers in a modern smart factory environment.

Protocol fragmentation is one of the most persistent challenges in industrial automation. Legacy governor systems often communicate via proprietary serial protocols that cannot be directly integrated with modern Ethernet-based SCADA or MES platforms. The 5463-581, when paired with a Woodward communication gateway module, bridges this gap — converting isolated analog and digital signals into structured data streams that upstream systems can consume without custom engineering.

Data islands form when turbine or generator control systems operate in isolation from the plant-wide data infrastructure. By providing clean, isolated signal outputs that can be routed to any PLC or DCS with analog input capability, the 5463-581 eliminates the signal integrity barriers that prevent governor data from reaching plant historians and analytics platforms. Operators gain real-time visibility into speed, load, temperature, and pressure trends that were previously trapped within the governor controller's local display.

Remote monitoring and diagnostics become practical when the 5463-581's outputs are integrated into a SCADA-connected PLC. Maintenance teams can monitor input signal health, detect sensor drift or open-circuit faults, and receive alarm notifications via email or SMS — all without dispatching personnel to the turbine hall. This capability is particularly valuable for unmanned or remotely operated power generation facilities.

Production line transparency and alarm traceability are enhanced when every governor input is logged with timestamp and engineering unit values in the SCADA historian. Root cause analysis of turbine trips or load rejection events becomes straightforward when the complete signal history is available for review. System expansion is equally simplified — additional 5463-581 modules can be added to the governor control rack to accommodate new sensor inputs as the facility's monitoring requirements grow, without disrupting existing control loops.

Q1: What communication protocols does the Woodward 5463-581 support for SCADA integration? The 5463-581 provides galvanically isolated analog and digital signal outputs that are protocol-agnostic at the physical level. Integration with SCADA systems is achieved by routing the module's outputs to a PLC or DCS with Modbus TCP, PROFIBUS, or EtherNet/IP capability. Woodward communication gateway modules such as the NetCon 5000 can also provide direct Modbus RTU connectivity from the governor bus to SCADA clients.

Q2: How does the 5463-581 ensure network stability and signal integrity in high-noise industrial environments? The module employs galvanic isolation to eliminate ground loops and reject common-mode noise voltages that are typical in power generation and heavy industrial environments. This isolation ensures that transient events on the field wiring — such as motor starts, arc flash events, or lightning-induced surges — do not corrupt the signal data delivered to the governor controller or upstream SCADA system.

Q3: Can the Woodward 5463-581 be used for remote diagnostics and predictive maintenance applications? Yes. When the 5463-581's outputs are connected to a SCADA-integrated PLC, all input channel values can be continuously logged and monitored for anomalies. Threshold-based alarms can be configured to alert maintenance teams of sensor drift, signal loss, or out-of-range conditions. This data can also feed predictive maintenance algorithms that identify degradation trends before they result in unplanned shutdowns.

Q4: What does the 12-month warranty cover, and what pre-shipment testing is performed? Every Woodward 5463-581 unit supplied by NANKMOS undergoes full functional testing prior to dispatch, verifying isolation integrity, input channel accuracy, and output signal quality. The 12-month warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. B2B customers with volume requirements are encouraged to contact [email protected] for lead time confirmation and bulk pricing.
