WOODWARD 5466-256 Governor Control Modules

Product Details

5466-256 Product Description

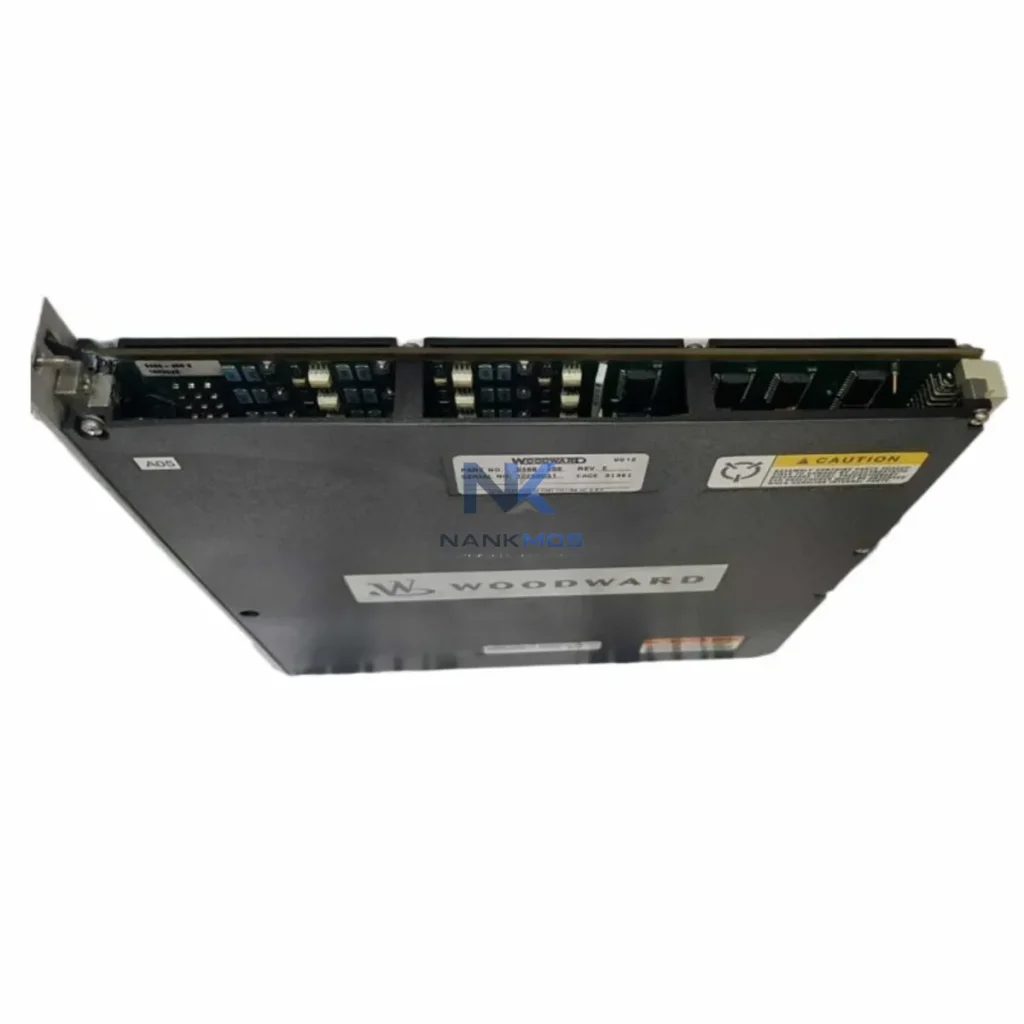

The Woodward 5466-256 is a system-matched Discrete I/O Module engineered for seamless integration within the Woodward FT Series governor control architecture. Designed to serve as a critical signal interface layer between field instrumentation and the central governor controller, this module delivers deterministic discrete signal handling, robust electrical isolation, and modular expandability across demanding industrial environments. Whether deployed in gas turbine governor systems, steam turbine control panels, or combined-cycle power plant automation architectures, the 5466-256 provides the signal integrity and architectural consistency required for long-term operational reliability.

Within a complete FT Series control architecture, the 5466-256 occupies the I/O layer — receiving discrete on/off signals from field devices such as proximity switches, solenoid valve feedback contacts, emergency shutdown relays, and auxiliary trip circuits. These signals are conditioned, isolated, and transmitted to the FT Series CPU module, enabling the governor controller to execute precise speed regulation, load control, and protective shutdown sequences. The module's deterministic scan cycle ensures that critical discrete events — such as overspeed trip signals or valve position feedback — are processed within the latency tolerances required by turbine protection standards.

System architects integrating the 5466-256 into a Woodward FT Series panel will typically pair it with the Woodward FT Series CPU module as the central processing unit, the Woodward 5466-258 Analog I/O Module for continuous process variable acquisition, and the Woodward 5466-654 Power Supply Module to ensure stable 24 VDC rail distribution across the I/O backplane. For applications requiring redundant control architectures, the 5466-256 is compatible with dual-redundant FT Series configurations where a secondary CPU module monitors primary channel health and assumes control upon fault detection. Communication between the I/O layer and supervisory SCADA systems is typically routed through the Woodward 5466-752 Communication Gateway, supporting Modbus RTU and Modbus TCP protocols for integration with distributed control systems (DCS) and plant historian platforms.

In multi-axis turbine control panels, the 5466-256 is frequently installed alongside the Woodward 5466-260 Digital Speed Input Module, which handles magnetic pickup and proximity probe signals for shaft speed measurement. Together, these modules form the discrete signal acquisition backbone of the FT Series architecture, ensuring that both speed feedback and auxiliary discrete status signals are processed through a unified, electrically isolated I/O subsystem. For HMI integration, the Woodward Easygen-3500 or compatible operator interface panels connect to the FT Series communication bus, providing real-time visualization of discrete I/O channel status, alarm states, and governor operating mode.

The 5466-256 is designed for DIN rail or panel-mount installation within standard 19-inch control cabinets, with terminal block wiring connections that support both solid and stranded conductors. Its operating temperature range accommodates industrial enclosure environments from 0°C to 60°C, and its conformal-coated PCB assembly provides protection against humidity, vibration, and airborne contaminants typical of power generation and oil and gas processing facilities. The module's LED status indicators provide local diagnostic visibility for each discrete channel, enabling field technicians to verify signal states during commissioning and troubleshooting without requiring laptop-based diagnostic tools.

For engineering teams executing control system upgrades or greenfield turbine control panel builds, the 5466-256 supports phased commissioning workflows. Individual I/O channels can be forced or monitored through the Woodward Toolkit software interface, allowing loop checks to be completed prior to turbine first-fire. This capability significantly reduces commissioning time and minimizes the risk of wiring errors propagating into live control sequences. The module's channel-by-channel diagnostic reporting also supports predictive maintenance programs, enabling operations teams to identify degraded input channels before they cause unplanned shutdowns.

NANKMOS maintains verified stock of the Woodward 5466-256 with pre-shipment functional testing, full documentation package, and a 12-Month Warranty covering manufacturing defects and operational failures under normal service conditions. Global logistics support ensures delivery to power generation, oil and gas, petrochemical, water treatment, mining, and marine propulsion customers across Asia-Pacific, the Middle East, Europe, and the Americas.

The 5466-256 achieves its full operational value when deployed as part of a coordinated FT Series automation platform. A typical turbine governor control panel integrating this module includes the following system components working in concert:

The Woodward FT Series CPU Module serves as the central governor controller, executing speed regulation algorithms, load sharing logic, and protective shutdown sequences based on discrete and analog inputs received from the I/O layer. The Woodward 5466-258 Analog I/O Module complements the 5466-256 by handling 4–20 mA and voltage signals from actuators, temperature transmitters, and pressure sensors, providing the continuous process variable data required for PID control loops. The Woodward 5466-654 Power Supply Module delivers regulated 24 VDC to the I/O backplane, ensuring stable power distribution across all installed modules and protecting against voltage transients from field wiring.

For speed measurement, the Woodward 5466-260 Digital Speed Input Module processes magnetic pickup signals from turbine shaft probes, feeding real-time RPM data to the CPU for overspeed protection and speed governing. The Woodward 5466-752 Communication Gateway bridges the FT Series internal bus to plant-level Modbus TCP or Modbus RTU networks, enabling integration with Emerson DeltaV, Honeywell Experion, or Yokogawa CENTUM VP distributed control systems. For operator interface, the Woodward Easygen-3500 Generator Control Unit or compatible HMI panels provide real-time visualization of governor status, I/O channel states, and alarm management.

In redundant architectures, a secondary FT Series CPU module monitors primary channel health via the backplane communication bus, with the 5466-256 discrete I/O channels shared across both control paths to eliminate single points of failure in the signal acquisition layer. Terminal block assemblies from Phoenix Contact or Weidmuller are commonly used for field wiring termination, providing reliable screw-clamp connections for the discrete signal cables entering the 5466-256 input channels. Industrial Ethernet switches supporting PROFINET or EtherNet/IP protocols may be integrated at the communication layer for plants requiring high-speed network convergence between the governor control system and the plant automation backbone.

The Woodward 5466-256 is deployed across a broad spectrum of industrial control applications where discrete signal integrity and governor system compatibility are critical requirements:

In gas turbine power generation facilities, the 5466-256 interfaces with flame detector relays, fuel valve position switches, lube oil pressure switches, and vibration trip contacts, providing the governor controller with the discrete status signals required for startup sequencing, load control, and emergency shutdown. In steam turbine control systems at petrochemical refineries and combined-cycle power plants, the module handles extraction valve position feedback, steam admission valve status, and turbine trip relay contacts, ensuring that the FT Series governor can execute precise steam flow regulation and protective trip sequences.

In oil and gas compression and pumping stations, the 5466-256 is integrated into gas engine governor panels controlling reciprocating compressor drivers, where discrete signals from suction and discharge pressure switches, engine speed sensors, and emergency shutdown solenoids are processed through the module's isolated input channels. In water treatment and pumping infrastructure, the module supports variable-speed pump governor systems where discrete feedback from motor contactors, flow switches, and level sensors is required for automated pump sequencing and protection.

In mining and mineral processing applications, the 5466-256 is deployed in conveyor drive governor panels and crusher motor control systems, where robust discrete I/O handling is required in high-vibration, high-dust environments. In marine propulsion and auxiliary power systems, the module is integrated into ship engine governor control panels, handling discrete signals from shaft speed sensors, fuel rack position switches, and engine protection relays in compliance with classification society requirements.

Q1: Is the Woodward 5466-256 compatible with both new FT Series panel builds and existing FT Series system upgrades?A: Yes. The 5466-256 is designed for both greenfield FT Series panel builds and retrofit upgrades of existing Woodward governor control systems. Its backplane connector and I/O channel configuration are consistent with the FT Series modular architecture, allowing it to be added to existing panels without requiring CPU firmware changes, provided the FT Series CPU module firmware version supports the installed I/O configuration. NANKMOS recommends verifying the FT Series system configuration file against the 5466-256 channel map prior to installation to ensure correct I/O address assignment.

Q2: What commissioning tools and procedures are required for the 5466-256 during turbine control panel startup?A: Commissioning the 5466-256 requires the Woodward Toolkit software (PC-based configuration and diagnostic utility) connected to the FT Series CPU module via the service port. Individual discrete I/O channels can be forced to known states through the Toolkit interface, enabling loop check verification of field wiring continuity and correct signal polarity before turbine first-fire. NANKMOS supplies the 5466-256 with a pre-shipment functional test report confirming channel-by-channel continuity and isolation resistance, reducing on-site commissioning time.

Q3: What does the 12-Month Warranty cover for the Woodward 5466-256, and what is the supply lead time?A: The NANKMOS 12-Month Warranty covers manufacturing defects, component failures, and operational malfunctions occurring under normal service conditions as specified in the Woodward FT Series installation and operation manual. The warranty period commences from the date of shipment. NANKMOS maintains verified stock of the 5466-256 with typical order-to-ship lead times of 3–7 business days for standard orders. Expedited shipping options are available for urgent plant maintenance requirements. Contact [email protected] or +86 18359268345 for stock confirmation and lead time verification.
