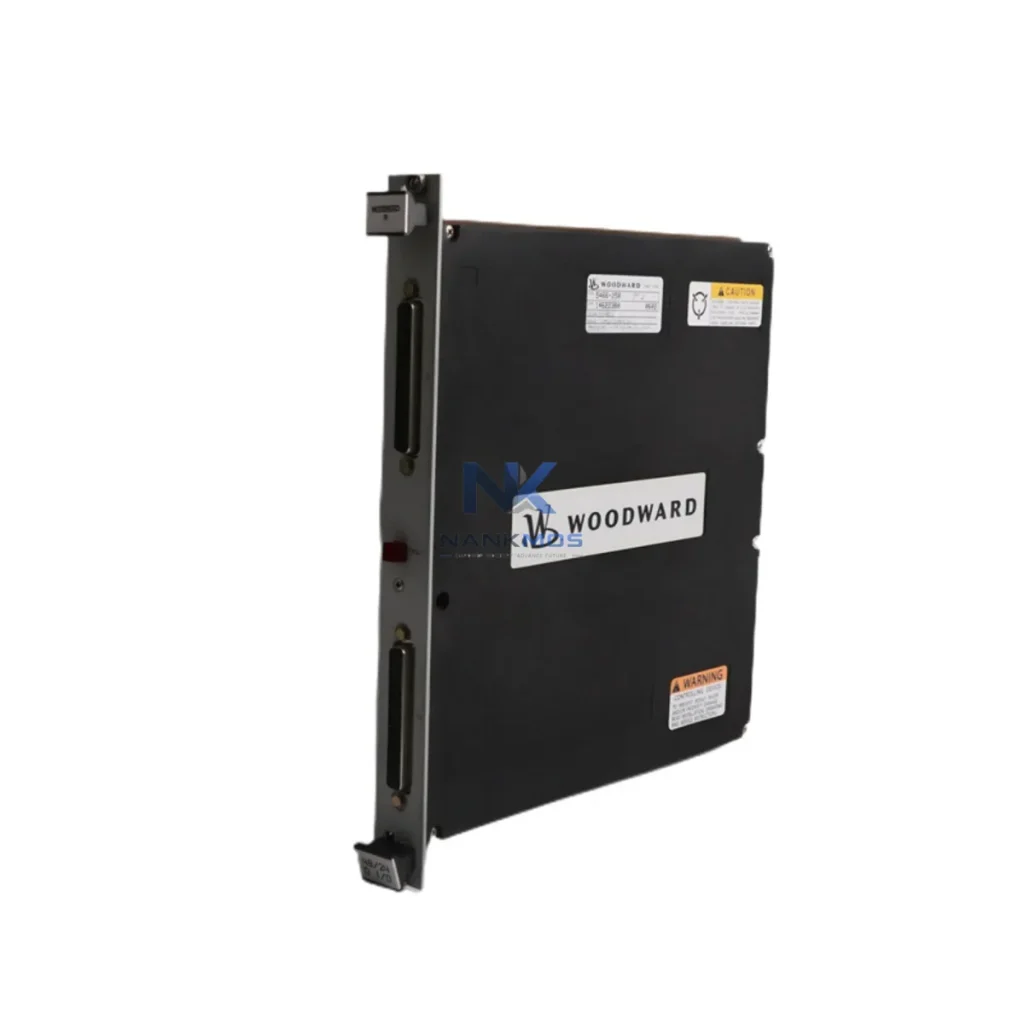

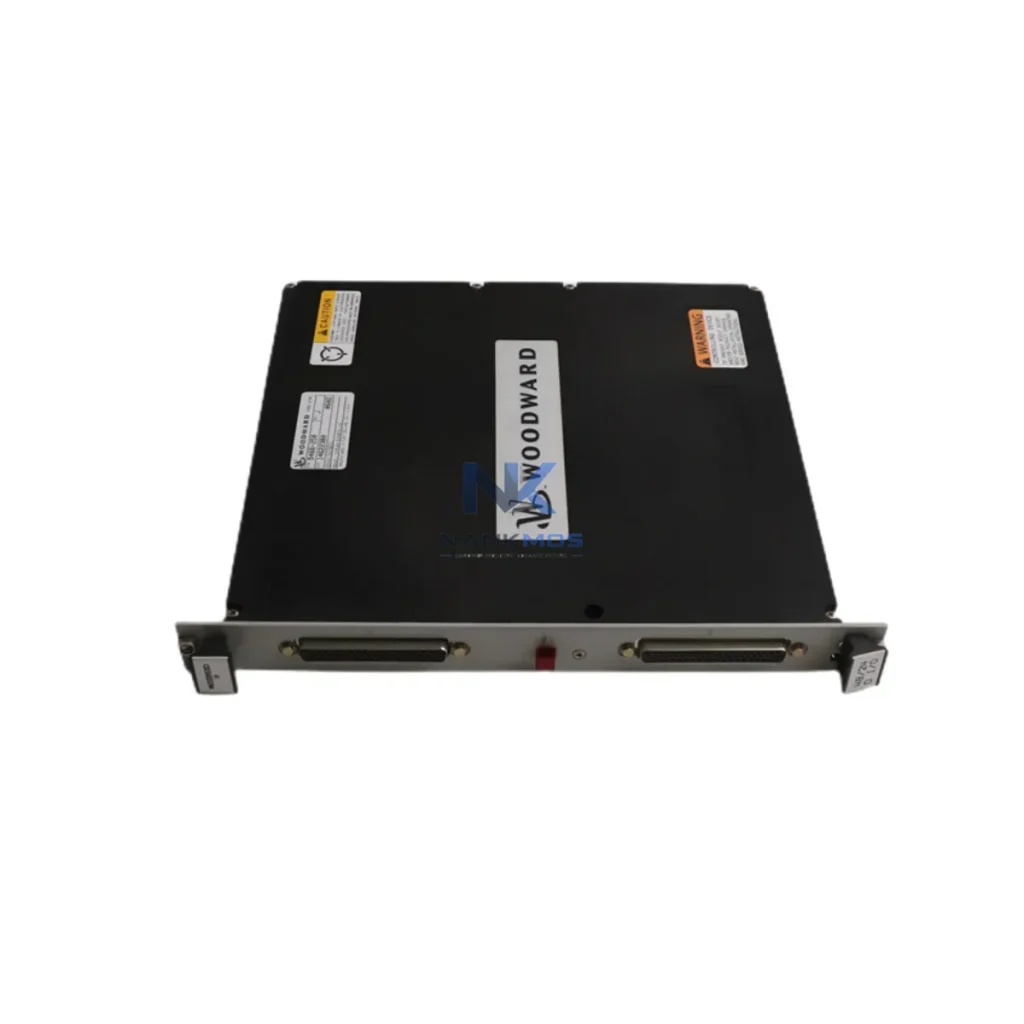

Woodward 5466-258 Discrete I/O Module

Product Details

5466-258 Product Description

The Woodward 5466-258 is a Simplex Discrete I/O Module engineered for seamless integration within the Woodward MicroNet turbine and engine control platform. Designed to handle digital signal acquisition and output distribution across the full control hierarchy, this module serves as a critical node in the I/O layer — bridging field-level actuators, sensors, and protective relays with the MicroNet CPU core. Its deterministic signal handling, rugged industrial construction, and compatibility with the MicroNet backplane architecture make it an essential component for turbine control panels, compressor stations, power generation skids, and process-critical automation systems requiring long-term operational reliability.

In a complete MicroNet control architecture, the 5466-258 operates in coordination with the MicroNet CPU module (e.g., Woodward 5466-885 or 5466-886), the MicroNet power supply module (e.g., 5466-279), and the MicroNet communication gateway to form a tightly integrated control loop. The discrete I/O signals managed by this module feed directly into the CPU's logic execution cycle, enabling real-time response to field events such as emergency shutdowns, valve position feedback, permissive interlocks, and alarm relay outputs. This tight coupling between the I/O layer and the control layer is fundamental to achieving sub-100ms response times in turbine protection sequences.

The Woodward 5466-258 is most effective when deployed as part of a fully coordinated MicroNet automation platform. In a typical turbine control cabinet, this module occupies a dedicated I/O slot within the MicroNet rack alongside the Woodward 5466-885 MicroNet CPU Module, which executes the control application and processes all discrete signal states in real time. The Woodward 5466-279 Power Supply Module provides regulated 24 VDC backplane power to the entire rack, ensuring stable operation of the 5466-258 and all co-resident I/O modules under load transients.

For applications requiring analog process variable integration alongside discrete control, the Woodward 5466-257 Analog I/O Module is typically installed in an adjacent slot, sharing the same backplane bus and CPU scan cycle. This parallel I/O architecture allows the MicroNet system to simultaneously manage speed reference signals, temperature inputs, and discrete permissive interlocks within a single deterministic control loop — a configuration common in gas turbine, steam turbine, and reciprocating engine control panels.

Communication between the MicroNet rack and plant-level SCADA or DCS systems is handled by the Woodward MicroNet Communication Gateway (supporting Modbus RTU, Modbus TCP, or DeviceNet depending on configuration), which aggregates discrete I/O states from the 5466-258 and transmits them upstream to historian servers, operator workstations, or distributed control platforms such as ABB System 800xA or Honeywell Experion PKS. This integration layer ensures that all discrete events — including emergency shutdown activations, valve open/close confirmations, and alarm relay states — are logged with millisecond-level timestamps for post-event analysis and regulatory compliance.

In redundant or high-availability architectures, the 5466-258 Simplex module may be paired with a Woodward MicroNet TMR (Triple Modular Redundant) I/O chassis, where three independent I/O channels vote on signal validity before passing the result to the CPU. This TMR configuration is standard in API 670-compliant machinery protection systems and SIL 2/3 safety instrumented systems for critical rotating equipment. The Woodward 5466-470 or equivalent TMR backplane provides the physical infrastructure for this redundant I/O deployment.

At the field interface level, the 5466-258 connects to terminal blocks, marshalling panels, and signal conditioning modules such as Phoenix Contact MACX signal isolators or Pepperl+Fuchs intrinsic safety barriers for hazardous area installations. These signal conditioning components ensure that discrete inputs from proximity switches, pressure switches, and solenoid valve position feedback are properly conditioned before entering the MicroNet I/O layer — protecting the module from field-side transients and ground loops that could compromise signal integrity in high-noise industrial environments.

For HMI integration, the MicroNet system communicates with Woodward easYgen or Protech HMI panels, or with third-party operator interfaces such as Siemens SIMATIC HMI TP700/TP900 series, providing operators with real-time visibility into discrete I/O states, alarm conditions, and interlock status. This HMI layer is essential for commissioning, diagnostics, and routine maintenance operations where technicians need to verify individual channel states without accessing the control cabinet directly.

Power Generation: In gas turbine and steam turbine power plants, the Woodward 5466-258 manages discrete signals for fuel valve position feedback, lube oil pressure switches, vibration trip relays, and generator breaker status. Its deterministic scan cycle ensures that emergency shutdown sequences are executed within the required response time for API 670 and NFPA 85 compliance. The module's rugged construction supports continuous operation in turbine enclosures where ambient temperatures, vibration levels, and electromagnetic interference exceed standard industrial limits.

Oil & Gas / Petrochemical: Compressor stations and gas processing facilities deploy the 5466-258 to handle discrete interlocks for high-pressure shutdown valves, anti-surge valve position feedback, and process safety system permissives. In these applications, the module interfaces with SIL-rated field instruments and contributes to the overall Safety Integrity Level of the compressor control system. Its compatibility with MicroNet TMR architectures makes it suitable for SIL 2 applications where single-point failures must be tolerated without process interruption.

Marine & Offshore: Offshore platform power management systems and marine diesel generator control panels use the 5466-258 for discrete load management, blackout prevention interlocks, and engine protection relay outputs. The module's wide operating temperature range and vibration tolerance meet DNV GL and ABS marine classification requirements for shipboard control equipment.

Water & Wastewater: Pump station control systems and water treatment facilities integrate the 5466-258 for discrete pump run/stop commands, valve open/close feedback, and level switch inputs. Its compatibility with Modbus-based SCADA systems allows seamless integration with plant-wide monitoring platforms used in municipal water infrastructure.

Mining & Metals: Conveyor drive control systems, crusher protection panels, and ventilation fan control cabinets in underground mining operations use the 5466-258 for discrete safety interlock management. The module's ability to handle multiple discrete channels simultaneously reduces panel wiring complexity and improves fault isolation in distributed mining control architectures.

Q1: Is the Woodward 5466-258 compatible with both MicroNet Simplex and MicroNet TMR control architectures? A: The 5466-258 is a Simplex-rated Discrete I/O Module designed for standard MicroNet Simplex rack configurations. For TMR (Triple Modular Redundant) architectures requiring voted I/O, Woodward offers dedicated TMR I/O modules that provide three independent signal channels with hardware voting logic. In mixed architectures where a Simplex I/O module is used for non-safety-critical discrete signals alongside a TMR CPU, the 5466-258 can be integrated as a supplementary I/O resource, subject to the system integrator's safety analysis and Woodward's application engineering approval.

Q2: What is the recommended maintenance and calibration interval for the Woodward 5466-258 in continuous turbine control service? A: Woodward recommends functional testing of discrete I/O modules at intervals aligned with the turbine's scheduled maintenance outage, typically every 8,000–12,000 operating hours or annually, whichever occurs first. During maintenance, each discrete input channel should be verified by injecting a known signal state and confirming the CPU's response, while output channels should be tested by commanding each output and verifying field device actuation. The 5466-258's modular design allows hot-swap replacement in some MicroNet configurations, minimizing downtime during corrective maintenance. All units supplied by NANKMOS include a 12-Month Warranty covering manufacturing defects and functional failures under normal operating conditions.

Q3: What is the lead time and global shipping availability for the Woodward 5466-258? A: NANKMOS maintains in-stock inventory of the Woodward 5466-258 to support urgent replacement and planned maintenance requirements globally. Standard orders ship within 3–5 business days via DHL Express, FedEx International Priority, or UPS Worldwide, with export documentation including commercial invoice, packing list, and certificate of origin provided for customs clearance. For large-volume orders or project-based procurement, NANKMOS offers dedicated inventory reservation and phased delivery scheduling. All units undergo pre-shipment functional testing and are shipped in anti-static, shock-protected packaging to ensure module integrity upon arrival.
