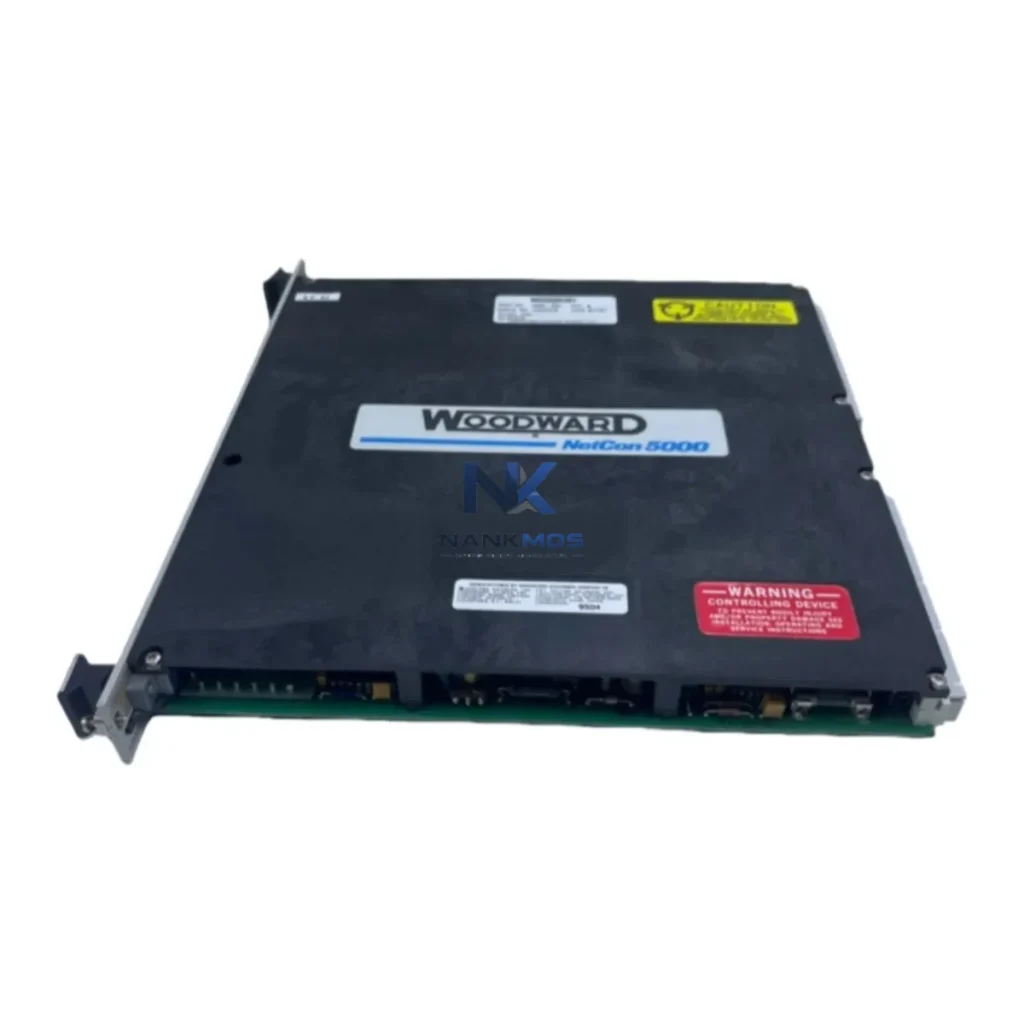

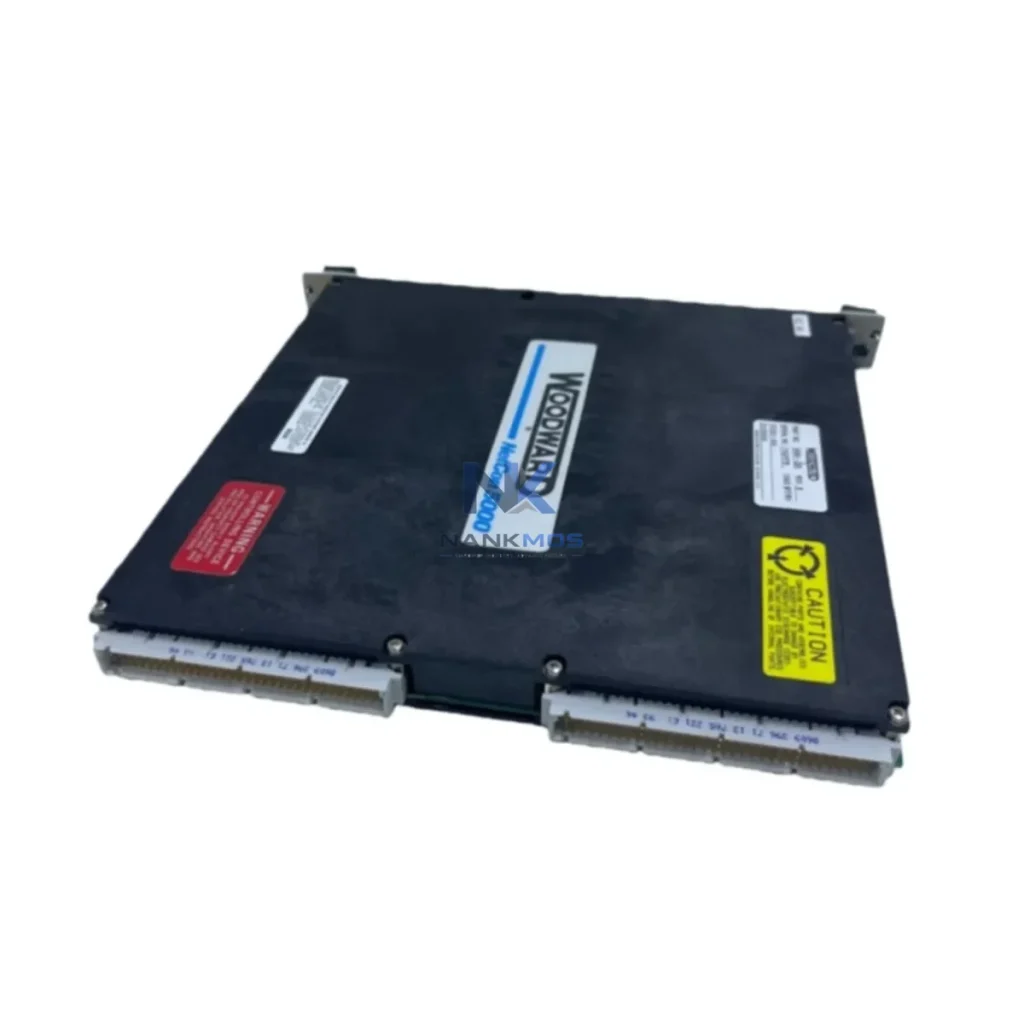

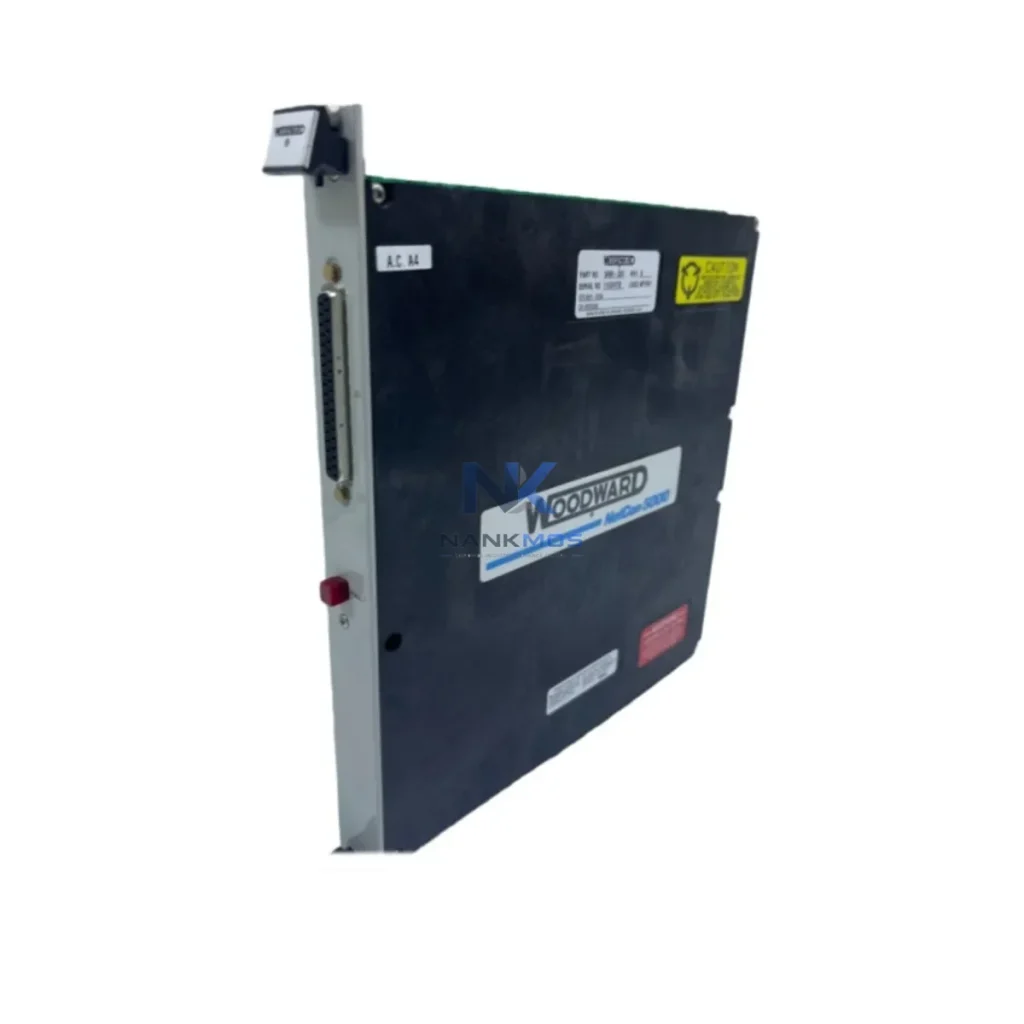

Woodward 5464-334 Analog Input Module

Product Details

5464-334 Product Description

The Woodward 5464-334 is an 8-channel analog input module engineered for the Woodward 5400 Series control platform, delivering precision signal acquisition and seamless multi-protocol data integration across modern smart factory environments. Designed to serve as a critical node in the industrial data chain, the 5464-334 bridges field-level instrumentation with supervisory control systems, enabling real-time visibility, remote diagnostics, and continuous process optimization from sensor to cloud.

In today's connected manufacturing landscape, the ability to capture, convert, and transmit analog signals with minimal latency is foundational to operational excellence. The Woodward 5464-334 fulfills this role by accepting 4–20 mA and 0–10 V analog inputs from field devices such as pressure transmitters, flow sensors, temperature probes, and position transducers, then converting these signals into structured digital data streams compatible with the 5400 Series backplane communication architecture. This data is made available to upstream PLC controllers, SCADA servers, and HMI terminals without signal degradation or protocol mismatch.

The Woodward 5464-334 sits at the heart of a layered industrial data architecture. At the field level, analog sensors — including thermocouple transmitters, pressure transducers, and vibration probes — feed raw process signals into the 5464-334's input channels. The module performs high-resolution analog-to-digital conversion and places structured data onto the 5400 Series backplane, where it becomes immediately accessible to the Woodward 5400 Series CPU module for real-time control logic execution.

From the CPU, processed data is forwarded via the system's communication gateway — such as the Woodward 5441-839 Ethernet Communication Module — onto the plant Ethernet backbone. Industrial managed switches, such as those in the Hirschmann MACH series or Moxa EDS series, route this data across segmented network zones to SCADA servers running platforms like Wonderware InTouch or Ignition by Inductive Automation. Operators at HMI terminals — including Woodward easYgen series operator panels — gain live visibility into analog process values, trend histories, and alarm states.

For remote I/O expansion, the 5464-334 works in conjunction with distributed I/O racks connected through Woodward 5441-838 CANopen Communication Modules, extending the analog acquisition network across large plant footprints without additional wiring infrastructure. Variable frequency drives (VFDs) and motor controllers receive setpoint commands derived from the analog data processed by the 5464-334, closing the control loop between field measurement and actuator response.

Edge computing gateways — such as those from the Moxa UC series or Advantech WISE series — can subscribe to the data stream from the 5400 Series network, enabling local analytics, anomaly detection, and OPC-UA data publishing to MES and ERP systems. This complete data pathway — from analog signal acquisition through protocol conversion, network transmission, SCADA visualization, and enterprise reporting — makes the Woodward 5464-334 a foundational component in any smart factory data strategy.

Protocol Fragmentation: Many industrial sites operate legacy equipment using proprietary analog signal standards alongside modern digital protocols. The Woodward 5464-334 resolves this by standardizing analog inputs from diverse field devices into a unified digital format on the 5400 Series backplane, eliminating signal incompatibility between older instrumentation and modern control networks.

Data Silos and Production Transparency: Without reliable analog input modules, process data remains trapped at the field level, invisible to supervisory systems. The 5464-334 ensures that every analog measurement — flow rate, pressure, temperature, position — is continuously available to SCADA, MES, and cloud analytics platforms, enabling full production line transparency and data-driven decision-making.

Remote Monitoring and Diagnostics: The 5464-334 supports remote channel diagnostics through the 5400 Series communication architecture, allowing maintenance engineers to monitor input signal health, detect open-circuit or out-of-range conditions, and perform fault isolation without physical site visits. This capability significantly reduces mean time to repair (MTTR) and supports predictive maintenance programs.

Alarm Tracking and Event Management: Integrated with SCADA alarm management systems, the 5464-334 enables threshold-based alerting on any of its eight analog channels. Process exceedances trigger timestamped alarm events that are logged, escalated, and reviewed through the plant's alarm management workflow, ensuring regulatory compliance and rapid operator response.

System Scalability: As production capacity grows, additional 5464-334 modules can be added to the 5400 Series rack without system reconfiguration, providing a scalable analog I/O expansion path that protects the initial control system investment.

Outgoing Inspection and Inventory: Every Woodward 5464-334 unit supplied by NANKMOS undergoes pre-shipment functional testing to verify channel accuracy, signal integrity, and communication readiness. We maintain ready stock to support urgent project timelines, with same-week dispatch available for qualified orders.

Q1: What communication protocols does the Woodward 5464-334 support for SCADA integration?The 5464-334 communicates natively over the Woodward 5400 Series backplane bus. For SCADA integration, the 5400 Series system supports Modbus TCP/RTU and Ethernet/IP via dedicated communication modules such as the 5441-839, enabling direct connectivity to SCADA platforms including Wonderware, iFIX, and Ignition without additional protocol converters.

Q2: How does the 5464-334 ensure network stability in high-noise industrial environments?The module is designed to operate within the electrically noisy conditions typical of industrial plants, incorporating signal isolation and filtering on each analog input channel. When deployed within a properly grounded 5400 Series rack and connected via shielded field wiring, the 5464-334 maintains signal integrity and communication stability even in proximity to high-power drives and switching equipment.

Q3: Can the Woodward 5464-334 be used for remote diagnostics and predictive maintenance?Yes. Through the 5400 Series communication gateway, channel-level diagnostic data — including signal range status and fault flags — is accessible to remote SCADA and asset management systems. This enables maintenance teams to monitor analog input health in real time, schedule preventive interventions, and reduce unplanned downtime.

Q4: What warranty and post-sale support does NANKMOS provide for the 5464-334?NANKMOS provides a 12-month warranty on all Woodward 5464-334 units, covering manufacturing defects and functional failures under normal operating conditions. Each unit is pre-tested before shipment. Our technical team is available to support installation, commissioning, and troubleshooting inquiries throughout the warranty period and beyond.
