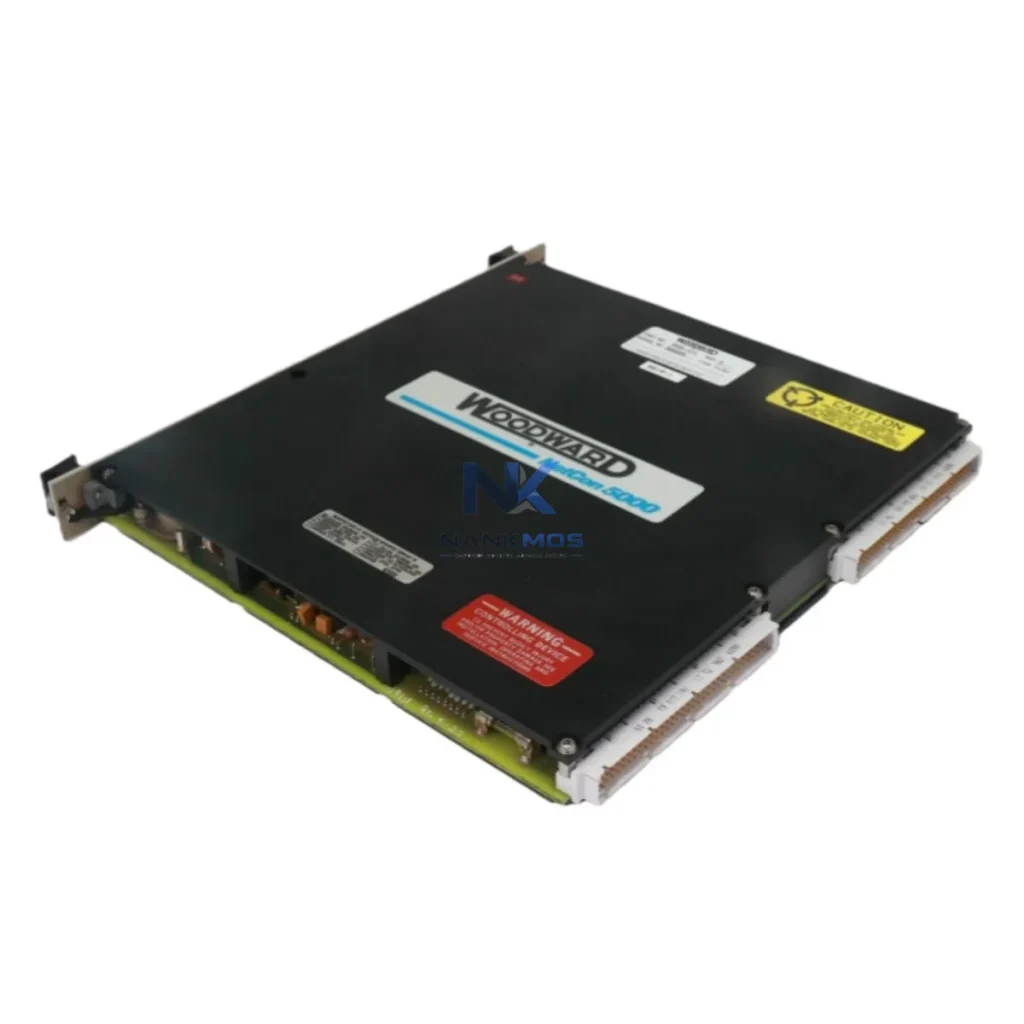

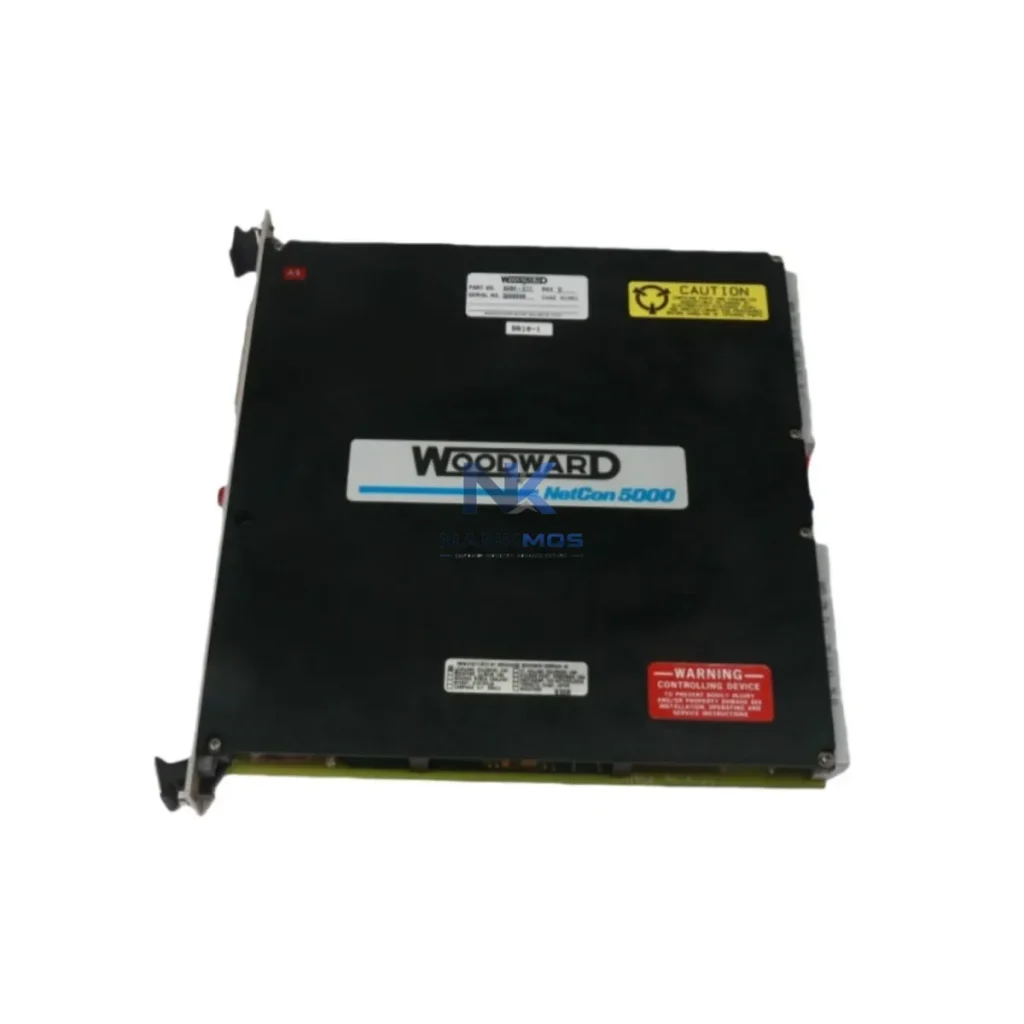

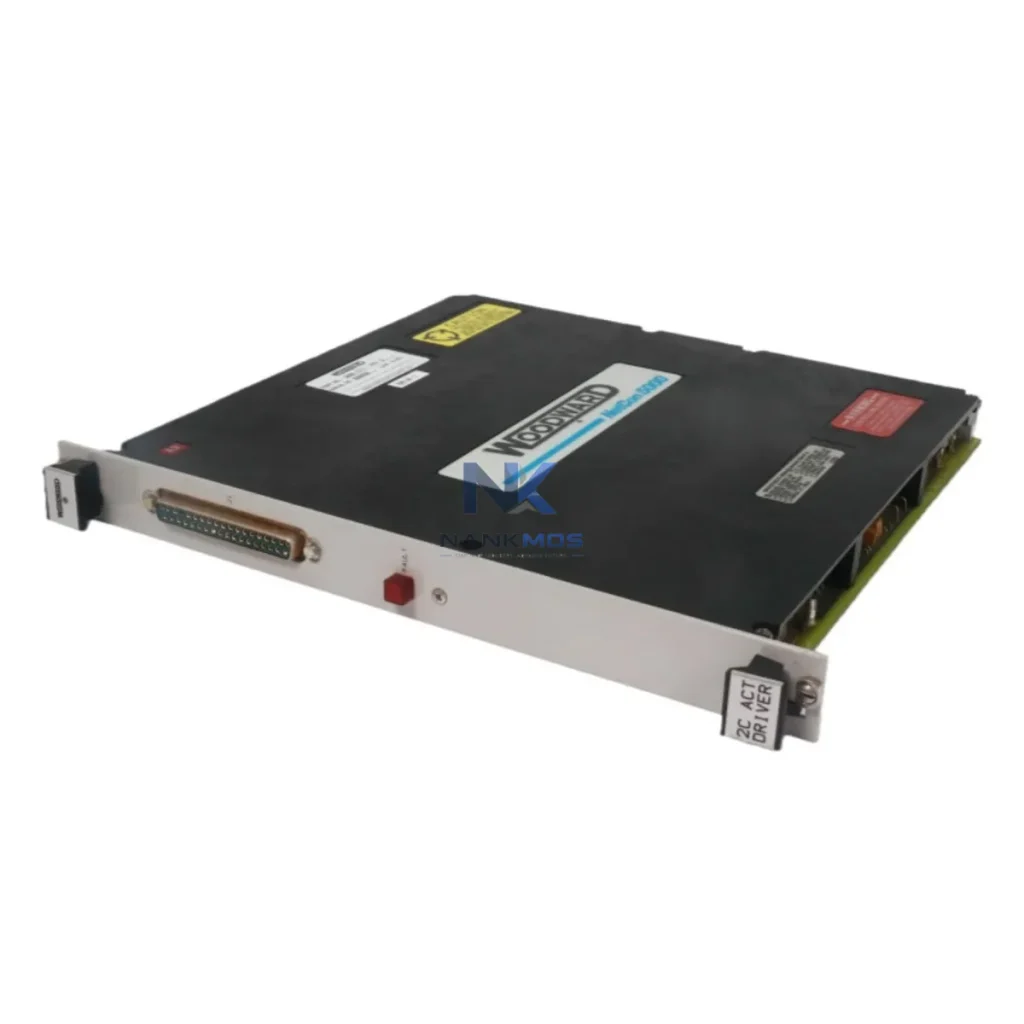

Woodward 5464-335 Digital Control Module

Product Details

5464-335 Product Description

The Woodward 5464-335 is a high-performance digital control module engineered for seamless integration within the MicroNet control platform — one of Woodward's most widely deployed turbine and industrial governor architectures. Designed to operate at the core of multi-layer automation systems, the 5464-335 delivers deterministic control execution, robust signal processing, and reliable inter-module communication across demanding industrial environments including power generation, oil & gas, petrochemical, marine propulsion, and heavy process industries.

Unlike standalone controllers, the 5464-335 is purpose-built for system-level deployment. Its value is fully realized when integrated within a coordinated control cabinet that includes complementary I/O modules, communication gateways, power supply units, and HMI interfaces — all operating under a unified MicroNet control strategy. This architectural coherence ensures signal integrity from sensor input through to actuator output, minimizing latency and maximizing system determinism across the full control loop.

The 5464-335 achieves its full operational potential when deployed as part of a complete MicroNet control architecture. At the control layer, it works in coordination with the Woodward MicroNet Plus CPU module and MicroNet TMR (Triple Modular Redundancy) controllers to deliver fault-tolerant governor logic for critical turbine applications. Redundancy at the control layer ensures that a single module failure does not interrupt the control loop — a requirement in power plant and compressor station environments where unplanned downtime carries significant operational cost.

At the I/O layer, the 5464-335 interfaces with Woodward MicroNet analog input modules and digital I/O expansion cards to aggregate field signals from thermocouples, RTDs, pressure transmitters, and proximity sensors. These signals are conditioned and passed through the backplane to the control module for real-time processing. The backplane architecture itself — using MicroNet rack assemblies — provides the physical and electrical foundation for modular expansion, allowing engineers to scale I/O capacity without redesigning the control cabinet.

Communication integrity is maintained through Woodward MicroNet communication gateway modules, which bridge the MicroNet backplane to plant-level networks including Modbus RTU, Modbus TCP/IP, PROFIBUS DP, and DNP3. This enables the 5464-335 to participate in SCADA integration, DCS coordination, and remote monitoring platforms without requiring additional protocol converters. For HMI connectivity, the module supports integration with Woodward Toolkit software and compatible industrial HMI panels, providing operators with real-time parameter visualization, setpoint adjustment, and alarm management.

At the power layer, the 5464-335 relies on stable DC supply from MicroNet-compatible power supply modules, which typically include redundant power input paths to prevent supply-side failures from propagating to the control layer. Signal isolation between field devices and the control module is further enhanced through signal isolator modules and terminal block assemblies, which protect the 5464-335 from ground loops, transient surges, and common-mode noise — all common challenges in high-voltage industrial environments.

For drive and actuator coordination, the 5464-335 outputs control signals to Woodward electro-hydraulic actuators, proportional valves, and compatible servo amplifier modules, completing the closed-loop control chain from sensor input to final control element. This end-to-end signal flow — from field instrument through I/O module, across the backplane, through the 5464-335, and out to the actuator — defines the system's control architecture and is the foundation of MicroNet's reputation for precision governor control.

Power Generation: In gas turbine and steam turbine power plants, the 5464-335 serves as the digital governor controller managing fuel valve positioning, speed control, load sharing, and protective trip logic. Its deterministic scan cycle ensures that speed deviations are corrected within milliseconds, preventing overspeed events and maintaining grid synchronization stability.

Oil & Gas and Petrochemical: Compressor stations and gas processing facilities deploy the 5464-335 within anti-surge control systems and process governor applications. Its compatibility with hazardous-area-rated enclosures and its robust signal conditioning make it suitable for upstream and midstream environments where signal noise and vibration are constant challenges.

Marine Propulsion: Shipboard diesel engine governor systems use the 5464-335 to manage propulsion speed and load under variable sea conditions. The module's ability to handle rapid load transients and its compatibility with marine-grade power supplies make it a preferred choice for vessel control system integrators.

Water and Wastewater Treatment: Pump station and turbine-driven generator control systems in water utilities benefit from the 5464-335's modular architecture, which allows maintenance teams to replace individual modules without shutting down the entire control system — reducing planned maintenance windows and improving plant availability.

Mining and Metallurgy: In mineral processing and smelting operations, the 5464-335 supports motor drive coordination, kiln speed control, and process governor functions. Its wide operating temperature range and industrial-grade construction ensure reliable performance in dusty, high-vibration environments.

Q1: Is the Woodward 5464-335 compatible with existing MicroNet rack assemblies and backplane configurations?A: Yes. The 5464-335 is designed for direct integration into standard MicroNet rack assemblies. It is compatible with existing MicroNet backplane bus architectures, allowing it to be used as a drop-in replacement or system expansion module without requiring rack or wiring modifications. Engineers should verify firmware revision compatibility with the host CPU module prior to installation to ensure full feature parity.

Q2: What redundancy options are available when deploying the 5464-335 in critical control applications?A: The 5464-335 can be deployed within MicroNet TMR (Triple Modular Redundancy) architectures, where three independent control modules vote on output commands to eliminate single-point failures. For applications requiring high availability without full TMR, dual-redundant configurations using hot-standby CPU modules are also supported within the MicroNet platform. Power supply redundancy should be implemented at the cabinet level using dual power supply modules with automatic switchover.

Q3: What warranty and supply assurance does NANKMOS provide for the Woodward 5464-335?A: NANKMOS provides a 12-Month Warranty on the Woodward 5464-335, covering manufacturing defects and functional failures under normal operating conditions. Each unit undergoes pre-shipment functional testing to verify control output integrity, communication bus response, and power supply compatibility before dispatch. NANKMOS maintains inventory stock of the 5464-335 and related MicroNet platform components to support urgent replacement requirements and planned maintenance schedules. For procurement inquiries, contact [email protected] or +86 18359268345.
