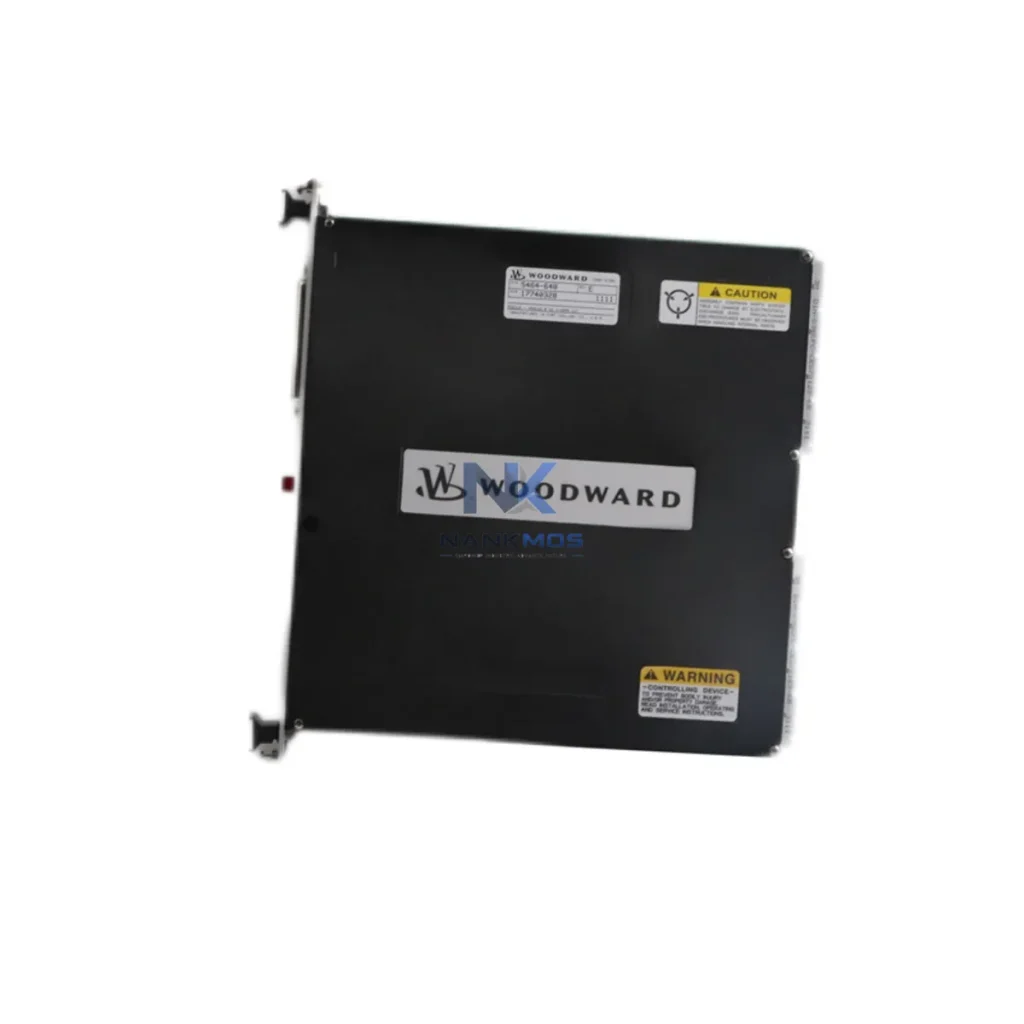

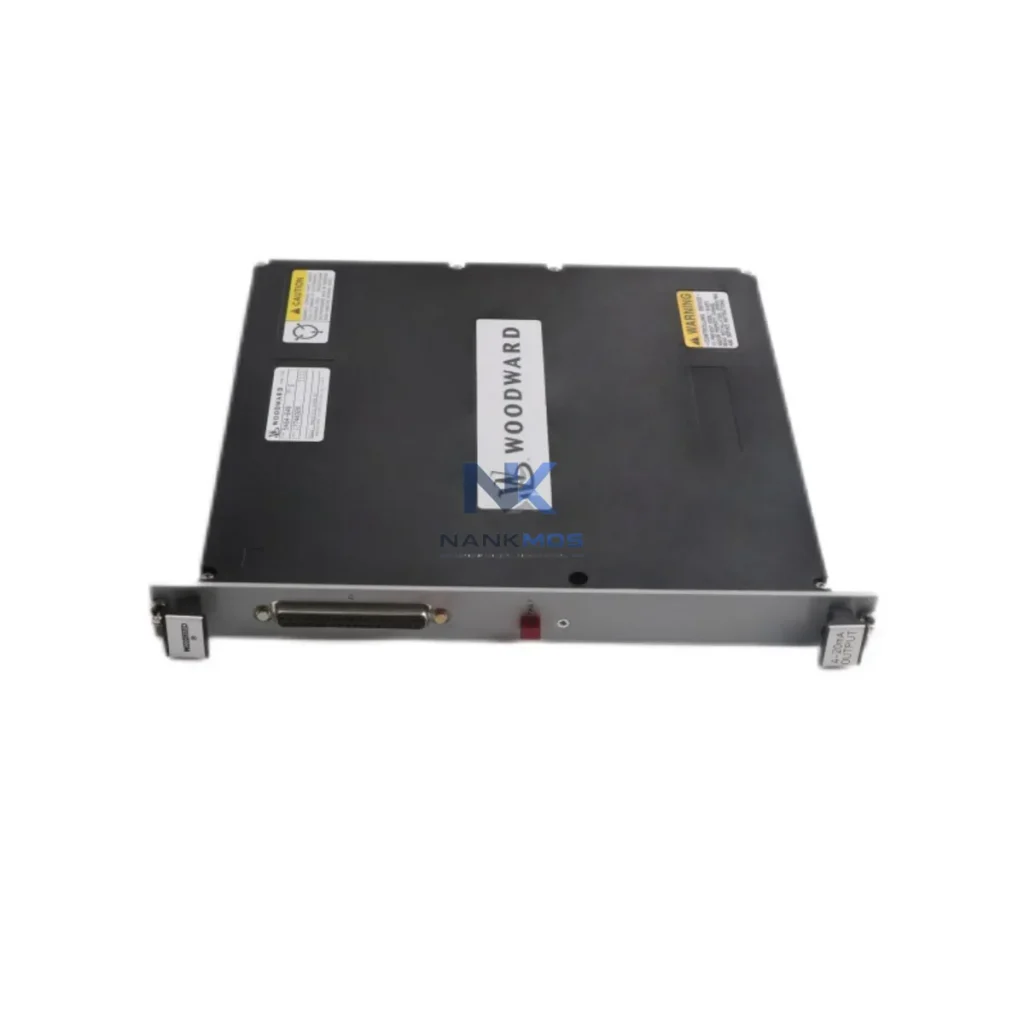

Woodward 5464-648 Analog Output Module

Product Details

5464-648 Product Description

The Woodward 5464-648 is an 8-channel, 4–20 mA analog output module engineered for the Woodward 500 Series turbine and generator control platform. Designed to deliver precise signal conditioning and low-latency command output, this module plays a central role in energy-efficient industrial automation — enabling real-time load management, drive regulation, and equipment utilization optimization across power generation, oil and gas, and process manufacturing environments.

In smart production lines where energy consumption directly impacts operating costs, the 5464-648 provides the analog backbone that connects control logic to physical actuators. Its high-resolution output channels ensure that fuel valves, variable-speed drives, and servo actuators receive accurate setpoint signals, eliminating signal drift that leads to over-consumption and thermal overload. By maintaining tight output tolerances, the module reduces unnecessary energy draw from connected motors and drives, contributing directly to measurable reductions in plant-wide energy expenditure.

The Woodward 5464-648 operates as a precision signal source within a broader energy-aware automation architecture. In turbine governor applications, it works in tandem with the Woodward 505 Digital Governor and Woodward 723 Load Sharing and Speed Control module to regulate fuel flow and generator output with minimal energy overshoot. The 4–20 mA signals generated by the 5464-648 are consumed by electro-hydraulic actuators, I/P transducers, and variable frequency drives (VFDs) that modulate compressor and pump speeds in real time — a critical function for reducing peak demand charges and improving power factor across the facility.

Within the 500 Series control rack, the 5464-648 interfaces directly with the Woodward 5464-646 analog input module, enabling closed-loop feedback control where output commands are continuously validated against process measurements. This closed-loop architecture is essential for energy optimization: it prevents actuator hunting, reduces thermal cycling in motor windings, and ensures that drives such as the Woodward EG3P actuator or compatible third-party servo drives operate within their most efficient torque-speed curves.

For facilities integrating SCADA systems or distributed control systems (DCS), the 5464-648 output signals are typically routed through Woodward 5464-654 communication interface modules or Modbus RTU gateways, allowing energy management systems (EMS) to monitor and log actuator demand in real time. HMI panels connected to the 500 Series platform can display live output channel values, enabling operators to identify inefficient load profiles and intervene before energy waste escalates. Paired with Woodward 5464-650 power supply modules, the entire control rack maintains stable, regulated power delivery — preventing voltage sag that can cause erratic actuator behavior and associated energy spikes.

In process manufacturing and power generation environments, unplanned downtime and inefficient load transitions are among the largest contributors to energy waste. The Woodward 5464-648 addresses both challenges through its stable, repeatable analog output performance. When integrated into a turbine control system managing a cogeneration plant or a compressor train, the module ensures that speed and load setpoints are delivered with microsecond-level consistency — eliminating the ramp-up energy penalties associated with imprecise control signals.

The module's ability to maintain output accuracy across wide temperature ranges (-40°C to +70°C) means it performs reliably in both indoor control rooms and outdoor enclosures, reducing the need for redundant heating or cooling systems that would otherwise add to facility energy loads. Its low self-consumption design ensures that the control system itself does not become a significant energy consumer, a consideration that becomes material in large installations with dozens of I/O modules operating continuously.

Predictive maintenance strategies benefit directly from the 5464-648's consistent output behavior. When output channel performance is logged over time via the connected SCADA or EMS platform, deviations from baseline signal levels can indicate actuator wear, valve fouling, or drive degradation — allowing maintenance teams to schedule interventions during planned downtime windows rather than responding to emergency failures. This shift from reactive to predictive maintenance reduces both energy waste from degraded equipment and the production losses associated with unplanned stoppages.

All units are shipped after full functional testing across all 8 output channels, with calibration verification against NIST-traceable standards. Stock is maintained for immediate dispatch, and each module is covered by a 12-Month Warranty, ensuring that your production line investment is protected from day one of installation.

Q1: How does the Woodward 5464-648 contribute to energy savings in a turbine control application?The 5464-648 delivers precise 4–20 mA setpoint signals to fuel valves and actuators, eliminating the signal drift and actuator hunting that cause fuel over-consumption. In closed-loop governor systems, this precision directly reduces specific fuel consumption and lowers CO₂ output per unit of generated power.

Q2: Is the 5464-648 compatible with third-party VFDs and servo drives outside the Woodward ecosystem?Yes. The 4–20 mA output standard is universally accepted by variable frequency drives, servo amplifiers, and I/P transducers from major manufacturers. The module can be integrated into mixed-vendor automation architectures provided the host controller is a Woodward 500 Series platform.

Q3: What is the recommended replacement or upgrade path if the 5464-648 is discontinued or unavailable?For applications requiring continued 500 Series compatibility, the Woodward 5464-648 should be sourced from authorized distributors with verified stock. For new system designs, Woodward's MicroNet TMR or ProTech TPS platforms offer expanded I/O capabilities with enhanced energy monitoring features. Contact our technical team for cross-reference and migration support.

Q4: What does the 12-Month Warranty cover, and how is pre-shipment testing conducted?Every Woodward 5464-648 unit undergoes full 8-channel output verification, load regulation testing, and thermal cycling checks prior to shipment. The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions. Expedited replacement is available for critical production line applications to minimize downtime exposure.
