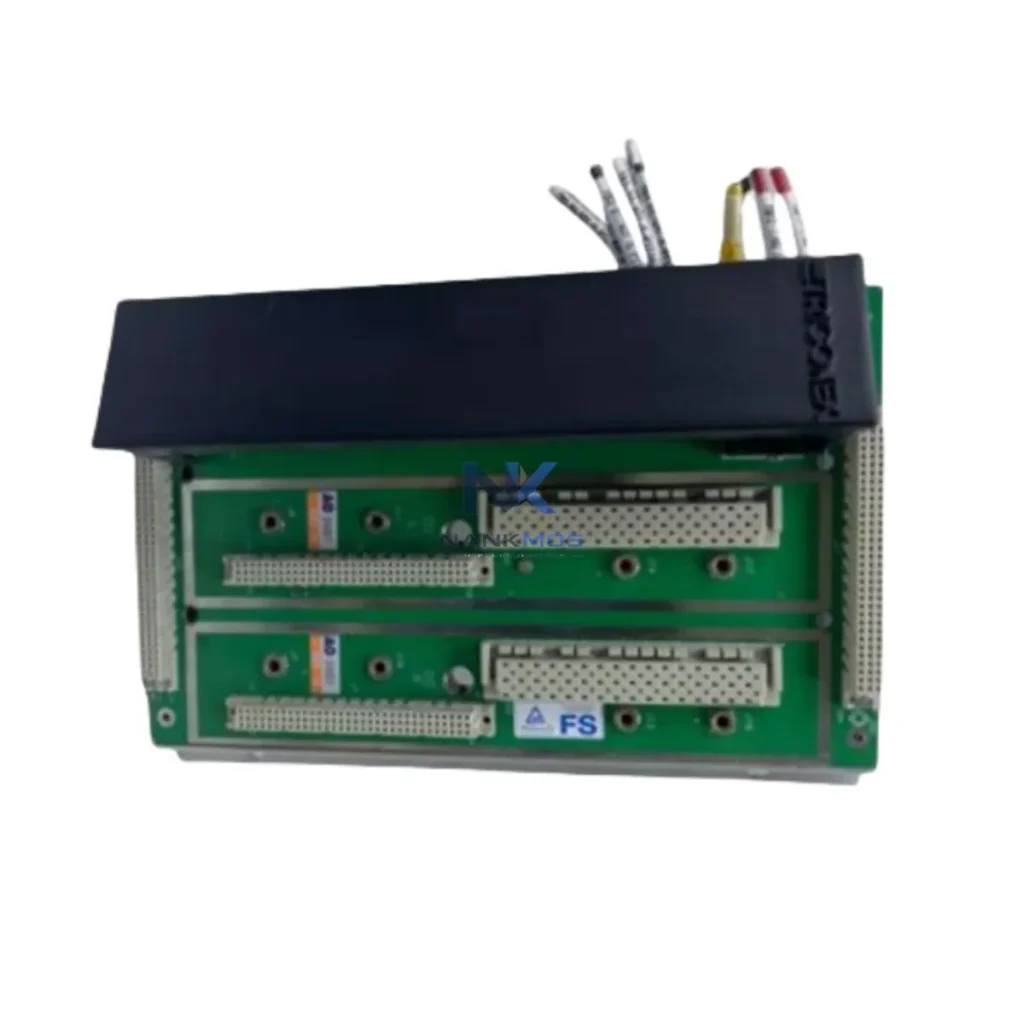

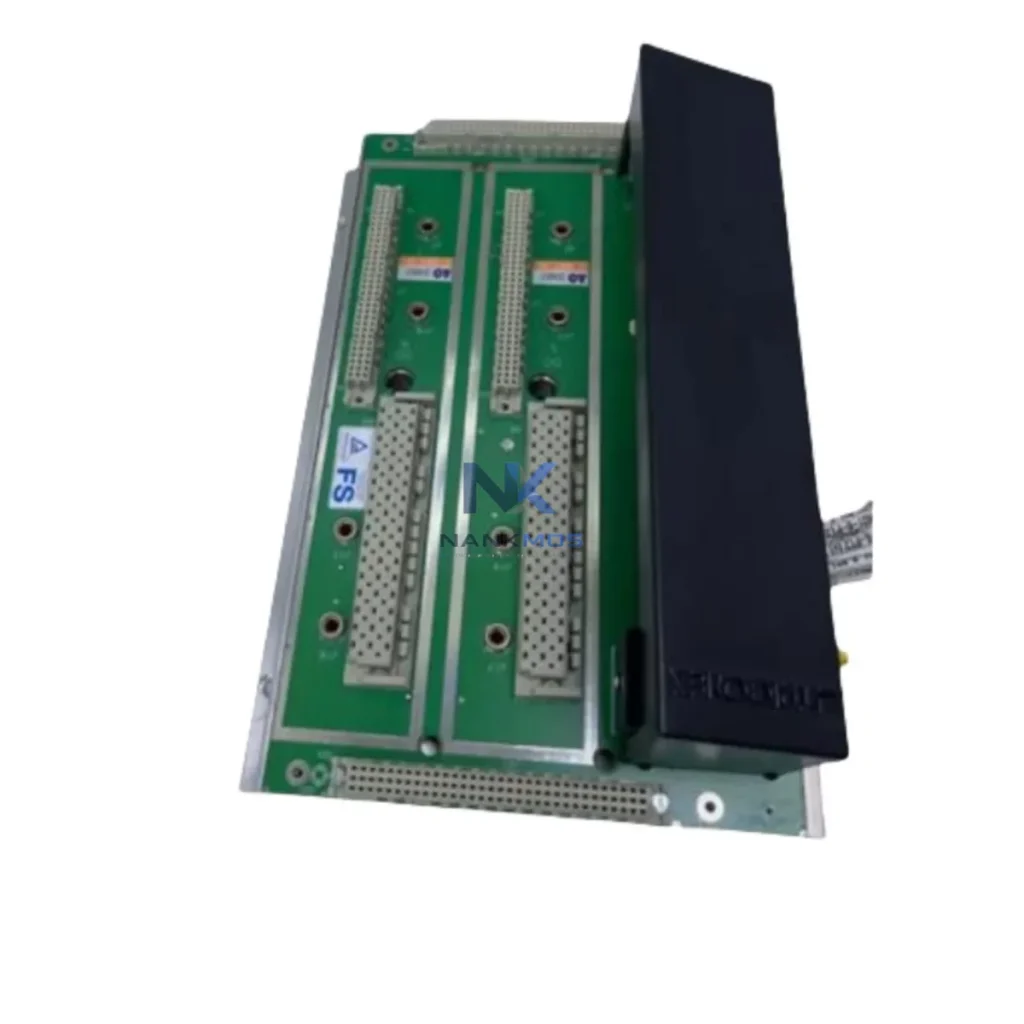

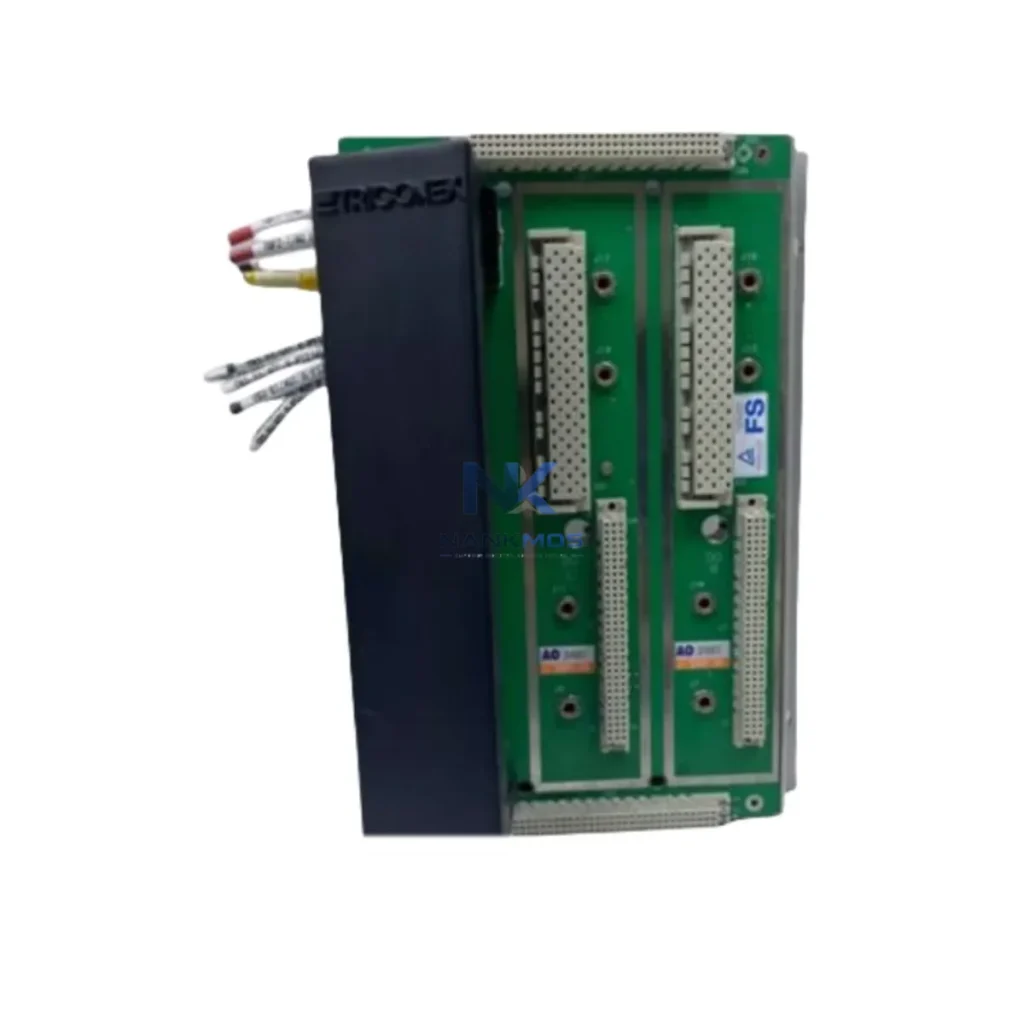

Triconex 7400221-100 Digital I/O Baseplate

Product Details

7400221-100 Product Description

The Triconex 7400221-100 Digital I/O Baseplate is a core infrastructure component engineered for Tricon Triple Modular Redundant (TMR) safety systems deployed across power generation, petrochemical refining, oil & gas processing, and advanced manufacturing environments. As industrial facilities accelerate their transition toward smart factory architectures, the 7400221-100 serves as a critical node in the digital data chain — bridging field-level safety I/O signals with supervisory control networks, SCADA platforms, and enterprise data systems.

In a modern connected plant, every digital signal matters. The 7400221-100 baseplate provides the physical and electrical foundation for mounting Triconex digital input and output modules within the Tricon chassis, ensuring that discrete field signals — from emergency shutdown valves, pressure switches, motor starters, and flame detectors — are reliably captured, processed through TMR voting logic, and transmitted upstream to DCS controllers, HMI workstations, and SCADA servers. This unbroken data path from sensor to system is the backbone of real-time industrial monitoring and remote diagnostics.

When integrated with Triconex communication modules such as the TCM 4351B or TCM 4352B, the 7400221-100 baseplate enables the Tricon safety system to exchange process data over standard industrial protocols including Modbus RTU, Modbus TCP/IP, and OPC-DA/OPC-UA. This protocol bridge allows SCADA platforms — such as Wonderware System Platform, Ignition SCADA, or Yokogawa CENTUM VP — to poll real-time I/O status, acknowledge alarms, and log safety events without interrupting the TMR safety execution cycle. The result is a fully transparent safety layer that feeds live data into plant-wide dashboards and historian databases.

The 7400221-100 is designed to work in concert with the broader Triconex ecosystem. Digital input modules such as the Triconex 3501E and 3503E, and digital output modules like the 3601E and 3603E, seat directly onto the baseplate, forming a complete I/O assembly within the Tricon 3000 or Tricon 3006 chassis. Each module communicates through the baseplate's internal TMR bus, ensuring that all three redundant processing legs receive identical signal data — a fundamental requirement for SIL 3 safety integrity. The Triconex Main Processor 3008 coordinates the voting logic and manages communication with upstream network infrastructure.

From a smart factory data flow perspective, the 7400221-100 participates in a layered architecture. At the field level, discrete sensors and actuators connect to the digital I/O modules mounted on the baseplate. These signals are processed by the Tricon TMR controller and made available to the plant network via the Triconex communication gateway. At the control level, PLCs and DCS controllers — including systems from Emerson DeltaV or Honeywell Experion — can receive safety status data through OPC-UA server interfaces, enabling coordinated process control decisions that respect safety system boundaries. At the supervisory level, SCADA and MES platforms aggregate this data for production reporting, KPI tracking, and regulatory compliance documentation.

Remote diagnostics capability is a key value driver for the 7400221-100 in connected plant environments. Through the Triconex TriStation 1131 programming and diagnostic software, maintenance engineers can remotely interrogate the health of each I/O channel, review diagnostic counters, and identify degraded modules before they impact safety availability. When paired with an industrial edge gateway — such as a Moxa MGate protocol converter or a Cisco IE3400 industrial switch — the Tricon system can transmit diagnostic data to cloud-based asset management platforms, enabling predictive maintenance workflows and reducing unplanned shutdowns.

Network stability is engineered into the 7400221-100 design. The baseplate supports hot-swap module replacement without interrupting the safety execution cycle, ensuring continuous data availability even during maintenance operations. Redundant power inputs and the TMR architecture eliminate single points of failure, making the 7400221-100 suitable for critical applications where data continuity and system uptime are non-negotiable. Industrial Ethernet connectivity through the Triconex communication layer supports full-duplex data exchange at standard network speeds, compatible with ring topology and star topology industrial network designs using managed switches from vendors such as Hirschmann or Phoenix Contact.

Every Triconex 7400221-100 unit supplied by NANKMOS is sourced from verified supply channels, pre-shipment tested against Triconex functional specifications, and backed by a 12-month warranty. In-stock availability ensures rapid deployment for both planned system expansions and emergency replacement scenarios. Our technical team provides full documentation support, including module compatibility matrices, chassis slot assignment guidance, and network integration checklists to accelerate commissioning.

In a fully connected smart factory, the Triconex 7400221-100 baseplate anchors the safety I/O layer within a multi-tier data architecture. At the field level, discrete signals from pressure transmitters, solenoid valves, motor control centers, and emergency shutdown devices connect to Triconex 3501E digital input modules and 3601E digital output modules seated on the 7400221-100 baseplate. These signals are voted through the TMR logic of the Triconex Main Processor 3008, which executes the safety application at deterministic scan rates.

The processed safety data is then routed through the Triconex TCM 4352B communication module to the plant control network. A Moxa MGate MB3480 Modbus gateway or equivalent protocol converter can bridge the Tricon Modbus interface to an OPC-UA server, making real-time I/O states and diagnostic registers available to Ignition SCADA or Wonderware InTouch HMI clients across the facility network. Managed industrial switches — such as the Hirschmann MACH104 or Phoenix Contact FL SWITCH 2000 series — provide the network backbone, supporting VLAN segmentation between the safety network and the process control network in compliance with IEC 62443 cybersecurity guidelines.

At the supervisory level, historian servers aggregate time-stamped I/O data from the Tricon system alongside process variables from DCS controllers such as Emerson DeltaV SIS, enabling cross-system alarm correlation, safety event reconstruction, and regulatory audit trails. Edge computing nodes running lightweight OPC-UA clients can pre-process this data and forward summarized KPIs to cloud-based MES or ERP platforms, completing the digital thread from field device to enterprise dashboard.

Many industrial sites operating legacy Triconex TMR systems face a common set of data integration challenges. The 7400221-100 baseplate, when properly integrated with modern communication infrastructure, directly addresses these pain points:

Q1: What communication protocols does the Triconex 7400221-100 system support for SCADA integration? The 7400221-100 baseplate itself is a passive I/O mounting component; protocol support is provided by the Triconex communication modules (TCM 4351B / TCM 4352B) installed in the same Tricon chassis. These modules support Modbus RTU, Modbus TCP/IP, OPC-DA, and OPC-UA, enabling integration with all major SCADA and HMI platforms including Ignition, Wonderware, and Yokogawa CENTUM VP.

Q2: Can the Triconex 7400221-100 be replaced without shutting down the safety system? Yes. The Tricon TMR architecture supports hot-swap replacement of I/O modules and baseplates under defined maintenance procedures, allowing module exchange without interrupting the safety execution cycle. This capability is critical for maintaining continuous data availability in 24/7 process environments.

Q3: How does the 7400221-100 contribute to remote diagnostics and predictive maintenance? Through the Triconex TriStation 1131 diagnostic interface, maintenance engineers can remotely access I/O channel health data, diagnostic counters, and fault registers over the plant network. When combined with an industrial edge gateway, this diagnostic data can be forwarded to cloud-based asset management platforms for trend analysis and predictive maintenance scheduling.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the Triconex 7400221-100? Every Triconex 7400221-100 unit supplied by NANKMOS is pre-shipment tested against Triconex functional specifications and covered by a 12-month warranty from the date of delivery. In-stock units are available for immediate dispatch, supporting both planned system upgrades and emergency replacement requirements.
