SAKDU4 Product Description

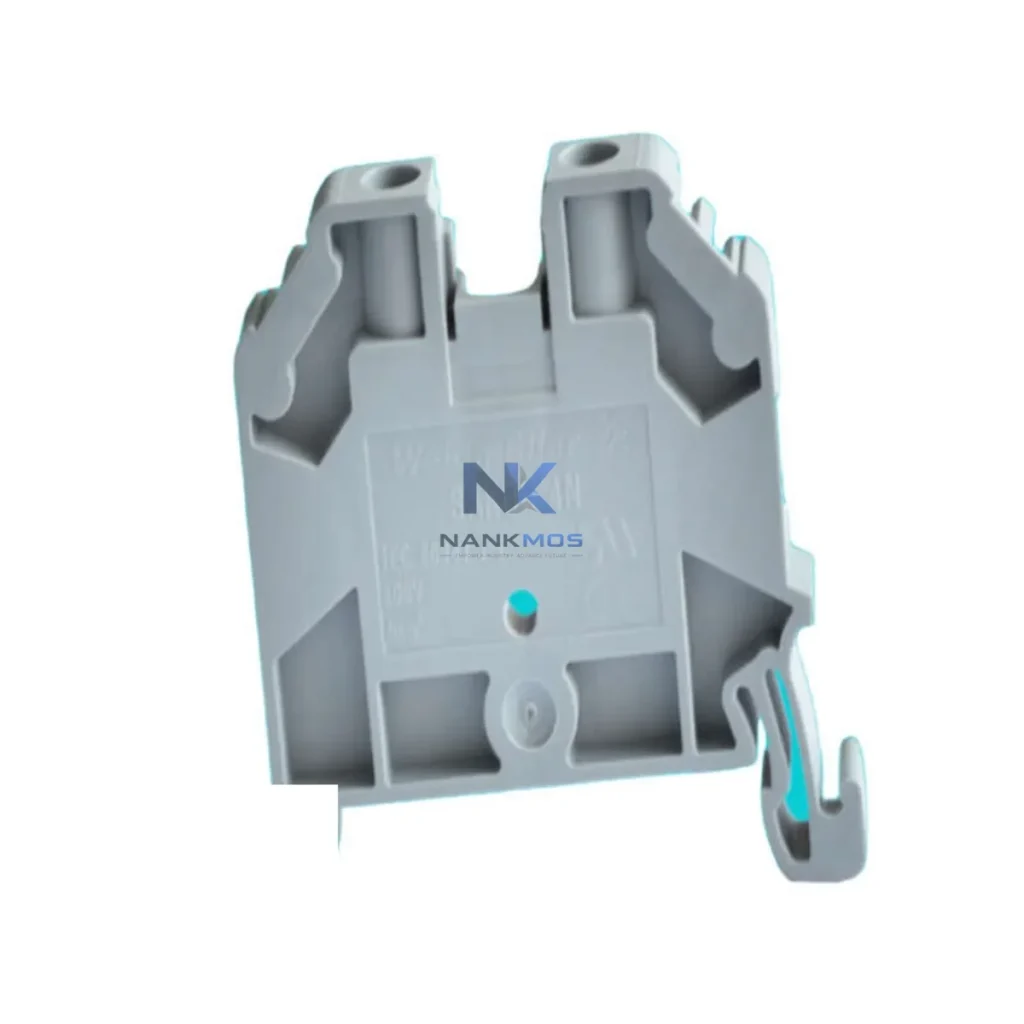

The Weidmüller SAKDU4 is a 4 mm² feed-through terminal block engineered for seamless integration within the SAKDU Series terminal block system. Designed to serve as a foundational wiring component across multi-layer industrial control architectures, the SAKDU4 delivers consistent electrical performance, mechanical reliability, and modular scalability in demanding automation environments. Whether deployed in discrete manufacturing lines, process control panels, power distribution cabinets, or field junction boxes, the SAKDU4 supports the full signal and power routing requirements of modern PLC-based control systems.

In a complete automation architecture, terminal blocks are not passive connectors — they are active participants in signal integrity, grounding strategy, circuit isolation, and maintenance accessibility. The SAKDU4 fulfills this role with precision-engineered contact geometry, vibration-resistant clamping, and a compact footprint that maximizes DIN rail density without compromising wiring access. Its compatibility with the broader SAKDU Series ecosystem ensures that engineers can build consistent, expandable wiring infrastructure across every layer of the control hierarchy.

Every SAKDU4 unit shipped by NANKMOS undergoes pre-shipment functional verification, ensuring that contact resistance, insulation integrity, and mechanical clamping force meet Weidmüller factory specifications. Backed by a 12-Month Warranty and supported by reliable inventory availability, the SAKDU4 is a dependable choice for both new panel builds and maintenance replacement programs.

The SAKDU4 terminal block is most effectively deployed as part of a structured, layered wiring strategy within a complete automation platform. In a typical PLC-based control cabinet, the SAKDU4 occupies the wiring layer between the controller backplane and the field device termination points, providing a clean, organized, and maintainable interface for signal routing and power distribution.

At the control layer, the SAKDU4 interfaces directly with the I/O terminals of Weidmüller u-remote or similar distributed I/O systems, ensuring that field signals arrive at the controller with minimal impedance variation and maximum contact reliability. When paired with Weidmüller SAKDU PE ground terminal blocks and SAKDU N neutral terminal blocks, the SAKDU4 forms a complete three-rail wiring system that satisfies both functional and safety grounding requirements within a single DIN rail segment.

For power distribution applications, the SAKDU4 works alongside Weidmüller SAKDU10 and SAKDU16 higher-current terminal blocks, allowing engineers to design mixed-current wiring sections on a single rail without changing the terminal block series or mounting system. This cross-compatibility reduces the number of distinct components in the panel BOM and simplifies spare parts management.

In communication-intensive architectures, the SAKDU4 provides the passive wiring backbone that supports PROFIBUS, PROFINET, EtherNet/IP, and Modbus RTU field device connections. While the SAKDU4 itself is a passive component, its role in maintaining clean signal separation between analog, digital, and communication circuits is critical to preventing ground loops and EMI-induced signal errors that can disrupt fieldbus communication integrity.

The SAKDU4 also integrates naturally with Weidmüller WDU 4 and WDU 6 terminal blocks in legacy panel retrofit projects, where engineers must match existing wiring infrastructure while upgrading control hardware. Its compatibility with standard DIN rail accessories — including end brackets, partition plates, and marking systems — ensures that SAKDU4-based wiring sections can be clearly documented and rapidly identified during maintenance operations.

For HMI and operator station wiring, the SAKDU4 provides reliable termination points for 24 VDC control circuits that power Weidmüller or third-party HMI panels, push-button stations, and indicator lights. In safety-critical applications, the SAKDU4 can be combined with Weidmüller SAKS or SAK series safety terminal blocks to create segregated safety circuit wiring zones within the same cabinet, maintaining IEC 62061 and ISO 13849 compliance requirements.

Across redundant control architectures — where dual PLC systems, redundant power supplies, and mirrored I/O configurations are required — the SAKDU4 supports clean physical separation of primary and secondary circuit wiring, reducing the risk of common-cause wiring faults that could compromise system redundancy. Its compact 6.1 mm pitch allows high-density wiring sections that maximize cabinet space utilization without sacrificing accessibility for maintenance personnel.

Discrete Manufacturing: In automotive assembly, electronics production, and machine tool applications, the SAKDU4 provides the wiring termination layer for servo drive control signals, proximity sensor inputs, and solenoid valve outputs. Its vibration-resistant screw clamp connection ensures reliable contact in high-cycle, high-vibration machine environments where loose terminations can cause intermittent faults and unplanned downtime.

Power Generation and Distribution: In power plant auxiliary control panels and substation relay panels, the SAKDU4 handles the termination of protection relay inputs, measurement transformer secondary circuits, and control power distribution. Its 800 V rated voltage and 32 A rated current make it suitable for medium-voltage auxiliary control applications where standard 690 V terminal blocks may be marginal.

Oil, Gas, and Petrochemical: In hazardous area control panels and safe-area marshalling cabinets, the SAKDU4 provides the field termination layer for intrinsically safe and non-incendive circuits. When used in conjunction with Weidmüller signal isolators and Zener barriers, the SAKDU4 supports Ex ia and Ex ib circuit architectures that comply with IEC 60079 installation requirements.

Water and Wastewater Treatment: In SCADA-controlled pump stations and treatment plant control panels, the SAKDU4 terminates analog 4–20 mA sensor signals from flow meters, level transmitters, and pressure sensors. Its consistent contact resistance ensures that milliamp-level signals are transmitted without measurable attenuation, preserving the accuracy of process measurements at the PLC analog input modules.

Mining and Metallurgy: In mine hoist control systems, conveyor drive panels, and smelter process control cabinets, the SAKDU4 provides reliable termination in high-dust, high-vibration environments. Its IP20 protection rating, combined with proper cabinet sealing, ensures long-term contact integrity in environments where airborne particulates can accelerate contact oxidation in lower-quality terminal blocks.

Marine and Offshore: In ship automation panels and offshore platform control systems, the SAKDU4 meets the wiring termination requirements of classification society-approved control panels. Its temperature range of -50 °C to +120 °C covers the full operating envelope of marine engine room and topside control applications, where ambient temperatures can vary significantly between operating and shutdown conditions.

Q1: Is the SAKDU4 compatible with other Weidmüller SAKDU Series terminal blocks on the same DIN rail? Yes. The SAKDU4 is fully compatible with all SAKDU Series variants, including SAKDU2.5, SAKDU6, SAKDU10, SAKDU PE, and SAKDU N, on a standard EN 60715 TS 35 DIN rail. Mixed-current sections can be assembled on a single rail using appropriate partition plates and end brackets from the SAKDU accessory range, allowing engineers to design complete wiring sections without changing terminal block series or mounting hardware.

Q2: What conductor types and sizes are compatible with the SAKDU4 screw clamp connection? The SAKDU4 accepts solid, stranded, and fine-stranded conductors in the range of 0.5 mm² to 6 mm² (AWG 20–10). For fine-stranded conductors, the use of Weidmüller ferrules (H series) is recommended to prevent conductor strand splaying under screw clamp pressure, which can increase contact resistance over time. Ferrule installation also simplifies re-termination during maintenance, as the conductor can be removed and re-inserted without re-stripping.

Q3: What warranty and supply assurance does NANKMOS provide for the SAKDU4? All SAKDU4 units supplied by NANKMOS are covered by a 12-Month Warranty against manufacturing defects and contact failure under normal operating conditions. Each unit undergoes pre-shipment inspection to verify mechanical integrity and contact quality before dispatch. NANKMOS maintains buffer stock of SAKDU4 and related SAKDU Series accessories to support both project procurement and emergency maintenance replacement requirements, with typical lead times of 3–7 business days for standard orders.
