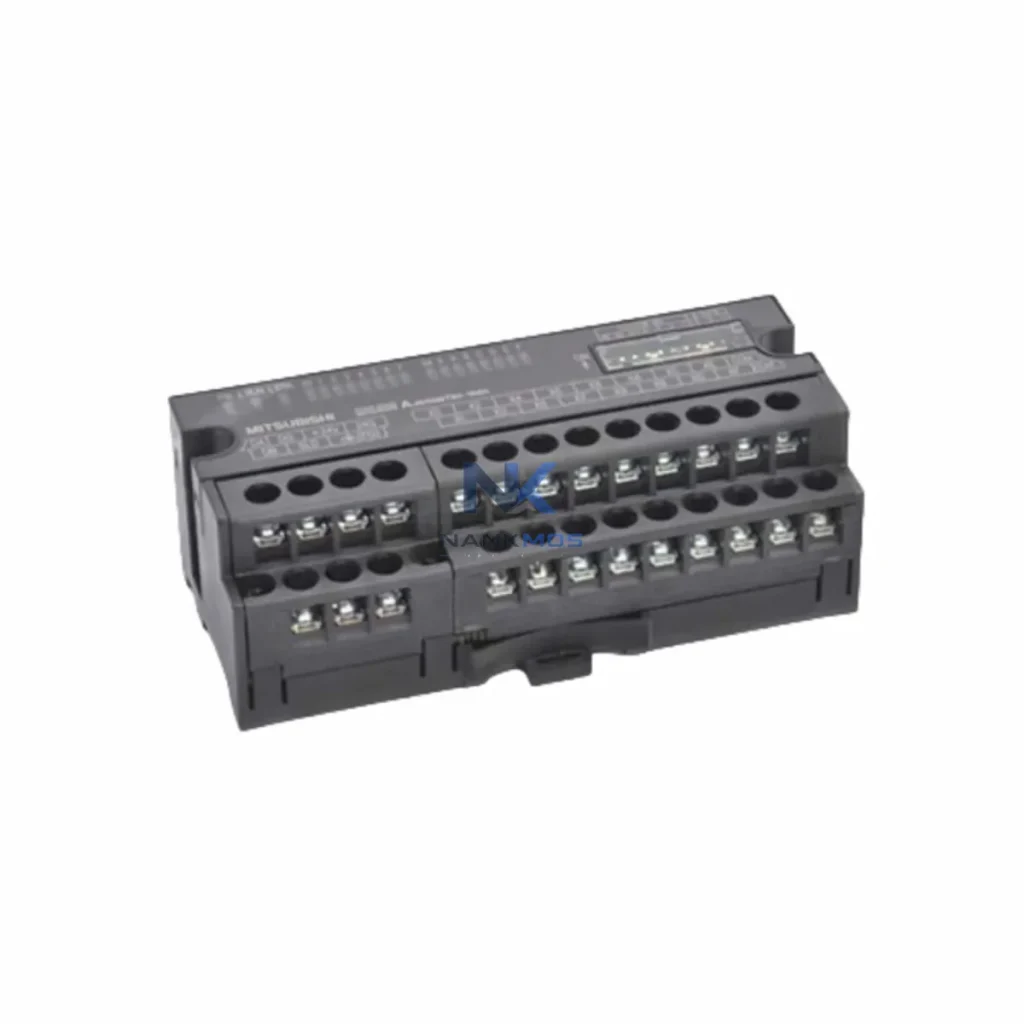

Mitsubishi AJ65MBTL1N-16D Remote I/O Module

Product Details

AJ65MBTL1N-16D Product Description

The Mitsubishi AJ65MBTL1N-16D is a high-performance CC-Link remote I/O module engineered for seamless industrial data communication across distributed automation architectures. Designed as part of the proven AJ65 series, this 16-point digital input module serves as a critical node in the smart factory data chain — bridging field-level devices with upper-layer control and monitoring systems through the CC-Link open network protocol. Whether deployed in automotive assembly, process manufacturing, energy management, or discrete production lines, the AJ65MBTL1N-16D delivers deterministic, low-latency signal acquisition that underpins real-time decision-making across the entire plant floor.

In a modern smart factory, data integrity begins at the field level. The AJ65MBTL1N-16D connects directly to sensors, proximity switches, photoelectric detectors, and limit switches on the production line, capturing 16 discrete digital input signals with high-speed polling accuracy. These signals are transmitted over the CC-Link network backbone to a Mitsubishi MELSEC Q-series PLC — such as the QJ61BT11N CC-Link master module — which acts as the central control node coordinating all remote station data.

From the PLC, real-time process data flows upward through an industrial Ethernet switch (e.g., a managed Layer 2 switch supporting PROFINET or EtherNet/IP bridging) to the SCADA layer, where supervisory software such as Mitsubishi SCADA or third-party platforms like Wonderware or Ignition visualize production KPIs, alarm states, and throughput metrics. Alongside the AJ65MBTL1N-16D, companion modules such as the AJ65SBTB1-16D (digital input) and AJ65SBTB1-16T (transistor output) can be deployed on the same CC-Link segment to expand I/O capacity without additional wiring infrastructure.

For mixed-protocol environments — where legacy PROFIBUS or Modbus RTU devices coexist with CC-Link nodes — an edge gateway such as the Mitsubishi QJ71MB91 Modbus interface module or a third-party protocol converter handles transparent data bridging, ensuring that field signals from the AJ65MBTL1N-16D reach the SCADA historian without data loss or latency spikes. This architecture also supports integration with Mitsubishi GOT2000 series HMIs, which can display live I/O status, fault codes, and diagnostic data sourced directly from the CC-Link network.

In drive-intensive applications, the CC-Link data chain extends to Mitsubishi FR-A800 series variable frequency drives, which report speed feedback, torque load, and fault status as network variables alongside the digital inputs from the AJ65MBTL1N-16D. Power quality monitoring is handled by industrial power supplies and energy meters connected as CC-Link intelligent device stations, feeding consumption data into the plant energy management system. For remote sites or multi-building facilities, a CC-Link IE Field Network gateway bridges the local CC-Link segment to the plant-wide Gigabit Ethernet backbone, enabling centralized remote diagnostics and firmware management from the control room or cloud-based MES platform.

Data collected by the AJ65MBTL1N-16D is ultimately archived in a data acquisition module or edge computing node — such as a Mitsubishi MELIPC or equivalent IIoT gateway — where it is pre-processed, timestamped, and forwarded to cloud analytics dashboards. This end-to-end data flow, from raw digital input to visualized production intelligence, is what defines the AJ65MBTL1N-16D's role not merely as an I/O module, but as a foundational connectivity component in the smart factory data chain.

Protocol Fragmentation: Many production sites operate a mix of CC-Link, Modbus, PROFIBUS, and DeviceNet devices. The AJ65MBTL1N-16D, as a native CC-Link station, eliminates the need for custom wiring adapters at the input level. When paired with a protocol gateway module, it enables unified data collection from heterogeneous field devices into a single PLC scan cycle.

Data Silos and Production Blind Spots: Without distributed remote I/O, field signals from distant machine stations often go unmonitored or require dedicated local PLCs. The AJ65MBTL1N-16D extends the CC-Link network to remote machine clusters — up to 1,200 meters at 156 kbps — eliminating data silos and giving SCADA operators full visibility into every production zone from a centralized interface.

Remote Monitoring and Alarm Traceability: The module's deterministic CC-Link communication ensures that alarm signals from field sensors reach the PLC and SCADA system within the network cycle time, enabling rapid fault isolation and alarm traceability. Maintenance teams can remotely diagnose I/O faults, verify signal states, and confirm device health without physical site visits, reducing mean time to repair (MTTR) significantly.

System Scalability: As production capacity grows, additional AJ65-series remote I/O modules can be added to the CC-Link segment without redesigning the control architecture. The AJ65MBTL1N-16D supports hot-swap-compatible network expansion, allowing engineers to scale from a single station to a full 64-station CC-Link network while maintaining backward compatibility with existing MELSEC PLC programs.

Q1: What is the maximum communication distance for the AJ65MBTL1N-16D on a CC-Link network? The CC-Link network supports transmission distances up to 1,200 meters at 156 kbps and up to 100 meters at 10 Mbps. Distance can be extended using CC-Link repeater modules, allowing the AJ65MBTL1N-16D to be deployed in large-footprint facilities without signal degradation.

Q2: Is the AJ65MBTL1N-16D compatible with Mitsubishi iQ-R and Q-series PLC master stations? Yes. The AJ65MBTL1N-16D is fully compatible with CC-Link master modules across the MELSEC Q-series (QJ61BT11N), L-series, and iQ-R series platforms. It operates as a remote device station and is recognized automatically during network parameter configuration in GX Works2/3 engineering software.

Q3: Can this module be integrated into a SCADA or HMI system for real-time monitoring? Yes. Digital input data from the AJ65MBTL1N-16D is mapped to PLC device memory (bit devices) and is accessible to any SCADA or HMI platform that communicates with the Mitsubishi PLC via Ethernet, serial, or OPC-UA. Mitsubishi GOT2000 HMIs and third-party SCADA systems can display live I/O states, alarm histories, and diagnostic flags sourced from this module.

Q4: What warranty and pre-shipment testing does NANKMOS provide for the AJ65MBTL1N-16D? Every AJ65MBTL1N-16D unit supplied by NANKMOS is covered by a 12-Month Warranty and undergoes pre-shipment functional testing to verify CC-Link communication integrity, digital input response, and terminal block continuity. Units are shipped from verified inventory with full traceability documentation. For procurement inquiries, contact [email protected] or call +86 18359268345.
