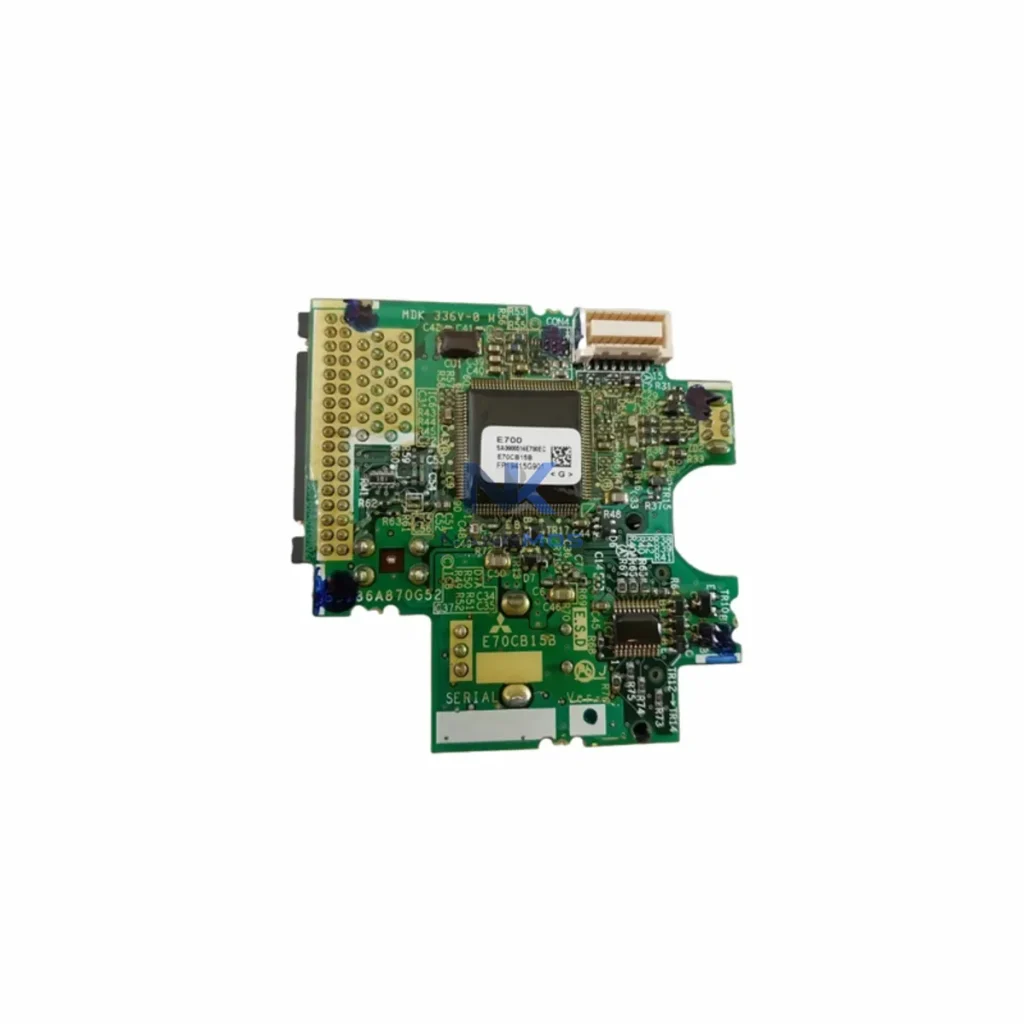

Mitsubishi E70CB15B CNC CPU Motherboard

Product Details

E70CB15B Product Description

The Mitsubishi E70CB15B is the central processing motherboard engineered for the MELDAS E70 CNC control platform — a high-performance, rack-integrated architecture widely deployed across precision machining centers, multi-axis turning systems, and complex milling lines. As the computational core of the E70 control cabinet, the E70CB15B governs real-time interpolation, axis command distribution, I/O arbitration, and system-level diagnostics. Its role within the control hierarchy is not peripheral — it is the architectural anchor that determines the coherence, responsiveness, and long-term reliability of the entire CNC system.

Designed for direct integration into the MELDAS E70 backplane, the E70CB15B maintains full electrical and firmware compatibility with Mitsubishi's established E70 ecosystem. This compatibility ensures that system integrators and maintenance engineers can deploy or replace the board without reconfiguring axis parameters, PLC ladder logic, or servo tuning profiles — a critical advantage in production environments where downtime carries measurable cost.

The E70CB15B does not operate in isolation — its value is realized through its role as the coordination layer within a fully integrated MELDAS E70 control cabinet. In a complete E70 architecture, the CPU motherboard interfaces directly with the E70 Power Supply Unit (such as the MDS-E-CV series or equivalent E70-compatible power module), which provides regulated DC rails to the backplane. Voltage stability at the power layer is a prerequisite for deterministic CPU cycle times and uninterrupted axis command execution.

On the servo side, the E70CB15B communicates with MDS-E-SVJ3 or MDS-EJ servo amplifier modules via the MELDAS high-speed serial bus, enabling synchronized multi-axis motion with sub-millisecond command latency. For spindle control, the MDS-E-SP spindle drive receives speed and torque commands through the same bus architecture, ensuring that spindle and feed axis movements remain phase-coherent during complex contouring operations.

The I/O layer is managed through E70-compatible DI/DO expansion units mounted on the same rack, handling machine tool signals including tool change confirmation, door interlock, coolant control, and axis limit switches. These I/O modules communicate with the E70CB15B through the backplane bus, eliminating the need for external I/O controllers and reducing wiring complexity within the control cabinet.

For operator interaction, the MELDAS E70 HMI panel — typically a dedicated Mitsubishi CNC display unit — connects to the CPU board via the front-panel interface, providing real-time program monitoring, parameter editing, alarm display, and manual data input (MDI) capability. The HMI layer depends entirely on the CPU board's processing capacity to render axis position data, program execution status, and diagnostic messages without latency.

Communication with higher-level systems — including SCADA platforms, MES software, and remote monitoring tools — is routed through the Ethernet interface supported by the E70 architecture. The E70 communication gateway module or onboard Ethernet port enables data exchange using standard industrial protocols, supporting production data collection, remote parameter backup, and predictive maintenance integration. In redundant or multi-machine configurations, the E70CB15B's system bus also supports coordination with E70 expansion backplanes, allowing axis count to be scaled without replacing the CPU core.

Signal integrity across the system is maintained through proper grounding of the E70 rack, shielded cabling between servo amplifiers and the backplane, and the use of Mitsubishi-specified terminal block modules for I/O wiring. In high-EMI environments — common in heavy cutting, grinding, or EDM applications — additional signal isolation modules may be inserted between the I/O expansion units and field devices to protect the CPU board from transient interference that could cause spurious alarms or axis faults.

Precision Machining Centers: In horizontal and vertical machining centers, the E70CB15B manages simultaneous 3- to 5-axis interpolation, tool length compensation, and cutter radius correction in real time. Its deterministic processing ensures that complex contouring paths — including helical interpolation and NURBS curves — are executed with the positional accuracy required for aerospace, automotive, and mold-making applications.

CNC Turning and Turning-Milling Centers: For multi-turret and multi-spindle turning centers, the CPU motherboard coordinates C-axis and Y-axis milling operations alongside primary turning cycles. The E70CB15B's axis arbitration capability allows simultaneous cutting on multiple tool posts without command conflicts, reducing cycle time and improving surface finish consistency.

Power Generation and Heavy Industry: Large-format CNC boring mills and floor-type machining centers used in power generation component manufacturing rely on the E70 architecture for long-stroke axis control and thermal compensation. The E70CB15B's stable processing environment supports extended machining cycles — often exceeding 24 hours — without requiring system resets or parameter recalibration.

Petrochemical and Process Equipment Manufacturing: Manufacturers of pressure vessels, heat exchangers, and pipeline components use MELDAS E70-based systems for precision boring and threading operations. The CPU board's reliable I/O management ensures that safety interlock signals — including emergency stop, overtravel, and spindle load monitoring — are processed with the priority and speed required by process safety standards.

Shipbuilding and Marine Component Machining: Large CNC gantry mills and portal machining centers in shipyard fabrication facilities operate in high-vibration, high-humidity environments. The E70CB15B's industrial-grade design and rack-integrated mounting provide the mechanical and electrical robustness required for continuous operation in these demanding conditions.

Packaging and Automated Production Lines: In high-speed packaging machinery with integrated CNC axes — such as servo-driven forming, cutting, and sealing stations — the E70CB15B provides the real-time axis synchronization needed to maintain product registration accuracy at production speeds. Its fast I/O response time supports integration with vision systems and reject mechanisms without introducing control latency.

Q1: Is the E70CB15B directly compatible with all MELDAS E70 series control cabinets, and does replacement require axis re-tuning? The E70CB15B is designed as a system-matched CPU motherboard for the MELDAS E70 platform and is electrically and mechanically compatible with standard E70 backplane configurations. In most replacement scenarios, axis parameters, servo gain settings, and PLC ladder programs stored in the system's non-volatile memory or backup media are retained and do not require re-entry. However, it is recommended to perform a full parameter backup before replacement and to verify servo amplifier communication status after installation. If the replacement unit carries a different firmware revision, a parameter compatibility check against the existing MDS-E servo amplifier firmware is advisable before resuming production.

Q2: What are the key considerations for installing the E70CB15B in high-EMI or high-vibration industrial environments? The E70CB15B should be installed in a properly grounded E70 rack with all backplane connectors fully seated and secured. In high-EMI environments — such as those with large servo drives, welding equipment, or high-frequency spindle inverters in close proximity — shielded cables should be used for all servo feedback and I/O connections, with shield grounds terminated at the control cabinet earth bar rather than at both ends. Anti-vibration mounting for the control cabinet is recommended in environments with floor-transmitted vibration above 0.5G. Periodic inspection of backplane connector seating is advised as part of the preventive maintenance schedule, particularly in high-cycle or high-vibration applications.

Q3: What does the 12-Month Warranty cover, and how does NANKMOS support long-term inventory supply for the E70CB15B? The 12-Month Warranty covers manufacturing defects and functional failures under normal operating conditions from the date of shipment. It does not cover damage resulting from incorrect installation, electrical overstress, unauthorized modification, or use outside the specified environmental parameters. NANKMOS maintains dedicated inventory of MELDAS E70 series components — including the E70CB15B — to support both immediate replacement needs and planned maintenance programs. All units undergo pre-shipment functional testing and are shipped with appropriate ESD protection and packaging. For long-term supply agreements or multi-unit procurement, contact NANKMOS directly to discuss availability, lead times, and volume pricing.
