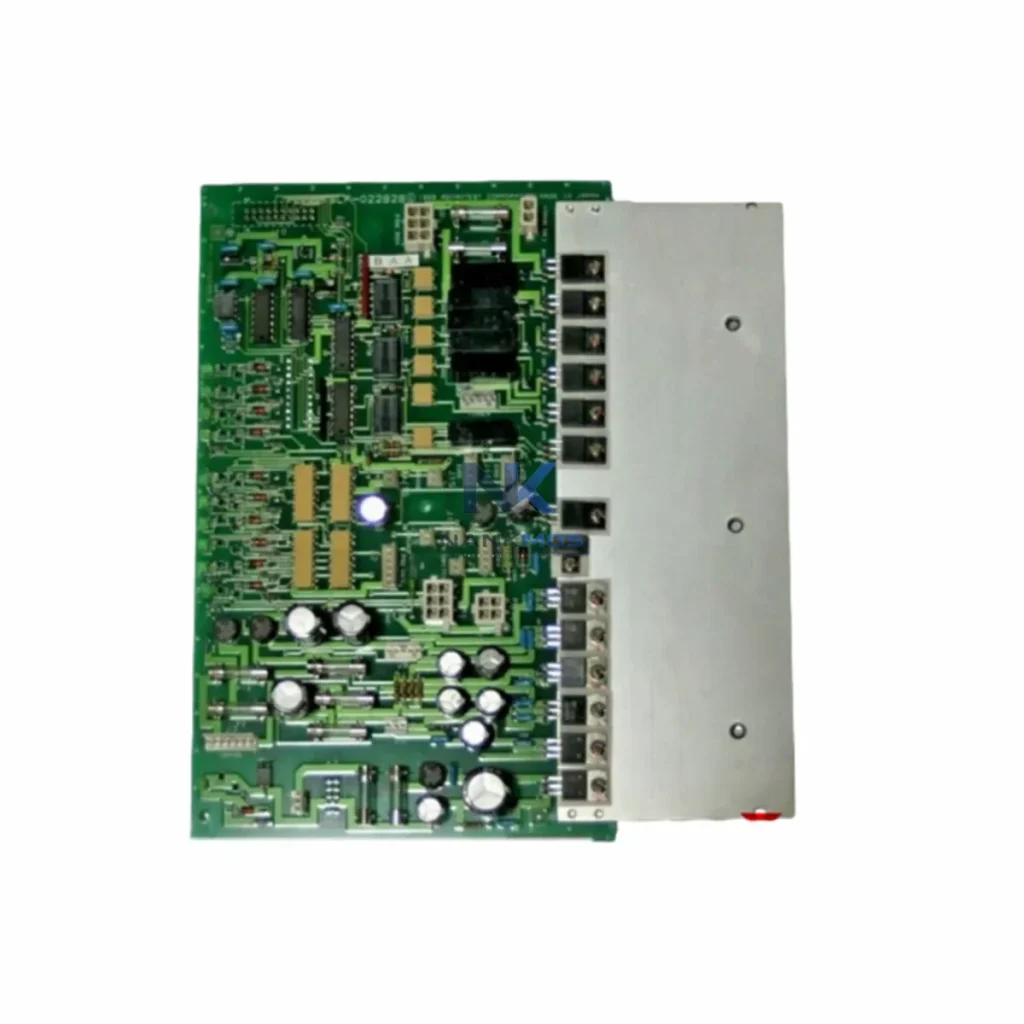

ADVANTEST BLF-022828 Handler Interface Module

Product Details

BLF-022828 Product Description

The Advantest BLF-022828 is a precision Handler Interface Module engineered for the Advantest V93000 Automatic Test Equipment (ATE) platform. Designed to bridge the physical and digital gap between DUT (Device Under Test) handlers and the V93000 test head, this module delivers deterministic, low-latency signal routing that underpins the entire semiconductor test data chain — from device contact to final bin-sort output. In smart factory environments where test throughput, data integrity, and system uptime are non-negotiable, the BLF-022828 serves as the critical connectivity node that keeps production lines transparent, traceable, and responsive.

As semiconductor manufacturing shifts toward fully integrated smart factory architectures, the role of the handler interface extends far beyond simple signal pass-through. The BLF-022828 participates in a broader data flow ecosystem: test results generated at the V93000 test head are captured in real time, routed through the handler interface, and fed upstream to MES (Manufacturing Execution Systems), SCADA platforms, and data visualization dashboards. This end-to-end data chain enables engineers to monitor yield trends, trigger alarm feedback on bin failures, and initiate remote diagnostic routines — all without interrupting active test sequences.

In a fully connected semiconductor test environment, the BLF-022828 sits at the intersection of physical device handling and digital data infrastructure. The data flow begins at the handler — typically a gravity-feed or pick-and-place unit such as those used with the Advantest V93000 PS1600 or V93000 SoC test platforms — where the BLF-022828 receives and transmits bin-sort signals, end-of-test (EOT) triggers, and handler control commands with microsecond-level precision.

These signals are processed by the V93000 test head and simultaneously logged by the Advantest SmarTest 8 software environment, which acts as the primary test executive and data aggregation layer. From SmarTest 8, structured test result data — including parametric measurements, pass/fail bins, and device identifiers — is exported via standard industrial data interfaces to upstream systems. In facilities running Camstar MES or Siemens Opcenter manufacturing execution platforms, this data feeds directly into real-time yield dashboards and SPC (Statistical Process Control) engines.

For facilities integrating SCADA-level visibility, the V93000 data stream can be bridged through an OPC-UA gateway or an industrial Ethernet switch — such as those in the Moxa EDS or Hirschmann SPIDER series — connecting the ATE island to the plant-wide SCADA network. This enables operators at HMI workstations to monitor test cell status, active device counts, and alarm states without direct access to the SmarTest console. Remote diagnostic sessions can be initiated through the SCADA layer, allowing process engineers to review test logs, adjust handler timing parameters, and validate interface signal integrity from off-site locations.

The BLF-022828 also plays a role in multi-site test configurations. When paired with the Advantest V93000 Multi-Site Controller and additional Pin Scale 1600 (PS1600) load boards, the handler interface ensures synchronized bin-sort outputs across parallel test sites, maintaining data coherence even as throughput scales. Edge computing nodes — such as those running Advantest's WINSOCK-based data collection agents or third-party edge gateways — can subscribe to real-time test event streams, enabling local data buffering and anomaly detection independent of central MES availability.

For power and signal integrity across the test cell, the BLF-022828 operates within the V93000's regulated power distribution architecture, complementing V93000 Power Scale modules and precision DC source/measurement units (SMUs) that supply and monitor DUT power rails during test. This integrated power-and-signal design ensures that handler interface operations do not introduce noise or ground loops into sensitive parametric measurements.

Protocol Fragmentation: Semiconductor test environments often combine legacy SECS/GEM communication stacks with modern OPC-UA or REST-based MES interfaces. The BLF-022828, operating within the V93000 SmartScale ecosystem, supports standardized data handshaking that allows test results to be formatted and forwarded to both legacy and modern upstream systems without custom middleware development.

Data Silos Between Test and Fab: Without a reliable handler interface, test result data can become isolated within the ATE island — invisible to fab-wide yield management systems. The BLF-022828 ensures that every device test event generates a traceable data record that propagates upstream to MES and SCADA layers, eliminating blind spots in production transparency.

Remote Monitoring and Diagnostics: Test cell downtime is costly. The BLF-022828's integration with the V93000 platform enables remote diagnostic access through SmarTest 8's built-in diagnostic tools and SCADA-connected alarm systems. Engineers can identify handler interface faults, signal timing deviations, or bin-sort mismatches remotely, reducing mean time to repair (MTTR) and minimizing unplanned downtime.

Production Line Transparency and Alarm Tracking: Real-time bin-sort data from the BLF-022828 feeds alarm management systems that flag yield excursions, handler jams, or interface signal anomalies. This closed-loop alarm architecture ensures that process engineers receive actionable alerts — not raw data dumps — enabling faster root-cause analysis and corrective action.

System Scalability: As test capacity expands, additional V93000 test heads and handler interface modules can be integrated into the existing network architecture without redesigning the data flow. The BLF-022828's compatibility with the V93000 SmartScale multi-site framework ensures that scalability does not compromise data integrity or handler synchronization.

Q1: What communication protocols does the Advantest BLF-022828 support for integration with MES and SCADA systems? The BLF-022828 operates within the Advantest V93000 platform, which supports SECS/GEM (SEMI E5/E30) for MES communication and can be bridged to OPC-UA or industrial Ethernet networks via gateway modules. This enables seamless data exchange with Camstar, Siemens Opcenter, and other fab-level MES/SCADA platforms without custom protocol development.

Q2: Is the BLF-022828 compatible with multi-site test configurations, and does it affect network stability? Yes. The BLF-022828 is designed for use within the V93000 SmartScale multi-site architecture. It maintains synchronized bin-sort and control signal outputs across parallel test sites, ensuring network stability and data coherence even at high throughput. Signal timing is deterministic, minimizing latency-induced data errors in multi-site deployments.

Q3: Can remote diagnostics be performed on the BLF-022828 without interrupting active test sequences? Remote diagnostic access is supported through the V93000's SmarTest 8 software environment and SCADA-connected monitoring layers. Engineers can review interface signal logs, handler timing parameters, and alarm histories remotely. Non-invasive diagnostic routines can be executed between test sequences, minimizing impact on production throughput.

Q4: What warranty and pre-shipment testing does the BLF-022828 include? Every BLF-022828 unit is covered by a 12-Month Warranty from the date of shipment. Pre-shipment functional testing is performed to verify handler interface signal integrity and compatibility with V93000 system requirements. Units are in stock and available for immediate dispatch, with full traceability documentation provided upon request.
