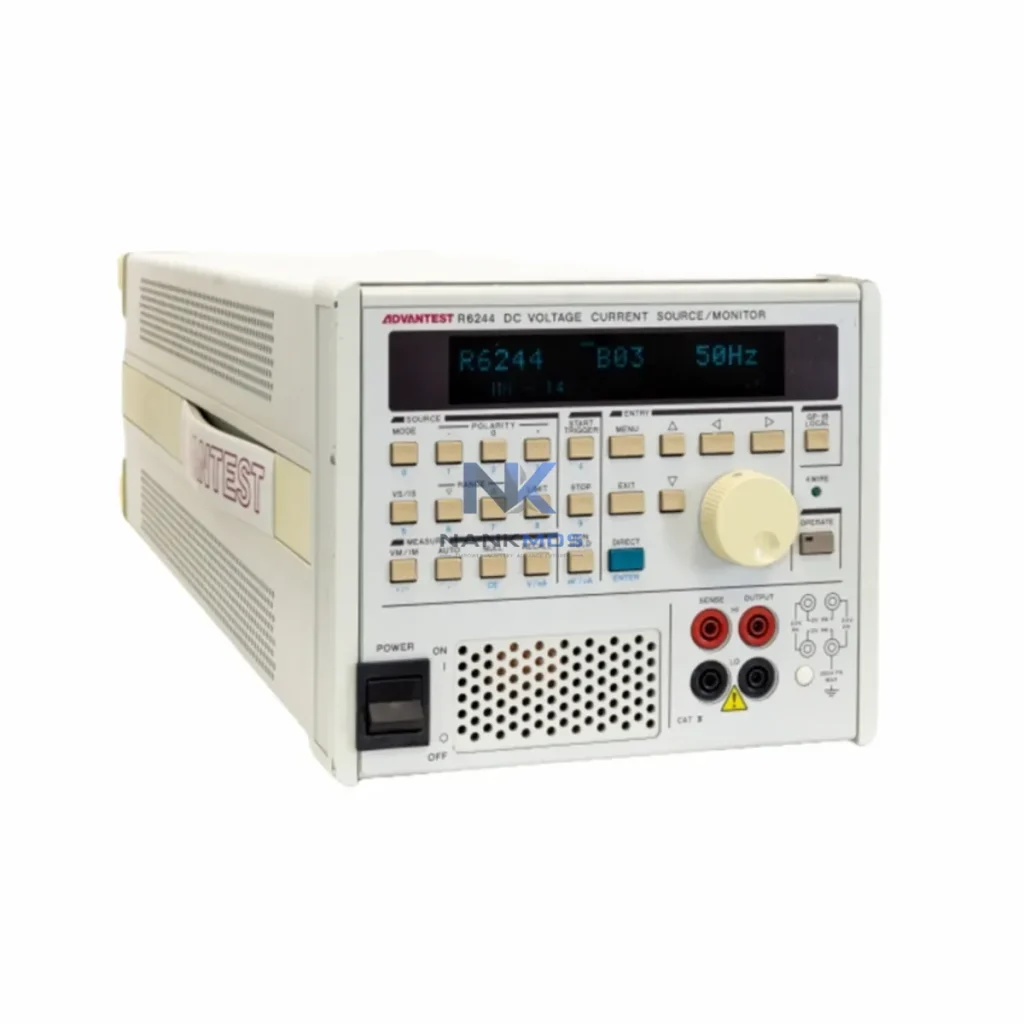

ADVANTEST R6244 DC Voltage/Current Source Monitor

Product Details

R6244 Product Description

The Advantest R6244 is a precision DC voltage and current source/monitor module engineered for seamless integration within the R6240 modular mainframe architecture. Designed to serve as a core measurement and sourcing node in automated test equipment (ATE) environments, the R6244 delivers high-accuracy parametric test capability across semiconductor, electronic component, and device characterisation workflows. Its architecture-native design ensures that every channel operates in full synchronisation with the R6240 system bus, enabling coordinated multi-channel sourcing, real-time measurement feedback, and deterministic timing across the entire test platform.

In modern ATE and industrial control validation environments, measurement accuracy and system coherence are inseparable. The R6244 addresses both by providing tightly regulated DC output with programmable voltage and current ranges, low-noise measurement circuitry, and a communication interface fully compatible with the R6240 mainframe's internal control fabric. Whether deployed in a single-module configuration for focused parametric testing or as part of a multi-slot R6240 rack populated with complementary modules, the R6244 maintains consistent signal integrity, channel isolation, and measurement repeatability — all critical attributes for high-throughput production test and engineering validation.

From a system architecture perspective, the R6244 occupies the measurement and sourcing layer of the R6240 platform, working in concert with the mainframe's timing controller, system bus arbiter, and inter-module communication channels. This layered architecture allows test engineers to configure complex multi-channel test sequences without introducing cross-channel interference or timing jitter. The module's programmable compliance limits, auto-ranging capability, and fast settling time further reduce test cycle overhead, directly improving throughput in high-volume production environments.

The R6244 achieves its full potential when deployed within a coherent R6240-based test platform. The Advantest R6240 mainframe provides the chassis, power distribution, and system bus that coordinates all installed modules, including the R6244, into a unified test instrument. Alongside the R6244, engineers frequently populate the R6240 rack with additional source/monitor modules such as the Advantest R6243 (a complementary DC source/monitor with alternative range configurations) and the Advantest R6245 (extended voltage range source monitor), enabling multi-channel parametric sweeps across a broad range of device under test (DUT) conditions.

For applications requiring AC signal generation or frequency-domain characterisation alongside DC parametric testing, the R6240 platform supports integration with Advantest R6552 or similar AC source modules, allowing the same mainframe to serve both DC and AC test requirements without reconfiguration. The system's GPIB interface layer connects the R6240 mainframe to external test controllers — typically a dedicated ATE workstation running Advantest TestStream or compatible SCPI-based test executive software — ensuring deterministic command execution and synchronised measurement triggering across all installed modules.

In semiconductor wafer-level and package-level test environments, the R6244 is commonly paired with Advantest T2000 or Advantest V93000 platform peripherals for device interface board (DIB) signal routing, where the R6244's low-noise DC sourcing capability is critical for accurate threshold voltage (Vth), leakage current (Ileak), and breakdown voltage (BVdss) measurements. For production-line ATE racks, the R6240 mainframe's modular slot architecture also accommodates Advantest R6246 high-current source modules and Advantest R6248 precision voltage reference modules, enabling a single chassis to address the full parametric test matrix of complex mixed-signal and power semiconductor devices.

System-level signal integrity is maintained through careful attention to grounding architecture, shielded cabling between the R6240 mainframe and the DUT interface, and the use of Kelvin (4-wire) measurement connections for resistance and low-voltage measurements. This ensures that the R6244's measurement accuracy is preserved end-to-end, from the module's internal ADC through the system bus, cabling, and DUT contact interface — a critical requirement in high-precision parametric test environments where measurement uncertainty directly impacts yield analysis and process control decisions.

Semiconductor Manufacturing: In front-end wafer fabrication and back-end package test lines, the R6244 serves as the primary parametric measurement node for transistor characterisation, diode forward voltage measurement, and MOSFET threshold voltage extraction. Its integration within the R6240 mainframe allows test engineers to execute multi-step parametric sweeps — sourcing voltage while monitoring current, or vice versa — with the timing precision required for high-volume production test at wafer probe and final test stages.

Electronic Component Qualification: For passive and active component manufacturers requiring incoming quality control (IQC) and outgoing quality control (OQC) parametric verification, the R6244 provides a reliable, repeatable measurement platform. Its programmable compliance limits protect sensitive DUTs from over-stress during characterisation, while its fast settling time minimises test cycle time — a key factor in high-volume component qualification workflows.

Power Electronics and EV Drivetrain Validation: In power module and IGBT/SiC device characterisation laboratories, the R6244's DC sourcing and monitoring capability supports static parameter extraction (on-resistance, gate threshold voltage, leakage current) at controlled bias conditions. When integrated with thermal control systems and environmental chambers, the R6240 platform enables temperature-dependent parametric characterisation across the full operating range of power semiconductor devices used in EV inverters, industrial motor drives, and renewable energy converters.

Aerospace and Defence Electronics Test: For MIL-SPEC and DO-254 compliant electronics test environments, the R6244's measurement accuracy and channel isolation support the rigorous parametric verification requirements of avionics, radar, and communications hardware. The R6240 mainframe's modular architecture allows test configurations to be rapidly reconfigured for different DUT types, reducing test fixture changeover time and supporting flexible test programme management.

Research and Development Laboratories: In university and corporate R&D environments, the R6244 provides a versatile, programmable DC source/monitor for device physics research, materials characterisation, and prototype evaluation. Its GPIB-compatible interface integrates seamlessly with standard laboratory automation frameworks, enabling scripted measurement sequences and data logging for statistical analysis and process development.

Q1: Is the Advantest R6244 compatible with all R6240 mainframe configurations, and can it be mixed with other R6240-series modules in the same chassis? Yes. The R6244 is designed as a native plug-in module for the Advantest R6240 modular mainframe and is fully compatible with the R6240's internal system bus, power distribution, and slot architecture. It can be installed in any available module slot alongside other R6240-series modules — including additional R6244 units for multi-channel configurations, R6243 or R6245 source/monitor modules with alternative range specifications, and R6246 high-current modules — without requiring any hardware modification to the mainframe. Module-to-module communication and timing synchronisation are managed by the R6240 mainframe controller, ensuring coherent multi-channel operation across all installed modules.

Q2: What are the installation and calibration requirements for the R6244, and how does it affect long-term maintenance planning? The R6244 installs directly into the R6240 mainframe chassis via the module's front-panel connector and locking mechanism — no tools are required for module insertion or removal. Initial system calibration should be performed after installation using the R6240's built-in self-calibration routine, which compensates for inter-module offset and gain variations. For long-term maintenance, NANKMOS recommends annual calibration verification against traceable reference standards to maintain measurement accuracy within specification. All R6244 units supplied by NANKMOS are covered by a 12-Month Warranty, which includes support for hardware defects and measurement performance issues identified during the warranty period. Replacement modules are available from NANKMOS stock to minimise system downtime during maintenance cycles.

Q3: What is the stock availability and lead time for the Advantest R6244, and what pre-shipment testing is performed? NANKMOS maintains ready stock of the Advantest R6244 to support urgent production line requirements and laboratory procurement timelines. Each unit undergoes functional verification and parametric performance testing prior to dispatch, confirming that voltage sourcing accuracy, current measurement linearity, and system bus communication meet Advantest's published specifications. Units are shipped with full test documentation and are covered by NANKMOS's 12-Month Warranty from the date of dispatch. For volume orders or time-critical procurement, please contact NANKMOS directly to confirm current stock levels and expedited shipping options.
